Advance Settings

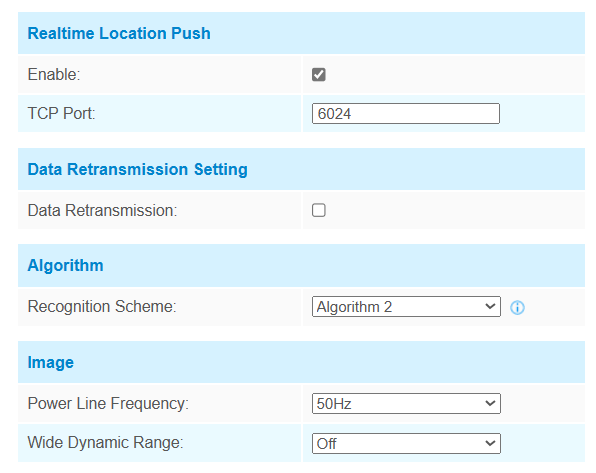

General Settings



Parameters Description
Realtime Location Push Work as a TCP server to push the realtime location information of people to TCP clients.
Note: The TCP port should be different from other used service ports.
Data Retransmission Setting Enable to resend stored data packets from the disconnected period when the device's network connection is restored.

Every recipient can receive 1,000 pieces of data at most (totally 3,000 pieces). This only works with the trigger report and periodic report of region people counting, line cross counting or people flow analysis without snapshot information.
Recognition Scheme Select the recognition scheme of region people counting based on your detection environment.

Algorithm 1: Suitable for monitoring complex environments which have many objects, like office supplies (books, printers, lamps, etc.)

Algorithm 2: Suitable for monitoring simple and clean environments like meeting rooms.
Detection Persistence Time Settings To address the issue of short-term detection interruptions caused by partial occlusion (e.g., raised hands or clothing), the device introduces a Detection Persistence Time setting. This feature allows the system to retain the same target ID within a defined duration, even if the target momentarily disappears from view. It ensures more accurate dwell time statistics, especially in environments like elevators or meeting rooms.
  1. If the target remains at or returns to its original position before the duration expires, the original ID is preserved.
  2. If the target fails to return to its original position after the duration expires, a new ID will be assigned.
  3. If another target occupies the original position before the duration expires, the IDs of the two targets may be exchanged.

Users can choose between two modes:

Auto: The device automatically determines persistence based on algorithm logic.

Custom: Users can manually define a time to maintain the target ID after disappearance for improved tracking continuity.

Note: This feature is intended for environments with low movement and a limited number of people, such as elevator waiting areas. Using it in crowded or highly dynamic settings may reduce detection accuracy.
Image Power Line Frequency:Select based on your power source frequency standard, 60 Hz and 50 Hz are available.
Wide Dynamic Range:This function which can capture and display both bright and dark areas in the same frame that enables details of objects in both bright and dark areas to be visible. It’s recommended to enable this function when the scene has a clear contrast between light and dark (such as a corridor).

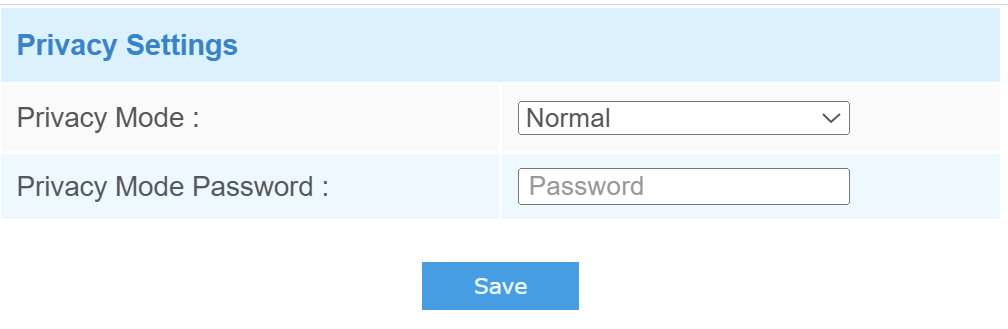

Privacy Setting

Users can switch the view mode here when they want to change how the screen is presented. This password is the same one you set when you first enabled Privacy Mode during login.



Note: If you want to change Privacy Mode password, press and hold the reset button on the device for more than 10 seconds. After the device resets, log in again and follow the prompts to set a new password.

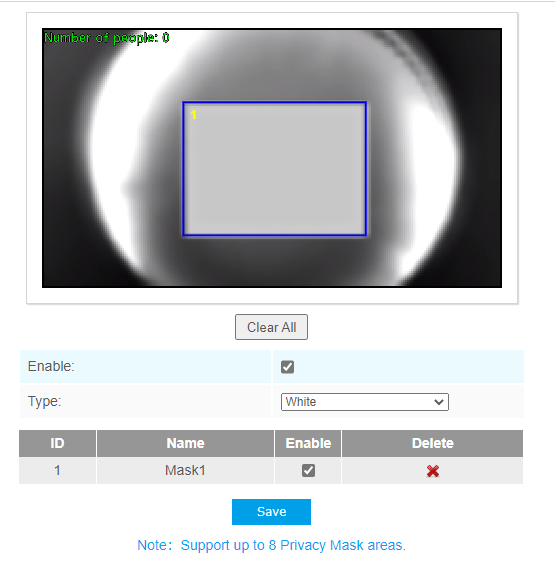

Privacy Mask

Privacy mask enables to cover certain areas on the live video to prevent certain spots in the surveillance area from being viewed and prevent people within the area from being counted. You can set 8 mask areas at most.



Parameters Description
Enable Check the checkbox to enable the Privacy Mask function.
Clear All Clear all areas you drew before.
Type Select the color for the privacy areas, there are two colors available: White and Black.
