I/O Settings
The device supports to send pulse signals when the target passes through the detection line. Please refer to the wiring diagram and use the Multi-interface Cable to connect the device in the correct sequence.

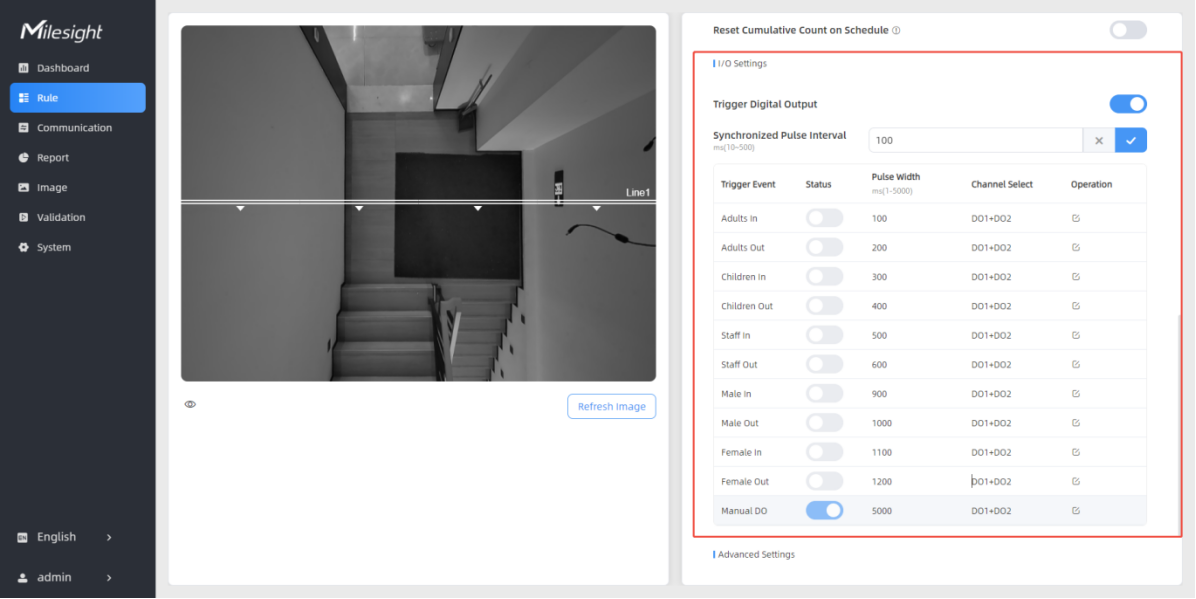

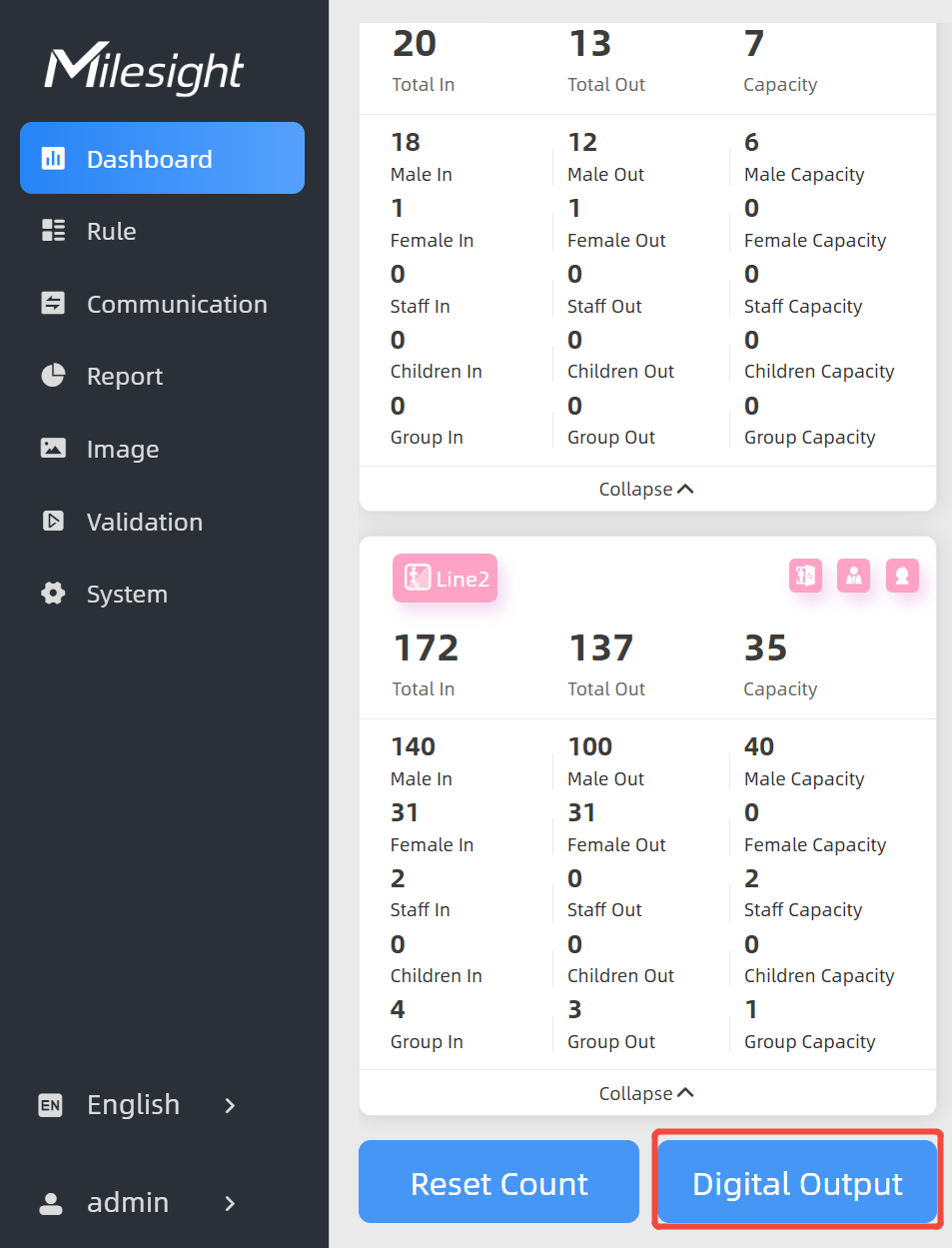

Step 1: Enable Trigger Digital Output, the digital output will send a preset width of high level.
Step 2: Fill in Synchronized Pulse Interval, the interval between multiple pulses when several people pass through or multiple events trigger at the same time.
Step 3: Enable trigger events.

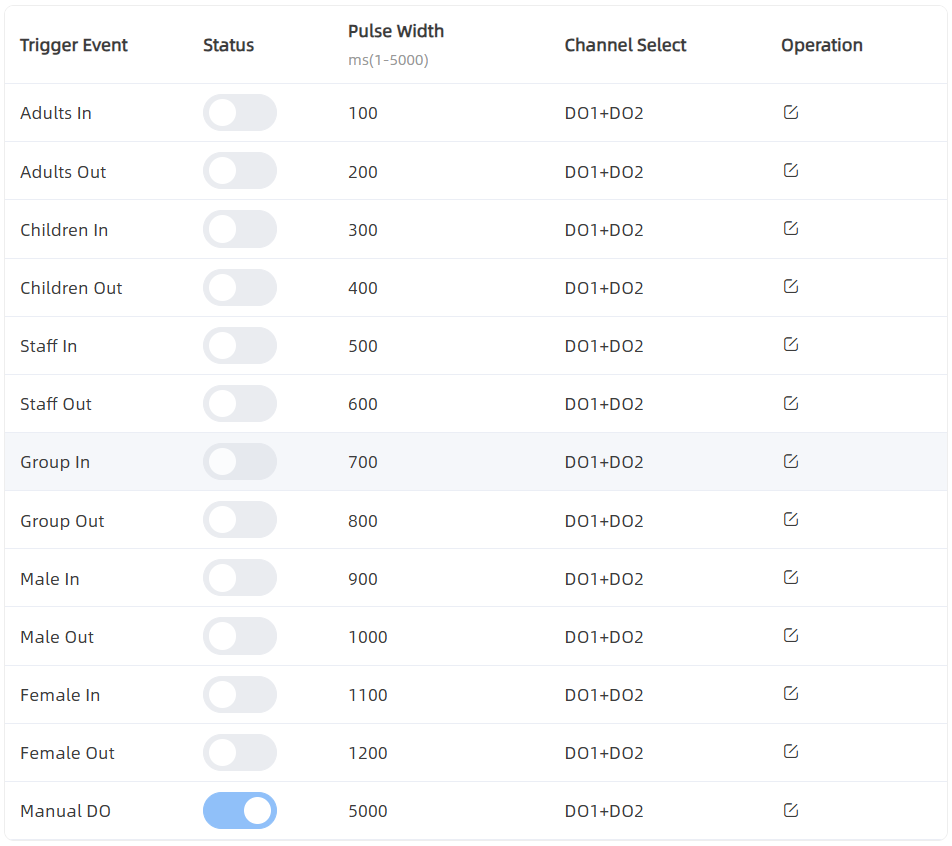

| Parameters | Description |
|---|---|
| Trigger Event | The events to trigger the DOs to send
pulse signals. Note: If staff event triggers,
sending staff pulse signals, does not synchronize gender or adult
pulse signals. |
| Status | Enable or disable the event to trigger the output of a pulse signal. |
| Pulse Width | The duration of the pulse signal. |
| Channel Select | Select which DO port to output the pulse signal. |
| Operation | Click to edit the information. |
