4K H.265 Mini NVR 1000 Series
4/8-CH With Ultra-mini Size
Look Cool, Play Smooth
- 4/8-CH Network Video lnput
- 10TB Storage & NAS
- 4K Decoding Capabilities
- AI VCA Management
- POS Integration
- ANR
- FEATURES
- MODELS
- DOWNLOAD
- Home
- Network Video Recorder
- Mini NVR 1000 Series
AI VCA Management
Defined as the central management site to manage intelligent VCA, People Counting, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.
POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.
Dual Stream Recording
Supporting Primary Stream and Secondary Stream recording simultaneously, Dual Stream Recording makes it possible for you to freely choose the desired streaming based on the bandwidth available.
UHD Video Display
Equipped with solid 4K decoding and display capabilities, Milesight 4K Mini NVRs can synchronously decode up to 1-CH 4K UHD and 4-CH 1080P with the finest details to guarantee real-time video monitoring.
HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.
Flexible Storage Options
Flexible storage options including 10TB HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.
ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.
Easy-to-use Design
Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.

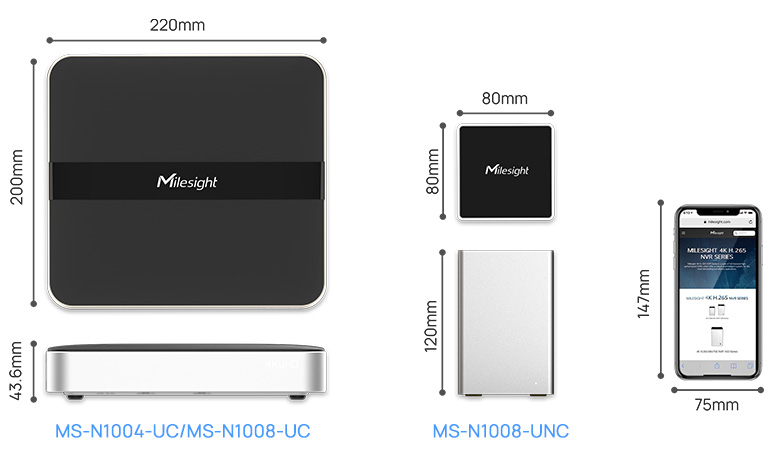

Ultra Mini Size
With ultra mini size of 220mm*200mm*43.6mm(MS-N1004-UC/MS-N1008-UC) or 80mm*80mm*120mm(MS-N1008-UNC), Mini NVRs feature compact and discreet design while with no compromise on the functionality, providing an easier way to ensure the quality video management.
Thermal Design
The metal panel on the bottom of MS-N1004-UC/MS-N1008-UC dissipates the heat effectively. Meanwhile, the ventilation holes on the side and bottom panels of MS-N1004-UC/MS-N1008-UC and the rear and bottom panels of MS-N1008-UNC maximize airflow and carry heat away, ensuring the heat to transfer under a variety of different load conditions.
Versatile Interfaces
Though developed to take up as less space as possible, the 4K H.265 Mini NVRs come with a whole array of ports such as an HDMI port, 2 USB ports and a LAN port.
MS-N1004-UC/ MS-N1008-UC
MS-N1008-UNC
- 1. LED Indicator
- 2. USB
- 3. HDMI
- 4. LAN
- 5. Power
- 6. Reset
- 7. Power Button
- 8. Ventilation Hole
Specifications
- MS-N1004-UC
- MS-N1008-UC
- MS-N1008-UNC
| Input | |
|---|---|
| Network Video Input | 4-CH |
| Bandwidth Requirement | 40Mbps (Incoming)40Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 4*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Storage | |
| SATA | 1*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100Mbps |
| USB Interface | 2*USB 2.0 |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 2A |
| Consumption | ≤2.3W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 220mm(W)X200mm(D)X43.6mm(H) |
| Weight | 0.19Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
C - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 8-CH |
| Bandwidth Requirement | 80Mbps (Incoming)80Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Storage | |
| SATA | 1*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100Mbps |
| USB Interface | 2*USB 2.0 |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 2A |
| Consumption | ≤2.3W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 220mm(W)X200mm(D)X43.6mm(H) |
| Weight | 0.19Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
C - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 8-CH |
| Bandwidth Requirement | 80Mbps (Incoming)80Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps @6MP), 1*(30fps @5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps @1080P), 8*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Storage | |
| SATA | 2*SATA HDD(2.5”) |
| Capacity | Up to 2TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting, Object Left, Object Removed |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 1.5A |
| Consumption | ≤4.1W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 80mm(W)X80mm(D)X120mm(H) |
| Weight | 0.85Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
C - H.265 Compression
