5G High Mobility

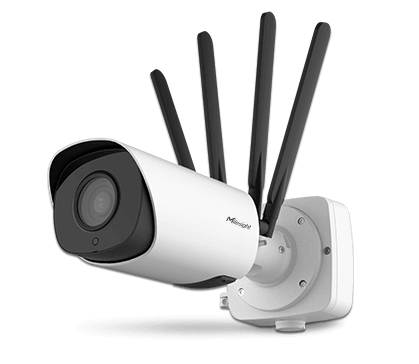

Milesight AI Road Traffic 5G Pro Bullet Plus Camera can transmit data wirelessly by simply inserting a SIM card, eliminating the need of complicated network cable and fiber connections. Thus, it greatly assists in the traffic management in situations where temporary traffic control, costly network deployment, or bothersome wiring are inevitable.

5G Highly Efficient Data Transmission

With the higher data speed of 5G technology, Milesight AI Road Traffic 5G Pro Bullet Plus Camera can significantly reduce network latency while remaining high resolution. It establishes the foundation for a massive traffic management database that contains data on every vehicle and every incident, thus making it achievable to offer prompt evidence and insight in no time.

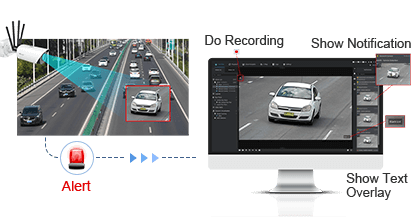

Traffic Violation Detection

Designed for mission-critical traffic management, AI-based AI Road Traffic 5G Pro Bullet Plus Cameras accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Parking Violation Detection, Speeding Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection based on recognized vehicle features.

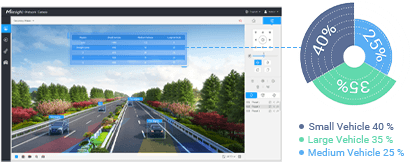

Traffic Flow Statistics

AI Road Traffic 5G Pro Bullet Plus Cameras provide valuable traffic flow statistics to further enhance traffic management capabilities. The vehicle counting result based on vehicle type, vehicle make and various vehicle features can be shown intuitively in camera’s live view and the camera can also generate useful report insights to aid in improved decision-making.

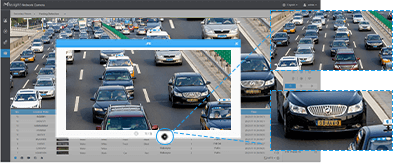

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, AI Road Traffic 5G Pro Bullet Plus Camera can link with any regular cameras to capture the evidence. Thanks to the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots.

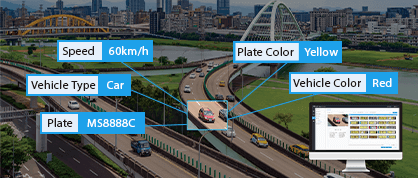

LPR Smart Search

With Milesight LPR Smart Search, relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent ai road traffic monitoring. In addition, it supports manual export and automatic export for easy management by security operators.

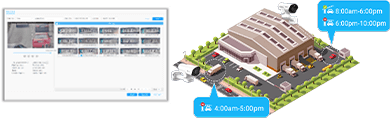

Plate Data Management

Milesight offers a number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems. AI Road Traffic 5G Pro Bullet Plus Camera features on-edge plate management for black/white lists realizing the fast implementation for barrier control. It also works well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions. Besides, it offers various CGI/APIs and supports interfaces and protocols like Wiegand, TCP, HTTP, etc., which makes it easy to integrate openly with all data being pushed to third-party VMS or platforms.

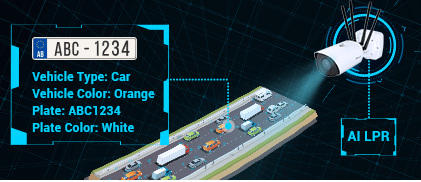

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

Superior Image Quality

Milesight applies Sony’s high sensitive 1/2" sensor for its high sensitivity which is designed for capturing saturated and sharp images even in pitch dark environment. Milesight AI Road Traffic 5G Pro Bullet Plus Camera is coupled with the 3 in 1 Super WDR Pro, 100fps high frame rate and 4K video viewing experience that deliver ultra-high-definition images with no latency despite of the high-speed movement.

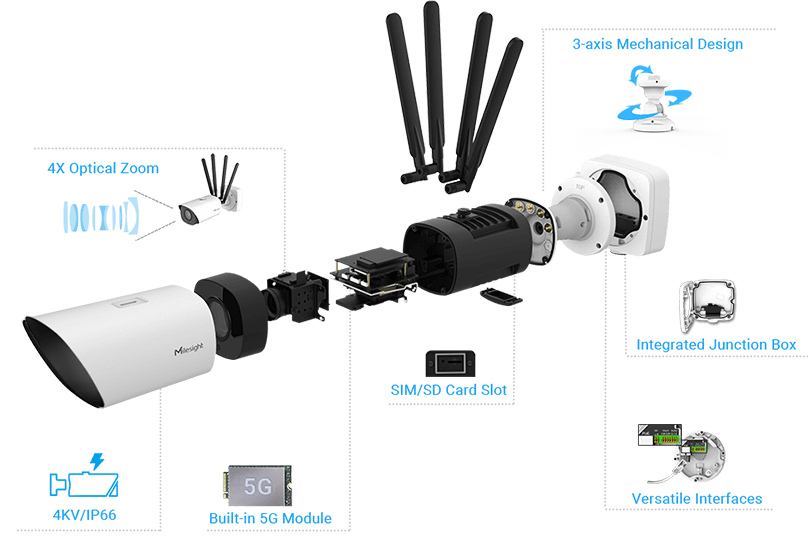

Easy Deployment and Compact Structure

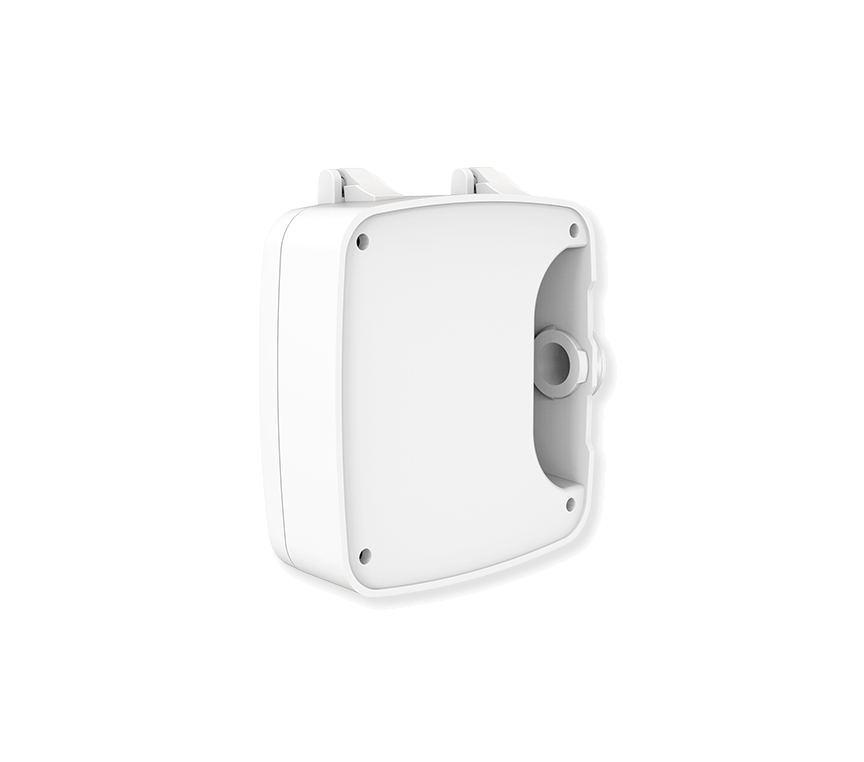

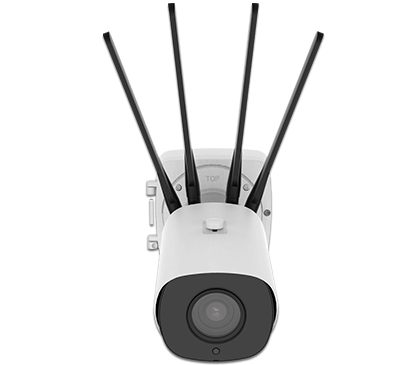

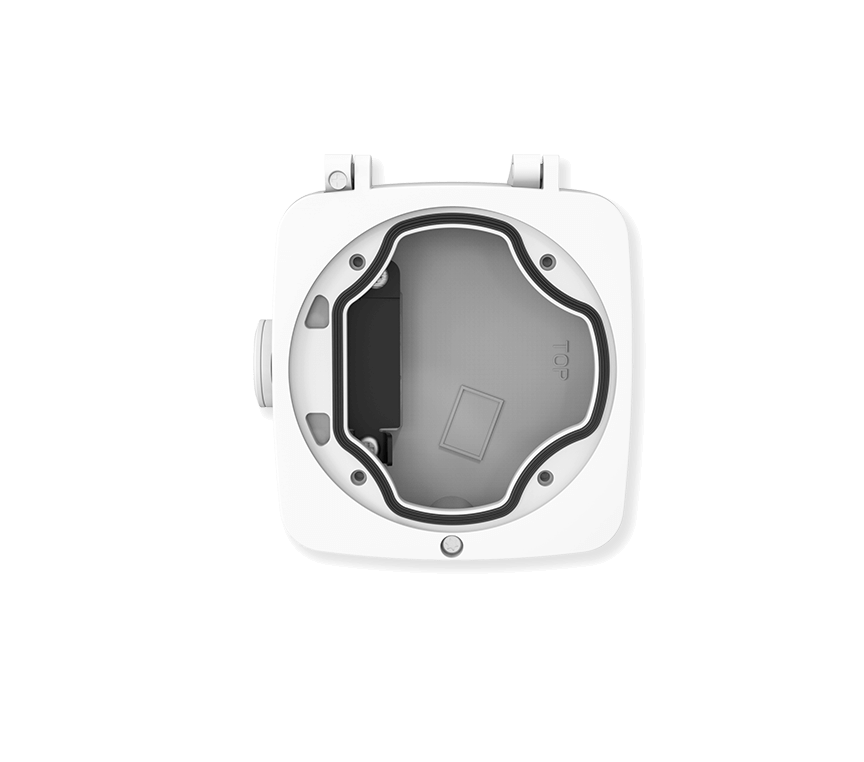

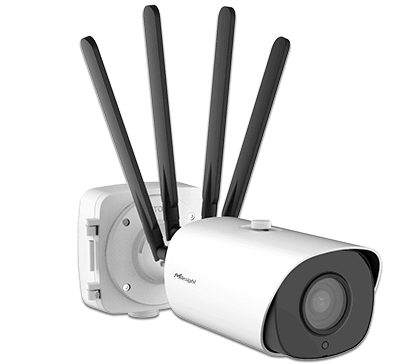

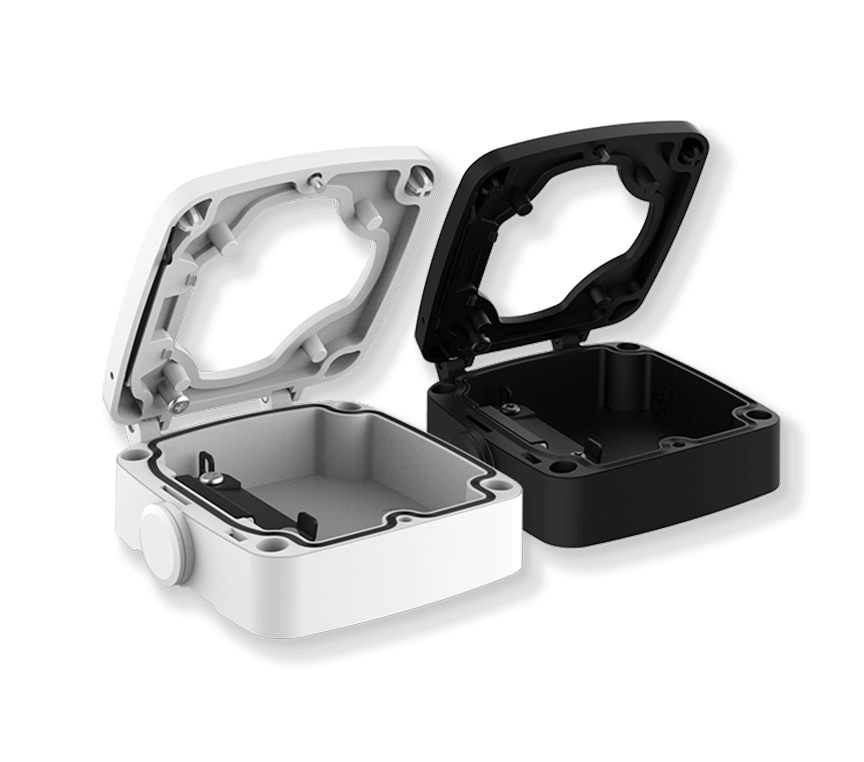

Featuring 4X Optical Zoom Lens, Milesight AI Road Traffic 5G Pro Bullet Plus Camera achieves a clear visual experience perfectly for long distance. 5G antenna is built outside the camera and the 5G module is directly merged inside the camera. By inserting the SIM card, you can monitor in places where network wiring is not convenient. No need to worry if you are in complex environments, versatile interfaces and integrated junction box ensure installation neat and tidy.

TS2866-X4TGPC

Camera	Name	AI Road Traffic 5G Pro Bullet Plus Camera
	Image Sensor	1/2″ Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux@F1.6 B/W: 0Lux with IR on
	WDR	140dB Super WDR Pro
	Shutter Time	1/100000s~1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Lens	Lens	8~32mm, 4X Optical Zoom
Field of View		H44°~H13°/D51°~D15°/V25°~V7°
Mount		Φ14
Focus Control		Auto/Manual
Aperture		F1.6-F1.7
Iris Control		Auto
Road Traffic Management		Max. Vehicle Speed	200km/h
	Recognition Accuracy	>95%
	Coverage	Support simultaneous detection of 4 regions
	Country Region Supported	More than 80 countries and regions
	Illumination Distance	Up to 30m
	Attributes Identification	Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
	Smart Traffic Function	Evidence Camera Linkage,Vehicle Counting Based on Vehicle Type, Specific Lane Management
	White/Black List	Up to 1000 records inside the camera
	LPR Smart Search	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Mobile Communication Parameter		Wireless Communication	Support 5G/4G/3G
	Frequency Bands	5G NR: n1/n2/n3/n5/n7/n8/n12/n20/n28/n41/n66/n71/n77/n78/n79
		LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B9/B12/B13/B14/B17/B18/B19/B20/B21(TBD)/ B25/B26/B28/B29/B30/B32/B66/B71
		LTE-TDD: B34/B38/39/B40/B41/B42/B48
		LAA: B46
		WCDMA: B1/B2/B3/B4/B5/B6/B8/B19
	Wireless Transmission Speed	SA: DL 3.3Gbps; UL 250Mbps
		NSA: DL 3.4Gbps; UL 200Mbps
		LTE: DL 2.0Gbps; UL 150Mbps
		WCDMA: DL 42Mbps; UL 5.76Mbps
	SIM Card	Nano SIM
	Video	Max. Image Resolution	1920x1080
Primary Stream		60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream		60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI		Up to 8 areas
Image Settings		Brightness/Contrast/Saturation/Sharpness
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Protocol	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
System		System Compatibility	API, HTTP, TCP, ONVIF Profile G & Q & S & T
	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur,
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼95%(Non-condensing)
Power Supply		PoE (802.3at) / DC 12V±10%
Power Consumption		8W MAX 14W MAX (With IR on)
Surge Protection		4KV
Weather Proof		Up to IP67-rated for Weather-resistant Performance (Only for camera body)
Dimensions		320mmX134mmX126mm
Weight		1608g
Warranty		3/5 Years
