AI Video Analytics

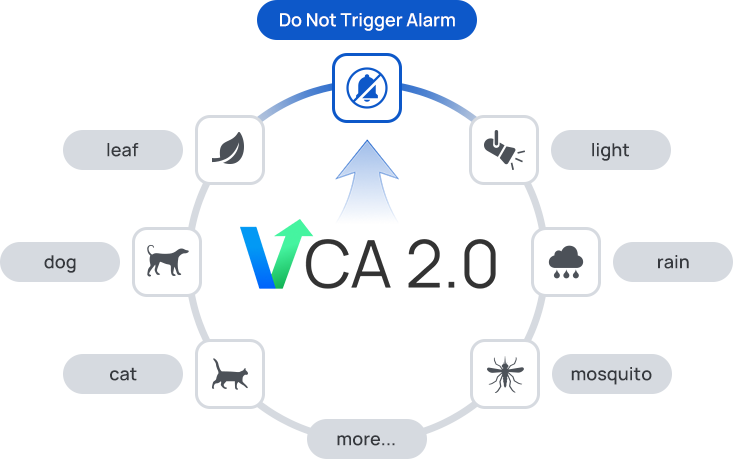

Powered by advanced AI engine, Milesight new generation video analytics boasts with higher accuracy via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight cameras can intelligently filter objects to focus on human and vehicle detection, together with multiple event rules including region entrance, object removed, loitering, etc., to meet diverse scenarios for building a smarter and safer world.
People Counting
Milesight People Counting Technology provides high accuracy and real-time data based on AI algorithm, with statistic reports for further analysis. It is a reliable and efficient way to understand the flow movement and make fast decision on security management. By analyzing the data and trend, you can also identify the peak of occupancy and increase the operational efficiency of the business.
Face Detection
The intelligent Face Detection brings security surveillance to a new level. Milesight AI Camera Series detects human faces in the monitoring scene and captures the snapshots. This function greatly enhances the monitoring efficiency by screening out the useful facial information. With the snapshots, the people in concern can be quickly located, which benefits the large population related industries such as public security, access control and business management.
Leading-edge H.265+ Compression

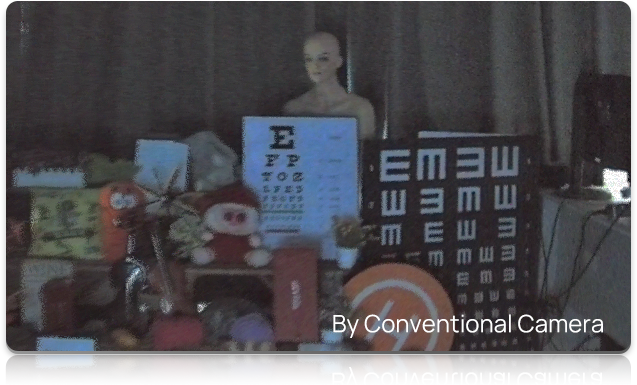

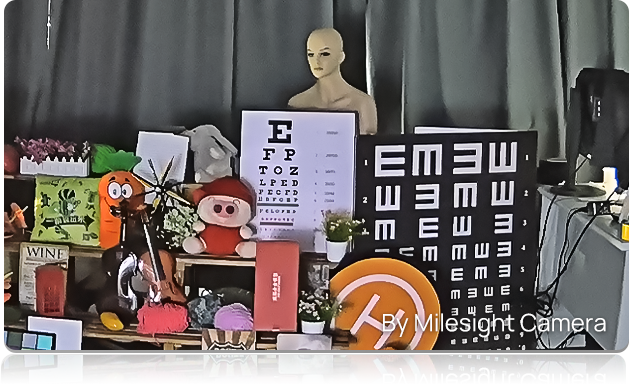

0.002Lux Ultra Low Light
With the starlight premium technology, Milesight AI Camera Series is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

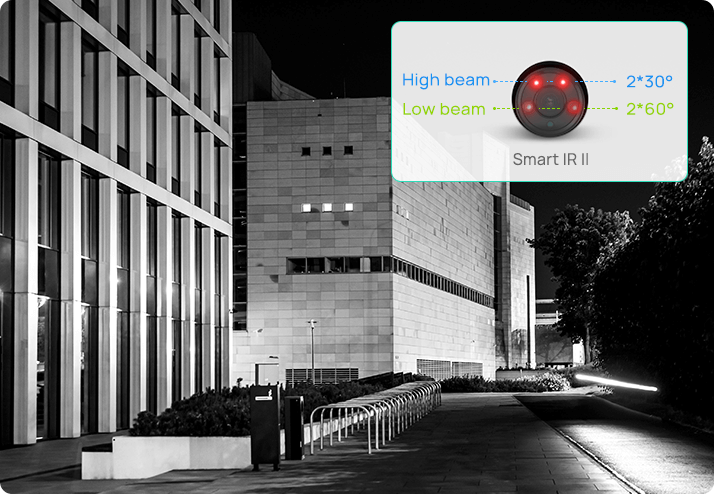

Smart IR II
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 60m(100m). Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

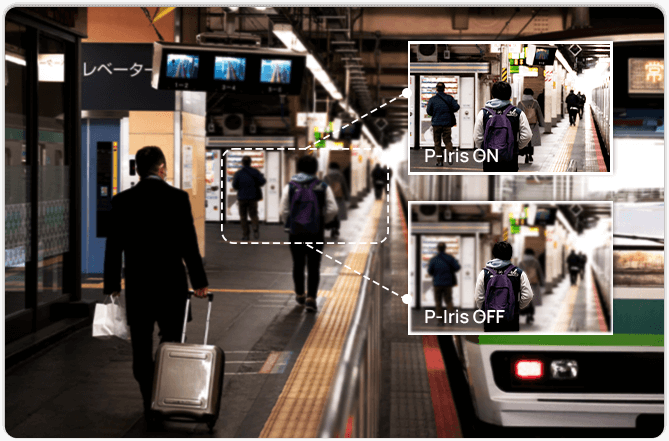

P-Iris Control
Adopting P-Iris control technology, Milesight AI Motorized Pro Bullet Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

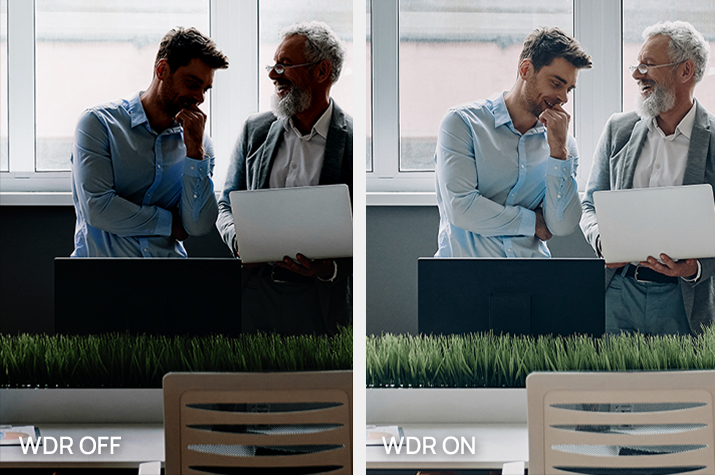

140dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

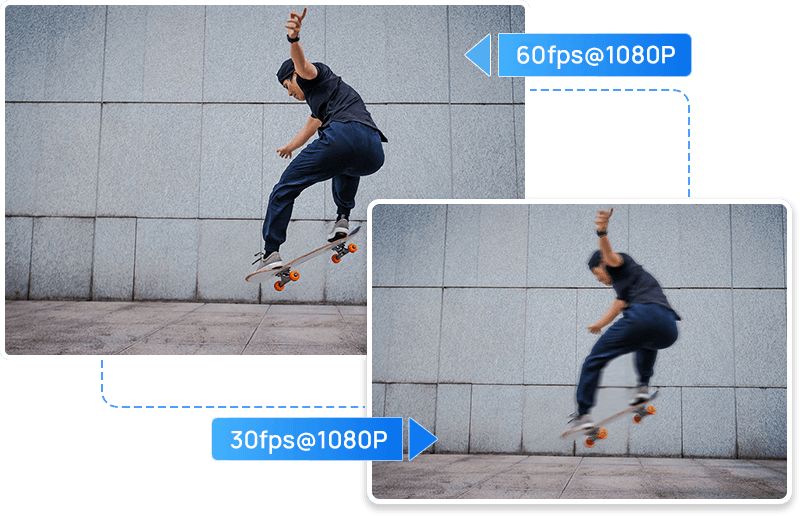

High Frame Rate
Milesight AI Motorized Pro Bullet Camera provides 60fps@2MP and 30fps@5MP resolutions. The high frame rate enables Milesight AI cameras to capture real-time and low-latency images of fast moving object clearly.
3rd Generation Dot Matrix IR LEDs
In order to provide superior night visibility, Milesight AI Motorized Pro Bullet Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.
Motorized Zoom Lens
Equipped with motorized zoom & focus lens, Milesight AI Motorized Pro Bullet Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports
IP67&IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proofing which are the leading level of the industry, the camera is well protected against adverse impact to ensure the performance.

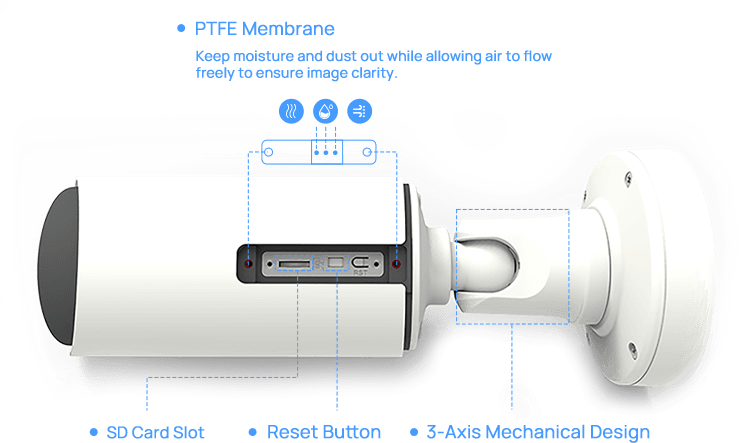

PTFE Membrane
Applying the PTFE membrane to ventilation holes, the AI Motorized Pro Bullet Network Camera housing is designed to keep moisture and dust out while allowing air to flow into and out of the device, which effectively ensures pressure equalization in the enclosures and prevents fogging and a buildup of condensation of the lenses, guaranteeing supreme image clarity.
Unique Design
Surprisingly, the AI Motorized Pro Bullet Network Camera is designed to offer maximum enjoyment of usability and extensibility with a SD card slot and reset button locate in the camera body. Moreover, tidy and flexible installation needs are perfectly met by 3-Axis adjustable bracket in the rear.
Integrated Cable Management Bracket
In the AI Motorized Pro Bullet Network Camera's body are SD card slot and reset button, offering maximum enjoyment of usability and extensibility. At the rear is 3-axis adjustable bracket, which perfectly meets tidy and flexible installation.

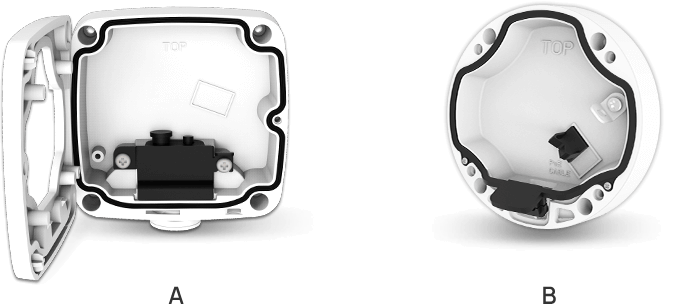

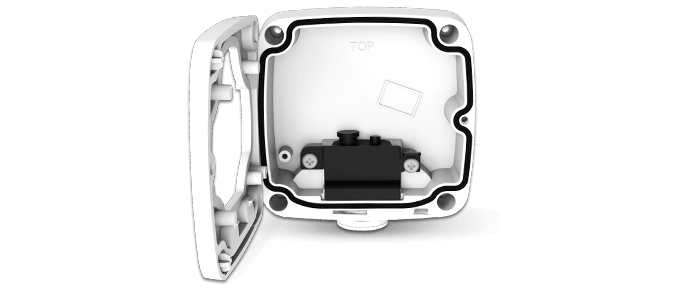

Integrated Junction Box
A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear.
-
Camera Camera Name AI 2MP H.265 Motorized Pro Bullet Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on WDR 140dB Super WDR (Super WDR Pro is optional for Q & T Series) Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 60m(3.0∼10.5mm/2.7∼13.5mm)/ 100m(7∼22mm) S/N >55dB Lens Lens Lens Motorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional) Field of View H93°∼H33°/D107°∼D38°/V52°∼V18°(3∼10.5mm),
H92°∼H32°/D107°∼D37°/V51°∼V18°(2.7∼13.5mm),
H40°∼H16°/D46°∼D19°/V23°∼V9°(7∼22mm)Mount Φ14 Focus Control Auto/Manual Iris Control

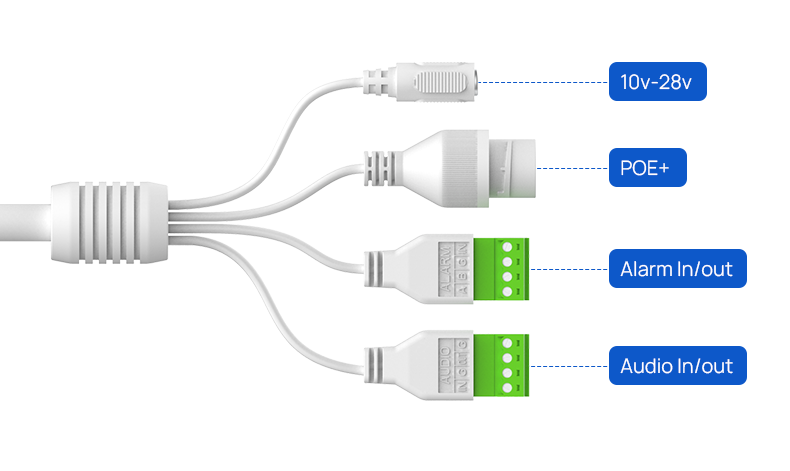

(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 1920x1080 Frame Rate 60fps@(1920x1080, 1280x960, 1280x720, 704x576) Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable) Privacy Masking Up to 8 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Web Access Support IE/Firefox/Chrome/Safari Browser Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Face Detection, People Counting, Object Left, Object Removed System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 7.3W MAX, 12.2W MAX(With IR on) Weather Proof Up to IP67-rated for weather-resistant performance Housing Vandal-proof IK10-rated metal housing (Optional) Dimensions 134mmX126mmX285mm Weight 1080g Warranty 3/5 Years -
Camera Camera Name AI 2MP H.265 Motorized Pro Bullet Network Camera Image Sensor 1/2.8" Progressive Scan CMOS Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on WDR 120dB Super WDR Shutter Time 1/100000s∼1s Day/Night Mode Day/Night/Auto/Customize/Schedule IR Distance Up to 60m(3.0∼10.5mm/2.7∼13.5mm)/ 100m(7∼22mm) S/N >55dB Lens Lens Lens Motorized 3∼10.5mm/2.7∼13.5mm/7∼22mm@F1.4, P-Iris(Optional) Field of View H90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm),
H89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm),
H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)Mount Φ14 Focus Control Auto/Manual Iris Control
(Optional for I Series)Auto/Manual Video Video Max. Image Resolution 2592x1944 Frame Rate 30fps@(2592x1944),
45fps@(2048x1536),
60fps@(1920x1080, 1280x960, 1280x720, 704x576)Secondary Stream 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) Tertiary Stream 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable) Privacy Masking Up to 8 areas ROI Up to 8 areas Image Settings Saturation/Brightness/Contrast/Sharpness Web Access Support IE/Firefox/Chrome/Safari Browser Audio Audio Audio Compression G.711/AAC/G.722/G.726 Audio Sampling Rate 8/16/32/48KHz Audio Bit Rate 16~256kbps Two-way Audio Support Interface Interface Ethernet 1*RJ45 10M/100M Ethernet Port Audio I/O 1/1 Alarm I/O 1/1 Network Network Network Storage NAS(Support NFS, SMB/CIFS), ANR Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL System System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark SIP/VoIP Support Yes, Voice&Video-over-IP Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Face Detection, People Counting, Object Left, Object Removed System Compatibility ONVIF Profile G & Q & S & T, API General General Working Temperature -40℃∼60℃ Working Humidity 0∼90%(Non-condensing) Power Supply PoE(802.3af)/DC 12V±10% Power Consumption 7.6W MAX, 12.6W MAX(With IR on) Weather Proof Up to IP67-rated for weather-resistant performance Housing Vandal-proof IK10-rated metal housing (Optional) Dimensions 134mmX126mmX285mm Weight 1080g Warranty 3/5 Years -
* Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
P - PoE Supported
C - AI Series
