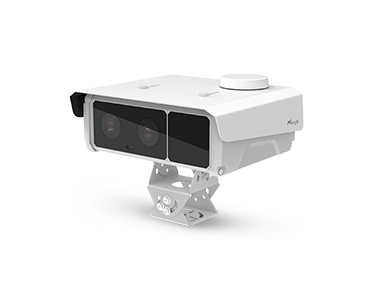

| Camera |
|---|

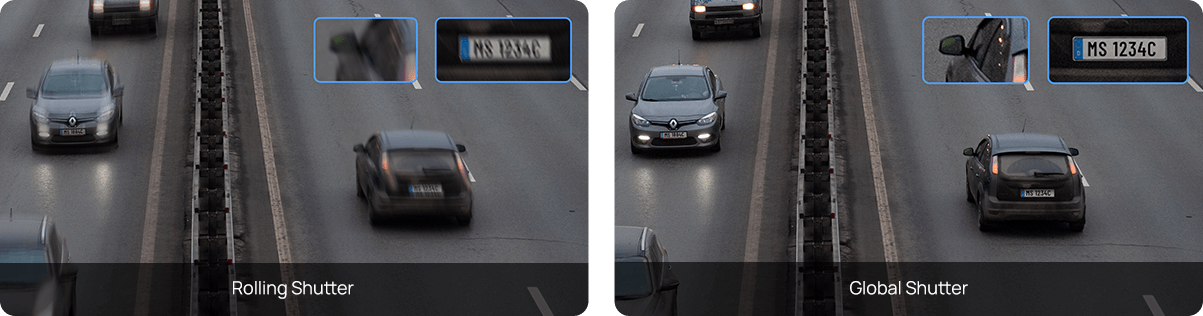

| Image Sensor | Color, 2/3" Global Shutter |
| Min. Illumination | Color: 0.001 Lux@(F1.4, AGC ON) |
| Shutter Time | 30 us- 40000 us |
| Day/Night Mode | Day/Night/Auto |
| Supplement Light | IR: IR Strobe Light (9 light beads @ 850nm, 16 light beads @ 740nm)
IR Distance: 60m

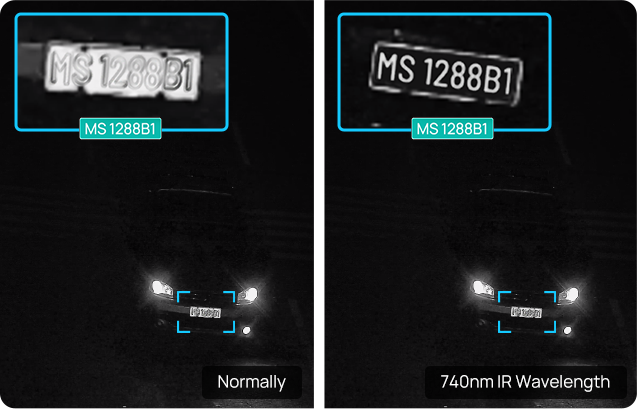

IR Wave Length: 850nm (Default), 740nm (Optional) |
| Road Traffic Management |
|---|

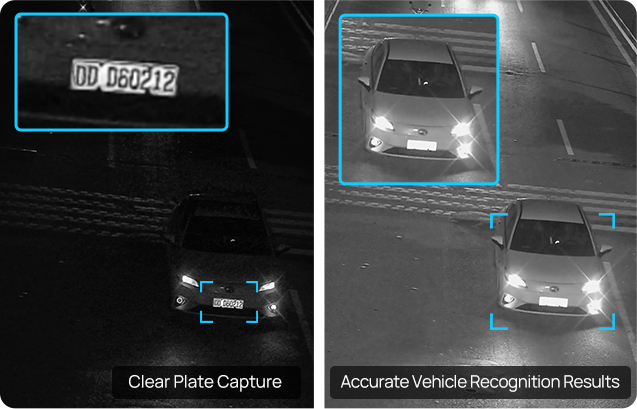

| Max. ANPR Range | Up to 50m |
| Max. Vehicle Speed | 250 km/h |
| Coverage | Recommended for 2~3 lanes |
| Capture Rate | Up to 99% |
| Recognition Accuracy | Up to 98% |
| Country Region Supported | More than 74 countries and regions |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |

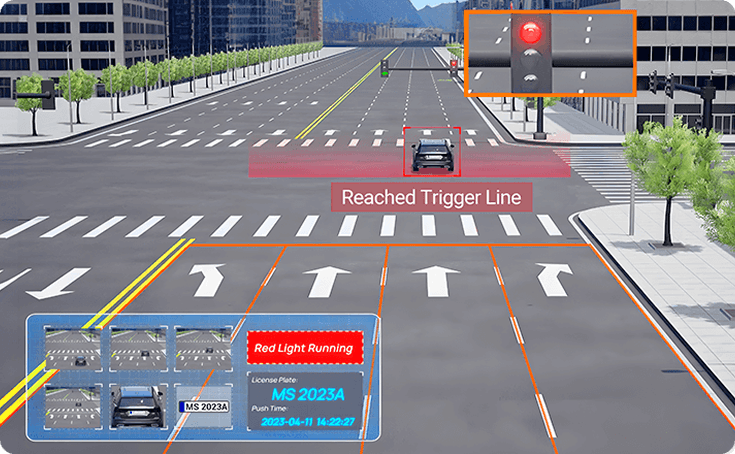

| Violation Management | Red Light Running,
Cross Line at Red Light,
Minimum Red Time for Valid violation,
Not Following Directional Signs Detection,
Intelligent Traffic Light Status Detection,

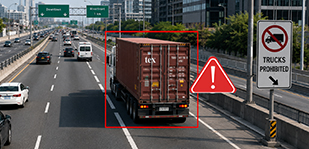

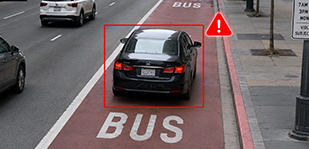

Special Lane Occupation Detection,
Illegal Lane Change Detection,
Reverse Driving,
Vehicle Attributes Event Detection |
| Vehicle Counting | Support |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Image Capture | Stores 6 overview snapshots and 2 LPR snapshots per violation |
| Logs | Log and filter the type of each violation as CONFIRMED, INVALID, FALSE START, STOPPED and UNKNOWN |
| Interface |
|---|
| Ethernet | 1*RJ45 10M/100M/1000M Ethernet Port |
| RS485 | Support |
| Input | 4 * Optoisolated Input |
| Output | 2 * Strobe Output
1 * Relay Output |
| Lens |
|---|
| Lens | 15-50mm, Motorized zoom and focus |

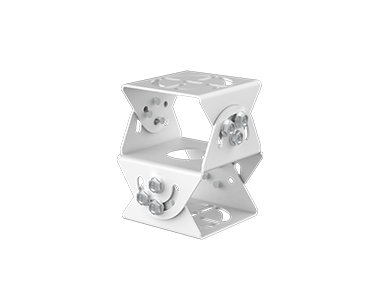

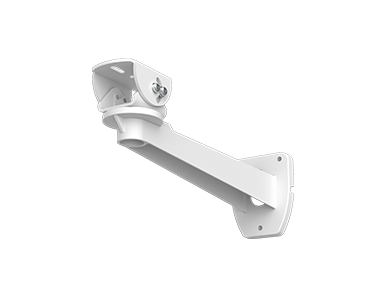

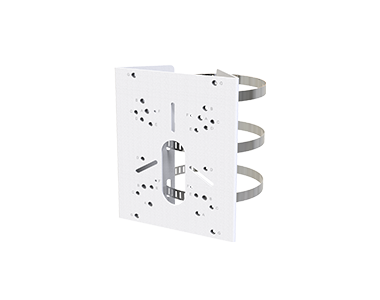

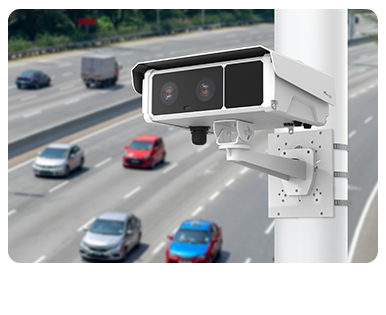

| Mount | Custom mount |
| Field of View | horizontal FOV 41.4° to 10.3°, vertical FOV 26.8° to 8.42°, diagonal FOV 32° to 13.3° |
| Video |
|---|
| Max. Resolution | 2464x2056 |
| Max. FPS | 45fps |
| Video Compression | H.265/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image Setting | Brightness/Contrast/Saturation |
| Privacy Masking | Supports up to 8 mosaic areas per sensor |
Wireless Network
(Optional) |
|---|
| Cellular | 4G LTE
NA: B2/B4/B5/B12/B13/B25/B26
EU: B1/B3/B7/B8/B20/B28
AU: B1/B2/B3/B4/B5/B7/B8/B28/B66 |
| SIM Card | Nano SIM |
| System |
|---|

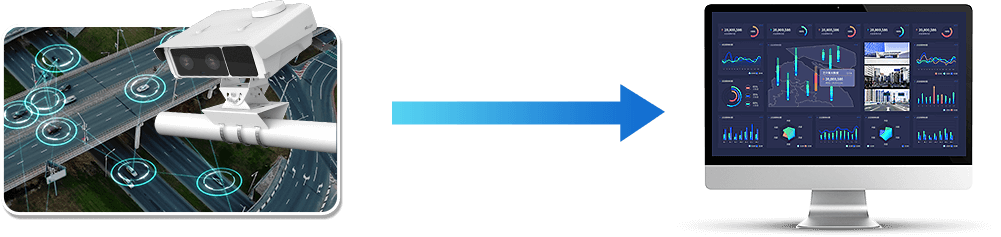

| System Compatibility | API, HTTP, TCP, MQTT, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Language Support | Chinese, English, Arabic, Greek |
| Encryption Protocol | FIPS 186 |
| General |
|---|
| GPS | Built-in High-accuracy GPS Module |
| Working Temperature | -40°C ~ 70°C |
| Working Humidity | 0~95% (Non-condensing) |
| Power Consumption | 22W MAX
26W MAX (With IR on) |
| Housing | Vandal-proof IK10-rated metal housing
Up to IP67-rated for Weather-resistant Performance |
| Power Supply | 24 V DC/AC |
| Weight | 4.3Kg |
| Dimensions | 121mmx295mmx245mm
(Without Mounting Bracket) |
| Warranty | 3 Years |
| Certifications |
|---|
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
