AI LPR Motorized Pro Dome Network Camera

Intelligent and Robust for LPR Solution

2MP · AI · LPR · 140dB Super WDR · 0.005Lux Ultra Low-light · IP67 · IK10 · Smart IR II · 90m IR Distance · PoE

AI LPR PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis

Leading-edge H.265+ Compression

H.265+

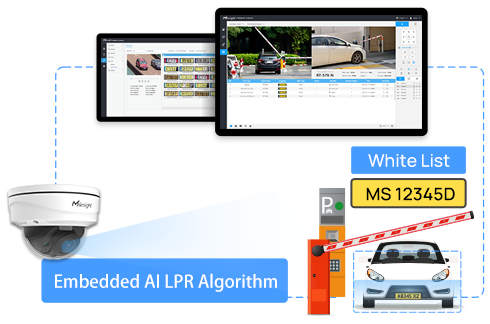

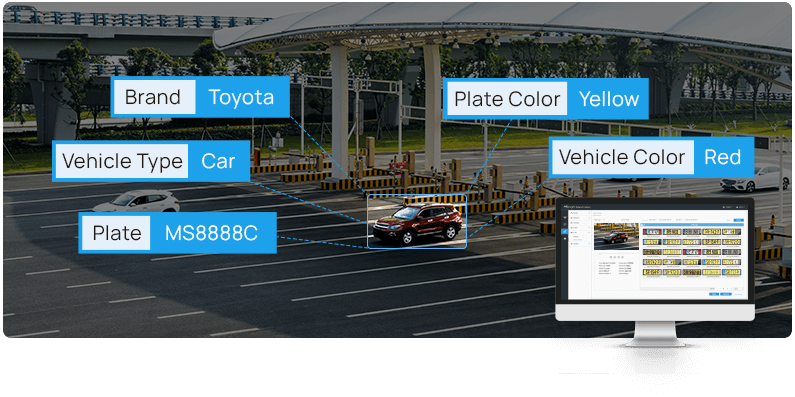

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition, LPR, ANPR, LPR IP Camera,LPR Camera

0.005Lux Ultra Low Light

With the starlight premium technology, Milesight AI Camera Series is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

low-light

140dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

AI WDR

90fps

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

AI high frame rate

Smart IR II

The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 50m(90m). Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

smart ir AI dome

P-Iris Control

Adopting P-Iris control technology, Milesight AI LPR Motorized Pro Dome Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

P-Iris

Motorized Zoom Lens

Equipped with motorized zoom & focus lens, Milesight AI LPR Motorized Pro Dome Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.

zoom lens dome camera

3rd Generation Dot Matrix IR LEDs

In order to provide superior night visibility, the AI LPR Motorized Pro Dome Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.

ir led design

Clamshell Design

Aiming to reduce the installation troubles to the least, Milesight creatively introduces the clamshell design to the dome base. This revolutionary innovation enlarges the space to make cable connection a piece of cake, greatly saving efforts for installers.

ai motorized pro dome

Smoked Dome Cover

Milesight AI LPR Motorized Pro Dome Network Camera supports Smoked Dome Cover which is able to hide the direction of the camera for not letting people see where the camera is pointed.

dome smoke cover

Integrated Cable Management

In the base, there are power interface, PoE port, Alarm I/O and Audio Output. Thanks to integrated cable management, it takes no effort in installation.

dome camera cable

Mounting Bracket

For installers, holding the camera body to secure the screws into the wall is a fatiguesome job. Being customer-oriented, Milesight optimized the hardware structure to avoid that with a light thin mounting bracket, installers could firstly secure the mounting bracket in the desired location and then insert the camera body, thus no unnecessary energy is wasted.

mounting bracket

Two Colors Available

Available in White and Black, the AI LPR Motorized Pro Dome Network Camera provides more choices for your preference.

black white two color dome

SIP/VoIP Support

Milesight AI LPR Motorized Pro Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP dome camera
  • MS-C2972-TF(I)LPA
  • MS-C2972-RF(I)LPC
Camera Name 2MP AI LPR Motorized Pro Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m(3.0~10.5mm/2.7~13.5mm)
S/N >55dB
Lens Lens Motorized 2.7~13.5mm/3.0~10.5mm@F1.4, P-Iris(Optional)
Field of View H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm),
H102°~H34°/D118°~D38° /V56°~V19° (3.0~10.5m)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions

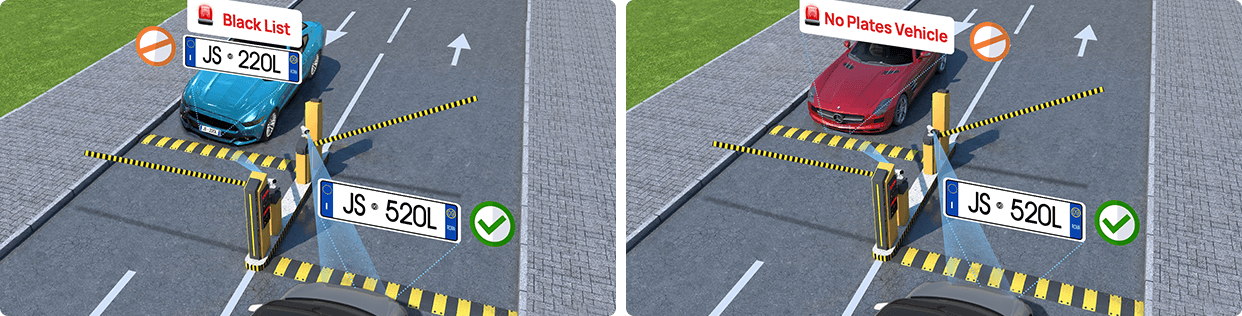

White/Black List Up to 1000 records inside the camera
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz: 90fps@(1920x1080), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 90fps@(704x576), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone and 1 Audio Output interface
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 8W MAX, 11W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 1100g
Dimensions Φ143mmX108.4mm
Warranty 3/5 Years
Camera Name 2MP AI LPR Motorized Pro Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 140dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m(3.0~10.5mm/2.7~13.5mm)
S/N >55dB
Lens Lens Motorized 2.7~13.5mm/3.0~10.5mm@F1.4, P-Iris(Optional)
Field of View H115°~H34°/D135°~D39° /V62°~V19° (2.7~13.5mm),
H102°~H34°/D118°~D38° /V56°~V19° (3.0~10.5m)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
White/Black List Up to 1000 records inside the camera
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O Built-in Microphone and 1 Audio Output interface
Alarm I/O 1/1
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 8W MAX, 10W MAX (With IR on)
Weather Proof Up to IP67-rated for Weather-resistant Performance
Housing Vandal-proof IK10-rated Metal Housing
Weight 1100g
Dimensions Φ143mmX108.4mm
Warranty 3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • T - High Frame Rate (90/100fps)
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported
  • L - LPR Supported
  • P - PoE Supported
  • A/C - AI Series
