Up to 98% High Accuracy
Embedded AI algorithm, AI Workplace Occupancy Sensor VS121 is able to realize counting with up to 98% ultra-high accuracy. The accuracy gets enhanced with continuous deep learning.

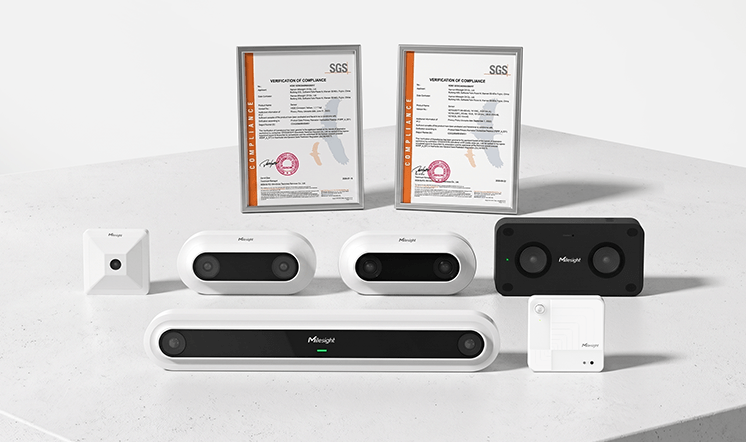

100% Anonymous Detection
AI Workplace Occupancy Sensor VS121 is GDPR-compliant. With blur mode and 8 custom mosaic areas, it transmits data with no personally identifiable information involved 100% guaranteeing privacy protection at source.

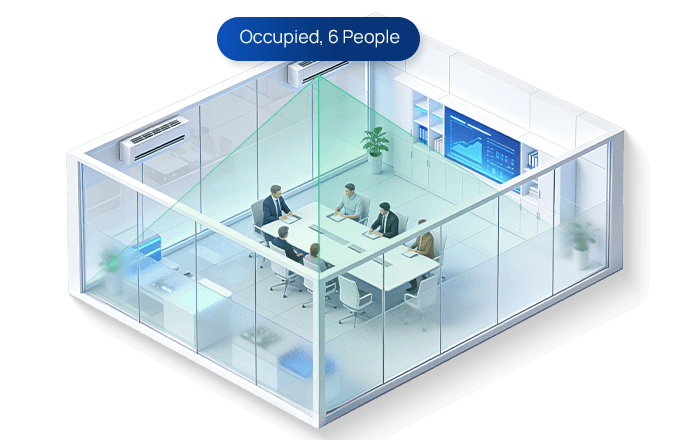

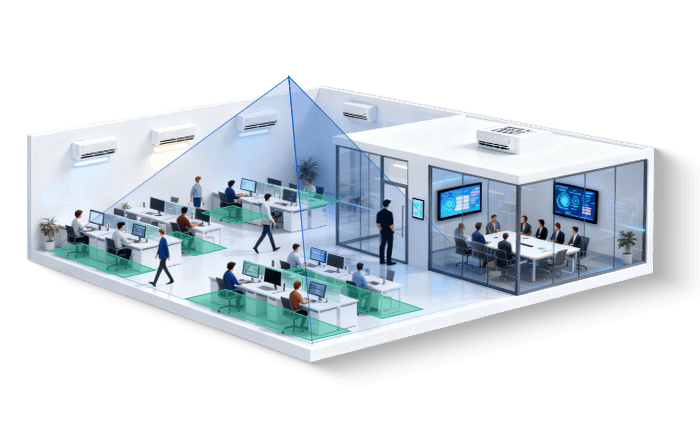

Space Occupancy Detection
AI Workplace Occupancy Sensor is able to detect people to discover the space status of being "in use" or "vacant", realizing space occupancy detection.
16 Custom Detection Regions
Up to 16 customized regions amid the area can be set for precise detection. Every single region is independent. They are able to detect and trigger alarms individually, which satisfies specific application demands to truly accomplish customization.

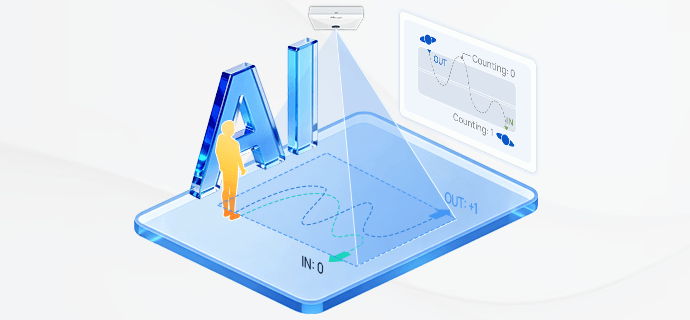

Smart U-Turn Detection
By detecting the U-shape tracks of people flow, the accuracy is guaranteed to avoid unnecessary people counting. For example, it filters out redundant counting of people wandering the area, especially in transportation or buildings, to differentiate people who don’t truly enter.

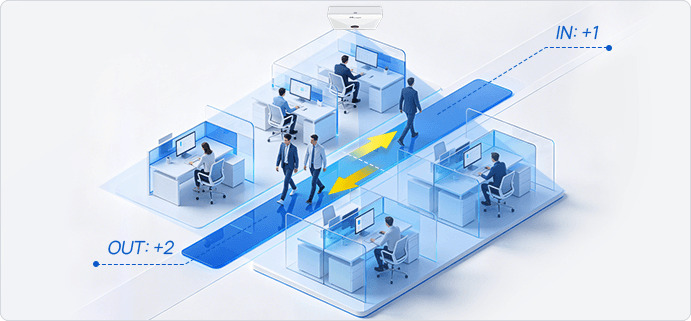

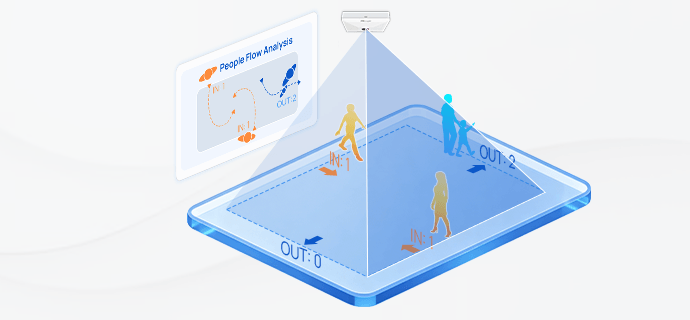

Bi-directional People Counting
The line crossing people counting is added for conspicuous performance. Supporting bi-directional counting, the sensor with ultra-high 98% recognition rate gets more accurate and objective information.
High Installation Height
AI Workplace Occupancy Sensor supports 3m or 6m high installation height, meeting different installation requirements and various applications.
Large Detection Area
The sensor covers a wide area of 78 square meters, which is on top of the workplaces for not letting any place hide away.

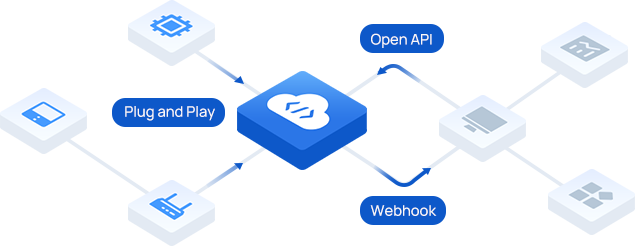

Remote Management
It is flexible for remote and wider application managements like long distance management on DeviceHub and also has great extensibility to be opened to third platforms.
Versatile Interfaces
Several interfaces such as PoE, DC, Alarm I/O and RS485 are available in the Multi-interface Version, offering more choices for easy management and various needs.

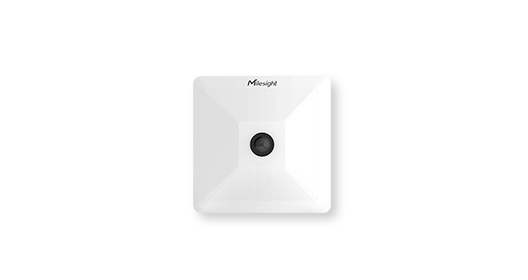

Exquisite Design
With ingenious design, AI Workplace Occupancy Sensor VS121 can aesthetically blends into the environments and even can be a decoration.

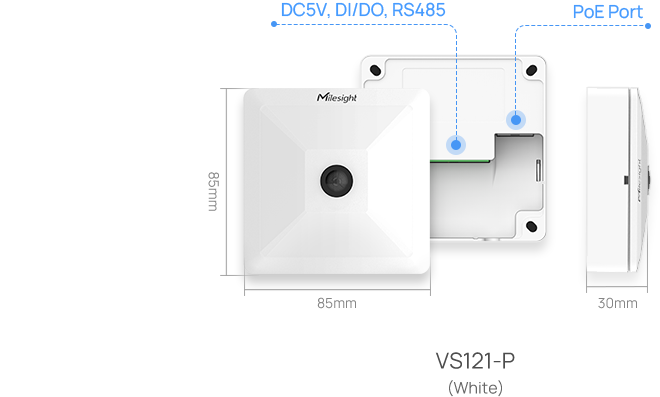

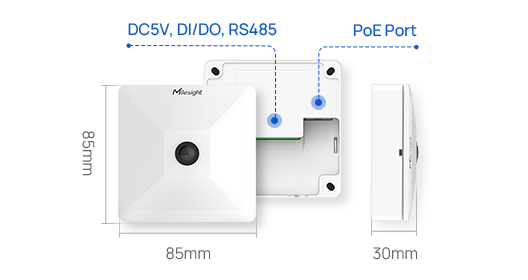

- VS121-P
| Model | VS121-P | |
| Ethernet Transmission | Ethernet Port | 1 × RJ45 10/100 Mbps (PoE PD) |
| Network Protocol | HTTP, RTSP, NTP, SSH,etc. | |
| People Counting | Field of View | 190 ° Horizontal, 112 ° Vertical |
| Recognition Range | Based on a Radius of 5 Meters (At the Height of 3m) | |
| Recognition Rate | Region Counting: Up to 95% Line Crossing Counting: Up to 98% |
|
| Advanced Feature | Mapped Detection Region Customization, Filter U-Turns, Privacy Mask | |
| Interface | Alarm In/Out | 1/1 |
| Serial Interface | 1 × RS485 | |
| Button | 1 × Reset Button | |
| LED Indicators | 1 × Status | |
| Power Input | 2-pin 3.5 mm Terminal Block | |
| Physical Characteristics | Power Supply | 5VDC / 2A by Terminal Block; 802.3af PoE |
| Power Consumption | DC:3.5W; POE:4.5W |
|
| Operating Temperature | -5°C ~ +55°C | |
| Storage Temperature | -20°C ~ +60°C | |
| Relative Humidity | 0 ~ 95% (Non-condensing) | |
| Color&Weight | White, 186g | |
| Dimension | 85 × 85 × 30 mm (3.35 × 3.35 × 1.18 in) |
|
| Installation | Ceiling Mounting | |
| Approvals | CE, FCC, RoHS |
