IoT Weather Station

Accurate, Reliable and Continuous Weather Monitoring

WTS305
WTS506
iot weather station small
iot weather station hub small
iot weather station panel small
iot weather station sensors small
  • All-in-One Weather Station
  • Robust and Rugged
  • Various Application Scenarios
  • Easy Configuration (via NFC)
  • Solar-Powered & Chargeable Batteries Backup
  • Data Storage and Retransmission
  • LoRaWAN® Based
  • FEATURES
  • MODELS
  • DOWNLOAD

Live Stream Your Weather Data

Milesight IoT Weather Station is an ultimate all-in-one LoRaWAN® weather monitoring system for various and continuous atmospheric conditions including temperature, humidity, wind speed, wind direction, barometric pressure and rainfall. It is solar-powered and has chargeable batteries backup lasting up to seven days. It boasts high resolution and accuracy with rugged and aesthetic housing.

maxresdefault
barometric pressure
Barometric
Pressure
wind direction
Wind
Direction
wind speed
Wind Speed
Humidity
humidity
Temperature
sun
Rainfall
rainfall
iot weather station wts506
iot weather station wts305
WTS506
WTS305

All-in-One Weather Station

Specially designed for continuous weather monitoring, Milesight IoT Weather Station (WTS Series) is an ultimate all-in-one weather monitoring system with WTS Sensors, WTS Hub, and solar panel for various atmospheric conditions.

Standard Version

WTS305
  • Temperature, humidity, wind speed, wind direction, barometric pressure
  • Reliable and accurate measurement data
  • ABS material: aesthetic and impact-resistant
    *ABS is an opaque thermoplastic, offering a good balance of impact, heat, chemical and abrasion resistance.
  • Weather monitoring for agriculture, meteorology, forestry, port, railway, school, and building, etc.

Professional Version

RECOMMENDED WTS506
  • Temperature, humidity, wind speed, wind direction, barometric pressure, rainfall
  • High resolution and accuracy with research-grade measurement data
  • Robust aluminum alloy with resistance to rust, corrosion and oxidation
  • Weather monitoring for challenging or accuracy-focus environments like flash flood warning, national meteorological monitoring, etc.

Smart Agriculture

Get reliable data faster so you can plan, react, and grow better

Agricultural production depends mostly on environmental conditions, whereas Milesight Smart Agriculture Solution will help automatically collect and analyze data about various atmospheric conditions including temperature, humidity, light, soil moisture, electrical conductivity and many more remotely and timely.

Highlights

  • Accurate, reliable and automated environment monitoring and analyses
  • Save time, money and resources
  • Improve yield and quality of plants

Smart Building

Gain actionable insight into changing weather conditions

Milesight IoT Weather Station provides the most important weather data in just one device for buildings like office building, apartment building, smart home, etc, protecting your buildings against sudden and unexpected changes in weather, as well as keep people safe and sound.

Highlights

  • Reliable and real-time weather monitoring
  • Save energy and resources by automation
  • Stay comfortable and safe

Solar-Powered & Chargeable Batteries Backup

IoT Weather Station utilizes solar power to achieve operation. With built-in batteries, it can work at least a week without sunlight due to its low-power consumption capability.

Robust and Rugged

Milesight IoT Weather Station is qualified to work in harsh and wet environment with IP65 rating of its WTS Sensors and IP67 rating of its WTS Hub to protect against powerful jets of water.

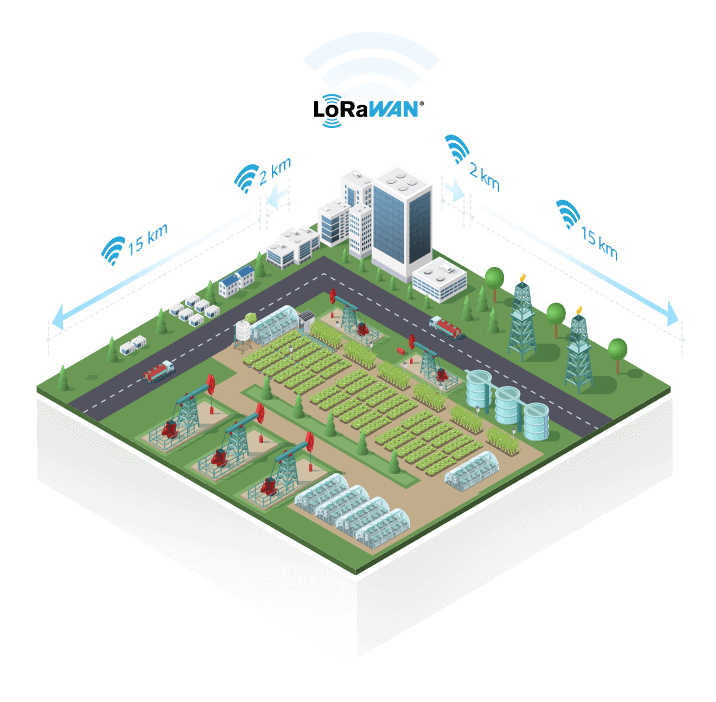

LoRaWAN® Based

  • Penetrating Signals:
    data transmission range up to 2 km in urban areas and
    15 km in rural areas
  • High Compatibility:
    compliant with standard LoRaWAN® gateways and network servers
iot weather station lorawan based

Store Capacity with
19000 Sets of Historical Data
Records

Support Retransmission for Reliable Communication

With support for data retransmission,the device guarantees that the web server gets all the data even if the network is down occasionally.

Cloud Data Management
Milesight IoT Cloud

  • Data Visualization Dashboard:
    All figures in a glance
  • Automatic Triggers:
    Interactive collaboration with Milesight IoT sensors
    to realize scene-based automation
  • Regular Reports & Real-Time Alerts:
    Data-based insights
  • Android & iOS App:
    Manage devices at your fingertips
Smart Agriculture Kit
  • Simplify the process of remote monitoring
  • Build a data-driven and insightful farming strategy
  • Help farmers earn more money
Learn More

NFC Configuration

Switching On/Off & Configuring the Devices Wirelessly

iot weather station configuration 1

1st Step

Install the
Milesight ToolBox

iot weather station configuration 2

2nd Step

Enable NFC and run ToolBox,
then attach your phone to the device

iot weather station configuration 3

3rd Step

Verify the password
and start configuring

Explore More About NFC Configuration >>

Installation Methods

iot weather station installation

Side-of-Pole Mounting (WTS506)

Top-of-Pole Mounting (WTS305)

Specifications

Temperature
Operating PrincipleThermistor
Range-40°C – 85°C
Accuracy± 0.3°C
Resolution0.1°C
Humidity
Operating PrincipleCapacitive humidity sensor
Range0% – 100% RH
Accuracy± 5% RH
Resolution0.5% RH
Wind Direction
Operating PrincipleUltrasonic
Range0° – 360°
Accuracy± 3°
Resolution
Wind Speed
Operating PrincipleUltrasonic
Range0 -60 m/s
Accuracy± (0.5 + 0.02 V) m/s, V=Speed
Resolution0.1 m/s
Barometric Pressure
Operating PrinciplePiezoresistive absolute pressure sensor
Range500 – 1100 hPa
Accuracy±1 hPa
Resolution0.1 hPa
Rainfall (WTS506 Only)
Operating Principle-
Range-
Accuracy-
Resolution-
Physical Characteristics
MaterialABS
Weight1 kg
Dimensionф140 x 248 x ф50 mm
Operating Temperature-40°C ~ 60°C
Relative Humidity0% – 100% (non-condensing)
Ingress ProtectionIP65
InstallationPole Mounting

Temperature
Operating PrincipleThermistor
Range-40°C – 85°C
Accuracy± 0.3°C
Resolution0.1°C
Humidity
Operating PrincipleCapacitive humidity sensor
Range0% – 100% RH
Accuracy± 3% RH
Resolution0.5% RH
Wind Direction
Operating PrincipleUltrasonic
Range0° – 360°
Accuracy± 3°
Resolution0.1°C
Wind Speedundefined
Operating PrincipleUltrasonic
Range0 -60 m/s
Accuracy± 0.3 m/s or ± 3% (whichever is greater)
Resolution0.1 m/s
Barometric Pressure
Operating PrinciplePiezoresistive absolute pressure sensor
Range500 – 1100 hPa
Accuracy±0.5 hPa
Resolution0.1 hPa
Rainfall (WTS506 Only)
Operating PrinciplePiezoelectric
Range0 – 1000 mm
Accuracy±0.5 mm (< 10 mm), ±5 %( >10 mm)
Resolution0.01 mm
Physical Characteristics
MaterialAluminium Alloy
WeightWTS506: 2.15 kg
DimensionWTS506: ф160 x 263 x ф73 mm
Operating Temperature-40°C ~ 85°C
Relative Humidity0% – 100% (non-condensing)
Ingress ProtectionIP65
InstallationPole Mounting
