NDAA AI Motorized Pro Bullet Network Camera

Intelligent and Endurable for the Most Severe Conditions

2/5/8MP · AI · 120dB Super WDR · 0.001Lux Ultra Low-light · IP67 · Smart IR II · 100m IR Distance · PoE · 90fps · 1/1.8" STARVIS Starlight Sensor

NDAA AI Heat Map 4K PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Starlight Super WDR Privacy Mask 3-Axis
  • slide1
  • slide2
  • slide3

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

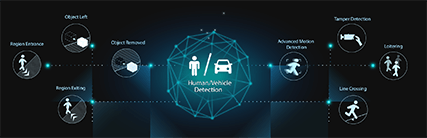

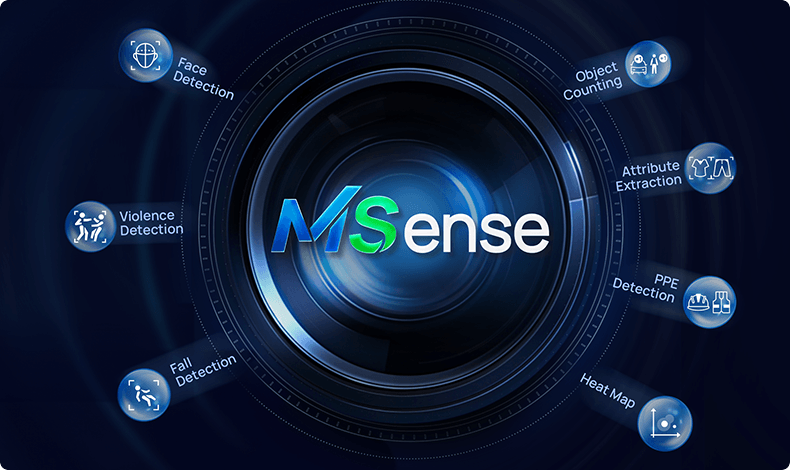

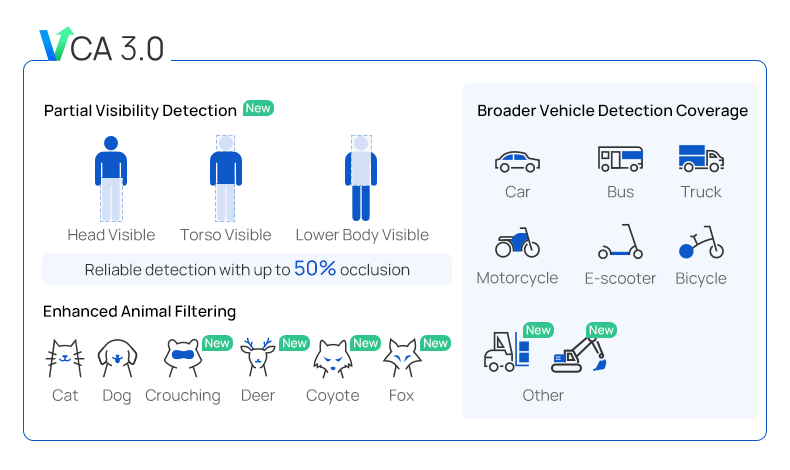

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

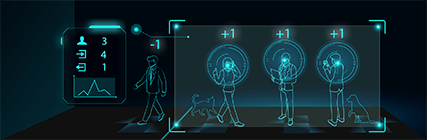

People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

AI people counting

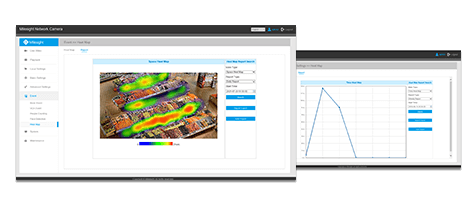

Advanced Heat Map

With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

Heat Map

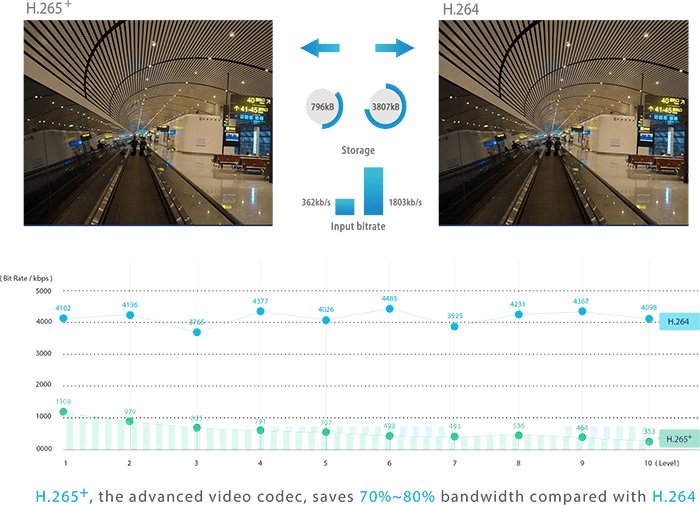

Leading-edge H.265+ Compression

H.265+

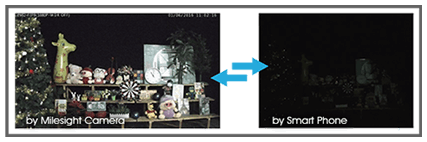

0.001Lux Ultra Low Light

With the starlight premium technology, Milesight AI Camera Series is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

low-light

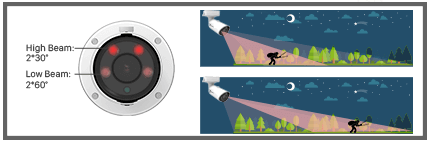

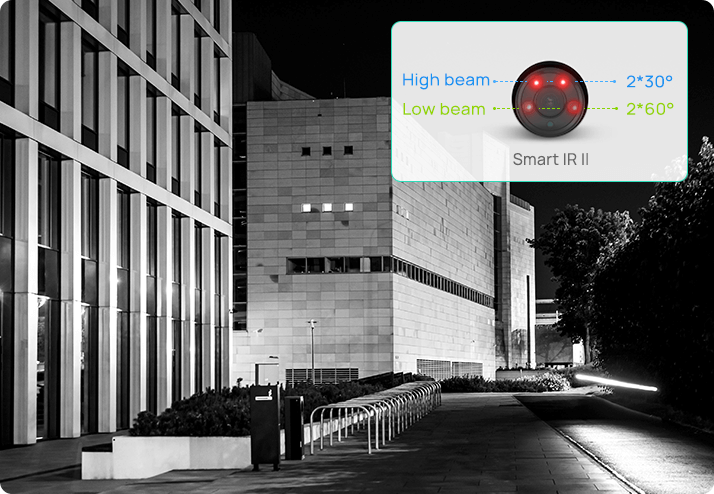

Smart IR II Technology

The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 60m(100m). Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

smart IR ndaa bullet camera

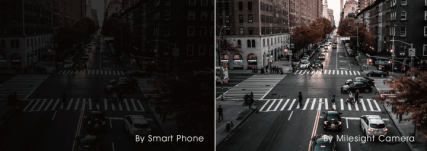

1/1.8" STARVIS Starlight Sensor

Adopting the top-notch Sony STARVIS Starlight Sensor, Milesight Network Camera improves every aspect of image quality. The high sensitive sensor allows the camera to achieve excellent video quality in 4K with better low-light sensitivity.

Starlight Sensor NDAA AI dome

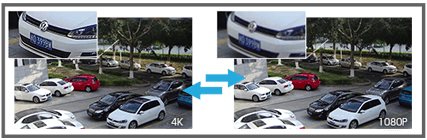

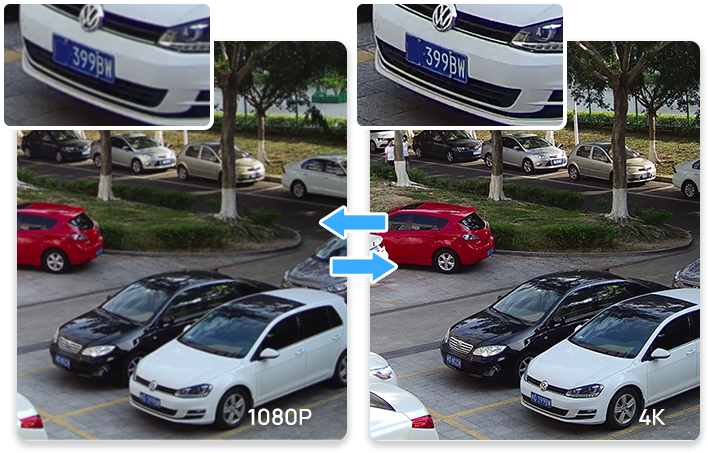

4K Video Viewing Experience

Milesight NDAA AI Motorized Pro Bullet Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.

4k NDAA AI dome

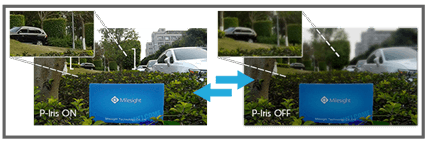

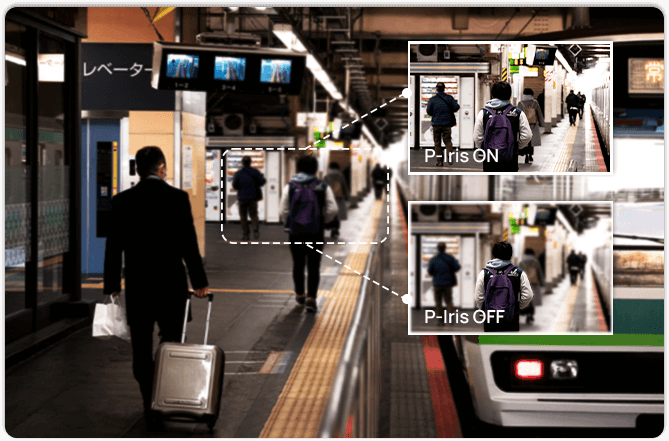

P-Iris Control

Adopting P-Iris control technology, Milesight NDAA AI Motorized Pro Bullet Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

P-Iris

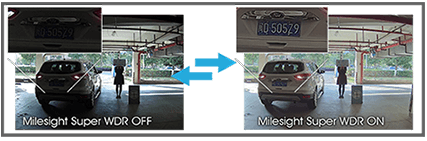

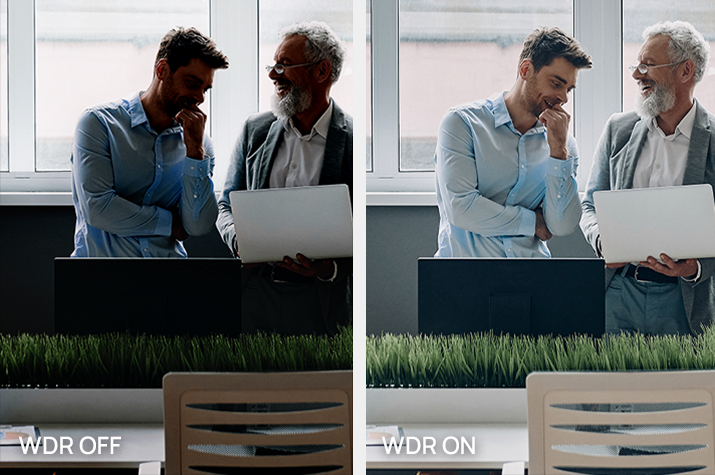

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

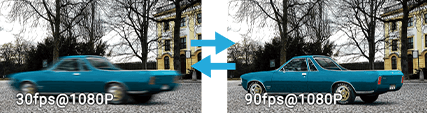

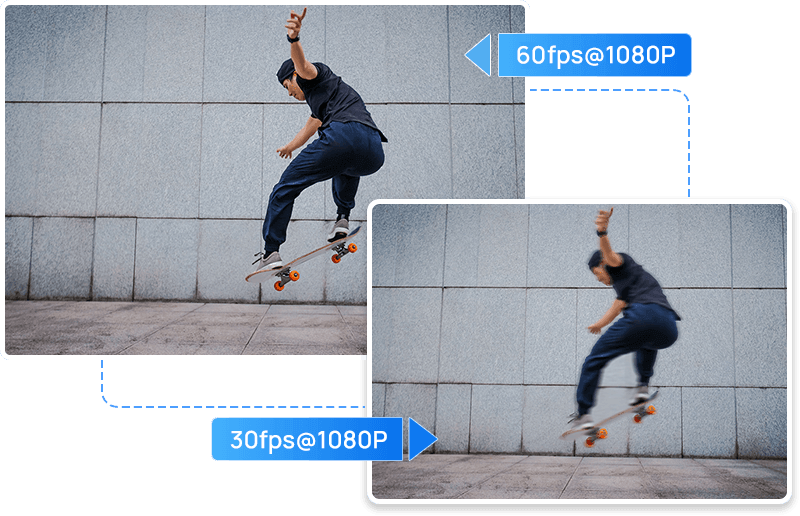

90fps

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

AI high frame rate

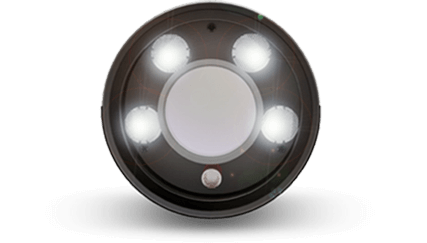

3rd Generation Dot Matrix IR LEDs

In order to provide superior night visibility, Milesight NDAA AI Motorized Pro Bullet Network Camera employs the 3rd generation dot matrix IR LEDs, essentially guaranteeing excellent image quality, long lifespan and energy efficiency.

PRO IR LED

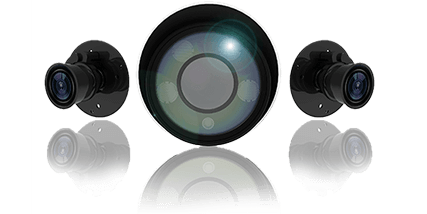

Motorized Zoom Lens

Equipped with motorized zoom & focus lens, Milesight NDAA AI Motorized Pro Bullet Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports

camera lens

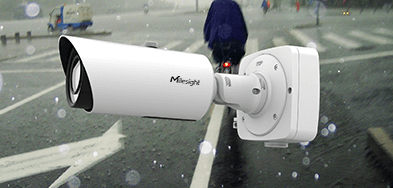

IP67 Weather-proof Housing

IP67-rated housing of the NDAA AI Motorized Pro Bullet Network Camera shields its sensitive electronics from dust and water, which ensures stable operation in all weather conditions.

IP67 IK10 ndaa bullet camera

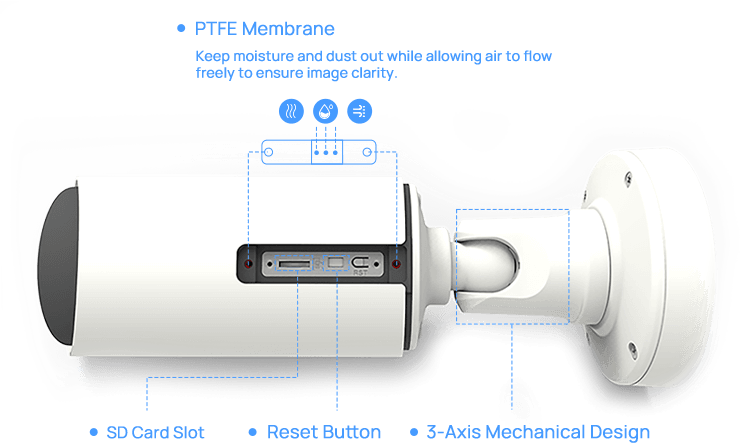

PTFE Membrane

Applying the PTFE membrane to ventilation holes, the NDAA AI Motorized Pro Bullet Network Camera housing is designed to keep moisture and dust out while allowing air to flow into and out of the device, which effectively ensures pressure equalization in the enclosures and prevents fogging and a buildup of condensation of the lenses, guaranteeing supreme image clarity.

PTFE membrane

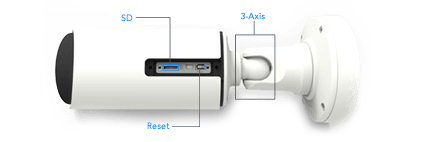

Unique Design

Surprisingly, the NDAA AI Motorized Pro Bullet Network Camera is designed to offer maximum enjoyment of usability and extensibility with a SD card slot and reset button locate in the camera body. Moreover, tidy and flexible installation needs are perfectly met by 3-Axis adjustable bracket in the rear.

ndaa bullet camera

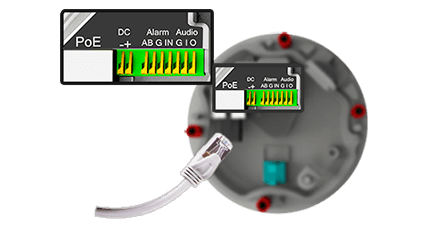

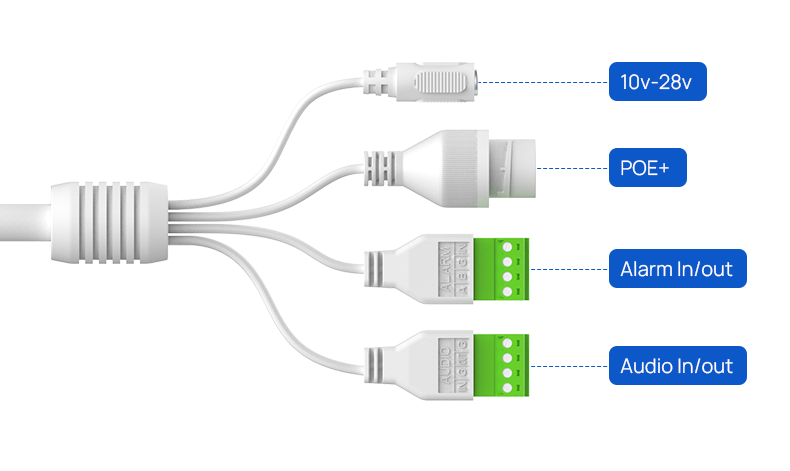

Integrated Cable Management Bracket

In the NDAA AI Motorized Pro Bullet Network Camera's body are SD card slot and reset button, offering maximum enjoyment of usability and extensibility. At the rear is 3-axis adjustable bracket, which perfectly meets tidy and flexible installation.

bracket

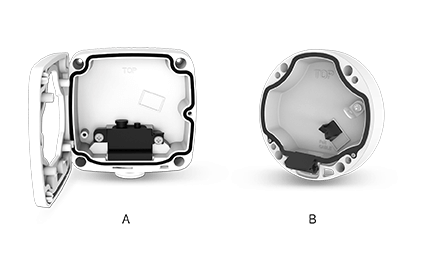

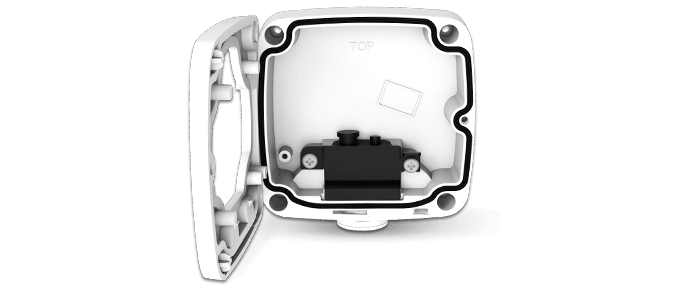

Integrated Junction Box

A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear.

bullet camera junction box

SIP/VoIP Support

Milesight NDAA AI Motorized Pro Dome Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP camrea
  • MS-C2962-R(T)F(I)PE
  • MS-C5362-F(I)PE
  • MS-C8162-F(I)PE
  • MS-C2862-(R)TF(I)PA
  • MS-C2962-R(T)F(I)PA
  • MS-C5362-F(I)PA
  • MS-C8162-F(I)PA
  • MS-C8262-F(I)PA
CameraNameAI Motorized Pro Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.4
B/W: 0Lux with IR on
WDR140dB Super WDR
LensMotorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4
P-Iris(Optional)
MountΦ14
Field of ViewH92°~H32°/D107°~D37° /V51°~V18° (2.7~13.5mm)
H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m)
H40°~H16°/D46°~D19° /V23°~V9° (7~22mm)
Shutter Time1/100000s~1s
IR DistanceUp to 60m(3.0~10.5mm/2.7~13.5mm)
Up to 100m(7~22mm)
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
VideoMax. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap,
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & M & S & T, API
GeneralWorking Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption7W MAX
8W MAX(With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
CameraNameAI Motorized Pro Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.4
B/W: 0Lux with IR on
WDR120dB Super WDR
LensMotorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4
P-Iris(Optional)
MountΦ14
Field of ViewH89°~H30°/D111°~D37° /V66°~V22° (2.7~13.5mm)
H90°~H31°/ D114°~D38° / V67°~V23°(3.0~10.5mm)
H37°~H15°/D47°~D19° /V28°~V11° (7~22mm)
Shutter Time1/100000s~1s
IR DistanceUp to 60m(3.0~10.5mm/2.7~13.5mm)
Up to 100m(7~22mm)
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
VideoMax. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap,
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & M & S & T, API
GeneralWorking Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption5W MAX
7W MAX(With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
CameraNameAI Motorized Pro Bullet Network Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.012Lux@F1.4
B/W: 0Lux with IR on
WDR120dB Super WDR
LensMotorized 2.7~13.5mm@F1.4
P-Iris(Optional)
MountΦ14
Field of ViewH96°~H33°/ D112°~D37°/ V53°~V18°
Shutter Time1/100000s~1s
IR DistanceUp to 60m
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
VideoMax. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisIntrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute RecognitionDetect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap,
Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting&ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, Audio Alarm, External Input, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & M & S & T, API
GeneralWorking Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3af) / DC 12V±10%
Power Consumption8W MAX
9W MAX(With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
CameraName2MP NDAA AI Motorized Pro Bullet Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m
S/N>55dB
LensLensMotorized 3.6~10mm@F1.4, P-Iris(Optional)
Field of ViewH96°~H42°/D111°~D48°/V55°~V23°
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption9W MAX, 12W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
CameraName2MP NDAA AI Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m(3.0~10.5mm/2.7~13.5mm), Up to 100m(7~22mm)
S/N>55dB
LensLensMotorized 2.7~13.5mm/3.0~10.5mm/7~22mm @F1.4, P-Iris(Optional)
Field of ViewH92°~H32°/D107°~D37° /V51°~V18° (2.7~13.5mm), H93°~H33°/D107°~D38° /V52°~V18° (3.0~10.5m), H40°~H16°/D46°~D19° /V23°~V9° (7~22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption8W MAX, 10W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
CameraName5MP AI Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m(3.0~10.5mm/2.7~13.5mm); Up to 100m(7~22mm)
S/N>55dB
LensLensMotorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional)
Field of ViewH89°∼H30°/D111°∼D37°/V66°∼V22°(2.7∼13.5mm), H90°∼H31°/D114°∼D38°/V67°∼V23°(3∼10.5mm), H37°∼H15°/D47°∼D19°/V28°∼V11°(7∼22mm)
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption9W MAX, 11W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
CameraName4K AI Motorized Pro Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m
S/N>55dB
LensLensMotorized 2.7~13.5mm@F1.4, P-Iris(Optional)
Field of ViewH96°~H33°/D112°~D37°/V53°~V18°
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionHeat Map, BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption10W MAX, 11W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
CameraName4K NDAA AI Motorized Pro Bullet Network Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.006Lux @F1.2, Color: 0.009Lux @F1.4, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
IR DistanceUp to 60m
S/N>55dB
LensLensMotorized 3.6~10mm@F1.4, P-Iris(Optional)
Field of ViewH110°~H46°/D126°~D54°/ V61°~V25°
MountΦ14
Focus ControlAuto/Manual
Iris Control(Optional for I Series)Auto/Manual
VideoMax. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
Intelligent AnalyticsVideo AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& ReportCount the number of people entering or exiting, up to 4 detection areas for regional people counting
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerMotion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption10W MAX, 12W MAX (With IR on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
Weight1080g
Dimensions134mmX126mmX285mm
Warranty3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • T - High Frame Rate (90fps)
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported
  • P - PoE Supported
  • A/D/E - AI Series
MIGHT BE INTERESTED IN

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
