12X PTZ to See More for Traffic Solution

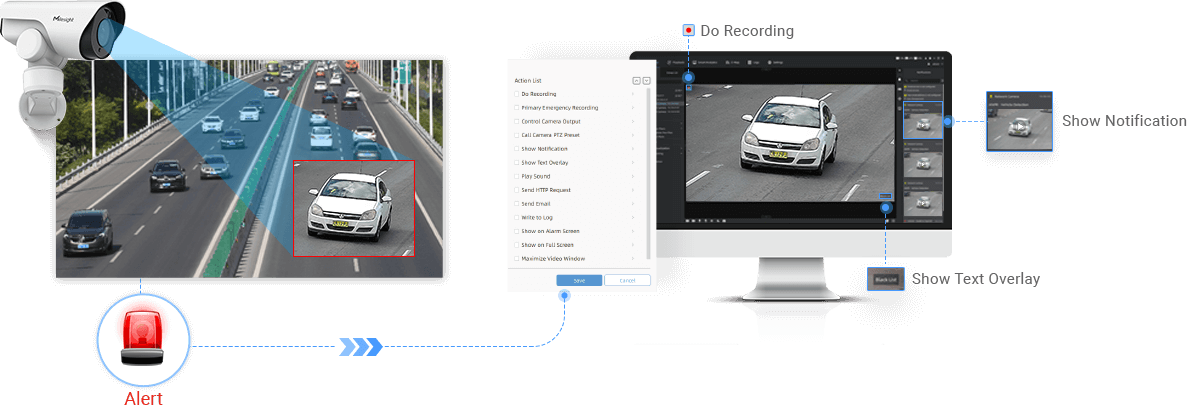

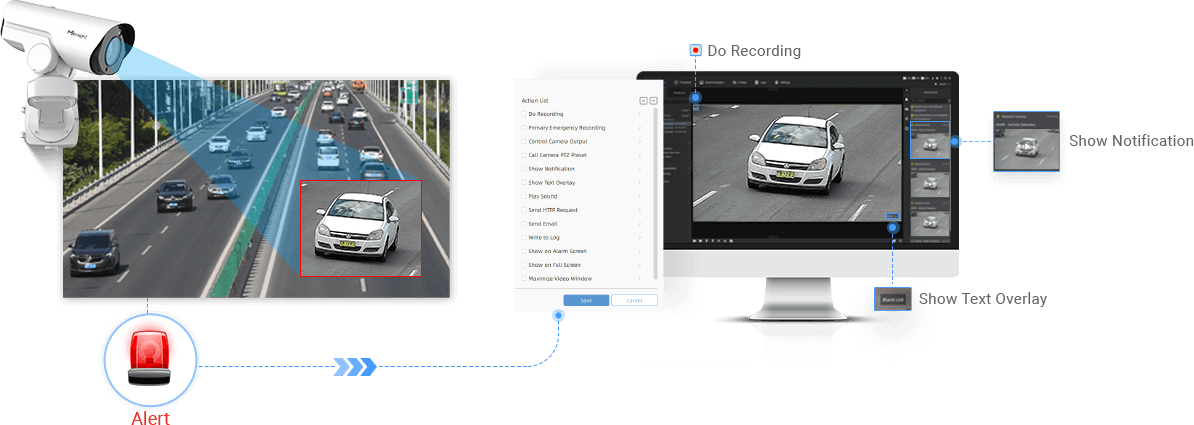

Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

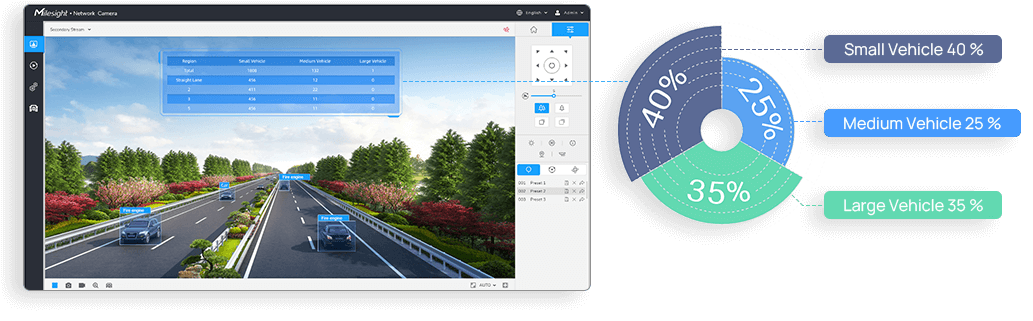

The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

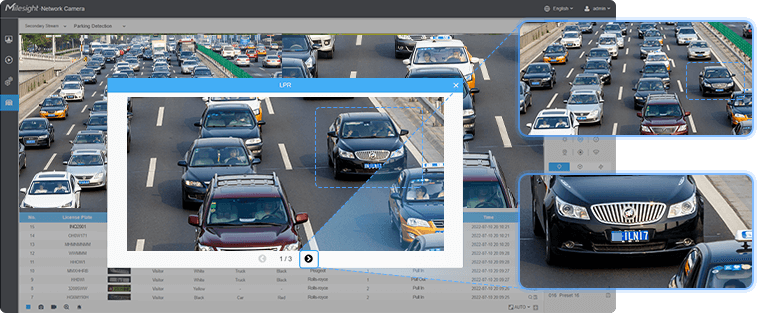

Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With
seamless triggering between Milesight traffic camera and regular camera, users
can easily provide solid and convincible evidence including LPR results as well
as overview snapshots.

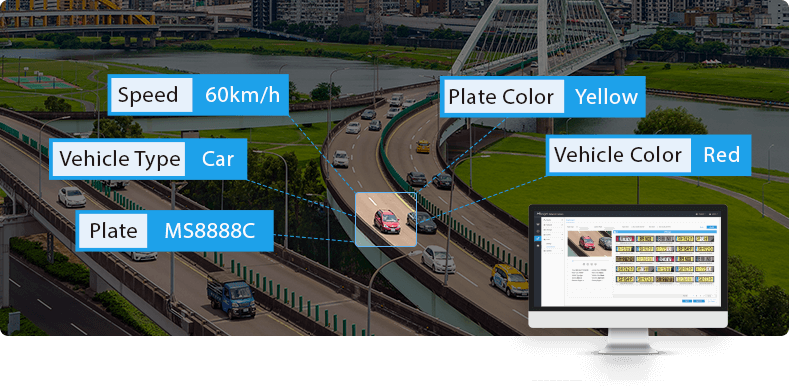

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports
manual export and auto export for easy management.

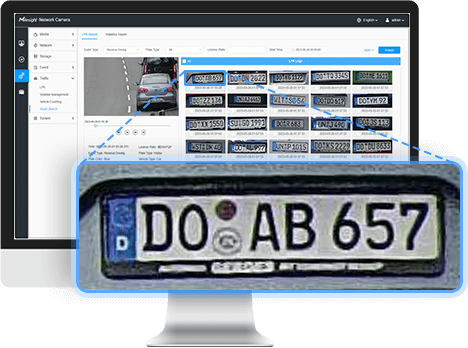

A number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems.
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep
learning model and continuously training to algorithms automatically. Milesight AI Road
Traffic Camera can not only recognize vehicle plates in real time, but also identify various
vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to
improve safety and mobility.

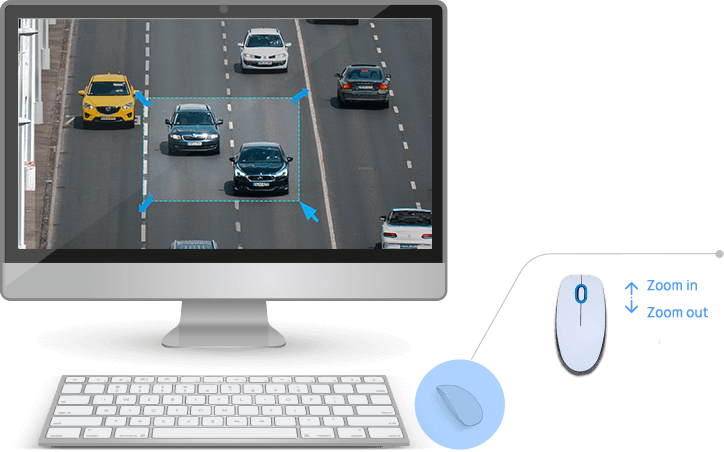

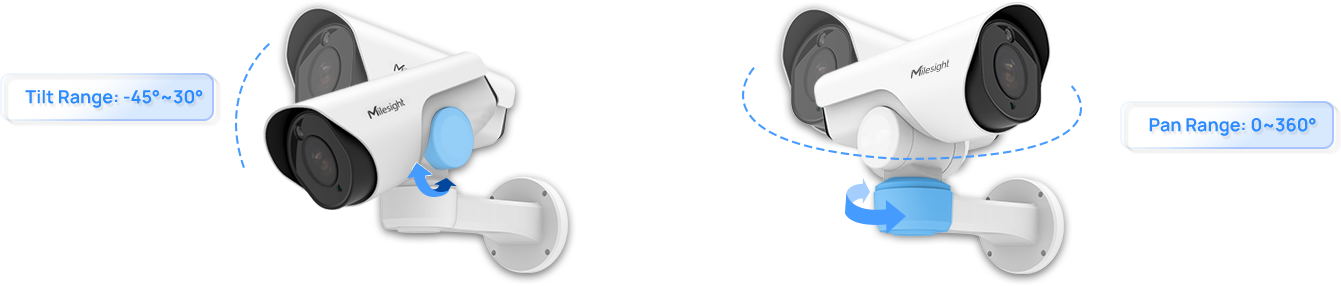

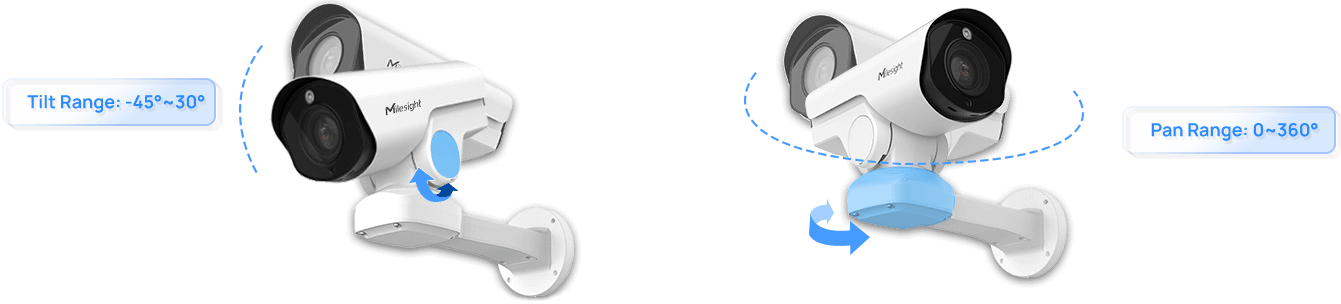

Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 8
patrols with 48 presets for each and maximum 4 patterns for all-round monitoring. Moreover, the user is able to schedule specific PTZ tasks by date and time.
The 12X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.

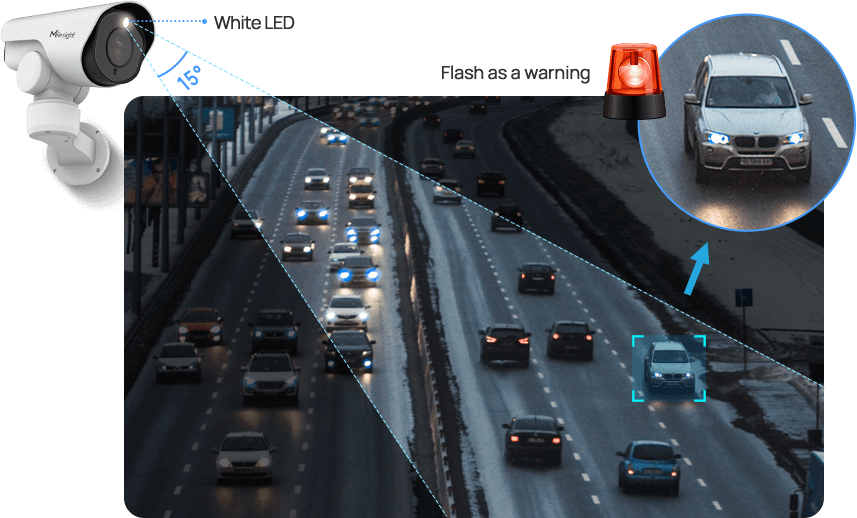

With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.
With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.
With advanced image processing algorithms and starlight sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.005Lux Ultra Low-light, 90fps High Frame Rate and 140dB Super WDR features make it well-suited for 24/7 traffic monitoring.

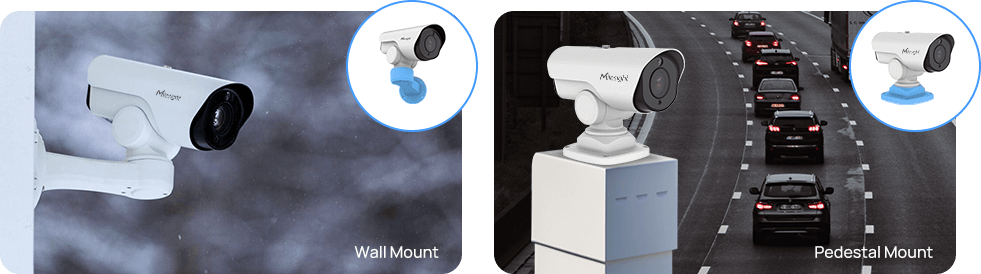

With two installation modes of Wall Mount and Pedestal Mount, the Milesight PTZ Bullet Camera meets different installation needs for different application
scenarios to a greater extent. The innovative modes allow to achieve its best values on the basis of customers' requirements, making the PTZ camera
an unparalleled choice.

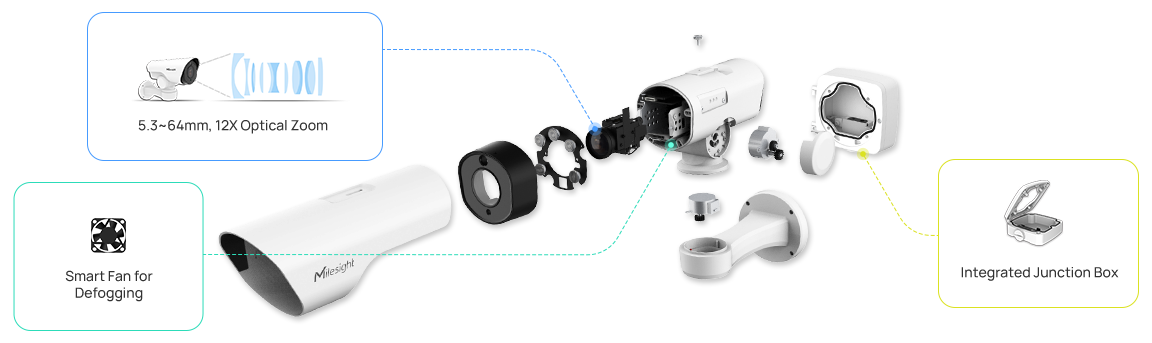

To enhance visual clarity, Milesight AI 12X PTZ Bullet Network Camera features a 12X autofocus lens and innovative defogging technology which combines a
smart fan with corresponding algorithms. Additionally, the camera's integrated junction box and multiple interfaces also facilitate easy installation, even in
complex environments.

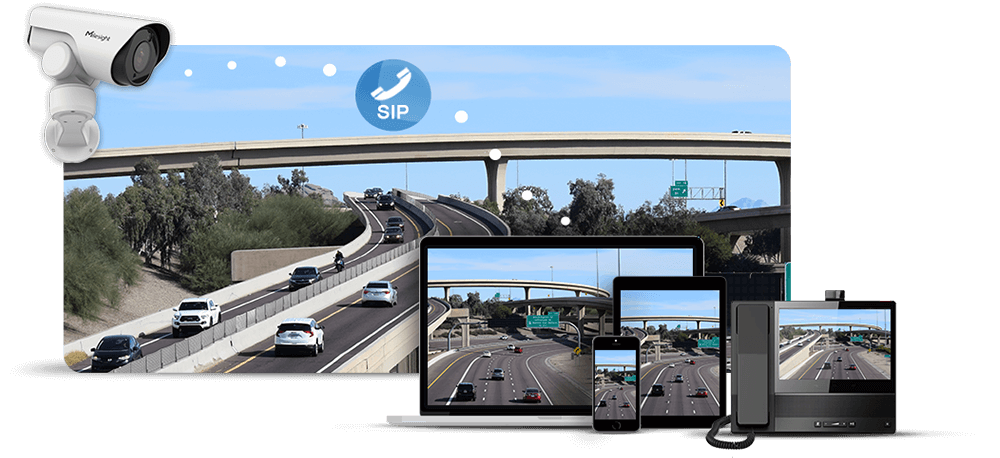

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 200km/h |
| Recognition Accuracy | >95% |
| Coverage | Support simultaneous detection of 4 regions |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 175m during the day; Up to 60m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 1000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Optional) |
| Alarm I/O | 1/1 (Optional) |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & Q & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/2A±10% |
| Power Consumption | 15W MAX 19W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2Kg (Wall Mount) / 1.8Kg (Pedestal Mount) |
| Dimensions | 160mmX273.5mmX210mm (Wall Mount) /218mmX120mmX172mm (Pedestal Mount) |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s~1s |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 200km/h |
| Recognition Accuracy | >95% |
| Coverage | Support simultaneous detection of 4 regions |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 175m during the day; Up to 60m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, |
| Smart Traffic Function | Specific Lane Management |
| White/Black List | Up to 1000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Optional) |
| Alarm I/O | 1/1 (Optional) |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s,Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~25°/s,Tilt Preset Speed: 25°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & Q & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/2A±10% |
| Power Consumption | 15W MAX 20W MAX (With IR on) |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance |
| Weight | 2Kg (Wall Mount) / 1.8Kg (Pedestal Mount) |
| Dimensions | 160mmX273.5mmX210mm (Wall Mount) /218mmX120mmX172mm (Pedestal Mount) |
| Warranty | 2 Years / 3 Years (Optional) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
