AI Road Traffic Supplement
Light Pro Bullet Plus Camera

  • Integrated Supplement Light
  • On-Edge AI-powered ANPR
  • Traffic Violation Detection & Traffic Flow Statistics
  • Evidence Camera Linkage & LPR Smart Search
  • 4X(8~32mm) AF Lens
  • WDR Supported
  • 1/8'' Sensor & 0.05Lux Starlight
  • 60fps High Frame Rate
Get in Touch
product
TS4466-X4RIWG1
TS8266-X4RIWG1
  • SPECIFICATION
  • ACCESSORIES
  • DOWNLOAD

Integrated Supplement Light

Integrated with supplement light of IR LED Light, AI Road Traffic Supplement Light Pro Bullet Plus Camera could turn on and off the supplement light, and change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.

Comprehensive Traffic Violation Detection & Traffic Analytics

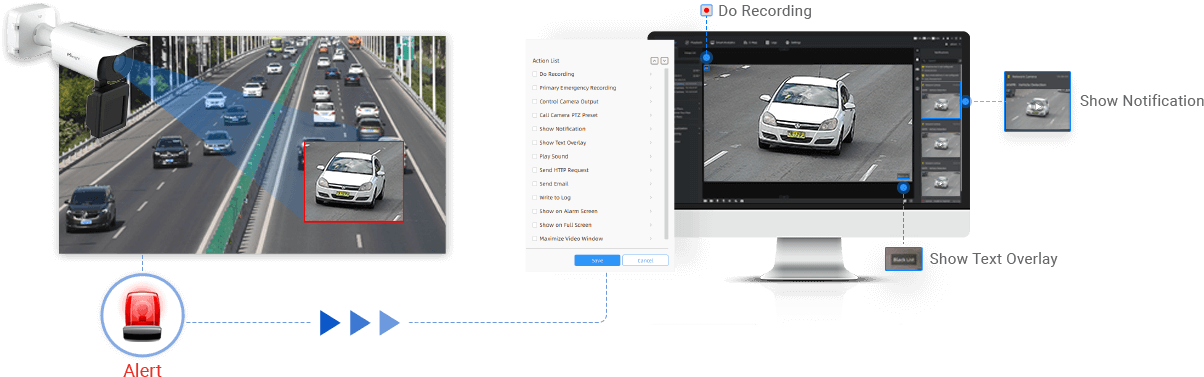

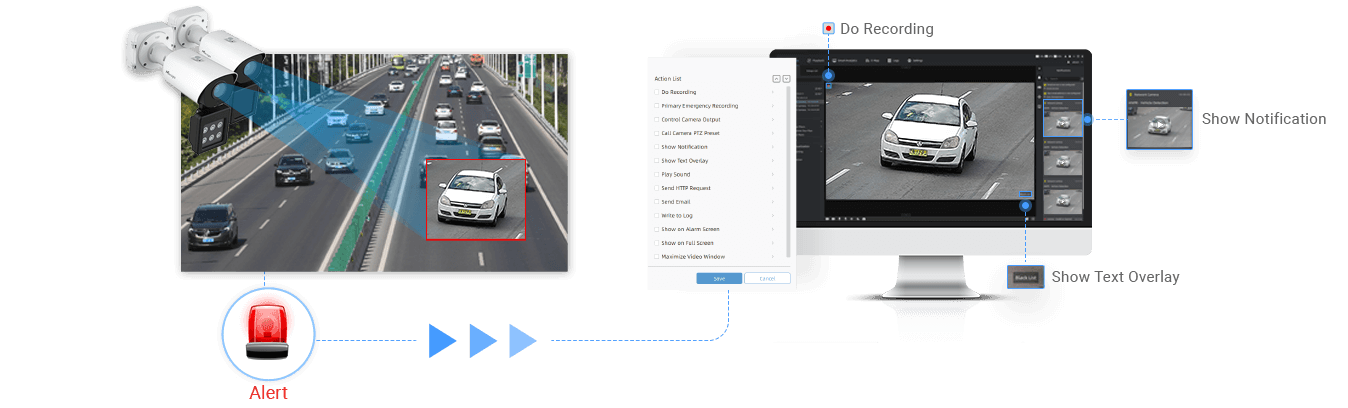

Traffic Violation Detection

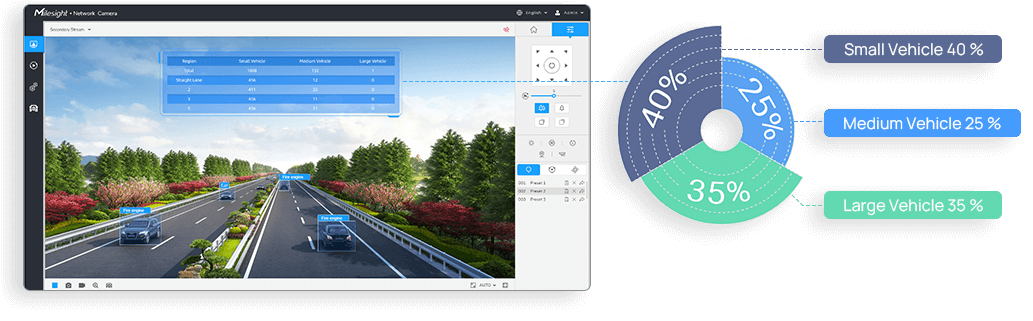

Traffic Flow Analysis
no plate detection
No Plate Vehicle Detection
special lane occupation detection
Special Lane Occupation Detection
reverse driving detection
Reverse Driving Detection
blocklist vehicle detection
Allowlist/Blocklist Detection
traffic flow analysis

Smarter Evidence Capture & Search

evidence linkage

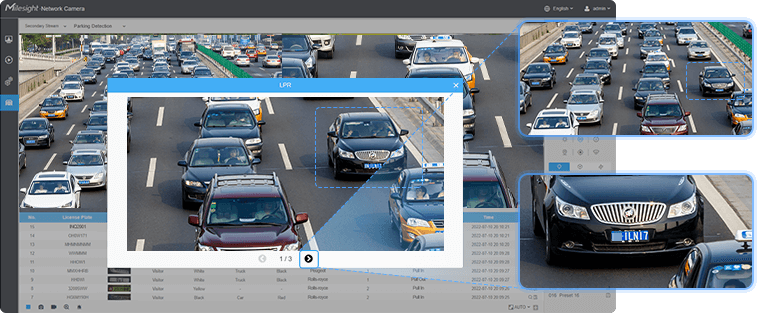

Evidence Camera Linkage

Milesight TrafficC ANPR camera can be linked with standard security cameras for enhanced evidence capture. Seamless triggering between the LPR camera and standard cameras combines LPR results with overview snapshots and critical details, such as the driver's face and cargo carried by trucks, providing users with solid and compelling evidence.

lpr smart search

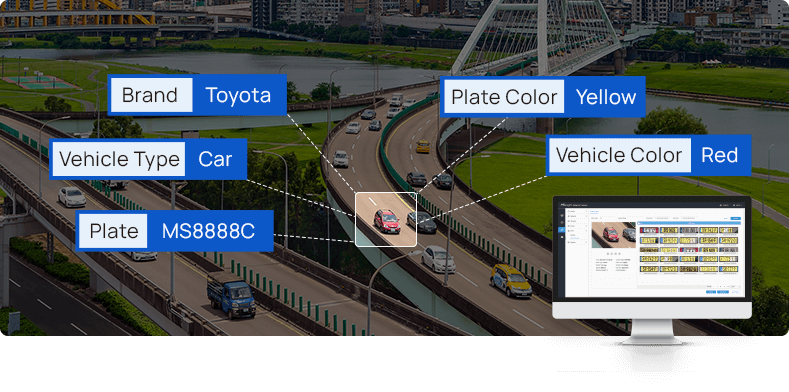

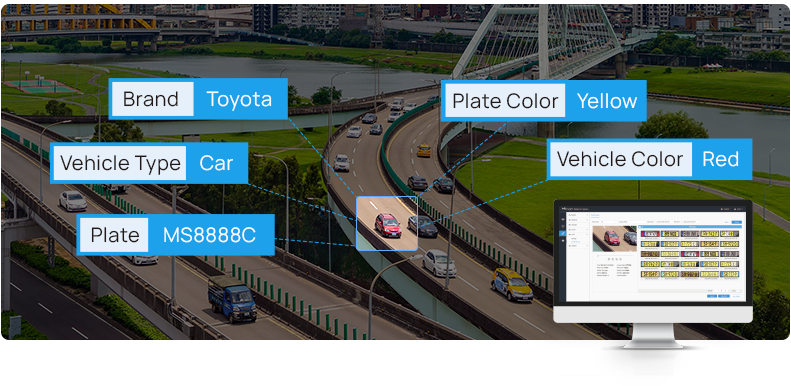

LPR Smart Search

Quickly find relevant video footage by searching with partial details of a target vehicle, such as its brand, type, color, license plate color, plate number, or direction of travel. This enables efficient event investigation and intelligent entrance and exit management. Both manual and automatic export are supported for easier data management.

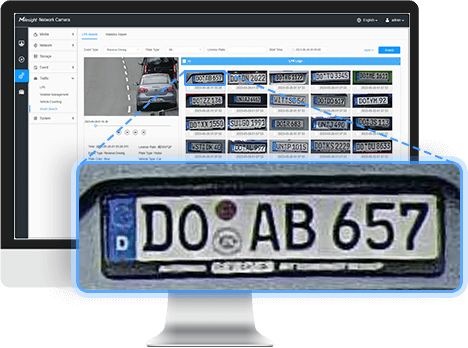

Plate Data Management

A number of options to ensure the powerful plate data management and flexible deployment of Milesight traffic systems.

  • icon 1

    On-edge Plate Management

    Standalone Allowlist/Blocklist management realizes the fast implementation for barrier control.

  • icon 2

    Milesight Back-ends Integration

    Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.

  • icon 3

    Third-party VMS Integration

    Various CGI/APIs and interfaces, protocols like TCP, HTTP make it easy to integrate with all data being pushed to third-party VMS or platforms.

Superior Image Performance

Upgraded WDRX Technology
Smart IR II Technology
0.05Lux Ultra Low-light
60fps High Frame Rate
wdrx
smart ir ii technology
superior image
high frame rate
versatile interfaces

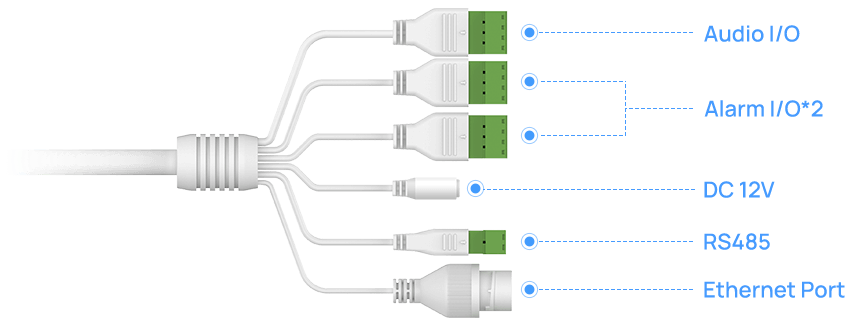

Versatile Interfaces

A rich set of interfaces such as DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs. For example, the alarm interface allows easy integration with traffic light control systems, ensuring smooth operation and compatibility.

View More
View Less

Specifications

PG1

  • 4MP

    • TS4466-X4RIWG1
  • 8MP

    • TS8266-X4RIWG1
Camera
NameAI Road Traffic Supplement Light Pro Bullet Plus Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDRSupport
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
P-IrisSupport
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed160km/h
Capture Rate0.99
Recognition Accuracy0.98
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 40m
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
* Vehicle Color and Plate Color identification are not supported in low-light or night conditions.
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting
White/Black ListUp to 20,000 records inside the camera
LPR Smart SearchSupport
Illuminator
Supplement LightIR LED
IR Wave Length850nm
Light Bead12
Illumination DistanceUp to 50 m
Light ControlAuto/Customize
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm Input2
Alarm Output2 (1 relay output; 1 open collector output, max. 12V DC/10mA)
Wiegand1
RS4851
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720);
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240);
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240);
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Sharpness
Network
Network StorageNAS (Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, LLDP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC,
Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection,
Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity0~95% (Non-condensing)
Power SupplyDC 12~28V
Power ConsumptionMin.: 4.1W
Max.: 27W
Weather ProofUp to IP67-rated for Weather-resistant Performance
Surge Protection4KV
Weight1445.8g
2100g (With Supplement Light)
Dimensions346mmX134mmX223mm
Warranty3 Years (5 Years Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM-EMC (AS/NZS CISPR 32:2015+A1(2020))
SafetyCE-LVD (EN IEC 62368-1), RCM-LVD (IEC 62368-1:2018)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
W - Supplement Light Supported
C/E - AI Series

Camera
NameAI Road Traffic Supplement Light Pro Bullet Plus Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.009Lux@F1.6
B/W: 0Lux with IR on
Shutter Time1/100000s~1s
Day/Night ModeDay/Night/Auto/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
P-IrisSupport
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed120km/h
Capture Rate0.99
Recognition Accuracy0.98
Coverage3 lanes
Country Region SupportedMore than 80 countries and regions
ANPR DistanceUp to 50m
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
* Vehicle Color and Plate Color identification are not supported in low-light or night conditions.
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management, Vehicle Classification & Counting
White/Black ListUp to 20,000 records inside the camera
LPR Smart SearchSupport
Illuminator
Supplement LightIR LED
IR Wave Length850nm
Light Bead12
Illumination DistanceUp to 60 m
Light ControlAuto/Customize
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm Input2
Alarm Output2 (1 relay output; 1 open collector output, max. 12V DC/10mA)
Wiegand1
RS4851
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Sharpness
Network
Network StorageNAS (Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, MQTT, HTTP, TCP, ONVIF Profile G & M & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃~60℃
Working Humidity0~95% (Non-condensing)
Power SupplyDC 12~28V
Power ConsumptionMin.: 5.3W
Max.: 28.3W
Weather ProofUp to IP67-rated for Weather-resistant Performance
Surge Protection4KV
WeightApprox. 1445.8g
Approx. 2100g (With Supplement Light)
Dimensions346mmX134mmX223mm
Warranty3 Years (5 Years Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035), FCC (PART 15B), RCM-EMC (AS/NZS CISPR 32:2015+A1(2020))
SafetyCE-LVD (EN IEC 62368-1), RCM-LVD (IEC 62368-1:2018)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (100fps)
W - Supplement Light Supported
C/E - AI Series

A02 V2 Pole Mount

  • Weight: 1kg
  • Dimension: 180*138.5*47mm
  • Installation Environment: For strapping cameras on poles between φ67–127 mm (2.6–5 inches) in diameter

A03 External Corner Bracket

  • Weight: 900g
  • Dimension: 180*152.5*76mm
  • Installation Environment: For mounting cameras on an external corner
