Introduction

Milesight 360° Panoramic Fisheye Network Camera, the panoramic camera, is born to bring superb user-experience especially featuring ultra high resolution up to 12MP. With exquisite design and customer-oriented idea, the camera fits for different installations like ceiling & wall and maximizes the convenience, achieving hassle-free installation and integrated cable management.

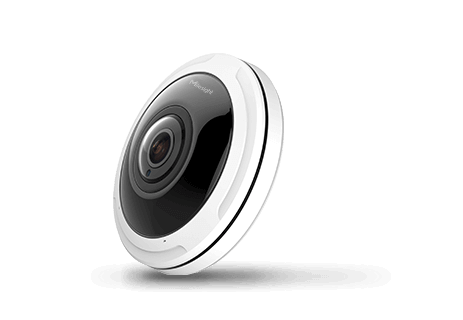

Fisheye camera

Four Different Installation Modes for Different Needs

Considering different requirements from customers for specific installation environments, the Fisheye Camera accesses to four different installation modes. The Fisheye with the bracket (Picture 1) is the basic installation mode. Also, Milesight offers A75 (Picture 2) and A76 (Picture 3) for convenient cables management and ceiling or vertical structure. For wall or parapet installation, A72 (Picture 4) is available.

four installation ways, fisheye camera
Picture 1
four installation ways, fisheye camera
Picture 2
four installation ways, fisheye camera
Picture 3
four installation ways, fisheye camera
Picture 4

Installed with Mounting Bracket

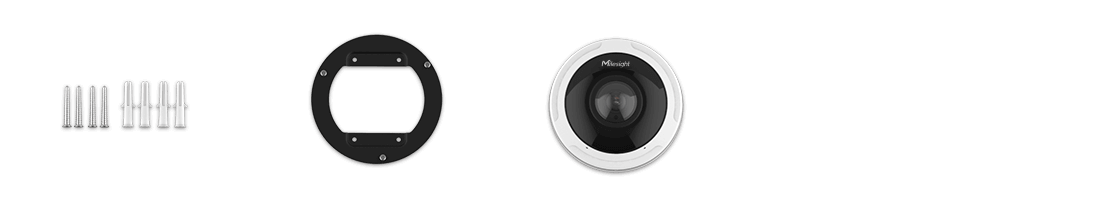

screws, bracket and fisheye camera

Installed with Mounting Bracket

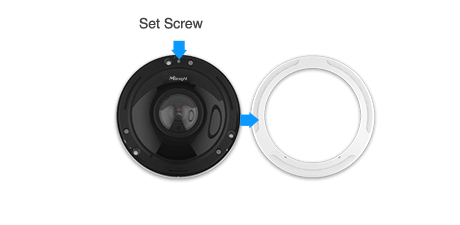

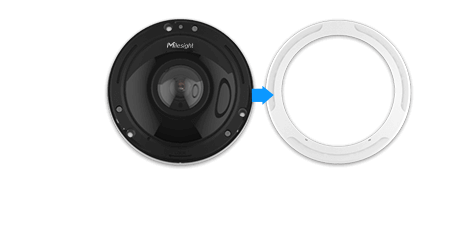

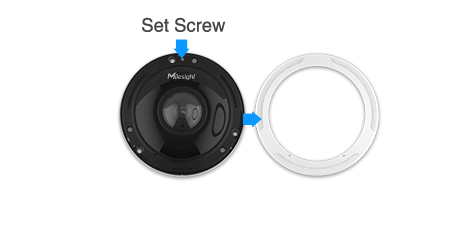

Step 1: Turn the top cover anticlockwise and take it off.

fisheye camera and top cover

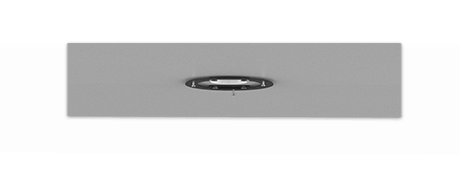

Step 2: Fix the bracket on ceiling or wall where the camera is intended to be installed.

install bracket on the wall

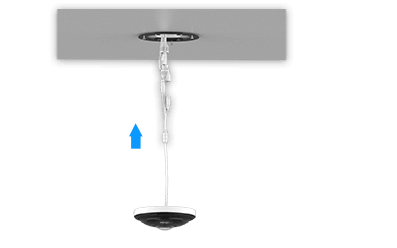

Step 3: Connect cables, rotate the camera to the bracket clockwise;

connect cables with fisheye camera

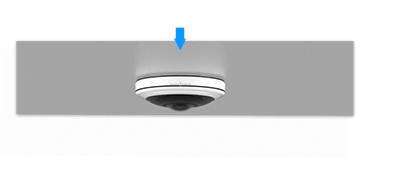

Step 4: Fix the bracket on ceiling or wall where the camera is intended to be installed.

install fisheye camera on the wall

Installed with A75 Junction Box

Installation Environment:
For the containing of electrical connections which need to be concealed from sight and deter tampering.

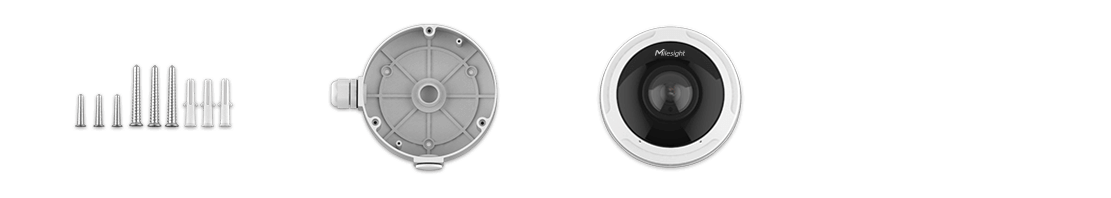

screws, junction box and fisheye camera

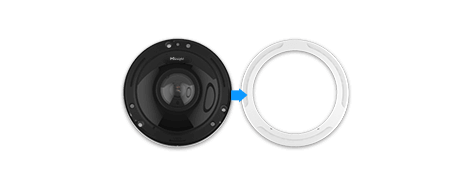

Step 1: Turn the top cover anticlockwise and take it off.

fisheye camera and top cover

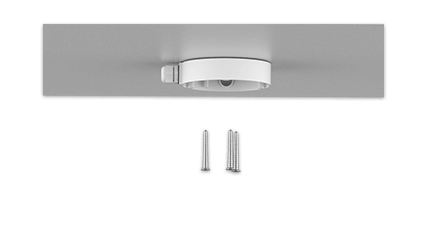

Step 2: Fix junction box in the position where the camera is intended to be installed;

install junction box on the wall

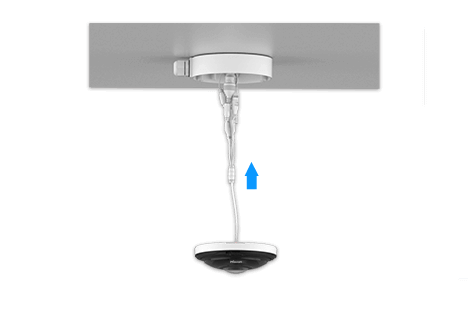

Step 3: Put through the cables through the rubber plug side or the hole centric to connect them.

connect cables with fisheye camera

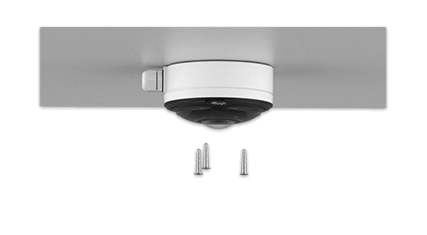

Step 4: Secure the camera on the junction box;

secure fisheye camera on the junction box

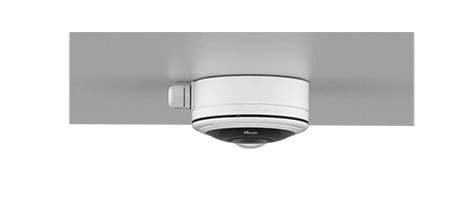

Step 5: Tighten the set screw. Then turn the top cover clockwise till the anchor points are aligned.

fisheye camera with junction box on the wall

Installed with A76 Pendent Mount

Installation Environment:
Used to install camera on an ceiling or horizontal structure.

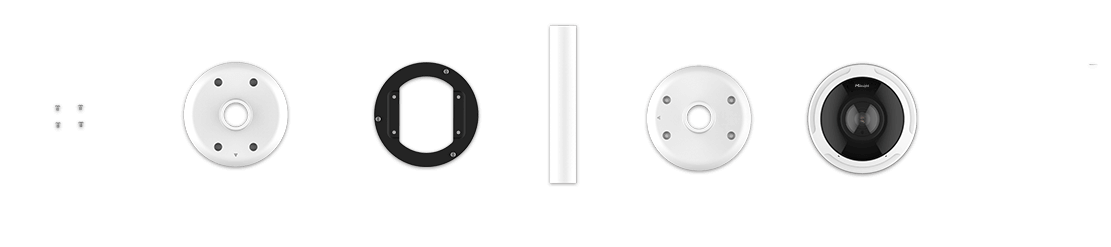

pendant mount and fisheye camera

Step 1: Turn the top cover anticlockwise and take it off.

fisheye camera and top cover

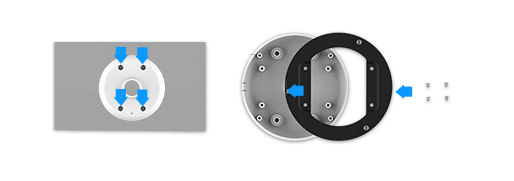

Step 2: Mark holes with the pendant head, and then drill 4 holes in the ceiling. Then Secure the bracket with pendant base;

install pendant mount

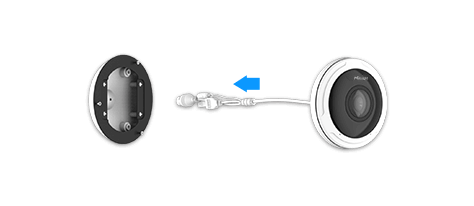

Step 3: Put the cables through the pendant base and then rotate the camera clockwise;

connet fisheye camera with pendant mount

Step 4: Tighten the set screws to fix the camera, then turn the top cover clockwise till the anchor points are aligned;

fisheye camera and top cover

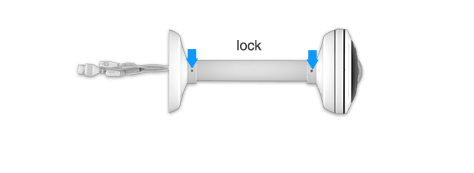

Step 5: Put the cables through the pendant pipe. And rotate it with the base and secure set screws. Put the cables through the pendant head, and rotate it with the pipe and secure set screws;

fisheye camera with pendant mount

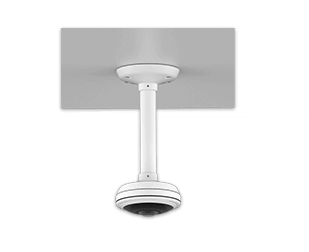

Step 6: Fix the whole pendant and camera to the drilled holes in ceiling.

fisheye camera with pendant mount on the wall

Installed with A72 Wall Mount

Installation Environment:For wall or parapet installations.

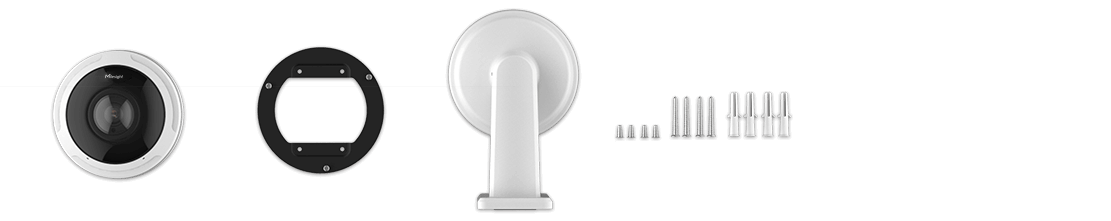

wall mount and fisheye camera

Step 1: Turn the top cover anticlockwise and take it off;

fisheye camera and top cover

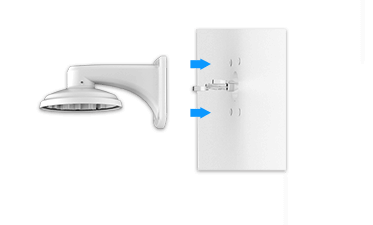

Step 2: Secure the screws to fix the A72 Wall Mount on the wall or parapet;

install the wall mount on the wall

Step 3: Fix the bracket on the head of the A72 with the screws corresponding to the holes;

connect bracket with the wall mount

Step 4: Connect cables, rotate the camera to the bracket clockwise;

connect cables of fisheye camera

Step 5: Tighten the set screw. Then turn the top cover clockwise till the anchor points are aligned.

install the fisheye camera on  the wall mount

Conclusion

Supporting four different installation modes, the Fisheye Network Camera could be regarded as a true user-friendly one. Various accessories satisfy different installation requirements making the installation much more flexible and convenient.
