AI Road Traffic Parking Detection
Pro Bullet Plus Camera
Get Prompt Insight Once Vehicle Illegally Parking
Precise Parking Detection on Roads
AI Road Traffic Parking Detection
- Parking Violation Detection (Up to 2 Illegal Parking Areas)
- Parking Detection (Up to 4 Parking Spaces)
- Intelligent AI-powered LPR Algorithm
- Up to 98% Recognition Rate
- 3rd Party Compatibility
- Motorized Zoom Lens
- 1/1.8'' Starlight Sensor
- 65m IR Distance
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Road Traffic Management
- Parking Detection Pro Bullet Plus Camera
AI-based Parking Violation Detection

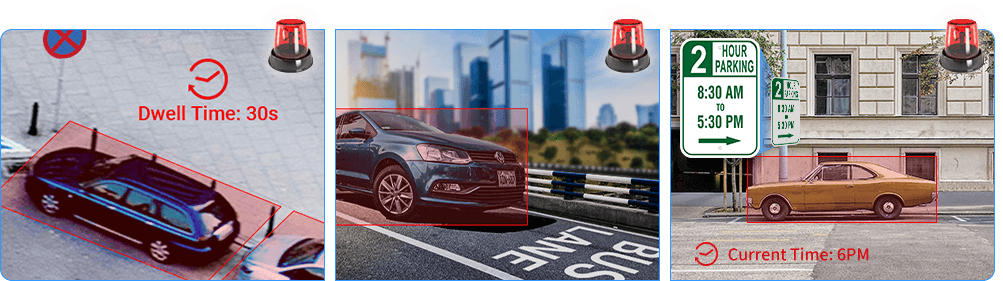

With the AI-based parking violation detection, the camera can effectively detect if there are vehicles parked illegally in the no parking area. Users can make illegal parking detection more suitable for the needs through flexible configuration such as minimum vehicle dwell time, specific vehicle type permitted, different alarm actions, thus achieving effective management of parking spaces.
Intelligent AI-powered
LPR Algorithm

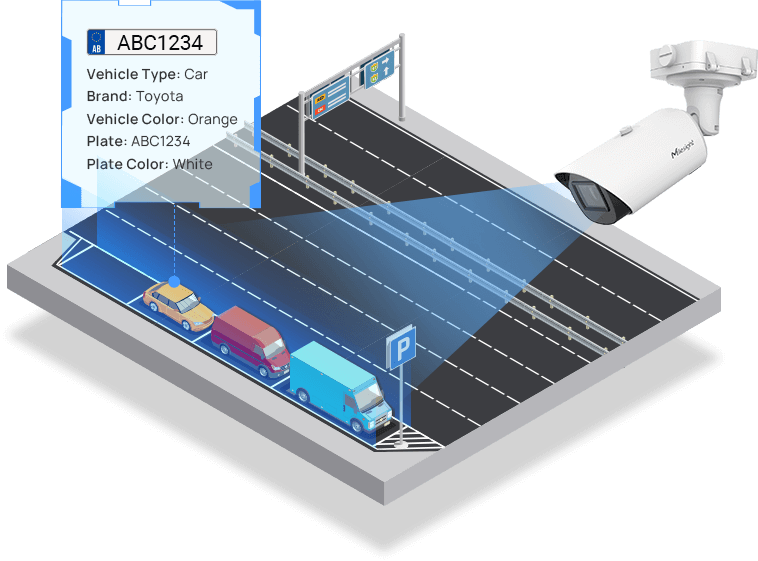

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Parking Detection Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.
High Compatibility
To maximize usability and compatibility, Milesight AI Road Traffic Parking Detection Camera supports CGI/API, which makes it easy to integrate openly with third-party platforms. Network protocols, such as HTTP(s), provide a wide range of options for data processing. The transmission of parking information to third-party parking systems helps form a complete solution to enable intelligent traffic management.

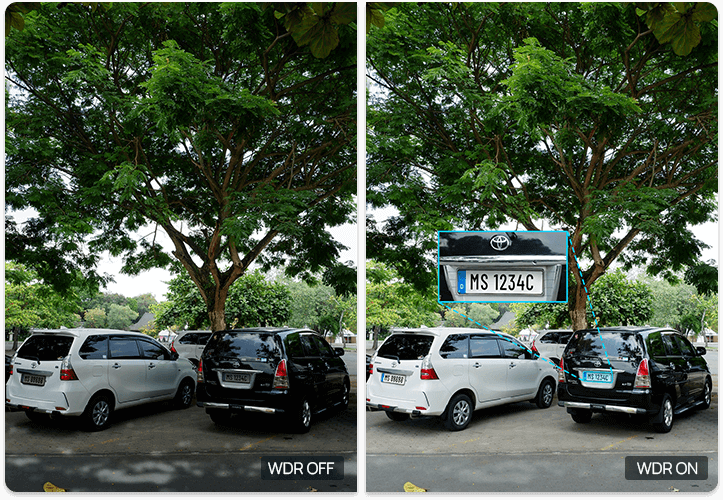

120dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under extreme back light and high contrast conditions, ensuring better capture of vehicle details.

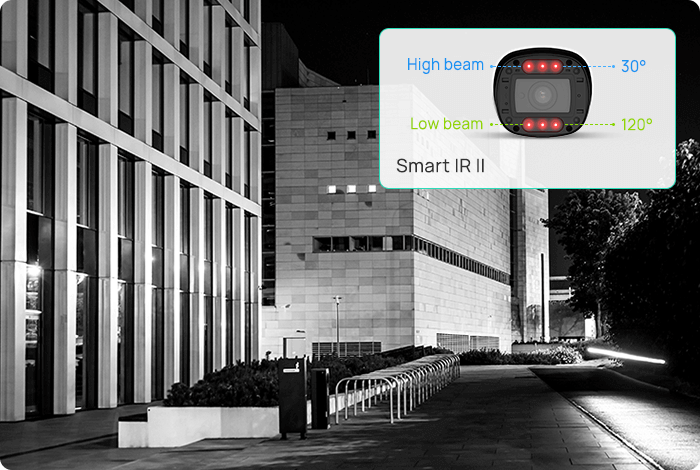

Smart IR II Technology
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

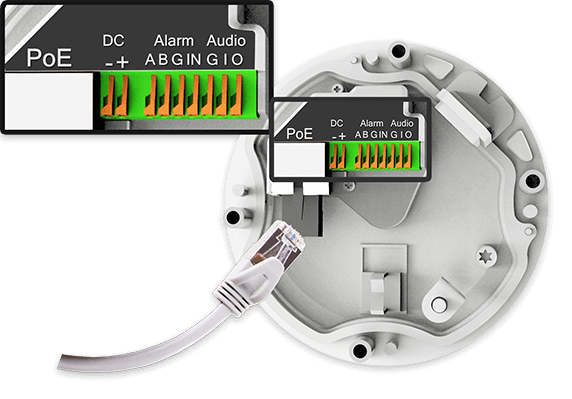

Integrated Cable
Management Bracket
A rich set of interfaces such as PoE port, DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs.

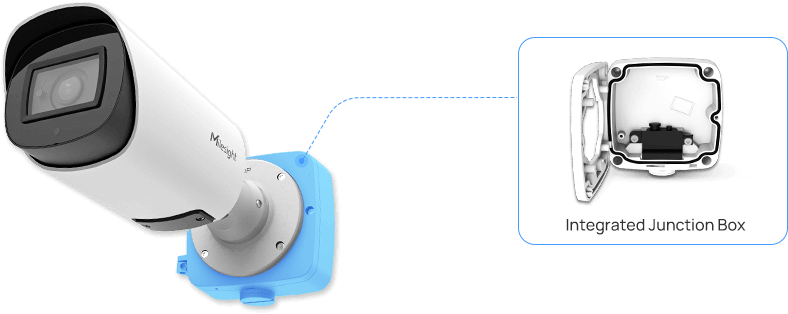

Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.

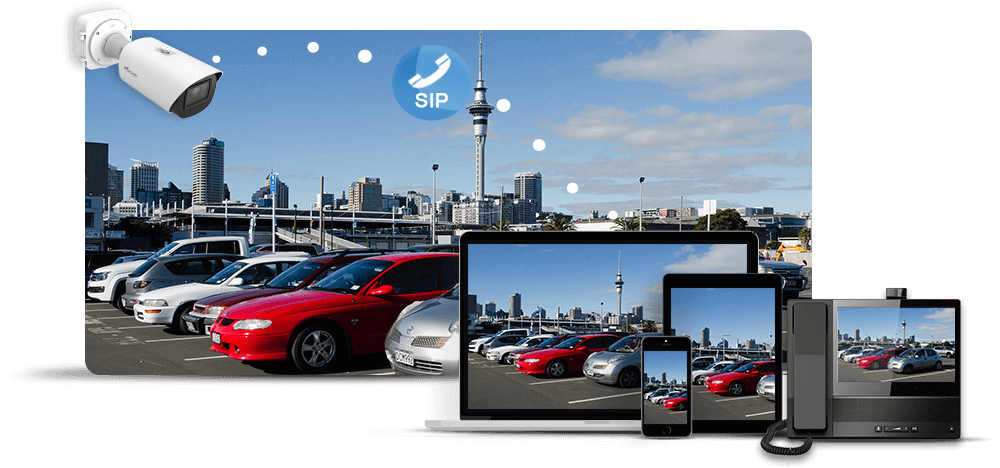

SIP/VoIP Support
Milesight AI Outdoor Parking Management Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
- TS8266-FPC
| Camera | |
|---|---|
| Name | AI Road Traffic Parking Detection Pro Bullet Plus Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.4; B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 3.6~10mm@F1.4 |
| Field of View | H116°~H48°/D134°~D55°/V65°~V27° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Road Traffic Management | |
| Smart Traffic Function | Parking Detection, Parking Violation Detection |
| Detection Space | Support simultaneous detection of 4 parking spaces Support simultaneous detection of 2 illegal parking areas |
| Recognition Accuracy | 98% |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Max. Vehicle Speed | 120km/h |
| Illumination Distance | Up to 65m |
| Country Region Supported | More than 80 countries and regions |
| Parking Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265 +/H.265(HEVC)/H.264 +/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | 8W MAX 17W MAX (With IR on) |
| Surge Protection | 4KV |
| Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance |
| Weight | 1630g |
| Dimensions | 320mmX134mmX126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
F - Motorized Vari-focal Lens
P - PoE Supported
C - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
