Entrance & Exit Supplement Light
AI LPR Pro Bullet Plus Camera
Shine a Light on Accuracy
Superior Imaging, Enhanced Insights
Entrance & Exit Supplement Light
- Integrated Supplement Light
- Wiegand Protocol for Access Control System
- Intelligent AI-powered LPR Algorithm
- Black & White List and No-plate Vehicle Detection
- Evidence Camera Linkage
- 140dB Super WDR
- Smart IR II Technology
- Versatile Interfaces
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Entrance & Exit Management
- Supplement Light AI LPR Pro Bullet Plus Camera

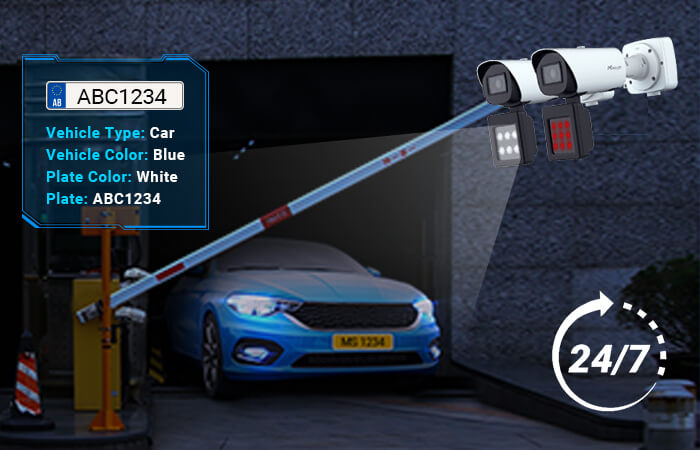

Integrated Supplement Light
Integrated with supplement light of IR LED Light or White LED Light, the camera can realize the illumination distance up to 25m during the day and night. In addition, the brightness of the supplement light can be automatically adjusted to provide the best possible image results.

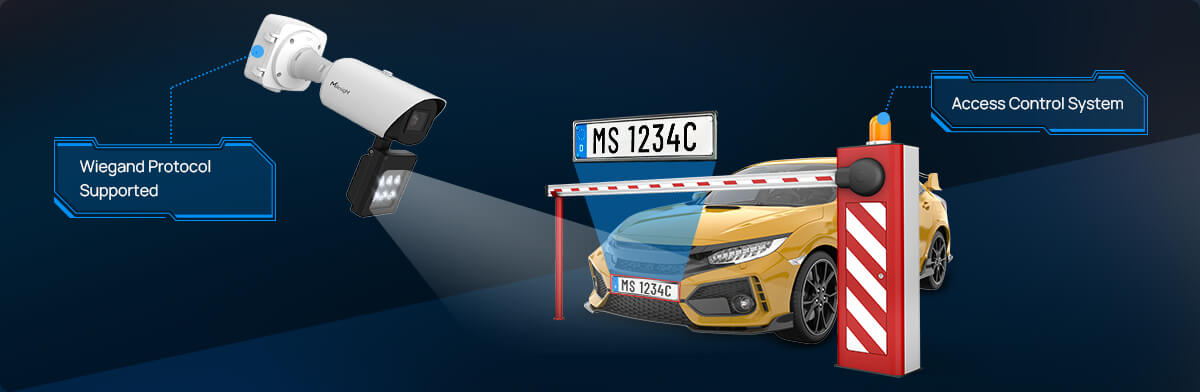

Wiegand Protocol Supported
To maximize the usability and compatibility, Milesight Entrance & Exit Supplement Light AI LPR Camera also supports Wiegand Protocol, which allows the easy open integration with third-party VMS or platforms to realize access control solutions effortlessly.

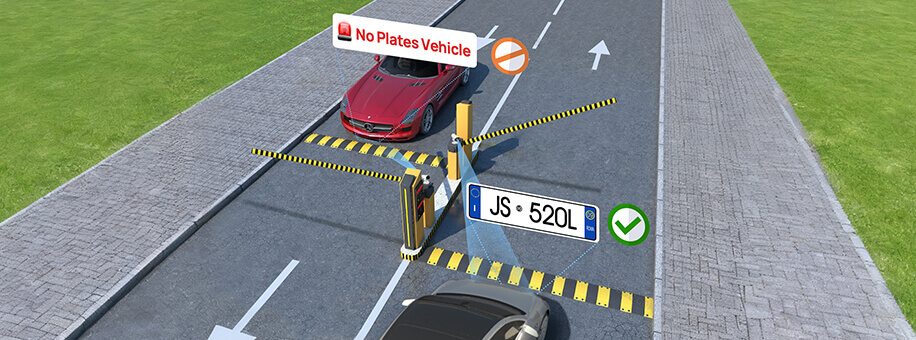

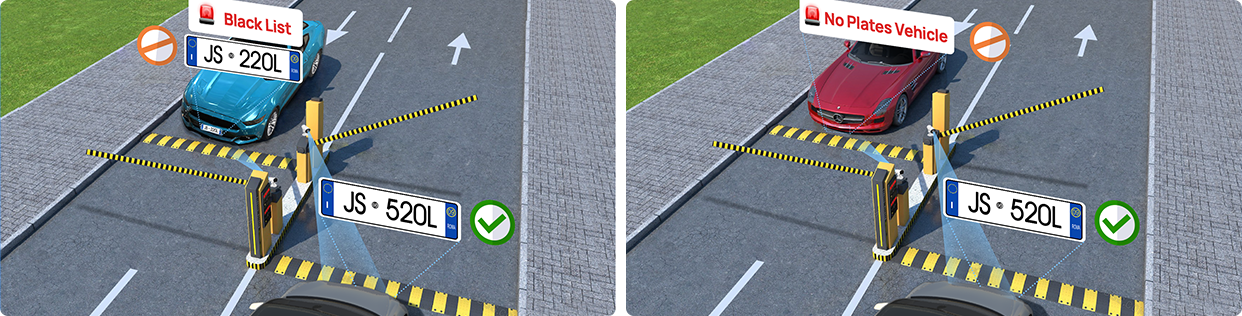

Black/White List and No-plate Vehicle Detection
With the built-in AI LPR algorithm and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable to achieve standalone solutions for license plate recognition as well as no-plate vehicle detection. Alarm is triggered as soon as the corresponding rule-compliant license plate is detected, enabling efficient and accurate access control at any gate, such as a campus or an apartment.
Intelligent AI-powered LPR
Algorithm
Based on built-in AI algorithm, Milesight Entrance & Exit AI LPR Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and efficiency for access control at both entrances and exits.

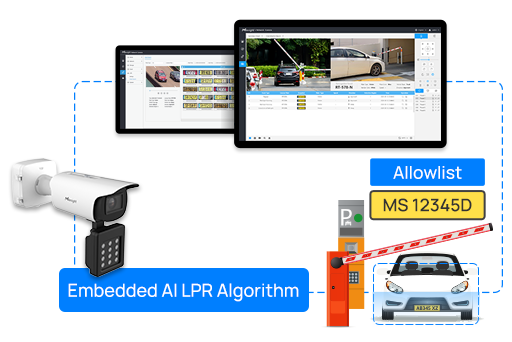

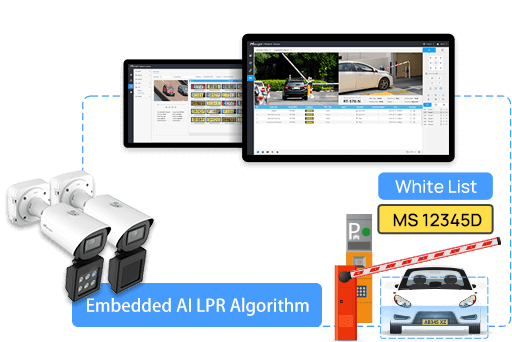

Easy and Flexible Deployment

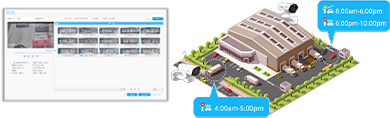

Standalone Barrier Control
With built-in AI LPR algorithms and embedded black/white list, the camera enables a standalone and easy-to-deploy solution for gate or barrier control.
Milesight Back-ends Integration
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
Third-party VMS Integration
Various CGI/APIs, interfaces and protocols like Wiegand, TCP, HTTP make it easy to integrate with third-party VMS or platforms.

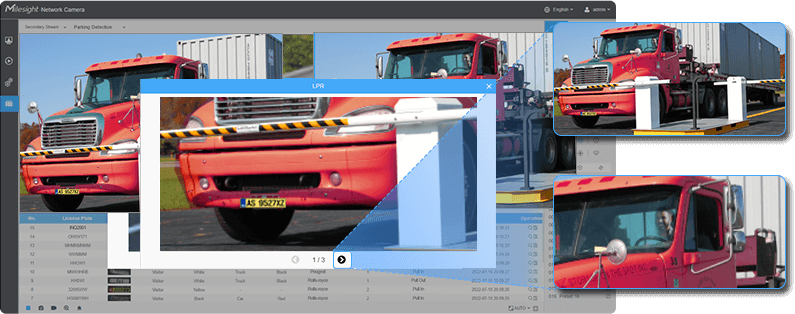

Evidence Camera Linkage
Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. With the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver's face and loaded materials in trucks.

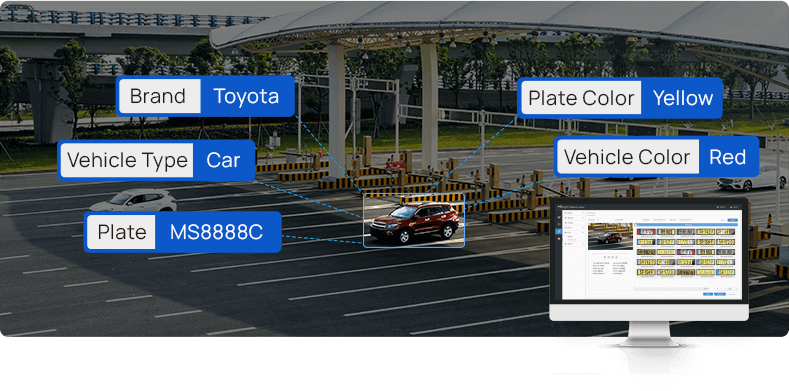

LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.
140dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under extreme back light and high contrast conditions, ensuring better capture of road traffic details.
60fps High Frame Rate
With the industry leading frame rate reaching 60fps, Milesight Entrance & Exit AI LPR Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.

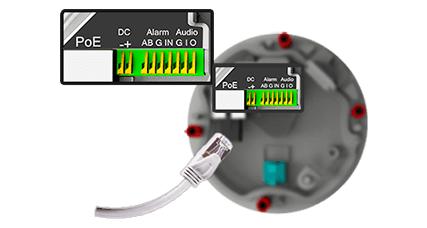

Versatile Interfaces
A rich set of interfaces such as Wiegand, DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
NDAA
- MS-C2966-RFLWPE
Non-NDAA
- MS-C2966-RFLWPC
| Camera | |
|---|---|
| Name | Entrance & Exit Supplement Light AI LPR Pro Bullet Plus Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H113°~H33°/D130°~D38°/V60°~V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Entrance & Exit Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >98% |
| Coverage | 2 lanes |
| Country/Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 25m during the day; Up to 25m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection |
| Smart Traffic Function | Evidence Camera Linkage |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Illuminator | |
| Supplement Light | White LED Light / IR LED Light |
| Light Bead | 6 (For White LED Light) / 9 (For IR LED Light) |
| Illumination Distance | Up to 65m |
| Light Control | Auto/Always On/Off/Customize |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Wiegand | Standard Wiegand 26-bit |
| RS485 | Support |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 6W MAX, 24W MAX (For White LED Light), 24W MAX (For IR LED Light) |
| Housing | Up to IP67-rated for weather-resistant performance |
| Surge Protection | 4KV |
| Weight | 1630g 2075g (With Supplement Light) |
| Dimensions | 320mmX134mmX126mm 320mmX134mmX231mm (With Supplement Light) |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
W - Supplement Light Supported
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | Entrance & Exit Supplement Light AI LPR Pro Bullet Plus Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux @F1.4, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s∼1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7~13.5mm@F1.4 |
| Field of View | H113°~H33°/D130°~D38°/V60°~V18° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Entrance & Exit Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >98% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 25m during the day; Up to 25m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Smart Traffic Function | Evidence Camera Linkage |
| White/Black List | Up to 1,000 records inside the camera |
| LPR Smart Search | Support |
| Illuminator | |
| Supplement Light | IR LED Light or White LED Light |
| Light Bead | 9 (For IR LED Light)/6 (For White LED Light) |
| Light Control | Auto/Always On/Off/Customize |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Wiegand | Standard Wiegand 26-bit |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Frame Rate | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Settings | Saturation/Brightness/Contrast/Sharpness |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| System | |
| System Compatibility | API, HTTP, TCP, Wiegand Protocol, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice&Video-over-IP |
| Event Trigger | Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| General | |
| Working Temperature | -40℃∼60℃ |
| Working Humidity | 5∼90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 5W MAX, 25W MAX (For IR LED Light), 25W MAX (For White LED Light) |
| Weather Proof | Up to IP67-rated for weather-resistant performance |
| Housing | Vandal-proof IK10-rated Metal Housing (Without Supplement Light) |
| Surge Protection | 4KV |
| Dimensions | 320mmX134mmX126mm, 320mmX134mmX231mm (With Supplement Light) |
| Weight | 1630g, 2075g (With Supplement Light) |
| Warranty | 3/5 Years |
* Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
L - LPR Supported
W - Supplement Light Supported
P - PoE Supported
C/E - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
