3D ToF People Counting Sensor

Unparalleled Anonymous Counting

3D ToF Technology · 100% Anonymous Detection · Ultra-high Accuracy · Bi-directional People Counting · U-Turn Detection · Distinguished Lighting Environment Adaptability · Powerful Local Storage Capacity

3D ToF 99.5%
Ultra-high
Accuracy
Anonymous Detection GDPR Bi-directional Detection in Darkness

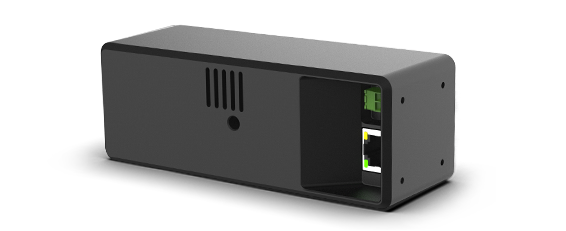

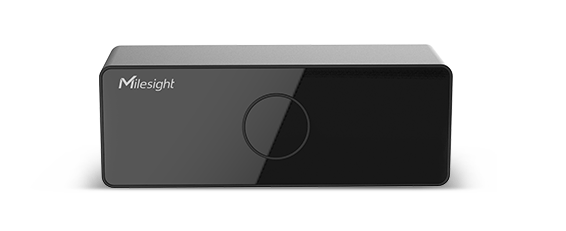

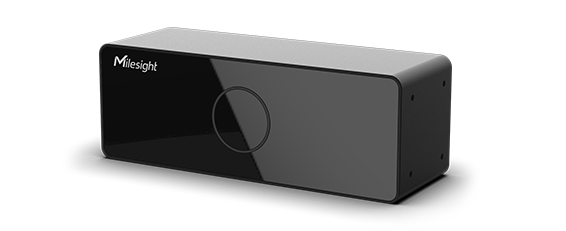

  • Milesight 3D ToF people counter
  • Milesight 3D ToF people counter
  • Milesight 3D ToF people counter

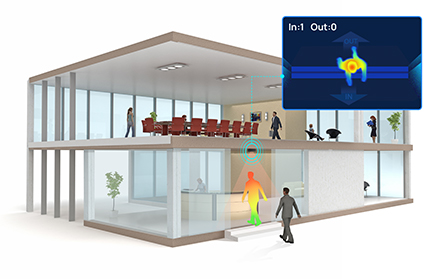

3D ToF Technology

The ToF (time-of-flight) principle is based on measuring the time it takes for a modulated near-infrared light to travel from a source to an object and back. By calculating phase difference, it forms 3D depth information for accurate and anonymous people counting.

3D ToF Technology

100% Anonymous Detection

The 3D ToF People Counter is GDPR-compliant. By applying 3D ToF technology, it only gets 3D depth information and transmits them without involving personally identifiable information, 100% guaranteeing privacy protection at source.

100% Anonymous Detection

99.5% Ultra-high Accuracy

Breaking through the limitation of the RGB and AI technologies which impede the higher accuracy, the 3D ToF technology efficiently increase accuracy rate to 99.5% by 3D depth information.

Accuracy Test Report >>
99.5% Ultra-high Accuracy

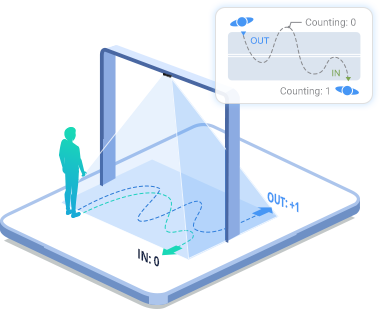

Smart U-Turn Detection

By detecting the U-shape tracks of people flow, the accuracy is guaranteed to avoid unnecessary people counting. For example, it filters out redundant counting of people wandering the area, especially in transportation or buildings, to differentiate people who don’t truly enter.

Smart U-Turn Detection

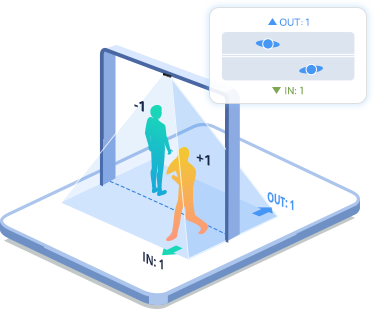

Bi-directional Counting

Two-way detection enriches the applications of the 3D ToF People Counter. Counting people in and out concurrently is beneficial for more accurate and objective information, reaching efficient management.

Bi-directional Counting

Great Lighting Environments Adaptability

Independent of ambient light, the 3D ToF People Counter with active ToF light source realizes accurate detection even in the complete dark environments.

Great Lighting Environments
Adaptability

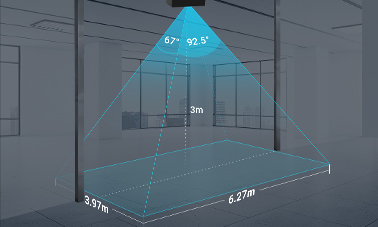

Large Detection Area

Specially designed for line crossing people counting, the 3D ToF People Counter places emphasis on entrances of diversified applications. A wide FoV coverage is essential for accurate people counting to precisely understand spaces.

Large Detection Area

Powerful Local Storage Capacity

With high-capacity of storing a million data locally, it enables users to check and track long-running statistics. All the valuable information will be kept awaiting orders. And the large storage capacity guarantees data security for some disconnect emergencies.

Powerful Local Storage Capacity

Easy Configuration

The configuration through Wi-Fi and PoE connection enhances user experience for great convenience. The Wi-Fi can be disabled to eliminate possible worries of privacy disclosure.

Easy Configuration

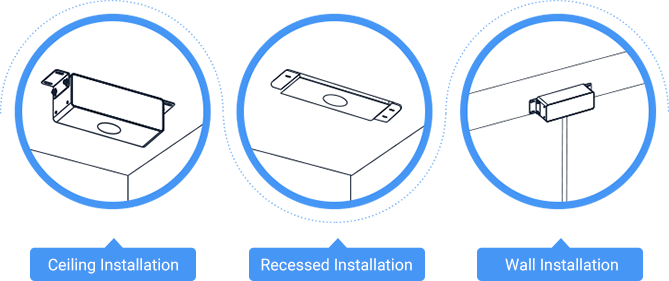

Various Installation Modes

Support ceiling, recessed and wall installation, the 3D ToF People Counter flexibly fits diverse application scenarios. And the reserved general threaded hole creates great convenience for independent mounting.

Various Installation Modes
  • VS132
Model VS132
Wireless Transmission Protocol LoRaWAN®
Frequency CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Max Tx Power 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity -137 dBm @300bps
Mode OTAA/ABP Class C
People Counting ToF FoV 92.5° Horizontal, 67° Vertical
Detection Range 0.5 to 3m
Installation Height ≤ 3m
Accuracy >99.5%
Local Storage 1, 000, 000 data records
Advanced Setting Entrance and exit area customization
Interface Wi-Fi IEEE 802.11 b/g/n, 2.4GHz, only support configuration
Ethernet Port 1×RJ45 10/100 Mbps Ethernet Port (PoE PD), provides CGI for integration
Power Input 2-pin 5.08 mm Terminal Block
Physical Characteristics Power Supply DC 12V/2A by Terminal Block
1×802.3 at PoE input
Power Consumption Typical 7.5 W, max 28 W
Operating Temperature -10°C ~ +60°C
Storage Temperature -20°C ~ +60°C
Relative Humidity 0 ~ 95% (Non-condensing)
Color & Material Black, Aluminum Alloy
Weight 296g
Dimension 140×50×50 mm (5.51×1.97×1.97 in)
Installation Ceiling Mounting, Wall Mounting, Embedded Mounting
Relative Humidity 0 ~ 95% (Non-condensing)
