Passage People Counter
Count Smart, Spend Wise
Count Smart, Spend Wise
With bi-directional detection using dual PIR sensors, the passage people counter brings applicable accuracy and redefines the way you track foot traffic in a cost-effective way.
Easy and convenient wireless deployment dispenses with being perplexed by network connection. The benefits of LoRaWAN® technologies guarantee low power consumption, long-distance transmission, deep penetration, and anonymous detection.

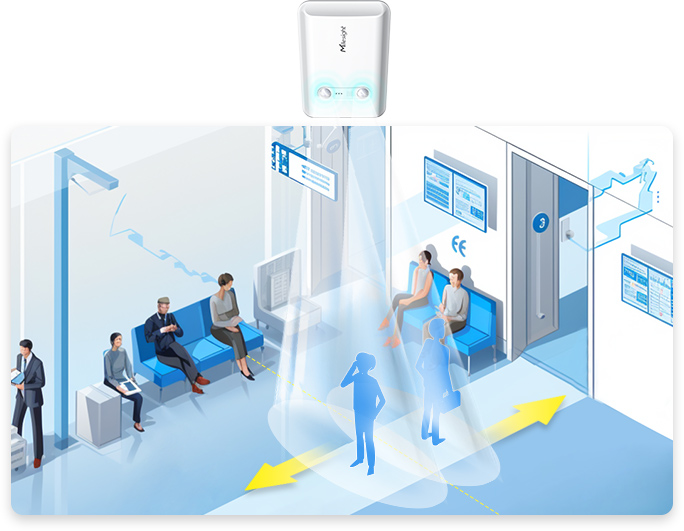

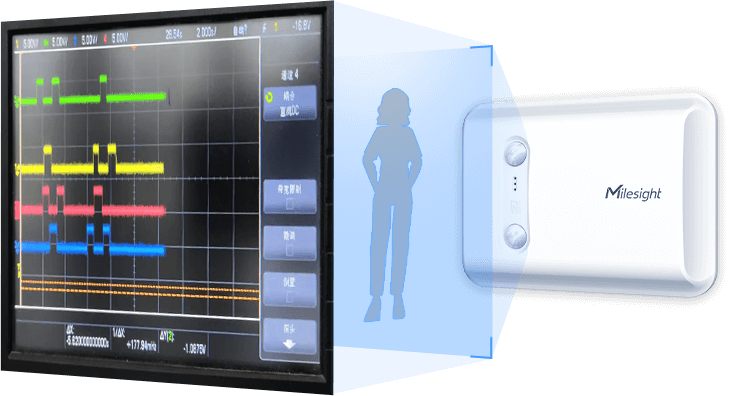

The Passage People Counter applies dual PIR sensors. It identifies the presence of people by detecting infrared radiation changes. To differentiate bidirectional movements and realize clear two-way people counting, two PIR sensors work in tandem to detect moving directions determined by the signal waveform.
The LoRaWAN® narrow bandwidth transmits data with no personally identifiable information involved, which 100% guarantees privacy protection at the source. Nothing to worry about, It is compliant with GDPR.
Based on the low power consumption LoRaWAN® protocol, the sensor can maintain a long battery life of 4 years with a high reporting frequency of 10 minutes. It is ideal for covering most user demands in different scenarios.

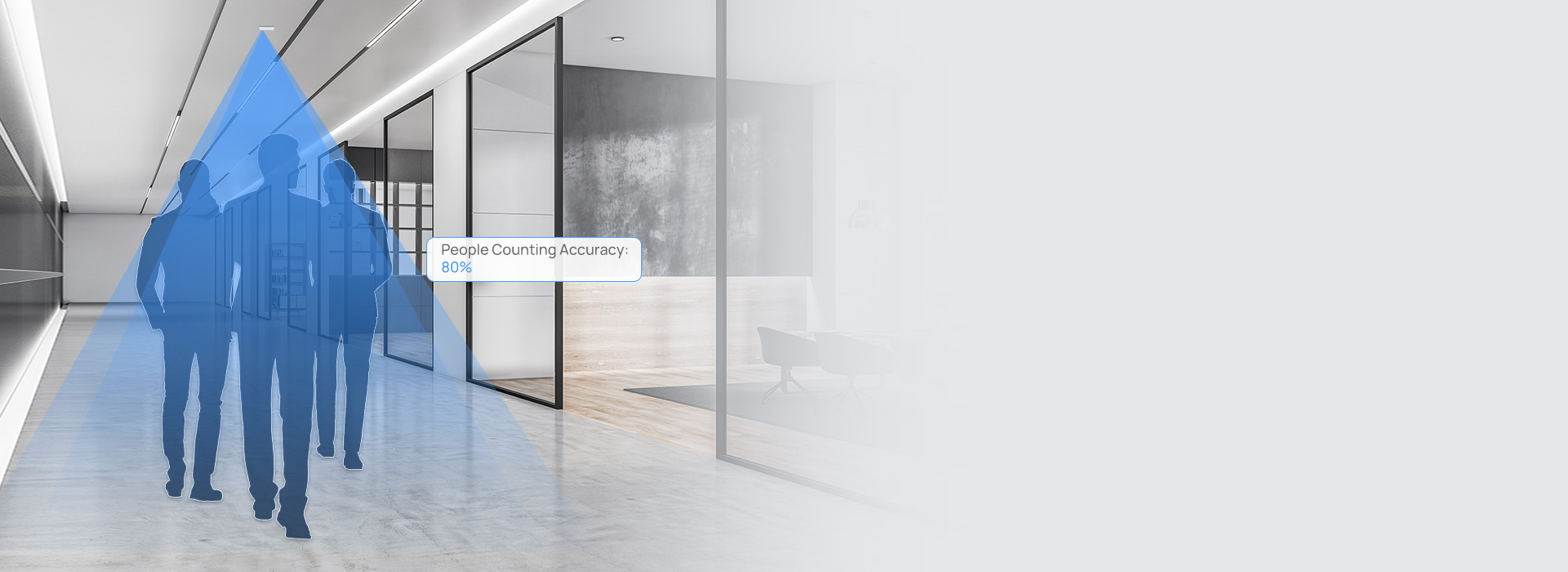

The Passage People Counter with high-cost performance elevates your business intelligence. It brings an accuracy of up to 95% when detecting a single person while reaching an accuracy of 80% to cover people's flow tendency for most spaces. The people counter combines precision and cost performance to get dependable data for informed decision-making in various applications.
Engineering for passages with a wide coverage of 3 meters in height and 2.8 meters in width, the people counter ensures that no movement goes unnoticed. It is a good helper to provide comprehensive insights into foot traffic within the target area.
*The detection ranges are measured under a temperature of 20℃. And they may decrease as the temperature increases.
The exclusive Milesight LoRa®-based protocol allows the people counter to easily communicate with other Milesight LoRaWAN® devices within 1 second. The facilities like lights can be intelligently switched through the linkage to realize accurate, timely, and automatic responses, bringing easier and smarter extended performance.
Milesight Development Platform

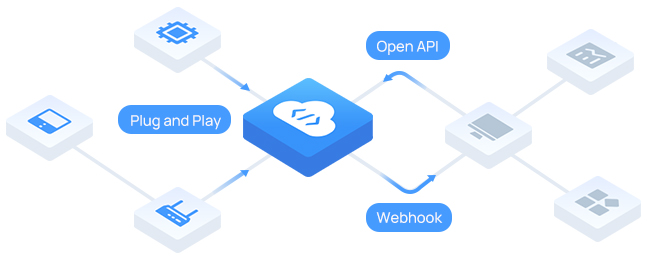

Milesight Development Platform simplifies IoT deployments and management with plug-and-play device configurations, batch operations for multi-device handling, and API & webhooks for custom integration and application development.
Milesight IoT Cloud
Milesight IoT Cloud streamlines device-to-cloud connection with data visualization and remote monitoring and control.
Transforming the passages with the impressive people counter has never been easier. The sensor pursues simplicity and effortless installation performance with its physical design and brackets. The user-friendly design ensures a hassle-free deployment process, allowing you to start monitoring foot traffic in no time.
Switching On/Off & Configuring the Devices Wirelessly
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
Ceiling Mounting
Wall Mounting
Milesight VS Series Portfolio offers a clear, concise applications of AI-powered people sensing solutions, helping businesses uncover actionable insights, compare technologies, and make smarter deployment decisions across offices, retail, and public spaces—see what's possible in just minutes.
Discover the comprehensive insights in Milesight People Counting White Paper, where we compare the advantages and disadvantages of the latest people sensing technologies to help you make informed decisions.
Milesight GDPR Guide addresses common industry pain points, the challenges of IoT privacy protection, and how people counters ensure data security and privacy through advanced technology. It also details how VS125 AI Stereo Vision People Counter meets the requirements mapped out by GDPR.
Measurement | |
---|---|
People Counting | |
Technology | Dual PIR |
Installation Height | Ceiling Mount: ≤ 3.0m Wall Mount: 1.2m~1.3m |
Detection Range1 | Ceiling Mount: Passage Width = 2.8 m ( At the height of 3m) Wall Mount: Passage Width < 2.3 m |
Detection Rate | Single Person2: Up to 95% Multiple People: Up to 80% |
Best Operating Temperature3 | 15 °C~32 °C |
Bi-directional Counting | Support |
Temperature | |
Measuring Range | -30°C ~ 70°C |
Accuracy | ± 0.5°C |
Wireless Transmission | |
Protocol | LoRaWAN®, Milesight D2D |
Antenna | Internal Antenna |
Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
Tx Power | 16 dBm (868 MHz)/19 dBm (470 MHz)/22 dBm (915 MHz) |
Sensitivity | -137dBm |
Mode | OTAA/ABP Class A |
Others | |
LED | 1 × LED Indicator (Internal) |
Button | 1 × Reset Button (Internal) |
Software | |
Configuration | NFC via Mobile App, Downlink |
Advanced Feature | Data Storage (1,000 entries), Data Retransmission, Data Retrievability, Milesight D2D Controller |
Physical Characteristics | |
Power Supply | 2 x 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
Battery Life4 | Around 9.7 Years (SF7, EU868) |
(10-min Interval, 25°C, 1000 People per Day ) | Around 5.2 Years (SF10, EU868) Around 8.7 Years (SF7, US915) Around 4.6 Years (SF10, US915) |
Operating Temperature | -20°C ~ 60°C |
Relative Humidity | 0% - 95% (Non-condensing) |
Ingress Protection | IP30 |
Dimension | 100 x 70 x 21 mm ( 3.94 x 2.76 x 0.83in) |
Housing & Color | PC (Flame Retardant), White |
Weight | 99g (Batteries Included) |
Installation | Ceiling Mount, Wall Mount |
Approvals | |
Regulatory | CE, FCC |
Environmental | RoHS |
1 This detection range works at an environment temperature of 20°C. The higher the environment temperature, the smaller the detection range.
2 40-50 cm should be kept between two people while passing the detection area.
3 The sensitivity of PIRs is greatly influenced by ambient temperature. And the most effective working temperature
range is +15 to +32 °C.
4 Tested under laboratory conditions and for guideline purposes only.
