2-in-1 IAQ Sensor

Nice T&H Detection for up to Nine Years

AM102

AM102L

Detect Temperature and Humidity
Optional 2.13 -Inch E-ink Screen
Traffic Light Status Indicator

Wireless Installation with Anti-theft Protection
Hibernation Mode for Low Power Consumption (AM102)
Battery Life up to 7 Years (AM102) / 9 Years (AM102L)

FEATURES
MODELS
DOWNLOAD

Milesight 47,000 LoRaWAN® IAQ Sensors in Canadian Schools

With province-wide LoRaWAN® IAQ solution deployment, students and staff in Quebec's public schools are now in a healthier learning environment with more helpful insights. Check how Milesight has made it happen!

Learn More

Your Basic IAQ Data
Great T&H Detection Made Simple

Provide real-time and basic temperature and humidity data in your indoor air quality (IAQ).

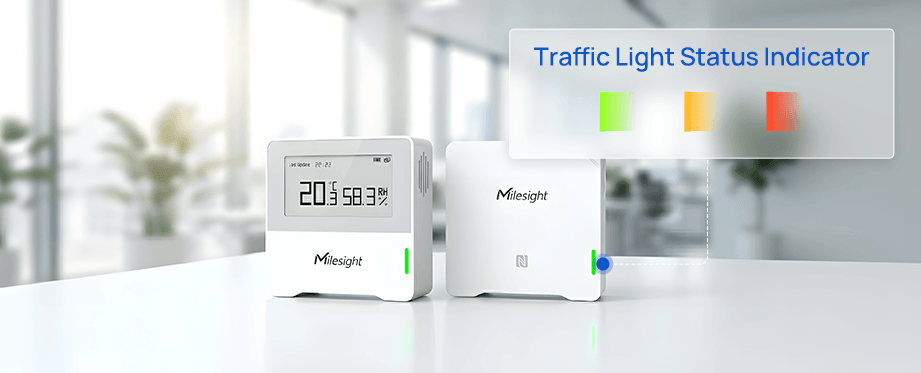

Traffic Light Status Indicator
Interactive Information on E-ink Screen (AM102)

Excellent

Polluted

Bad

2 Sensors in 1

AM102/AM102L

Temperature

Cold temperatures can suppress the immune system and aid the spread of viruses.

Humidity

Higher relative humidity indicates higher level of moisture in the air which lead to cold, flu symptoms, and risk for toxic mold.

The Mini Sensor Your Best Necessity

AM102

With E-Ink Screen
Light/Dark Color Theme

AM102L

With E-Ink Screen
Light/Dark Color Theme

*When AM102 detects the temperature beyond the range
from 0°C to 40°C, the screen will turn off automatically.

Indoor Air Monitoring (IAQ) Solution

At Milesight, we help you and your people to live in a safer and healthier facilities.
Towards that end, real-time data about air quality is essential. And that starts with
our one-stop solution for indoor air quality (IAQ)

Learn More

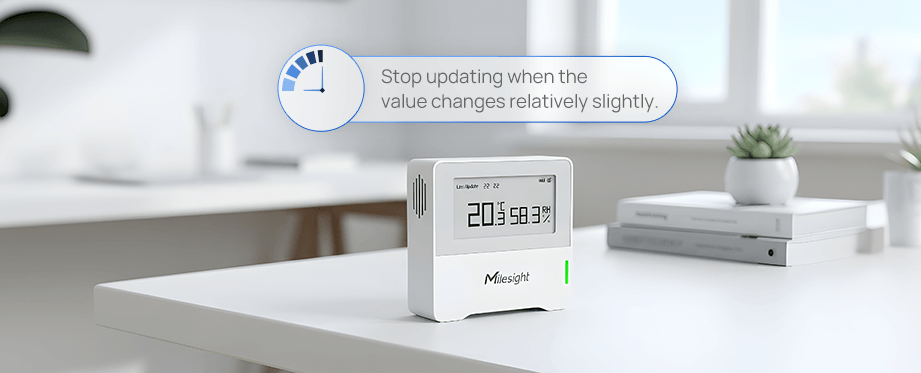

Smart Screen Mode for Energy-Saving Operations

When the current collected value is close to the last value*, the screen will stop updating to save power.

* When the reading is within a certain range (temp. ≤ ±0.5°C and hum. ≤ ±3% and CO2 ≤ ±50 ppm).
** When Screen Smart Mode is enabled, the minimum refresh interval is customizable from 2 to 1080 minutes to refresh the screen.

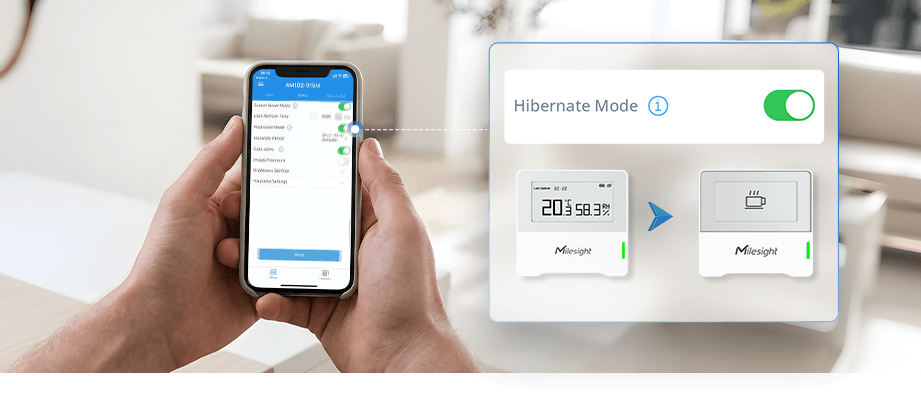

Hibernation Mode for Ultra-Low Power Consumption

Use hibernation when you know you will not be using the IAQ sensor for an extended period of time to save more power.
Hibernation uses less power than smart screen mode because data collection will automatically turn off

*Customers can turn on the LoRa uplink with hibernation mode enabled, in which case the screen will still keep displaying hibernation mode, but only to save screen power consumption.

Multi-Year Battery Operation

Built-in 2 × 2700 mAh ER14505 Li-SOCL₂ Replaceable Batteries Battery Life up to 7 Years (AM102) / 9 Years (AM102L)

LoRaWAN® Based

Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
High Compatibility: compliant with standard LoRaWAN® gateways and network servers

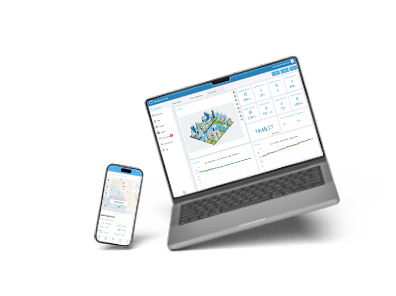

Cloud Data Management
Milesight IoT Cloud

Data Visualization Dashboard:
All figures in a glance
Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation
Regular Reports & Real-Time Alerts:
Data-based insights
Android & iOS App:
Manage devices at your fingertips

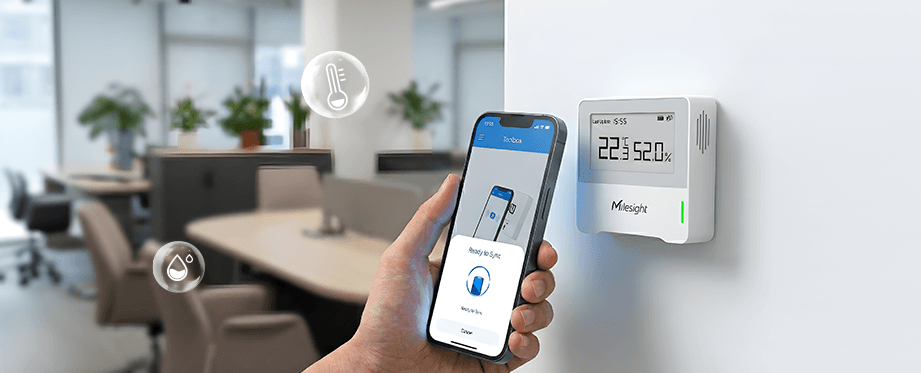

NFC Configuration

Switching On/Off & Configuring the Devices Wirelessly

1^st Step

Install the
Milesight ToolBox

2^nd Step

Enable NFC and run ToolBox,
then attach your phone to the device

3^rd Step

Verify the password
and start configuring

Explore More About NFC Configuration >>

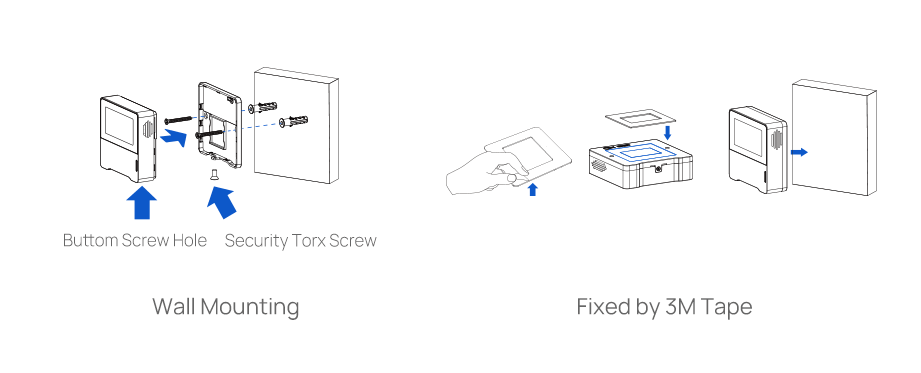

Installation in Better Ways

Wall Mounting

Fixed by 3M Tape

Specifications

AM102&AM102L

Wireless Transmission
Technology	LoRaWAN®
Frequency	CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power	16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity	-137dBm @300bps
Mode	OTAA/ABP Class A
Sensors

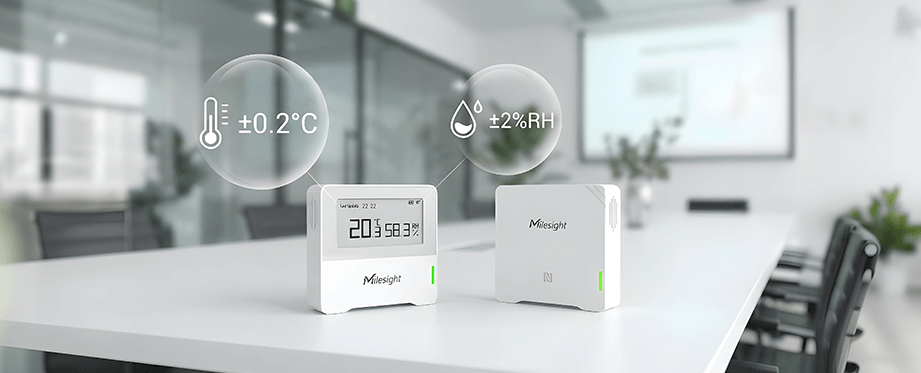

Temperature
Operating Principle	Digital CMOSens® technology (MEMS)
Range	-20°C ~ 60°C
Accuracy1	± 0.2°C
Resolution	0.1°C
Humidity
Operating Principle	Digital CMOSens® technology (MEMS)
Range	0% RH~ 100% RH
Accuracy	± 2% RH
Resolution	0.5% RH
Display & Configuration
Display	AM102: 2.13-inch Black & White E-Ink Screen AM102L: Not Support
Button	1 × Power Button
LED	1 × Status Indicator
Configuration	Mobile App via NFC
Physical Characteristics
Power Supply	2 × 2700 mAh ER14505 Li-SOCl₂ Replaceable Batteries
Battery Life*	AM102: Over 7 Years
(10 min interval, 25°C)	AM102L: Over 9 Years
Operating Temperature	-20°C ~ 60°C (E-Ink Screen: 0°C ~ 40°C)
Relative Humidity	0% ~ 95% (non-condensing)
Ingress Protection	IP30
Dimension	68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in)
Installation	Wall Screw Mounting, 3M Tape Mounting

*The battery life is tested under laboratory conditions and for guideline purposes only.

Documents

AM102/AM102L Series Datasheet AM102(L)&AM103(L) User Guide Payload Decoder
