Industrial Temp Checks: Job Done Better
The platinum-made sensor offers high temperature measuring accuracy on industrial equipment that enhances temperature monitoring precision to ensure safety.

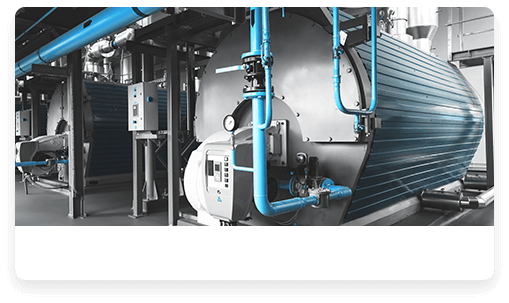

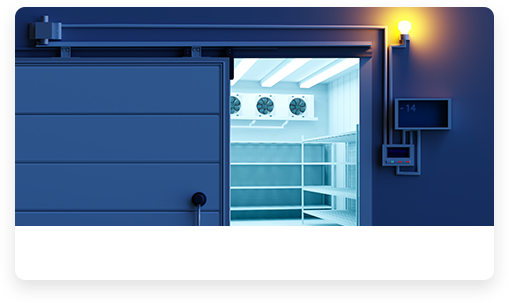

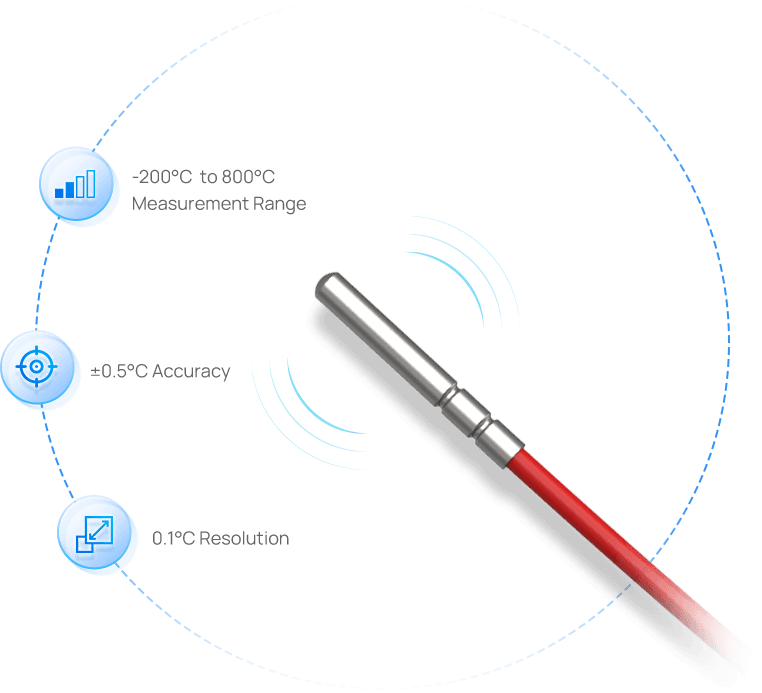

Produced with precious platinum material that offers exceptional temperature resistance, it allows stable precise temperature measurement performance even with extreme heat. The device can withstand extreme temperature ranges, from freezing -200°C to molten-hot 800°C, making it a superb sensing device for an extensive range of applications, ranging from industrial factories to experiment labs.

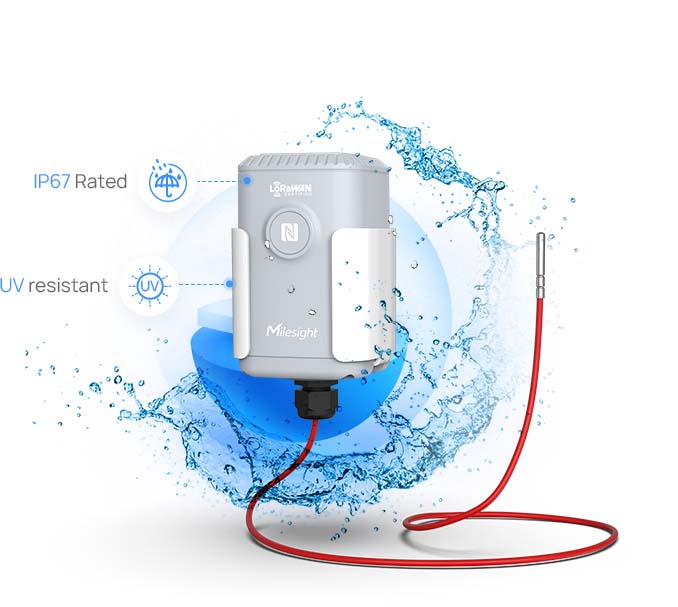

The device is flaunt with an impressive IP67 rated water resistant performance, UV resistant, and vibration resistant. This enables it to thrive even under scorching sun and great downpours, including vibrations from operating industrial equipment, offering high measuring accuracy even in harsh working environments. The device is ideal for scenarios that requires stringent temperature measuring accuracy.

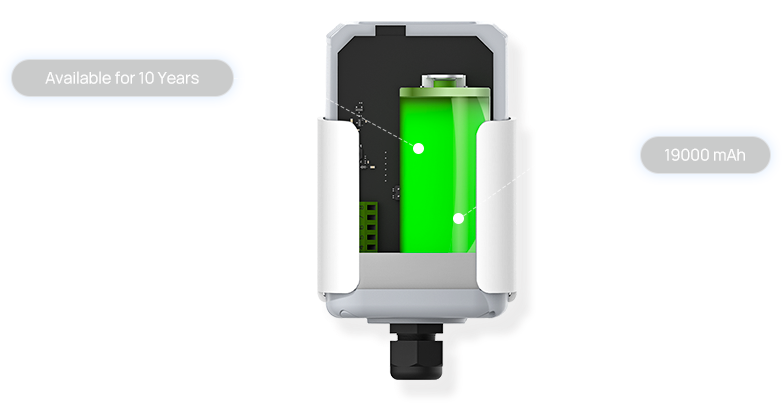

With a guaranteed low power consumption with LoRaWAN® technology, the battery can last up to 10 years with a 10-minute reporting cycle, making it ideal for various distinct scenarios.
With a guaranteed low power consumption with LoRaWAN® technology, the battery can last up to 10 years with a 10-minute reporting cycle, making it ideal for various distinct scenarios.

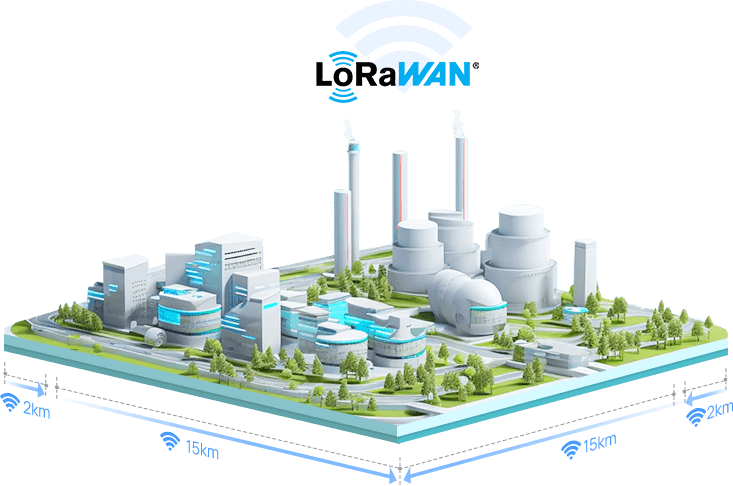

The device employs LoRaWAN® technology that permits highly secured long-range wireless data transmission and guaranteed low power consumption, facilitating convenient and effortless installation process in various distinctive scenarios, making it the perfect device for industrial factories with complex surroundings.
Switching on/off and configuring the device via NFC technology from mobile phone or PC
Install the
Milesight ToolBox
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
EM500-PT100 LoRaWAN® Industrial Temperature Sensor has been designed to allow installation in various settings, including Wall Mounting, Poll Mounting, and DIN Rail Mounting.
Wall Mounting
Pole Mounting
DIN Rail Mounting
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16dBm(868MHz)/20dBm(915MHz)/19dBm(470MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Connection Type | 3-wire connection |
| Range | T050: -200 °C~50 °C T200: -50 °C~200 °C T500: -50 °C~500 °C T800: -50 °C~800 °C (Customizable from -200 °C~ 800 °C) |
| Accuracy | ±0.5°C |
| Resolution | 0.1°C |
| Others | |
| LED | 1 × LED Indicator (Internal) |
| Button | 1 × Power/Reset Button (Internal) |
| USB | 1 × USB Type-C(Internal) for Configuration and Console |
| Software | |
| Power On & Off | NFC, power button (Internal) |
| Configuration | Mobile App (via NFC), PC software(via USB Type-C), Downlink |
| Advanced Feature | Data Storage (1,000 entries), Data Retransmission, Data Retrievability, Threshold Alarm, Change Alarm, Milesight D2D Controller |
| Transceiver Physical Characteristics | |
| Power Supply | 1 × 19000 mAh ER34615 Li-SOCL2 Battery |
| Battery Life* | 10 years (10 min interval, 25 °C) |
| Operating Temperature | -30°C~70°C |
| Relative Humidity | 0% to 100% (non-condensing) |
| Ingress Protection | IP67 |
| Housing&Color | ABS + PC, Grey |
| Weight | 362.7g (With battery, mounting bracket and probe) |
| Dimension | 105.4 × 71 × 69.5 mm (4.1 × 2.8 × 2.7 in) |
| Installation | Pole, Wall or DIN Rail Mounting |
| Sensor Physical Characteristics | |
| Probe Type | Straight tube (Customizable) |
| Cable Length | 1.5 m (Customizable) |
| Installation | Contact |
| Approvals | |
| Regulatory | CE, FCC, ISED, ICASA, Telec |
| Environmental | RoHS |
* Tested under laboratory conditions and for guideline purposes only.
