4G Solar-powered Traffic Sensing Camera

A Wire-free Leap Ahead

4G · Solar-powered · Radar Triggered Object Capture · AI Algorithm · Low Consumption Technology · MQTT Protocol · 2MP · Wi-Fi For Web GUI Configuration · Large Capacity Battery · IP66 · 3-Axis Ball Mounting Bracket

4G Solar-powerd Object Capture Weather-Proof Radar Trigger For Web GUI
Configuration
GPS SD Card 3-Axis NDAA

A Truly Wire-free Camera, Portable to Go Anywhere

Solar-powered

Powered by solar energy, it provides a steady power supplement for continuous use outdoors, while saving the trouble and inconvenience of wiring, enabling truly wireless deployment.

4G LTE

Thanks to 4G LTE, the camera can transmit snapshots quickly without wiring hassles and even in isolated and distant areas, greatly achieving both flexibility and stability.

*US version is not yet available

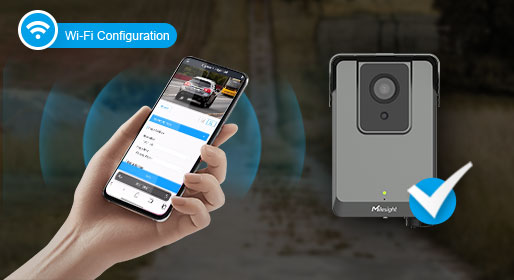

Quick Deployment

User-friendly design of configuration page on mobile device offers maximum enjoyment of usability when camera has to move a large distance.

GPS Location

The GPS module can accurately present the camera position status to longitude, latitude, and altitude, allowing users to find out where the camera is in real-time.

Solar-powered

4G LTE

Quickly Deployment

GPS Location

Sensitive Radar Detector, Real-time Evidence Catcher

Radar Triggered

Equipped with radar triggered technology, the device can trigger high-precision snapshot based on what radar reflected waves detect, making capture more accurate and ensuring no omissions.

AI Algorithm Refining

The embedded AI algorithm is served as a data filter to reprocess the images including recognizing the type of object, which would highly boost the efficiency of evidence capture and make more storage room for what matters more.

Quick Start Mechanism

The camera is normally in low-operation mode to conserve energy, but automatically awakens once radar detects the objects approaching, which ensures the smooth process of detection, analysis and capture.

Compatible with ANPR Platform

The camera can be connected to any ANPR platform with MQTT protocol to achieve deep-learning functions like license plate recognition, smart search and instant notifications on multiple devices.

Innovations in Battery Guarantee a Continuous Use

Low Consumption Technology

An innovative power-saving technology is adopted to make the camera typically in the low-consumption mode to conserve energy, and just be waken up with the quick start mechanism and capture quickly when a vehicle approaches.

Large Capacity Battery

The built-in large capacity battery can ensure constant use in the absence of direct sunlight. Plus a variety of power supply methods including Type-C to cope with different circumstances.

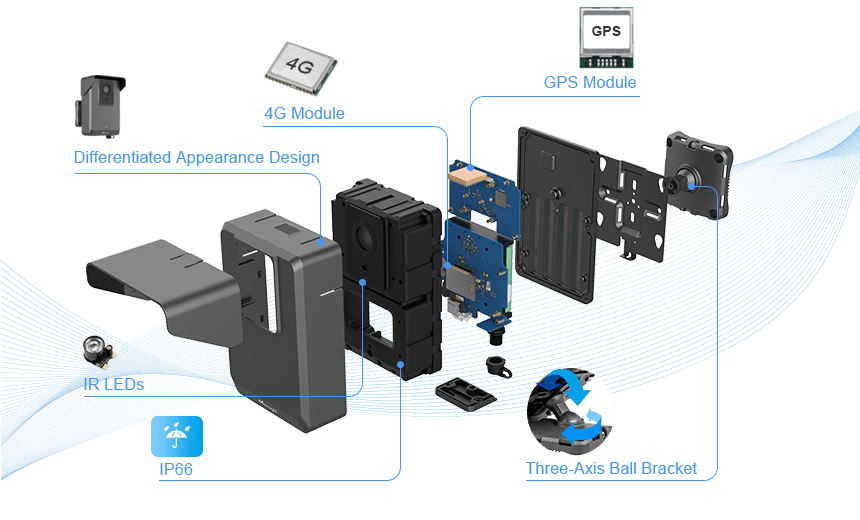

Unique Structure Design

Reshaping and redefining what a camera can be, Milesight developed the wire-free camera with an innovative appearance that realizes a high-concealment, and still maintain a decent and practical design language.

Unique Structure Design

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA Compliant
  • SC211
Camera Name 4G Solar-powered Traffic Sensing Camera
Model SC211-NA/EU/AU
Capture Performance Capture Rate ≥95%
Optimal Capture Distance 6m(With 6mm lens)
15m~20m(With 16mm lens)
Capture Range 3~15m(With 6mm lens)
10~25m(With 16mm lens)
Nighttime Illumination Distance Up to 15m(With 6mm lens)
Up to 25m(With 16mm lens)
Capture Speed Be recommended to use when the vehicle speed<30km/h(With 6mm lens);
Be recommended to use when the vehicle speed<70km/h(With 16mm lens)
Wireless Network WLAN 802.11n/802.11b/802.11g
Cellular 4G LTE
NA: B2/B4/B5/B12/B13/B25/B26
EU: B1/B3/B7/B8/B20/B28
AU: B1/B2/B3/B4/B5/B7/B8/B28/B66
SIM Card Mini SIM
Camera Image Sensor 1/2.8″ Progressive Scan CMOS
Day/Night Mode Day/Night/Auto
Lens Lens 16mm/6mm
Field of View H19.4°/D22.2°/V11°(16mm)
H52.8°/D60.4°/V29.7°(6mm)
Image Max. Resolution 1920×1080
Image Setting Brightness/Contrast/Saturation/Sharpness
General GPS Built-in High-accuracy GPS Module
Radar Working Frequency 24GHz
Protocol MQTT
Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Solar Power Power: ≥35W
OCV: <22V
Connector: MC4
Power Supply USB Type-C
Battery Single Cell Battery: 3.2V, 3200mAh, 10.24Wh
Total: 7.2V, 6400mAh, 46.08Wh
Battery Life The power is 70% after 500 times of accumulative charging and discharging
Power Consumption 0.33W Normal (Detection Status)
1.35W Normal (Capture Status)
11W MAX (Night Capture Status)
Weather Proof IP66
Operational Temperature -20 ~60℃
Weight 612g, 790g (With the Battery)
Rain Cover Movement Distance 10mm
Dimensions 175mmX111mmX56.7mm(Without Rain Cover)
Warranty 2 Years
  • * Naming Convention
  • SC - Sensing Camera
  • 2 - Intelligent Traffic
  • 1 - Frame-based Al
  • (2_)1 - 4G Solar-powered Traffic
  • NA - North America Sensing Camera
  • EU - Europe, the Middle East and Africa
  • AU - Latin America,Australia and New Zealand
