AI Color + Vandal-proof
Mini Bullet Network Camera

Awaken Color to Hit the True World

product image 1 small
product image 2 small
product image 3 small
  • Full-color Image Performance
  • Up to 4K Video Viewing Experience
  • Amazing Image Effect with F1.0 Aperture
  • Industry-leading 0.001Lux Ultra Low-light
  • AI Empowered VCA
  • Up to 30m Illuminator Distance with Smart On/Off Control
  • FEATURES
  • MODELS
  • DOWNLOAD

Color Matters, Lighten up the World Now!

maxresdefault
maxresdefault

Light up for Full-color World

Combined with built-in warm illuminator, which could deliver colorful and high resolution images in the dark or at night for the majority of monitoring scenarios, like outdoor area, parking lot, retails and so on.

full color performance before
full color performance after
f10

F1.0 Super Aperture

The F1.0 super large aperture allows 2.2 times more light to pass through than normal cameras, which tremendously improves image exposure. In low-light scenarios, it works to guarantee full-time and excellent image performance.

AI Video Analytics

Milesight AI Camera can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

Smart Illuminator
On/Off Control

The intelligent illuminator has a maximum illumination distance of 30 meters and can automatically adjust the luminance of the supplement lighting based on the environment, providing a flexible monitoring control solution.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.001Lux Ultra Low-light, 120dB Super WDR, 4K High Definition and 60fps High Frame Rate features make it well-suited for various special circumstances.

low light
wdr
60

Delicate & Exquisite Design

With ultra mini size of 95.8mmX74mmX158.5mm, it is a truly mini bullet with no
compromise on the functionality. Also with the built-in microphone which adopts the
advanced codec, it is able to provide clearer voice.

IP67 & IK10

Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

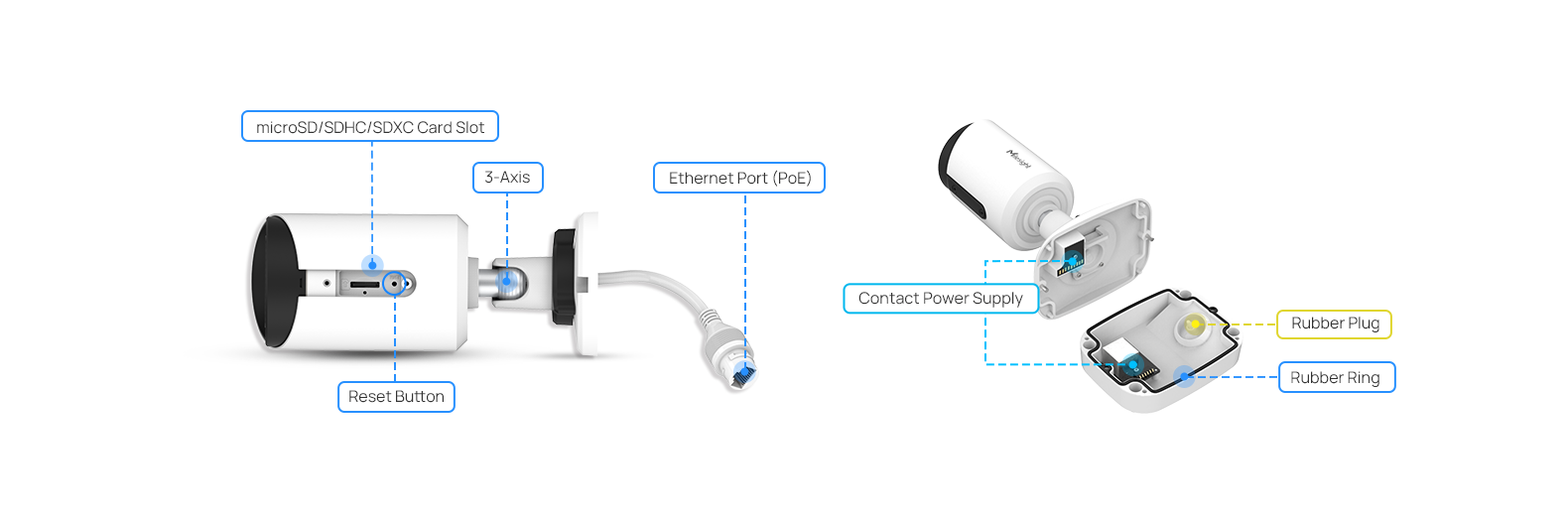

Efficient & Simple Installation

The 3-axis mechanical design, SD card slot and the well-designed Integrated Junction Box make sure the camera's best ease of use, ensuring an efficient and simple installation.

structure

SIP/VoIP Support

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Specifications

NDAA

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux@F1.0
0Lux with White LED on
WDR120dB Super WDR
Lens2.8mm/4mm@F1.0
MountM12
Field of ViewH109°/D125°/V61°(2.8mm)
H87°/D100°/V49°(4mm)
Shutter Time1/100000s~1s
Illumination DistanceUp to 30m
S/N>55dB
Video
Max.Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB,
IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3af)
Power Consumption3W MAX
5W MAX (With White LED on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight610g (Junction Box Version) / 450g (Cable Out Version)
Dimensions97mmX74mmX180mm (Junction Box Version) / 64mmX64mmX160mm (Cable Out Version)
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
U - Full-color Supported
P - PoE Supported
D - AI Series

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.0
0Lux with White LED on
WDR120dB Super WDR
Lens2.8mm/4mm@F1.0
MountM12
Field of ViewH104°/D129°/V78°(2.8mm)
H81°/D100°/V61°(4mm)
Shutter Time1/100000s~1s
Illumination DistanceUp to 30m
S/N>55dB
Video
Max.Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB,
IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3af)
Power Consumption3W MAX
5W MAX (With White LED on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight610g (Junction Box Version) / 450g (Cable Out Version)
Dimensions97mmX74mmX180mm (Junction Box Version) / 64mmX64mmX160mm (Cable Out Version)
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
U - Full-color Supported
P - PoE Supported
D - AI Series

Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.0
0Lux with White LED on
WDR120dB Super WDR
Lens2.8mm/4mm@F1.0
MountM12
Field of ViewH108°/D125°/V60°(2.8mm)
H87°/D101°/V49°(4mm)
Shutter Time1/100000s~1s
Illumination DistanceUp to 30m
S/N>55dB
Video
Max.Image Resolution3840x2160
Primary Stream60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 4 areas
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Intelligent Analytics
Video AnalysisRegion Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection,
Line Crossing, Loitering, Object Left, Object Removed
System
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB,
IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerMotion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
General
Working Temperature-40℃~60℃
Working Humidity0~90%(Non-condensing)
Power SupplyPoE (802.3af)
Power Consumption4W MAX
6W MAX (With White LED on)
Weather ProofUp to IP67-rated for Weather-resistant Performance
HousingVandal-proof IK10-rated Metal Housing
Weight610g (Junction Box Version) / 450g (Cable Out Version)
Dimensions97mmX74mmX180mm (Junction Box Version) / 64mmX64mmX160mm (Cable Out Version)
Warranty3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
U - Full-color Supported
P - PoE Supported
D - AI Series
