AI LPR 12X PTZ Bullet Network Camera

Intelligent PTZ to See More for LPR Solution

2/5MP · AI · LPR · 12X Optical Zoom · 3 in 1 Super WDR Pro · 0.002Lux Ultra Low-light · IP66 · 3D Positioning · PTZ Auto Tracking · PTZ Motion Detection · 100fps · PoE

AI LPR PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Starlight Super WDR Privacy Mask

Leading-edge H.265+ Compression

H.265+

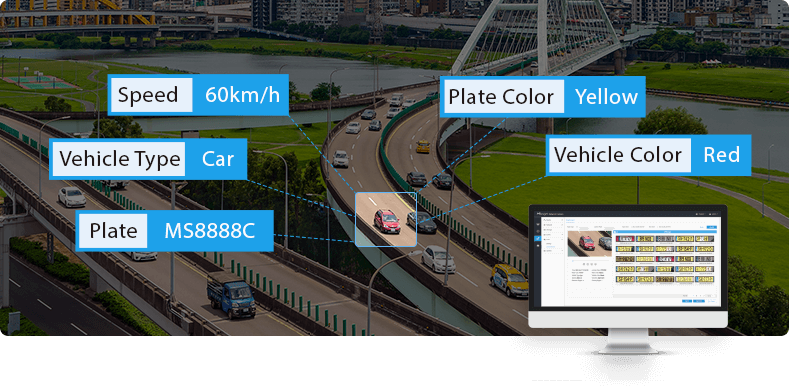

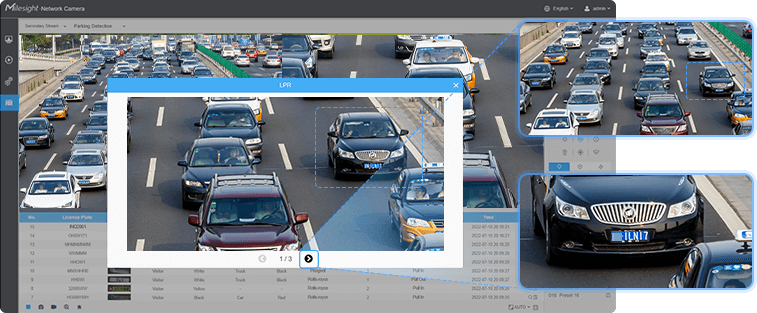

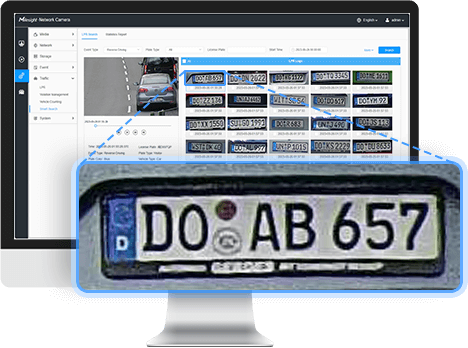

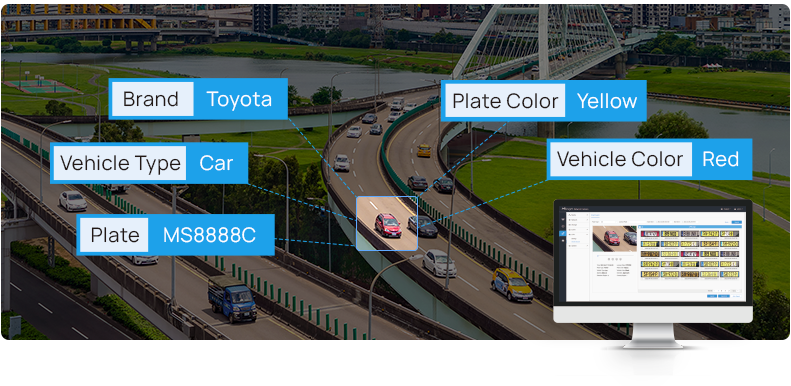

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

 License Plate Recognition, LPR, ANPR, LPR IP Camera,LPR Camera

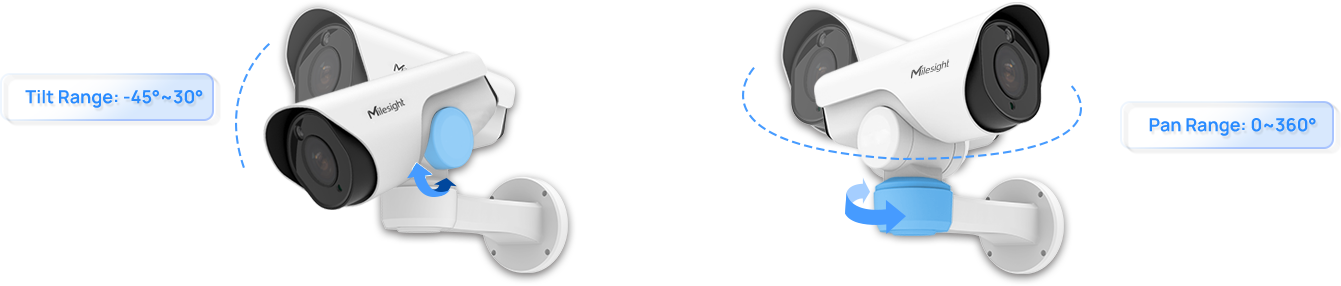

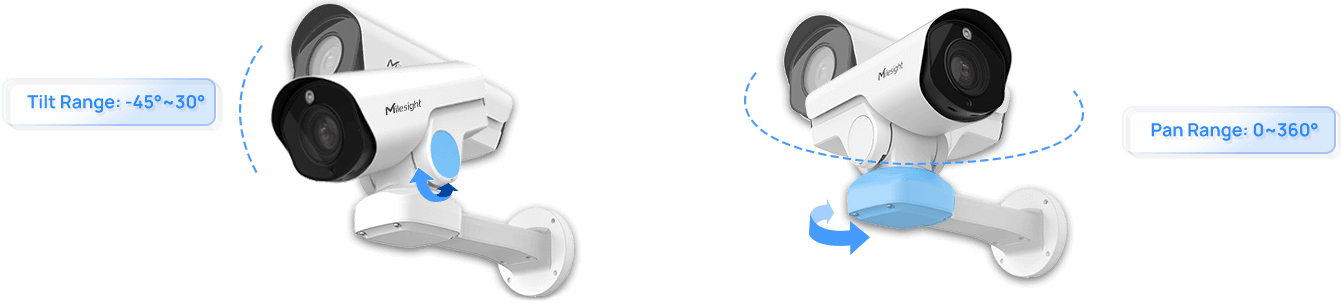

Flexible Pan, Tilt and Zoom Tasks

Milesight AI LPR 12X PTZ Bullet Network Camera offers the ability to fast and precisely rotate on a 360° and 75° tilt to survey a wide range of territory. The user can easily set up 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

Mini PoE PTZ Bullet Camera

12X Optical Zoom

The 12X Optical Zoom can zoom up to distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom image.

LPR 12x AF Lens, Mini PoE PTZ Bullet Camera

100fps

With the industry leading frame rate reaching 100fps, the AI LPR 12X PTZ Bullet Network Camera can easily catch images with no latency despite of the high-speed movement.

120fps, 120fps ip camera

0.002Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

3 in 1 Super WDR Pro - 140dB

Milesight upgraded 3 in 1 Super WDR Pro outputs three frames each line, which is able to bring more details especially moving subjects. What’s more, it greatly improves image quality for reducing smear and noisy points. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

Super WDR Pro, 3 in 1 Super WDR Pro, Super WDR, WDR CCTV, WDR IP camera

Smart IR II Technology

The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 140m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

Smart IR II, Mini PoE PTZ Bullet Camera

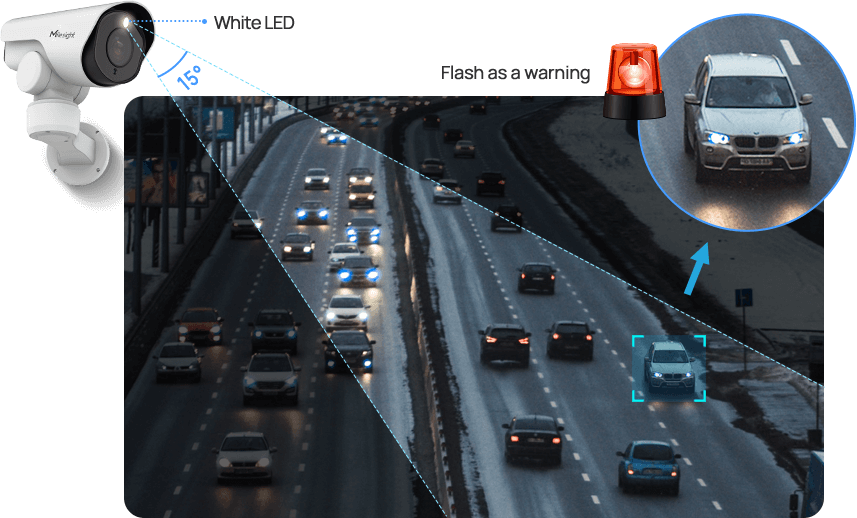

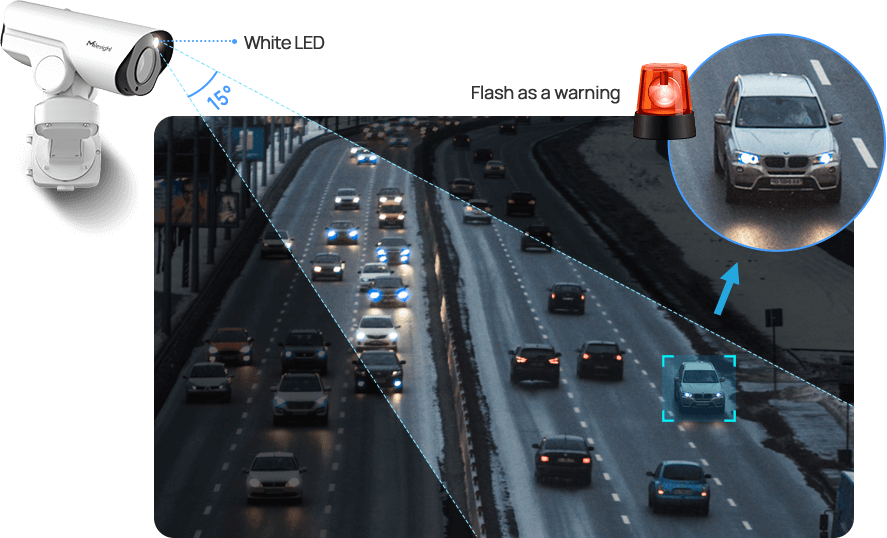

Intelligent White LED

With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

White LED, Mini PoE PTZ Bullet Camera

PTZ Auto Tracking

Once PTZ Auto Tracking function enabled, Milesight PTZ cameras could leverage motor mechanism to perform Pan/Tilt/Zoom to track the moving object automatically and adjust zoom status flexibly according to the object distance with the powerful optical zoom capability. Therefore, the target would be shown in the frame center and be zoomed to a proper size, achieving the smart, reliable and real-time video surveillance without any critical details missing.

PTZ Auto Tracking

Smart PTZ Motion Detection

The Smart PTZ Motion Detection function enables the user to monitor specified area clearly in a timely manner. When there is motion detected in a target area, Milesight AI LPR 12X PTZ Bullet Network Camera will pan and tilt to the position of motion detected area automatically. Then zoom in to provide clear image for a duration of time. If the duration expires, the camera will resume its previous monitoring position and zoom level.

Smart PTZ Motion Detection

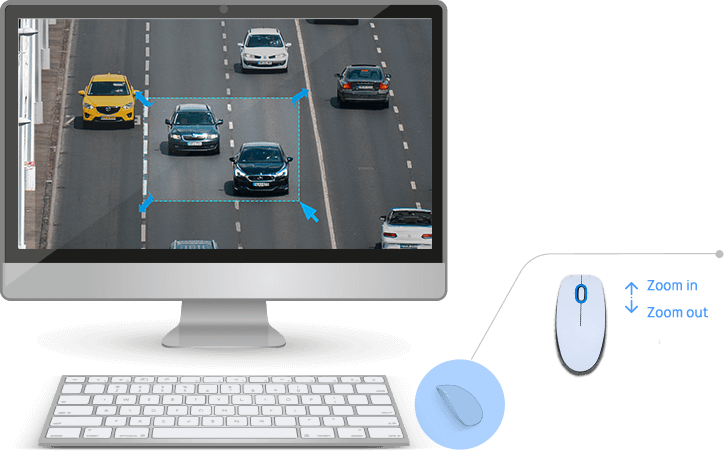

3D Positioning

Milesight AI LPR 12X PTZ Bullet Network Camera can be easily controlled via the use of a mouse which is truly user-friendly. Left click on any position of interest in the video image, and the position will right become the center of the current monitoring area. Use the left button of a mouse to drag a rectangle area, then the area will become the central area of monitoring with automatic zoom in or zoom out action. Rolling the mouse wheel up and down, the video image will be zoomed in and zoomed out immediately.

3D Positioning

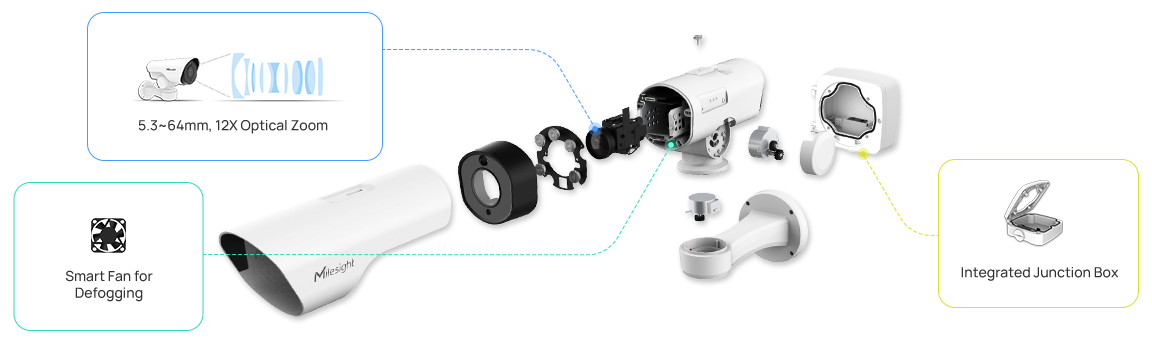

Comprehensive Defogging

Milesight AI LPR 12X PTZ Bullet Network Camera creatively realizes the comprehensive defog performance both in hardware of a smart fan and software of image defogging algorithm, enabling the camera to avoid image fogging problems. Besides, the smart fan ensures excellent heat dissipation capability, so that it can work stably under the long-term operation circumstances.

Mini PoE PTZ Bullet Camera

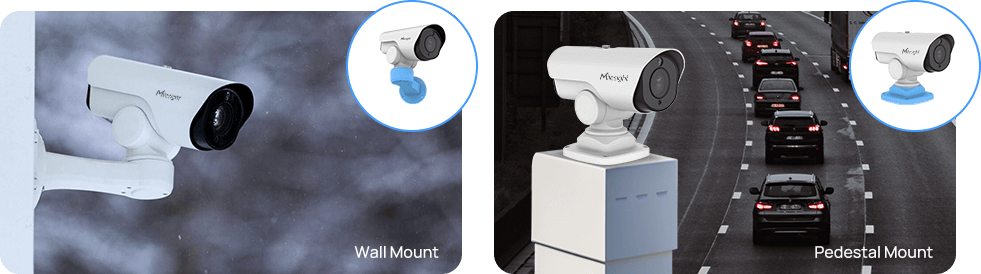

Flexible Installation Modes

With two installation modes of Wall Mount and Pedestal Mount, the PTZ camera, to a greater extent, meets different installation needs for different application scenarios. The innovative modes allow to achieve its best values on the basis of customers’ requirements, making the PTZ camera an unparalleled choice.

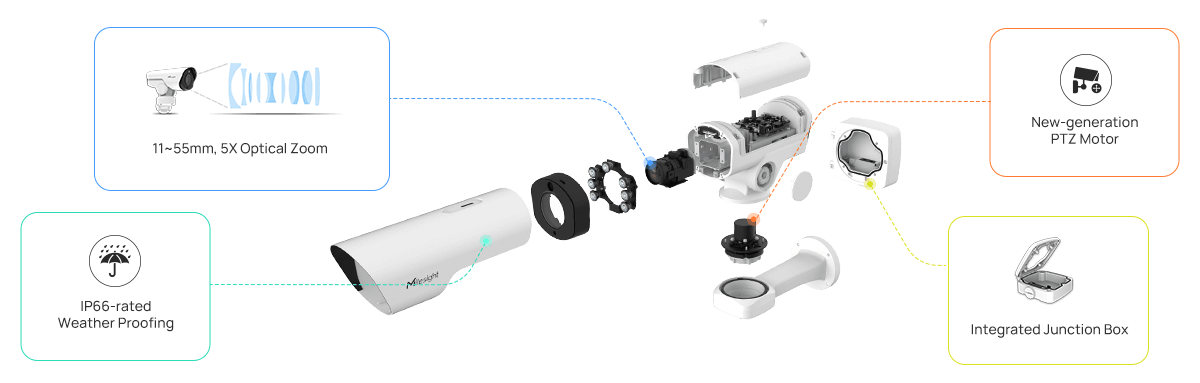

Integrated Cable Management Bracket

Integrated Junction Box(Optional)

Flexible installation is ensured as AI LPR 12X PTZ Bullet Network Camera is equipped with integrated cable management box. The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake. The IP66-rated housing shields the sensitive electronics from dust and water, which guarantees the stable operation in any tough conditions.

Junction Box

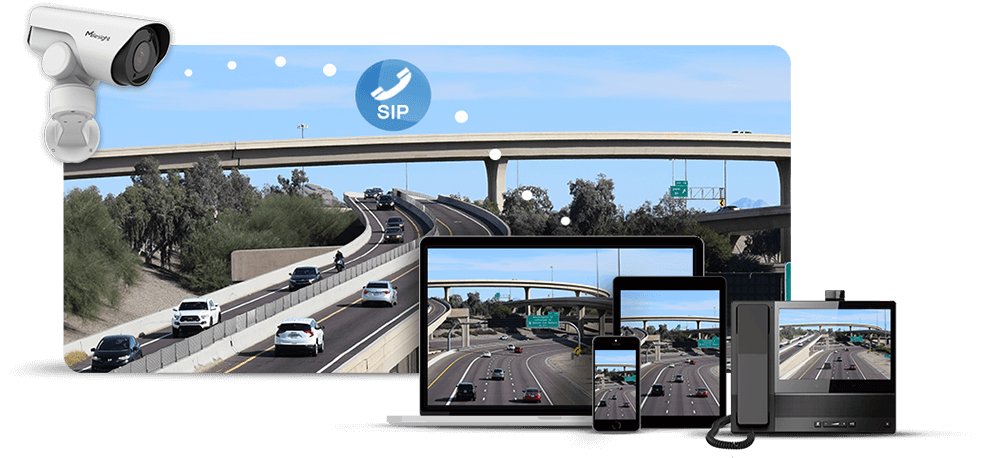

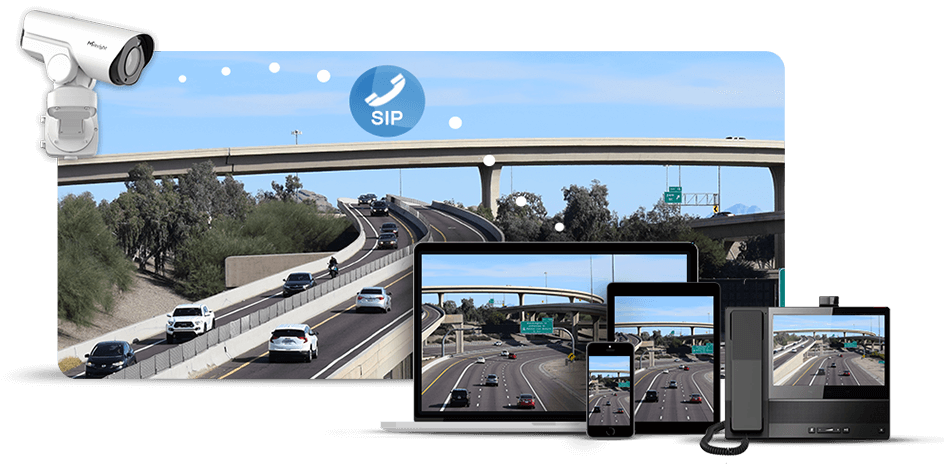

SIP/VoIP Support

Milesight AI LPR 12X PTZ Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Pro Bullet Camera, SIP, VoIP
  • MS-C2961-X12R(T)LPC
  • MS-C5361-X12LPC
Camera Name 2MP AI LPR 12X PTZ Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on
WDR 140dB Super WDR (Super WDR Pro is optional for T Series)
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
Digital Zoom 16X
S/N >55dB
Lens Focal Length 5.3∼64mm, 12X Optical Zoom
Zoom Speed Approx 4s (Wide-Tele)
Field of View H61°∼H5°/D69°∼D5°/V36°∼V2°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 1000/1500mm(Wide/Tele)
Aperture F1.6∼F2.8
Iris Control Auto
PTZ Pan Range/Pan Speed 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed -45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
Proportional Zoom Support
Preset Quantity 300
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Auto Tracking Support
Power Off Memory Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Irradiation Distance Up to 140m
Irradiation Angle Auto/Manual
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
White/Black List Up to 1000 records inside the camera
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz: 100fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 100fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1(Optional)
Alarm I/O 1/1(Optional)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Auto Tracking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at)/ DC 12V/2A±10%
Power Consumption 15W MAX, 20W MAX(With IR on)
Weather Proof Up to IP66-rated for weather-resistant performance
Dimensions 160mmX273.5mmX210mm(Wall Mount) / 218mmX120mmX172mm(Pedestal Mount)
Weight 2Kg(Wall Mount) / 1.8Kg(Pedestal Mount)
Warranty 2 Years / 3 Years(Optional)
Camera Name 5MP AI LPR 12X PTZ Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.6, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
Digital Zoom 16X
S/N >55dB
Lens Focal Length 5.3∼64mm, 12X Optical Zoom
Zoom Speed Approx 4s (Wide-Tele)
Field of View H57°~H4°/D69°~D5°/V44°~V1°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 1000/1500mm(Wide/Tele)
Aperture F1.6∼F2.8
Iris Control Auto
PTZ Pan Range/Pan Speed 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed -45°~30° / Tilt Manual Speed: 0.1°~25°/s, Tilt Preset Speed: 25°/s
Proportional Zoom Support
Preset Quantity 300
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Auto Tracking Support
Power Off Memory Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Irradiation Distance Up to 140m
Irradiation Angle Auto/Manual
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
White/Black List Up to 1000 records inside the camera
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection
Video Max. Image Resolution 2592x1944
Primary Stream 60Hz: 30fps@(2592x1944), 45fps@(2048x1536),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944), 45fps@(2048x1536),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 28 areas(24 mask areas and 4 mosaic areas)
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1(Optional)
Alarm I/O 1/1(Optional)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function Auto Tracking, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input (Optional), Audio Alarm (Optional), etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output (Optional), SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at)/ DC 12V/2A±10%
Power Consumption 14W MAX, 20W MAX(With IR on)
Weather Proof Up to IP66-rated for weather-resistant performance
Dimensions 160mmX273.5mmX210mm(Wall Mount) / 218mmX120mmX172mm(Pedestal Mount)
Weight 2Kg(Wall Mount) / 1.8Kg(Pedestal Mount)
Warranty 2 Years / 3 Years(Optional)
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • T - High Frame Rate (100fps)
  • P - PoE Supported
  • L - LPR Supported
  • C - AI Series
