AI Road Traffic PTZ Bullet
Plus Camera

Intelligent PTZ to See More for Traffic Solution

road traffic ptz bullet plus camera small
road traffic ptz bullet plus camera front small
road traffic ptz bullet plus camera side small
  • Traffic Violation Detection
  • Intelligent AI-powered LPR Algorithm
  • Evidence Camera Linkage
  • Plate Data Management
  • Flexible Pan, Tilt and Zoom Tasks
  • 5X/12X/20X/23X AF Lens
  • 1/1.8'' Sensor & 0.002Lux Starlight
  • 90fps High Frame Rate
  • FEATURES
  • MODELS
  • DOWNLOAD

Introducing Milesight Intelligent Traffic

maxresdefault
maxresdefault
maxresdefault

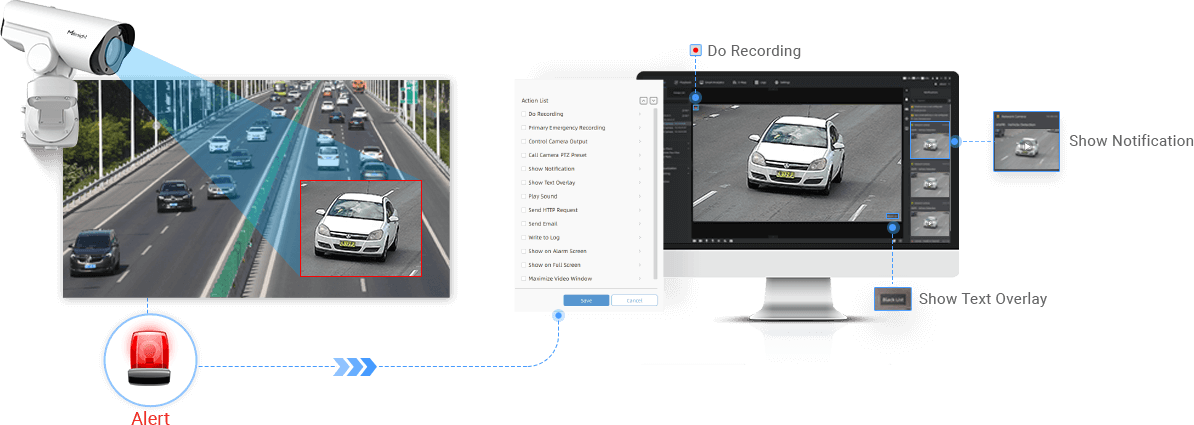

Traffic Violation Detection

Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

traffic violation detection

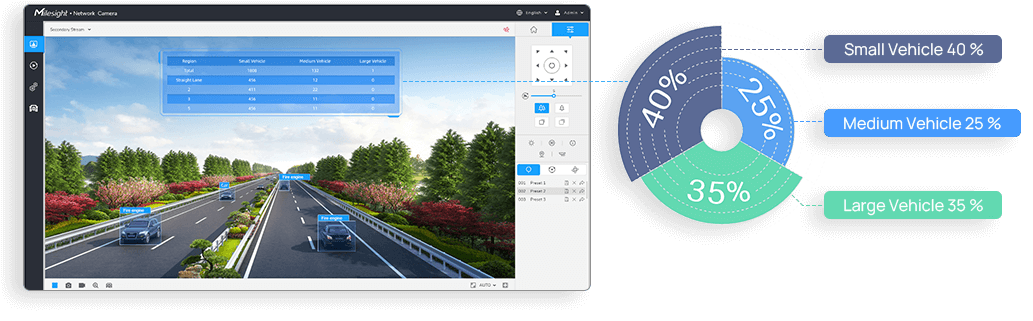

Traffic Flow Statistics

The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

traffic flow statistics

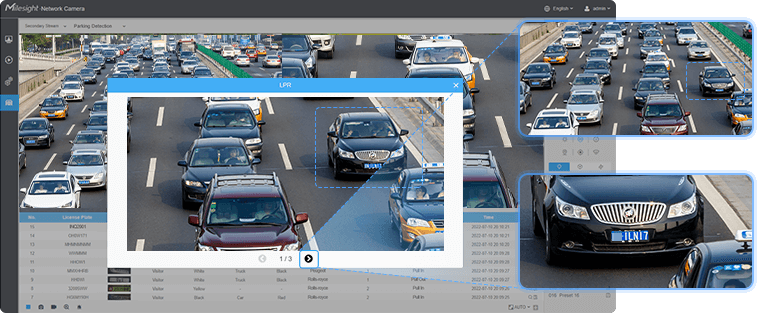

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With
seamless triggering between Milesight traffic camera and regular camera, users
can easily provide solid and convincible evidence including LPR results as well
as overview snapshots.

evidence camera linkage

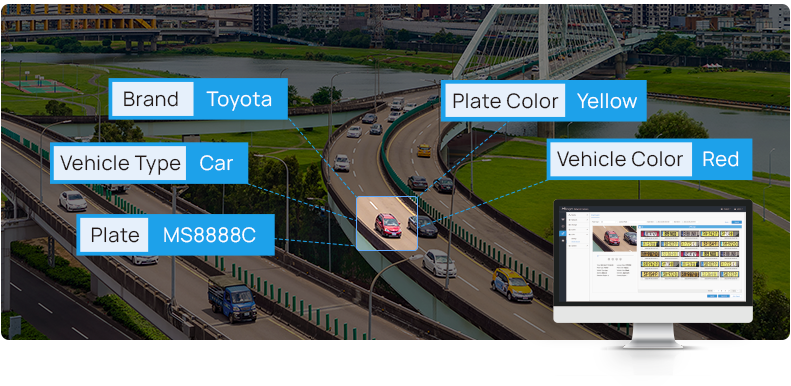

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports
manual export and auto export for easy management.

lpr smart search 1

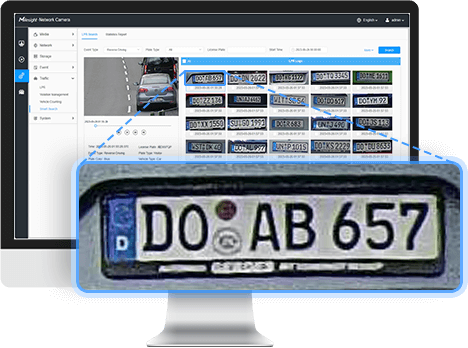

Plate Data Management

A number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems.

  • On-edge Plate Management Standalone black/white list management realizes the fast implementation for barrier
    control.
  • Milesight Back-ends Integration
    Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
  • Third-party VMS Integration
    Various CGI/APIs and interfaces, protocols like TCP, HTTP make it
    easy to integrate with all data
    being pushed to third-party
    VMS or platforms.
plate data management

Intelligent AI-powered
LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep
learning model and continuously training to algorithms automatically. Milesight AI Road
Traffic Camera can not only recognize vehicle plates in real time, but also identify various
vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to
improve safety and mobility.

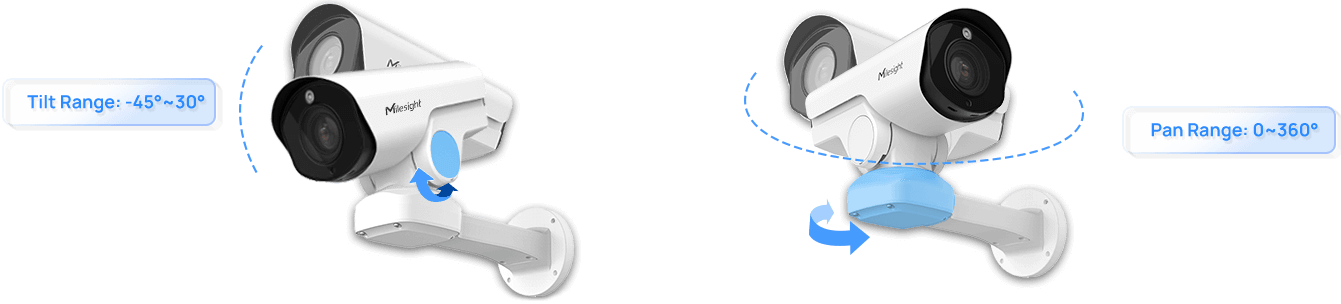

Flexible Pan, Tilt and Zoom Tasks

Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 8
patrols with 48 presets for each and maximum 4 patterns for all-round monitoring. Moreover, the user is able to schedule specific PTZ tasks by date and time.

pan tilt zoom

5X/12X/20X/23X Optical Zoom

The 5X/12X/20X/23X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.

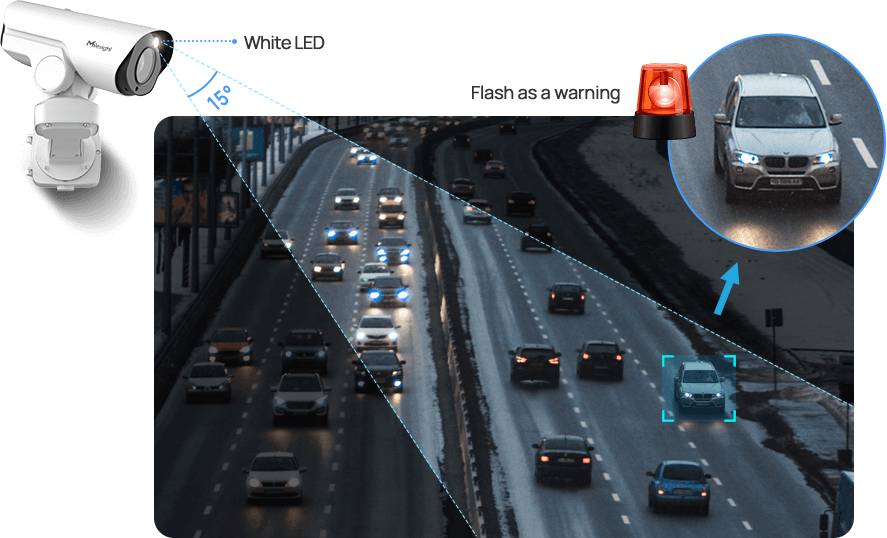

Intelligent White LED

With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

intelligent white led
3d positioning

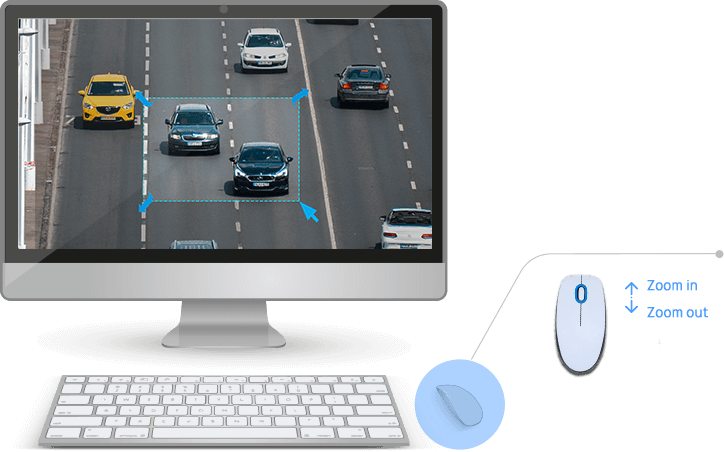

3D Positioning

With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

Superior Image Quality

With advanced image processing algorithms and SONY STARVIS sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light, 90fps High Frame Rate and 140dB Super WDR features make it well-suited for 24/7 traffic monitoring.

starlight
90fps
wdr

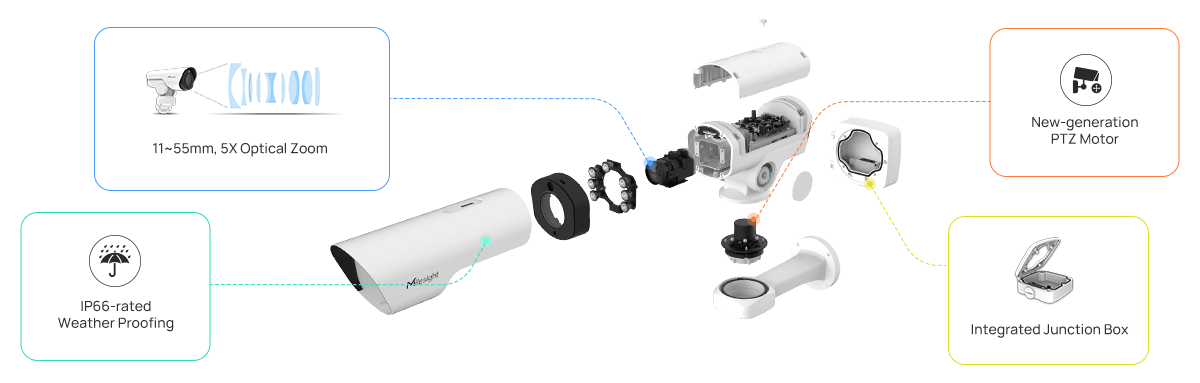

Easy Deployment and Compact Structure

Featuring the new-generation PTZ motor & IP66-rated weather proofing, Milesight AI Road Traffic PTZ Bullet Plus Camera can work steadily for traffic application
scenarios. Additionally, the camera's integrated junction box and multiple interfaces also facilitate easy installation, even in complex environments.

structure

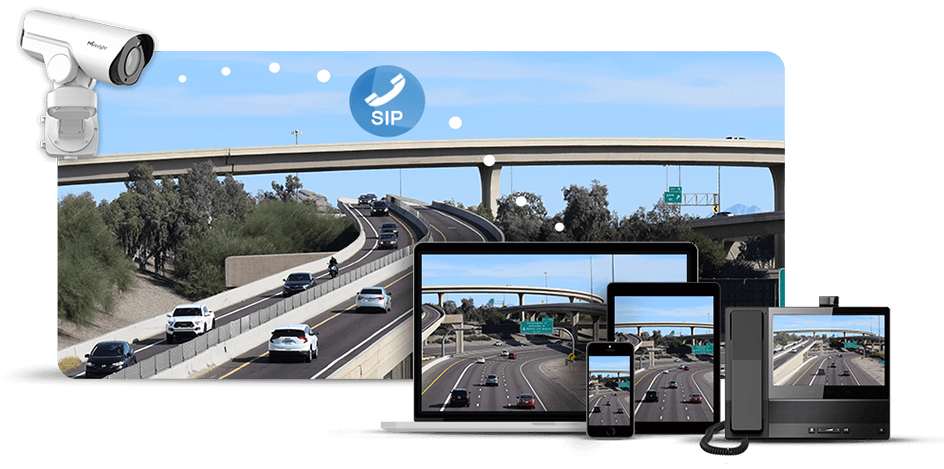

SIP/VoIP Support

Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

sip voip

Specifications

NDAA

Non-NDAA

Camera
ModelTS2967-X12TPE (2MP)
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Digital Zoom16X
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Focal Length5.3~64mm, 12X Optical Zoom
Zoom SpeedApprox 4s (Wide-Tele)
Field of ViewH61°~H5°/D69°~D5°/V36°~V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.6~F2.8
Iris ControlAuto
Road Traffic  Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O2/2
RS485Support
PTZ
Pan Range/Pan Speed360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption13W MAX
23W MAX (With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Weight2.9Kg
Dimensions110mmX337mmX220mm
Warranty2 Years / 3 Years (Optional)

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series

Camera
ModelTS2967-X23TPE (2MP)
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.5
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Digital Zoom16X
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Focal Length5~117mm, 23X Optical Zoom
Zoom SpeedApprox 6s (Wide-Tele)
Field of ViewH60°~H3°/D69°~D4°/V35°~V2°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.5~F3.5
Iris ControlAuto
Road Traffic  Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O2/2
RS485Support
PTZ
Pan Range/Pan Speed360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution1920x1080
Primary Stream60Hz: 90fps@(1920x1080),60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 90fps@(1920x1080),50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption13W MAX
23W MAX (With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Weight2.9Kg
Dimensions110mmX337mmX220mm
Warranty2 Years / 3 Years (Optional)

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series

Camera
ModelTS4467-X20RPE (4MP)
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Digital Zoom16X
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Focal Length6.4~128mm, 20X Optical Zoom
Zoom SpeedApprox 5s (Wide-Tele)
Field of ViewH60°~H3°/D67°~D4°/V37°~V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.6~F4.0
Iris ControlAuto
Road Traffic  Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O2/2
RS485Support
PTZ
Pan Range/Pan Speed360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption13W MAX
23W MAX (With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Weight2.9Kg
Dimensions110mmX337mmX220mm
Warranty2 Years / 3 Years (Optional)

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series

Camera
ModelTS5367-X12PE (5MP)
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s~1s
IR DistanceUp to 180m
Digital Zoom16X
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Focal Length5.3~64mm, 12X Optical Zoom
Zoom SpeedApprox 4s (Wide-Tele)
Field of ViewH57°~H4°/D69°~D5°/V44°~V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.6~F2.8
Iris ControlAuto
Road Traffic  Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type,Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O2/2
RS485Support
PTZ
Pan Range/Pan Speed360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s
Tilt Range/Tilt Speed-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz:25fps@(2592x1944),25fps@(2048x1536), 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption13W MAX
23W MAX (With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Weight2.9Kg
Dimensions110mmX337mmX220mm
Warranty2 Years / 3 Years (Optional)

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series

Camera
Image Sensor1/2″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.7
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s~1s
Digital Zoom16X
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Focal Length11~55mm, 5X Optical Zoom
Zoom SpeedApprox 3.5s (Wide-Tele)
Field of ViewH34°~H8°/D39°~D9°/V20°~V4°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.7~F2.1
Iris ControlAuto
Road Traffic  Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 110m during the day; Up to 50m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management
White/Black ListUp to 1000 records inside the camera
LPR Smart SearchSupport
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Optional)
Alarm I/O1/1 (Optional)
PTZ
Pan Range/Pan Speed360°endless / Pan Manual Speed: 0.1°~60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
Video
Max. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps(CBR/VBR Adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingBrightness/Contrast/Saturation/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & Q & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice & Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
General
Working Temperature-40℃~60℃
Working Humidity0~95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption12W MAX
28W MAX (With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Weight2.9Kg
Dimensions110mmX337mmX220mm
Warranty2 Years / 3 Years (Optional)

* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C - AI Series

Documents

*Your Email

*Country

*Your Phone

*Company

*Your Website

*Business Type

*What Product are You Interested in?

*Message

*Verification Code

Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
