Leading-edge H.265+ Compression

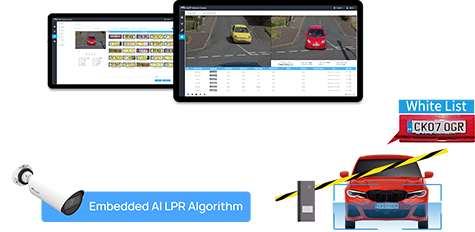

AI-powered LPR Algorithm

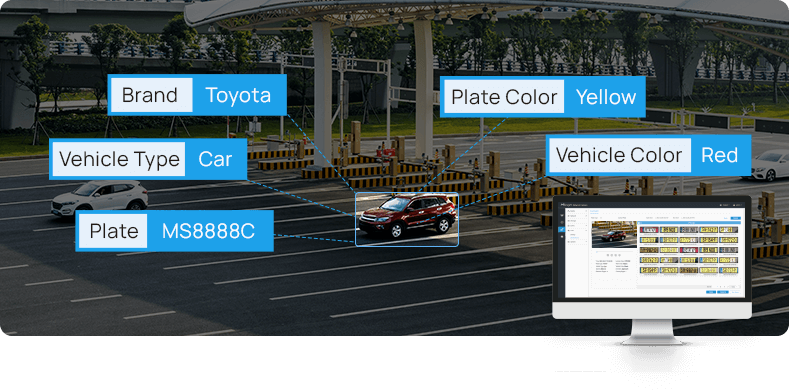

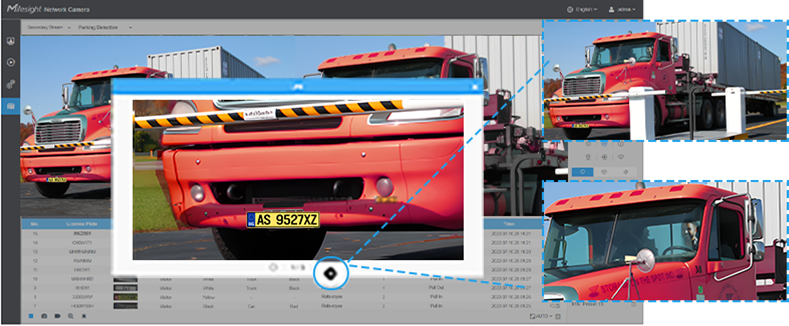

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.
140dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.
With the industry leading frame rate reaching 100fps, the LPR Vandal-proof Motorized Mini Bullet Network Camera can easily catch images with no latency despite of the high-speed movement.
Advanced Motorized Lens
With flexible motorized lens (2.7~13.5mm), the camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.
Sharply contrasting to the mini size, the AI LPR Vandal-proof Motorized Mini Bullet Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

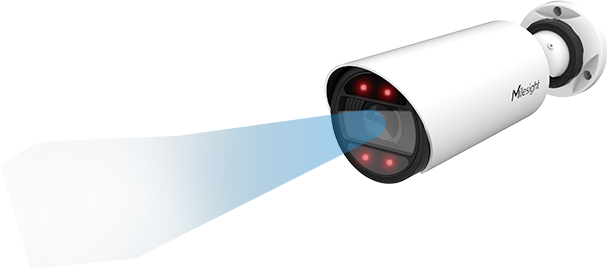

Smart IR II Technology
To maximize the IR performance, the AI LPR Vandal-proof Motorized Mini Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of two High Beams and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.
0.002Lux Ultra Low-light
The AI LPR Vandal-proof Motorized Mini Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.
Unique Structure Design
The camera features 3-axis mechanical design for fast and easy adjustment of the camera’s viewing angle, allowing to position the camera precisely. Another highlight of the structure lies in the mounting bracket which is able to conceal the cables, offering a well-rounded protection of the cable from any water, dust or shock damages.

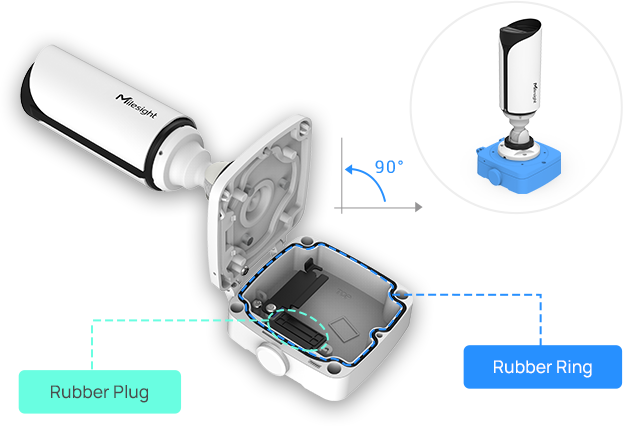

Integrated Junction Box(optional)
The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.
Milesight AI LPR Vandal-proof Motorized Mini Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Name2MP AI LPR Vandal-proof Motorized Mini Bullet Network Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR
IR DistanceUp to 50m
LensMotorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of ViewH88°∼H32°/D102°∼D37°/V49°∼V18°(2.7∼13.5mm), H87°∼H29°/D99°∼D32°/V45°∼V14°(3∼10.5mm), H34°∼H14°/D37°∼D15°/V19°∼V7°(7∼22mm)
(Optional for I Series)Auto/Manual
Max. Vehicle Speed120km/h
CoverageSupport simultaneous detection of 4 regions

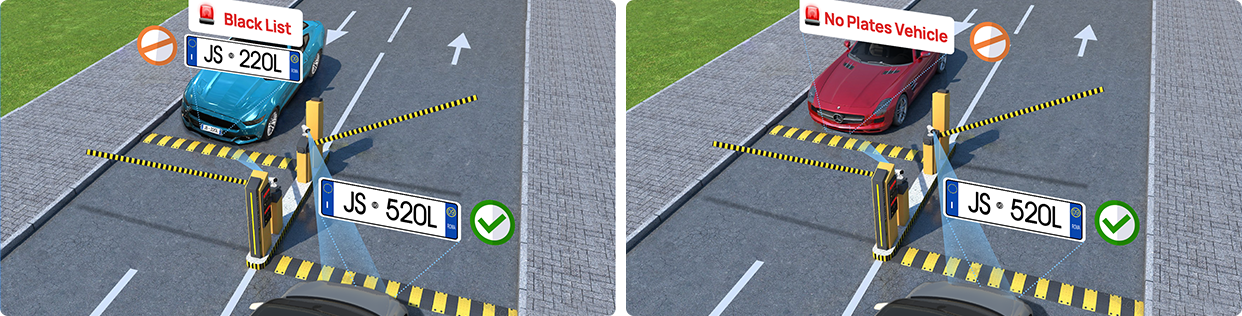

White/Black ListUp to 1000 records inside the camera
Smart Traffic DetectionLicense Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition, Vehicle Direction Detection
Max. Image Resolution1920x1080
Primary Stream60fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 areas
ROIUp to 8 areas
Ethernet1*RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption7W MAX, 9W MAX(With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
* Naming Convention
R - High Frame Rate (60fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported (Optional)
L - License Plate Recognition (LPR)
P - PoE Supported
C - AI Series
