AI Motorized Pro Bullet
Plus Network Camera
Experience the All-round and Powerful Functions
Milesight Camera Lineup & Hardware Composition
AI Motorized Pro Bullet
- AI Deep Learning
- 1/1.8" STARVIS Starlight Sensor
- 100m IR Distance
- 140dB Super WDR & 0.0009Lux Ultra Low-light
- 90fps High Frame Rate
- 4K Viewing Experience
- Robust Performance with IP67&IK10
- Audio I/O, Alarm I/O, PoE & DC 12V
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Pro Series
- Motorized Pro Bullet Plus Camera

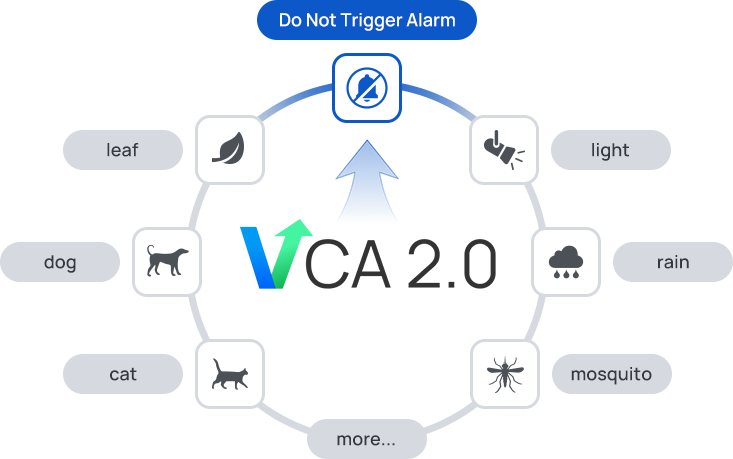

VCA 2.0: Precision That Redefines Security
VCA 2.0 is Milesight's upgraded video content analysis algorithm, purpose-built for essential security tasks. From intrusion to line crossing, it delivers precise, real-time detection — even in low light, rain, or fog — with dramatically reduced false alarms.
Key Highlights:
![icon]( "icon")
8 built-in AI VCA features for instant threat detection.
![icon]( "icon")
Accurate recognition of small and multiple targets.
![icon]( "icon")
Up to 80m AI Detection Distance (Motorized Lens).
![icon]( "icon")
Ultra-low false alarm rate

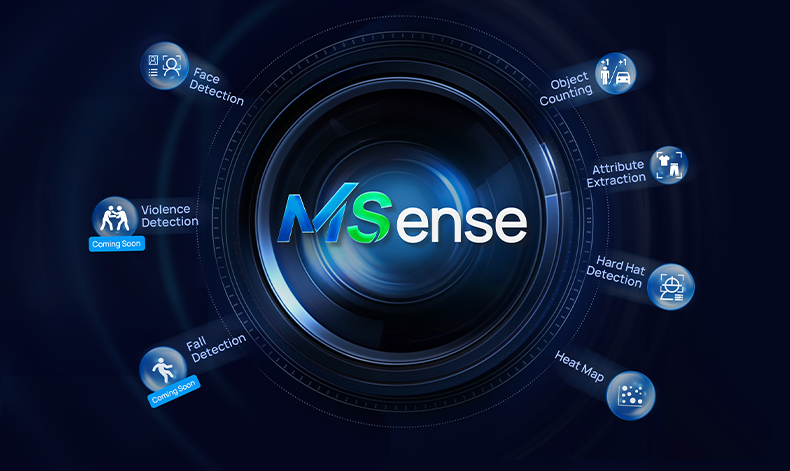

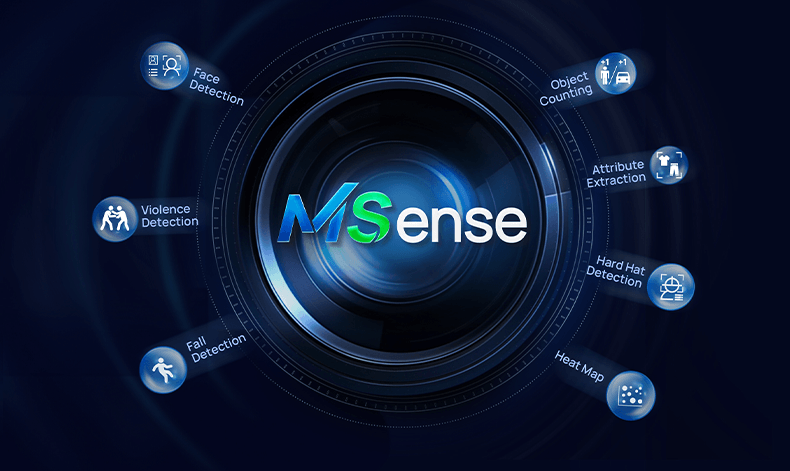

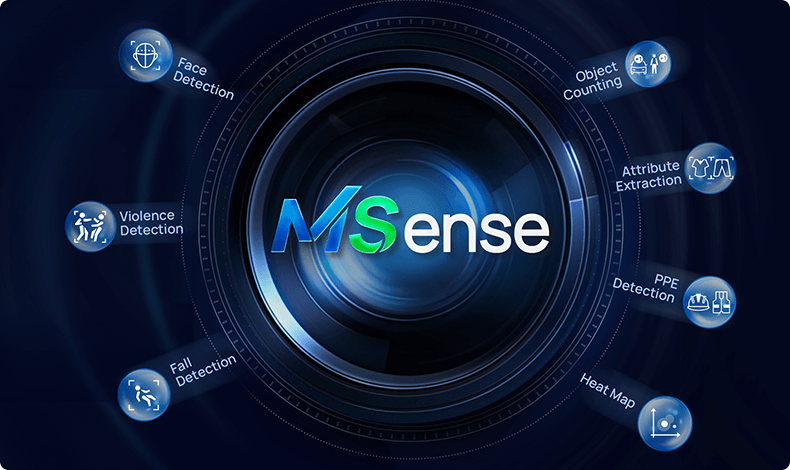

MSense Technology: Transforming Video into Actionable Intelligence
Powered by advanced AI, MSense takes surveillance far beyond recording. It analyzes live video streams in real time, converting them into rich, structured metadata to unlock deeper insights for industry-specific needs.
Key Highlights:
![icon]( "icon")
A wide range of advanced, self-developed AI algorithms.
![icon]( "icon")
Purpose-built for diverse vertical applications.
![icon]( "icon")
Delivers actionable insights based on behaviors, counts, and attributes.
![icon]( "icon")
Generates metadata to support smart search, reporting, and alert linkage.
Superior Night Vision, See Clearly in the Dark
Engineered for exceptional low-light performance, this feature combines a 1/1.8” large sensor with a Day-Night Co-focus Lens to capture sharp, detailed images around the clock. The upcoming AI ISP technology will further optimize image quality, delivering true-to-life colors and enhanced clarity even in the darkest environments.
* AI ISP Coming Soon
AI ISP
Day-Night Co-focus Lens
1/1.8” Sensor
P-Iris Control
Advanced P-Iris control technology with Milesight AI Motorized Pro Bullet Plus Network Camera is able to automatically and precisely response to all lighting conditions, offering optimal image quality with good depth of filed.
140dB Super WDR
Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.
90fps High Frame Rate
With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.
Smart IR II Technology
The upgraded IR LEDs technology offers videos with a 100m viewing range, ensuring quality image clarity regardless of object distance. The brightness of both beams can be adjusted manually or automatically based on the zoom ratio.
4K Video Viewing
Experience
Delivering 4K resolution (3840*2160, effectively four times that of Full HD) is able to provide users with ultra-high-definition video viewing experience.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and IK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

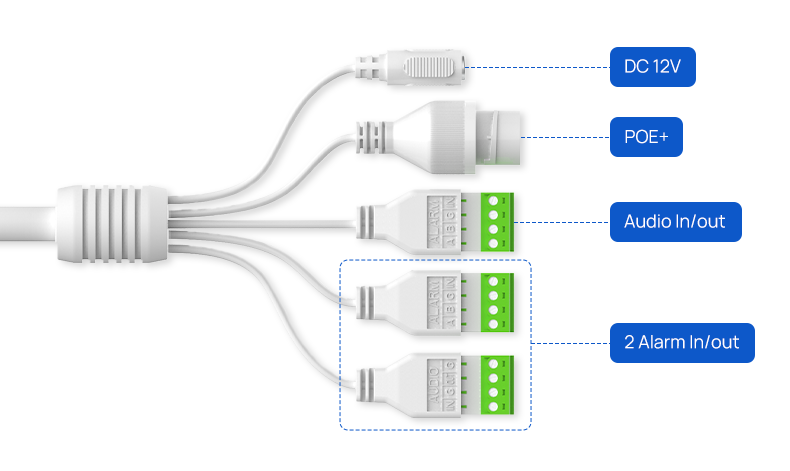

Versatile Interfaces for
Seamless Integration
The multi-interface cable is available with rich interfaces including PoE port, DC, Alarm I/O and Audio I/O to offer more choices for easy cable management and various needs.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
NDAA
- MS-C2966-R(T)F(I)PE
- MS-C4466-RF(I)PE
- MS-C5366-F(I)PE
- MS-C6766-F(I)PE
- MS-C8166-F(I)PE
- MS-C8266-F(I)PE
- MS-C5366-RFPG1
- MS-C4466-RFIPG1
- MS-C8266-RFIPG1
| Camera | |
|---|---|
| Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm) H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm) H45°~H17°/D53°~D20° /V25°~V9° (7~22mm) |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 50~153m O: 20~60m R: 10~30m l: 5~15m(2.7~13.5mm) D: 129~305m O: 51~120m R: 25.5~60m l: 12.5~30m(7~22mm) |
| IR Distance | Up to 65m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm) |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 351x288, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection,Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3.5W (DC 12V), 4.2W(PoE) Max.: 13.5W (DC 12V), 16.1W(PoE) |
| Surge Protection | 4KV |
| Weight | 1630g |
| Dimensions | 301mmX108mmX126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Lens | Motorized 3.6~10mm/2.7~12mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H114°~H45°/ D116°~D51°/ V57°~V25° |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 67.5~151m O: 26.5~59m R: 13.5~29.5m l: 14.5~6.5m |
| IR Distance | Up to 65m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240), 60Hz: 15fps@(1920x1080) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240), 50Hz: 15fps@(1920x1080) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS),ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection,Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3.5W (DC 12V), 4.2W(PoE) Max.: 13.5W (DC 12V), 16.1W(PoE) |
| Surge Protection | 4KV |
| Weight | 1630g |
| Dimensions | 301mmX108mmX126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H113°~H33°/D138°~D42° /V83°~V25° (2.7~13.5mm) H94°~H33°/ D116°~D42° / V71°~V25°(3.0~10.5mm) H42°~H16°/D53°~D20° /V32°~V12° (7~22mm) |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 67~204m O: 26.5~80.5m R: 13~40m l: 6.5~20m(2.7~13.5mm) D: 172~407m O: 68~160m R: 34~80m l: 17~40m(7~22mm) |
| IR Distance | Up to 65m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm) |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection,Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3.1W (DC 12V), 4W(PoE) Max.: 9W (DC 12V), 11W(PoE) |
| Surge Protection | 4KV |
| Weight | 1630g |
| Dimensions | 301mmX108mmX126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 6MP AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 78.5~219m O: 31~86m R: 15.5~43m l: 7.5~21.5m |
| IR Distance | Up to 65m(2.7~13.5mm) |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7-13.5mm@F1.6 P-Iris(Optional) |
| Field of View | H112°~H38°/ D129°~D44°/ V61°~V22° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control | Auto/Manual (Optional for I Series) |
| Video | |
| Max. Image Resolution | 3200x1800 |
| Primary Stream | 60Hz: 30fps@(3200x1800, 2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(3200x1800, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(1280x720, 640x480, 640x360) 50Hz:25fps@(1280x720, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps(1280x720, 640x480, 640x360) 50Hz: 25fps(1280x720, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection,Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3W (DC 12V), 4W(PoE) Max.: 8.6W (DC 12V), 10.5W(PoE) |
| Surge Protection | 4KV |
| Dimensions | 301mmX108mmX126mm |
| Weight | 1630g |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.012Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | Motorized 2.7~13.5mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H110°~H33°/D118°~D38°/V60°~V18° |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 92~281m O: 36~111m R: 18~55m l: 9~28m |
| IR Distance | Up to 65m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 4W (DC 12V), 5W(PoE) Max.: 10W (DC 12V), 12.1W(PoE) |
| Surge Protection | 4KV |
| Weight | 1630g |
| Dimensions | 301mmX108mmX126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.4 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Lens | Motorized 3.6~10mm@F1.4 P-Iris(Optional) |
| Mount | Φ14 |
| Field of View | H116°~H48°/D134°~D55°/V65°~V27° |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 96~214m O: 38~84m R: 19~42m l: 9.5~21m |
| IR Distance | Up to 65m |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. |
| System | |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 5.3W (DC 12V), 6.4W(PoE) Max.: 11.4W (DC 12V), 13.7W(PoE) |
| Surge Protection | 4KV |
| Weight | 1630g |
| Dimensions | 301mmX108mmX126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 87m ~ 282m O: 34m ~ 111m R: 17m ~ 55m I: 8.5m ~ 27.5m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 6 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 65m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.4 |
| Field of View | H93.5° ~ 32° / D121.5° ~ 44.5° / V68° ~ 22° |
| Close Focus Distance | W:0.5m, T:1m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ14 |
| Focus Control | Auto / Manual |
| Aperture | Max.F1.4 |
| Iris Type | Fixed |
| Iris Control | Auto / Manual |
| Video | |
| Max. Image Resolution | 2592 x 1944 |
| Primary Stream | 60Hz: 60fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536,1600x1200,1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(2048x1536,1600x1200,1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (sMask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output2: wet contact, 10mA 12V DC) |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| vent Action | FTP Upload, Snapshot, SMTP Upload, Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE+ (802.3at) / DC 10V~DC 28V |
| Power Consumption* | Min.: 3W (DC), 4W (PoE+) Max.: 14W (DC), 16W (PoE+) |
| Surge Protection | 6KV |
| Net Weight | Approx. 1.6kg |
| Gross Weight | Approx. 2.4kg |
| Dimensions | 320mm X 134mm X 126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.0009Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 69~149m O: 27~58.5 R: 13.5~29m I: 6.5~14.5m |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 6 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 80m |
| Illuminator Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Field of View | H111.5° ~ H47.5° / D129° ~ D54.5° / V58.5° ~ V26.5° |
| Close Focus Distance | W: 1m, T: 1.5m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto, Manual |
| Video | |
| Max. Image Resolution | 2688 x 1520 |
| Primary Stream | 60Hz: 60fps@(2688×1520, 2304×1296, 1920×1080, 1280×720) 50Hz: 50fps@(2688×1520, 2304×1296, 1920×1080, 1280×720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output 2: wet contact, 10mA 12V DC) |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots The attributes include Age, Gender, Glasses, Mask and Cap |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE+ (802.3at) / DC 10V~DC 28V |
| Power Consumption* | Min.: 3W (DC), 4W (PoE+) Max.: 14W (DC), 16W (PoE+) |
| Surge Protection | 6KV |
| Net Weight | Approx. 1.6kg |
| Gross Weight | Approx. 2.4kg |
| Dimensions | 320mm X 134mm X 126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.0009Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 227m ~ 657m O:89m ~ 259m R:44.5m ~ 129m I:22m ~ 64.5m |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 6 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 80m |
| Illuminator Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Field of View | H105° ~ H46.5° / D122.5° ~ D54° / V55.5° ~ V26° |
| Close Focus Distance | W: 1m, T: 1.5m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto, Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| AI ISP | Support |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 2/2 (Alarm Output 2: wet contact, 10mA 12V DC) |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots The attributes include Age, Gender, Glasses, Mask and Cap |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detects whether individuals are wearing safety helmets. Triggers an alarm when a person is identified without a helmet, enhancing safety compliance on-site. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload, Snapshot, SMTP Upload, Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE+ (802.3at) / DC 10V~DC 28V |
| Power Consumption* | Min.: 4W (DC), 4.5W (PoE+) Max.: 15.5W (DC), 17.5W (PoE+) |
| Surge Protection | 6KV |
| Net Weight | Approx. 1.6kg |
| Gross Weight | Approx. 2.4kg |
| Dimensions | 320mm X 134mm X 126mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | UL: UL 62368-1, CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67, IK10 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention:
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*138.5*47mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 180*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
Documents
Milesight AI Motorized Pro Bullet Plus Network Camera NDAA-G1 Datasheet-en Milesight AI Motorized Pro Bullet Plus Network Camera Datasheet-en Milesight AI Motorized Pro Bullet Plus Network Camera Datasheet-NDAA-E-en Milesight AI Motorized Pro Bullet Plus Network Camera Datasheet-NDAA-A-en Milesight Network Camera User Manual Milesight AI Motorized Pro Bullet Plus Network Camera Quick Start Guide
