AI Road Traffic Radar
Pro Bullet Plus Camera

Integrate 3D Radar, AI and LPR into One

radar pro bullet plus camera front small
radar pro bullet plus camera side small
radar pro bullet plus camera small
  • Traffic Violation Detection
  • Integrated 3D Radar
  • Intelligent AI-powered LPR Algorithm
  • 200km/h Recognizable Detection
  • 4 Lanes Monitoring at Once
  • 4X/12X AF Lens
  • 1/2'' Sensor & 0.002Lux Starlight
  • 90fps High Frame Rate
  • FEATURES
  • MODELS
  • DOWNLOAD

3D Radar Real-time Speed Detection for Safer Road

maxresdefault
maxresdefault
maxresdefault

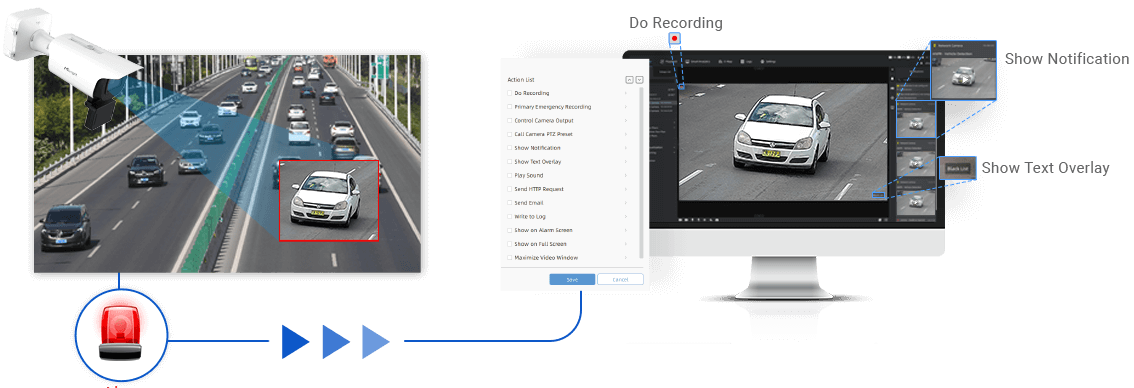

Traffic Violation Detection

Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Speeding Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

traffic violation detection

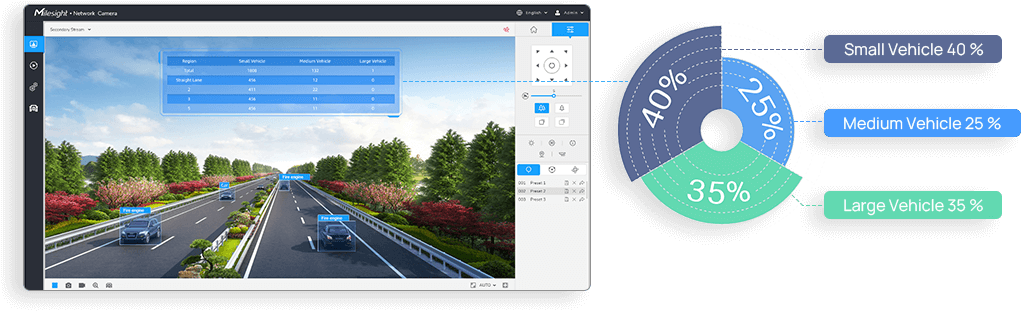

Traffic Flow Statistics

The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

traffic flow statistics

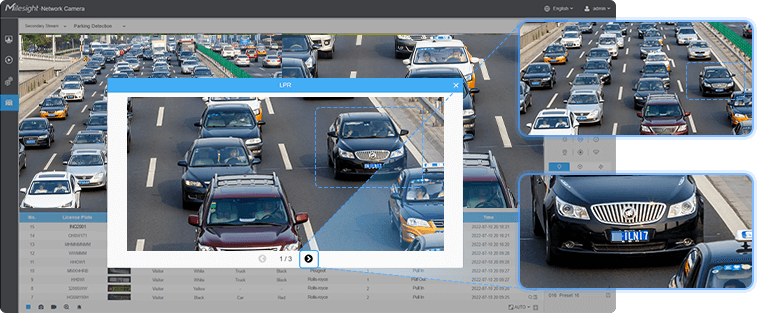

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.

evidence camera linkage

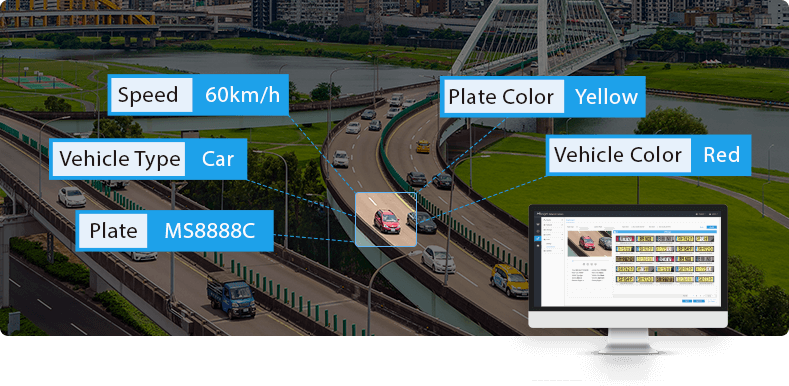

LPR Smart Search

Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent AI road traffic monitoring. It also supports manual export and auto export for easy management.

lpr smart search 2

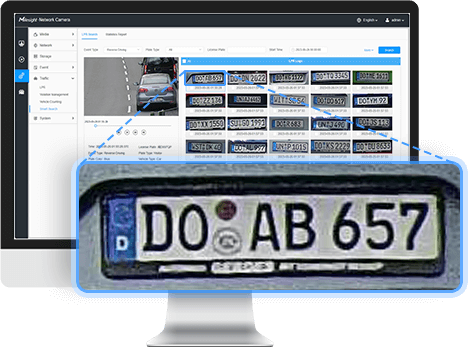

Plate Data Management

A number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems.

On-edge Plate Management

Standalone black/white list management realizes the fast implementation for barrier control.

Milesight Back-ends Integration

Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.

Third-party VMS Integration

Various CGI/APIs and interfaces, protocols like Wiegand, TCP, HTTP make it easy to integrate with all data being pushed to third-party VMS or platforms.

plate data management

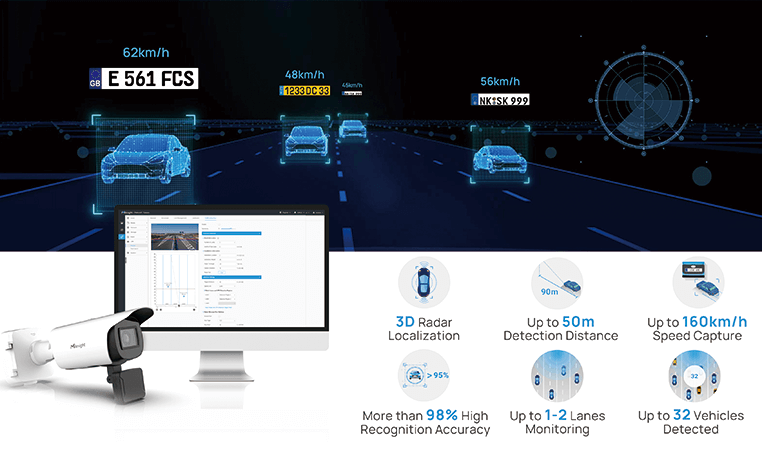

Advanced 3D Radar
Technology

3D Radar, AI and LPR are innovatively combined to one camera that not only enables to identify vehicles and read plates accurately, but also provides extra real-time data of vehicle speed and direction. Additionally, the high environmental adaptability of radar module offers precise detected data in any weather conditions.

3d radar technology

Intelligent AI-powered
LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Radar Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, make, color, etc., generating reliable traffic insights to improve safety and mobility.

Superior Image Quality

Milesight applies Sony's high sensitive 1/2" sensor whose capacity is approximately twice than that of the conventional ones. Its high sensitivity is designed for capturing saturated and sharp images even in pitch dark environment. Milesight AI Road Traffic Radar Pro Bullet Plus Camera is coupled with the 90fps high frame rate that delivers quality images with no latency despite of the high-speed movement.

starlight sensor 2

By Conventional Camera

By Milesight Camera

1/2'' Sensor

90fps

90fps High Frame Rate

4k high resolution

4K Viewing Experience

smart ir ii

Smart IR II

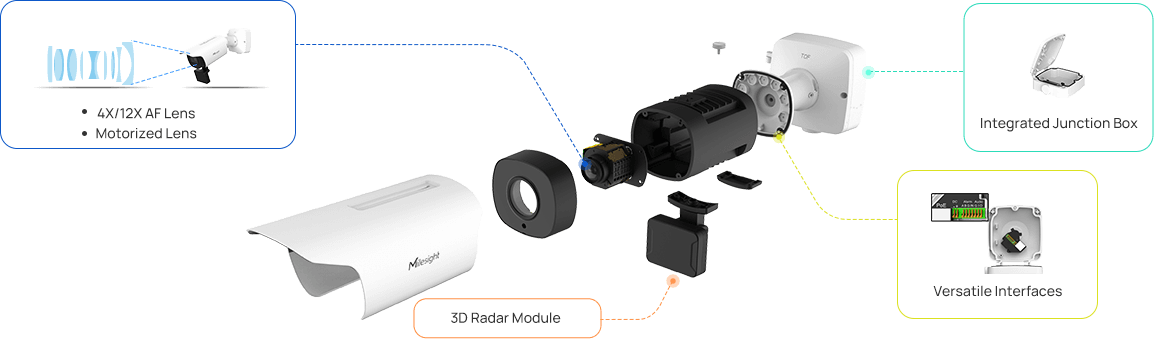

Easy Deployment and Compact Structure

As an all-in-one 3D radar camera, the radar module is directly integrated in the camera, which is easy to deploy for the users. The well-designed integrated junction box and versatile interfaces ensure installation efficiency.

structure design

Specifications

NDAA

Non-NDAA

Camera
NameAI Road Traffic Radar Pro Bullet Plus Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Radar
Working Frequency60GHz, 61~62GHz
Capture Rate>99% (Traffic jam >95%)
Lane Coverage1~4 Lanes (Recognition ≥95% individually)
Tracking TargetUp to 32
Speed Detection Range±5km/h~±200km/h
Speed Detection Accuracy±0.36km/h
Detection DistanceUp to 90m
Distance Detection Accuracy±0.4m
Angle Measurement Accuracy±0.5°
Installation Height2~7m
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃∼60℃
Working Humidity5~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption9W MAX
16W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Radar Pro Bullet Plus Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.008Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH57°~H4°/D69°~D5°/V44°~V1°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Radar
Working Frequency60GHz, 61~62GHz
Capture Rate>99% (Traffic jam >95%)
Lane Coverage1~4 Lanes (Recognition ≥95% individually)
Tracking TargetUp to 32
Speed Detection Range±5km/h~±200km/h
Speed Detection Accuracy±0.36km/h
Detection DistanceUp to 90m
Distance Detection Accuracy±0.4m
Angle Measurement Accuracy±0.5°
Installation Height2~7m
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Video
Max. Image Resolution2592x1944
Primary Stream60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
General
Working Temperature-40℃∼60℃
Working Humidity5~90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption9W MAX
15W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Radar Pro Bullet Plus Camera
Image Sensor1/2″ Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Radar
Working Frequency60GHz, 61~62GHz
Capture Rate>99% (Traffic jam >95%)
Lane Coverage1~4 Lanes (Recognition ≥95% individually)
Tracking TargetUp to 32
Speed Detection Range±5km/h~±200km/h
Speed Detection Accuracy±0.36km/h
Detection DistanceUp to 90m
Distance Detection Accuracy±0.4m
Angle Measurement Accuracy±0.5°
Installation Height2~7m
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Video
Max. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature-40℃∼60℃
Working Humidity5∼95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption9W MAX, 16W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Radar Pro Bullet Plus Camera
Image Sensor1/2.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.6
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens5.3~64mm, 12X Optical Zoom
Field of ViewH61°~H5°/D69°~D5°/V36°~V2°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F2.8
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Radar
Working Frequency60GHz, 61~62GHz
Capture Rate>99% (Traffic jam >95%)
Lane Coverage1~4 Lanes (Recognition ≥95% individually)
Tracking TargetUp to 32
Speed Detection Range±5km/h~±200km/h
Speed Detection Accuracy±0.36km/h
Detection DistanceUp to 90m
Distance Detection Accuracy±0.4m
Angle Measurement Accuracy±0.5°
Installation Height2~7m
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Video
Max. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature-40℃∼60℃
Working Humidity5∼95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption9W MAX, 16W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Radar Pro Bullet Plus Camera
Image Sensor1/1.8″ Progressive Scan CMOS
Min. IlluminationColor: 0.009Lux@F1.6
B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6~F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country/Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day; Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection
Smart Traffic FunctionEvidence Camera Linkage, Specific Lane Management
White/Black ListUp to 20000 records inside the camera
LPR Smart SearchSupport
Radar
Working Frequency60GHz, 61~62GHz
Capture Rate>99% (Traffic jam >95%)
Lane Coverage1~4 Lanes (Recognition ≥95% individually)
Tracking TargetUp to 32
Speed Detection Range±5km/h~±200km/h
Speed Detection Accuracy±0.36km/h
Detection DistanceUp to 90m
Distance Detection Accuracy±0.4m
Angle Measurement Accuracy±0.5°
Installation Height2~7m
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 1TB
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature-40℃∼60℃
Working Humidity5∼95%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption9W MAX, 15W MAX (With IR on)
HousingUp to IP67-rated for weather-resistant performance
Surge Protection4KV
Weight1623g
Dimensions320mmX134mmX171mm
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series

Camera
NameAI Road Traffic Radar Pro Bullet Plus Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.6,
B/W: 0Lux with IR on
WDR140dB Super WDR Pro
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
Lens
Lens8~32mm, 4X Optical Zoom
Field of ViewH44°~H13°/D51°~D15°/V25°~V7°
MountΦ14
Focus ControlAuto/Manual
ApertureF1.6-F1.7
Iris ControlAuto
Road Traffic Management
Max. Vehicle Speed200km/h
Recognition Accuracy>95%
Coverage2 lanes
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 70m during the day;
Up to 35m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection, Traffic Flow Detection
Smart Traffic FunctionEvidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management
White/Black ListUp to 1000 records inside the camera
LPR Smart SearchSupport
Radar
Working Frequency60GHz, 61~62GHz
Capture Rate>99% (Traffic jam >95%)
Lane Coverage1~4 Lanes (Recognition ≥95% individually)
Tracking TargetUp to 32
Speed Detection Range±5km/h~±200km/h
Speed Detection Accuracy±0.36km/h
Detection DistanceUp to 90m
Distance Detection Accuracy±0.4m
Angle Measurement Accuracy±0.5°
Installation Height2~7m
Interface
Ethernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
Video
Max. Image Resolution1920x1080
Frame Rate60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
Network
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
System
System CompatibilityAPI, HTTP, TCP, ONVIF Profile G & Q & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
General
Working Temperature-40℃∼60℃
Working Humidity5∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V±10%
Power Consumption8W MAX
14W MAX (With IR on)
Surge Protection4KV
Weather ProofUp to IP67-rated for weather-resistant performance
HousingVandal-proof IK10-rated Metal Housing(Without Radar Module)
Dimensions320mmX134mmX171mm
Weight1623g
Warranty3/5 Years

* Naming Convention
T - High Frame Rate (100fps)
V - Radar Supported
P - PoE Supported
C/E - AI Series

Documents

*Your Email

*Country

*Your Phone

*Company

*Your Website

*Business Type

*What Product are You Interested in?

*Message

*Verification Code

Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
