AI Road Traffic Pro Bullet
Plus Camera
Empowering Roads with AI
Introducing Milesight Intelligent Traffic
AI Road Traffic Pro Bullet
- Traffic Violation Detection
- Intelligent AI-powered LPR Algorithm
- Traffic Flow Statistics
- Evidence Camera Linkage
- 4X/12X AF Lens
- Up to 4K Ultra High Definition
- 1/1.8'' Sensor & 0.002Lux Starlight
- 90fps High Frame Rate
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Home
- Road Traffic Management
- Pro Bullet Plus Camera
Traffic Violation Detection
Accurately detect and alert violation events such as No-plate Vehicle Detection, Specific Lane Detection, Reverse Driving Detection, Black/White List Detection and Vehicle Event Detection for mission-critical road traffic management.

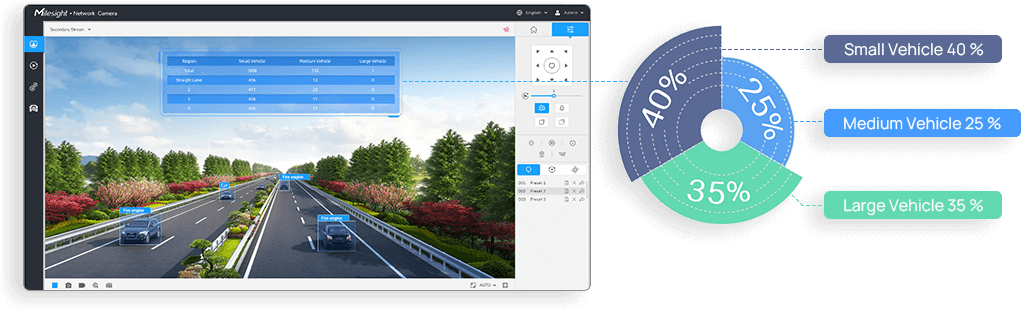

Traffic Flow Statistics
The vehicle counting result based on vehicle type and various vehicle features can be shown intuitively in camera's live view and the camera can also generate useful report insights to further enhance traffic management capabilities.

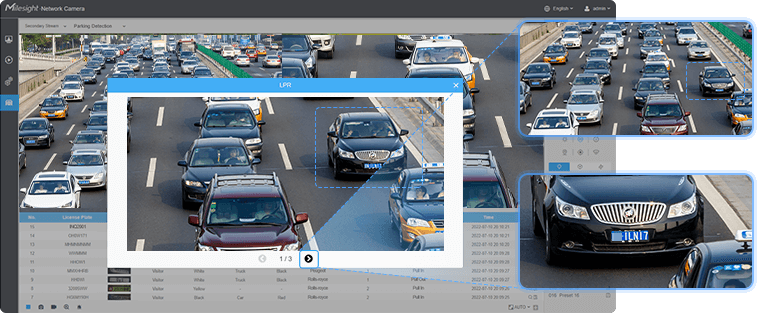

Evidence Camera Linkage
Beyond vehicle feature and license plate recognition, Milesight AI Road Traffic Camera can link with any regular cameras to capture the evidence. With seamless triggering between Milesight traffic camera and regular camera, users can easily provide solid and convincible evidence including LPR results as well as overview snapshots.

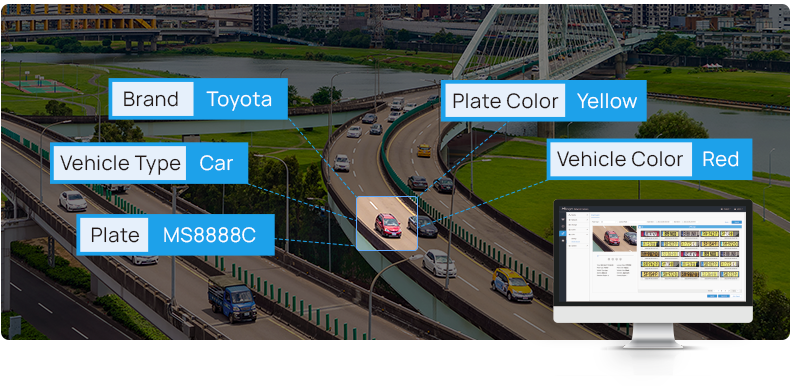

LPR Smart Search
Relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle brand, type & color, plate color, plate number, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. It also supports manual export and auto export for easy management.

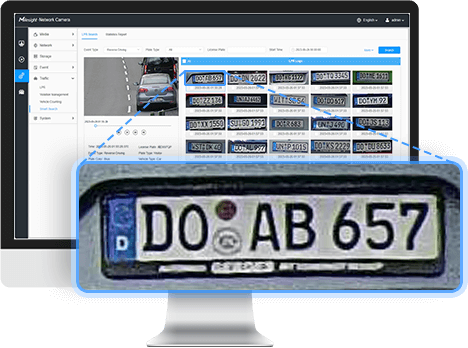

Plate Data Management
A number of options to ensure the powerful plate data management and flexible deployment of Milesight traffic systems.
On-edge Plate Management
Standalone black/white list management realizes the fast implementation for barrier control.
Milesight Back-ends Integration
Work well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions.
Third-party VMS Integration
Various CGI/APIs and interfaces, protocols like TCP, HTTP make it easy to integrate with all data being pushed to third-party VMS or platforms.
Intelligent AI-powered
LPR Algorithm
Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically. Milesight AI Road Traffic Pro Bullet Plus Camera can not only recognize vehicle plates in real time, but also identify various vehicle features, like vehicle type, brand, color, etc., generating reliable traffic insights to improve safety and mobility.
1/1.8" Starlight Sensor & 0.002Lux Ultra Low Light
Milesight AI Road Traffic Pro Bullet Plus Camera, with top-notch STARVIS Starlight Sensor, can provide detailed clear images in low and near-infrared light conditions down to 0.002Lux (Color) and 0Lux (B/W), ensuring good performance for 24/7 traffic monitoring.
By Conventional Camera
By Milesight Camera
90fps High Frame Rate
With the industry leading frame rate reaching 90fps, Milesight AI Road Traffic Pro Bullet Plus Camera can easily catch vehicle and plate images with no latency despite of the high-speed movement.
4X/12X Optical Zoom
The 4X/12X Optical Zoom can zoom in to distant vehicles while still maintaining clarity, delivering high quality video over the entire image.
IP67 & IK10
Equipped with industry-leading IP67-rated weather-proofing and lK10-rated vandal-proofing, the camera is well protected against adverse impacts to ensure the robust performance.

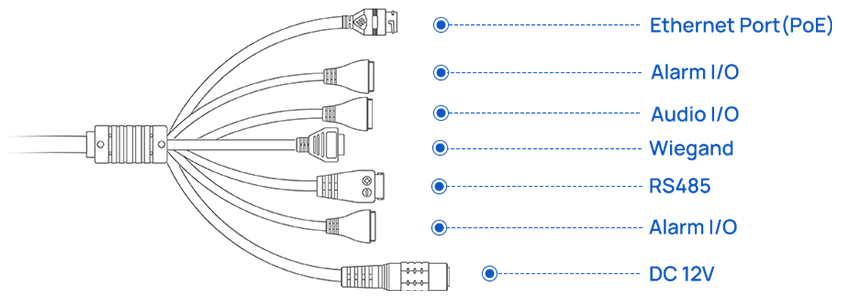

Versatile Interfaces
A rich set of interfaces such as DC, Audio I/O and Alarm I/O are available to offer more choices for easy management and various needs. For example, the alarm interface allows easy integration with traffic light control systems, ensuring smooth operation and compatibility.
SIP/VoIP Support
Milesight AI Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
NDAA
- TS4466-X4RPE
- TS2966-X12TPE
- TS5366-X12PE
- TS8266-X4PE
Non-NDAA
- TS2866-X4TPC
| Camera | |
|---|---|
| Name | AI Road Traffic Pro Bullet Plus Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F1.7 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 95m during the day; Up to 45m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 (Integrated Cable Version) 2/2 (Cable Out Version) |
| Video | |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 5~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 8W MAX 13W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Pro Bullet Plus Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 5.3~64mm, 12X Optical Zoom |
| Field of View | H61°~H5°/D69°~D5°/V36°~V2° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 110m during the day; Up to 55m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 (Integrated Cable Version) 2/2 (Cable Out Version) |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 8W MAX 14W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Pro Bullet Plus Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 5.3~64mm, 12X Optical Zoom |
| Field of View | H57°~H4°/D69°~D5°/V44°~V1° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 150m during the day; Up to 80m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, |
| No-plate Vehicle Capture, Vehicle Direction Detection | |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 (Integrated Cable Version) 2/2 (Cable Out Version) |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, |
| Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, |
| Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 5~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 8W MAX |
| 13W MAX (With IR on) | |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Pro Bullet Plus Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| IR Wave Length | 850nm (Default); 740nm (Optional) |
| Illumination Distance | Up to 180m |
| S/N | >55dB |
| Lens | |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F1.7 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| ANPR Distance | Up to 130m during the day; Up to 60m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection |
| Smart Traffic Function | Evidence Camera Linkage, Specific Lane Management |
| White/Black List | Up to 20,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 (Integrated Cable Version) 2/2 (Cable Out Version) |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & M & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 9W MAX 13W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Weight | 1623g |
| Dimensions | 320mmX134mmX171mm |
| Warranty | 3/5 Years |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
| Camera | |
|---|---|
| Name | AI Road Traffic Pro Bullet Plus Camera |
| Image Sensor | 1/2″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR Pro |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Lens | 8~32mm, 4X Optical Zoom |
| Field of View | H44°~H13°/D51°~D15°/V25°~V7° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | F1.6~F1.7 |
| Iris Control | Auto |
| Road Traffic Management | |
| Max. Vehicle Speed | 120km/h |
| Recognition Accuracy | >95% |
| Coverage | 2 lanes |
| Country Region Supported | More than 80 countries and regions |
| Illumination Distance | Up to 70m during the day; Up to 35m during the night with illumination |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture |
| Smart Traffic Function | Evidence Camera Linkage, Vehicle Counting Based on Vehicle Type, Specific Lane Management |
| White/Black List | Up to 1,000 records inside the camera |
| LPR Smart Search | Support |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 100fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Privacy Masking | Up to 28 areas(24 mask areas and 4 mosaic areas) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP,UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Two-way Audio | Support |
| System | |
| System Compatibility | API, HTTP, TCP, ONVIF Profile G & S & T |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| Event Trigger | Black/White List, Attributes Event, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V±10% |
| Power Consumption | 8W MAX 14W MAX (With IR on) |
| Weather Proof | Up to IP67-rated for Weather-resistant Performance |
| Housing | Vandal-proof IK10-rated Metal Housing |
| Surge Protection | 4KV |
| Weight | 1445.8g |
| Dimensions | 320mmX134mmX126mm |
| Warranty | 3/5 Years |
* Naming Convention
T - High Frame Rate (100fps)
P - PoE Supported
C/E - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*136*46mm
- Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 170*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
