Entrance & Exit AI LPR Bullet Camera

Smart & Ruggedized Camera for LPR Solution

2MP · AI · LPR · 0.005Lux Ultra Low-light · 140dB Super WDR · IP67 · IK10 · Smart IR II · 60fps

AI LPR PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis

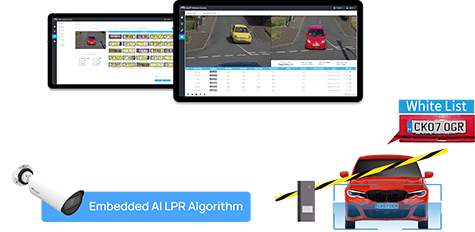

Easy and Flexible Deployment

With built-in AI LPR algorithms and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable a standalone license plate recognition solution for fast implementation scenarios such as gates or barrier control with high efficiency and accuracy. It can also be used with Milesight's own back-ends, including Milesight NVR, CMS and Milesight VMS Enterprise, to form a fully closed-loop traffic solution. This highly integrated system ensures a smooth experience for access control operations at both entrances and exits.

Easy and Flexible Deployment

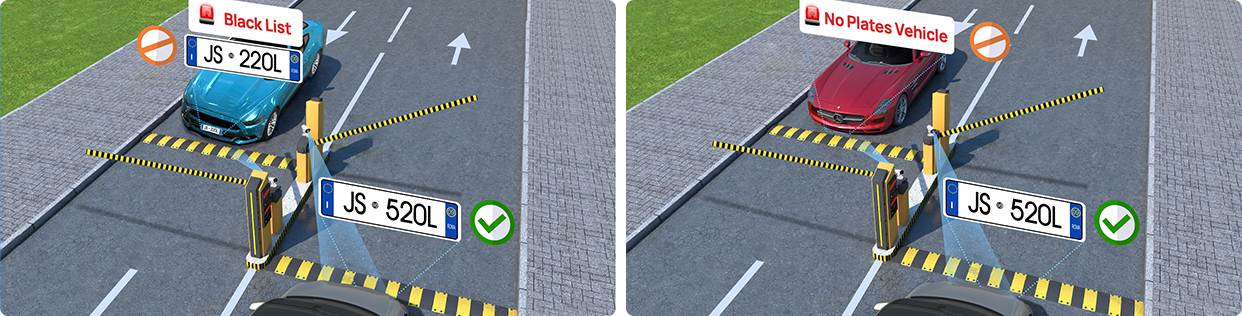

Black and White List and No-plate Vehicle Detection

With the built-in AI LPR algorithm and embedded black and white lists, Milesight Entrance & Exit AI LPR Cameras enable to achieve stand-alone solutions for license plate recognition as well as no-plate vehicle detection. Alarm is triggered as soon as the corresponding rule-compliant license plate is detected, enabling efficient and accurate access control at any gate, such as a campus or an apartment.

Black and White List and No-plate Vehicle Detection

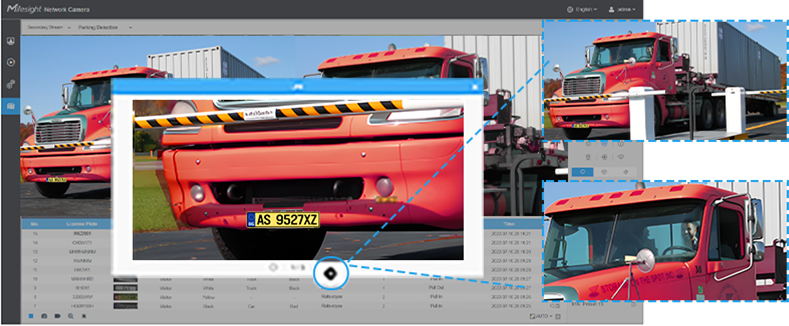

Evidence Camera Linkage

Beyond vehicle feature and license plate recognition, Milesight Entrance & Exit AI LPR Camera can link with any regular cameras to capture the evidence. Thanks to the seamless trigger between the LPR camera and the regular camera, users can easily provide solid and convincible evidence with LPR results together with overview snapshots and critical details, such as driver's face and loaded materials in trucks.

Evidence Camera Linkage

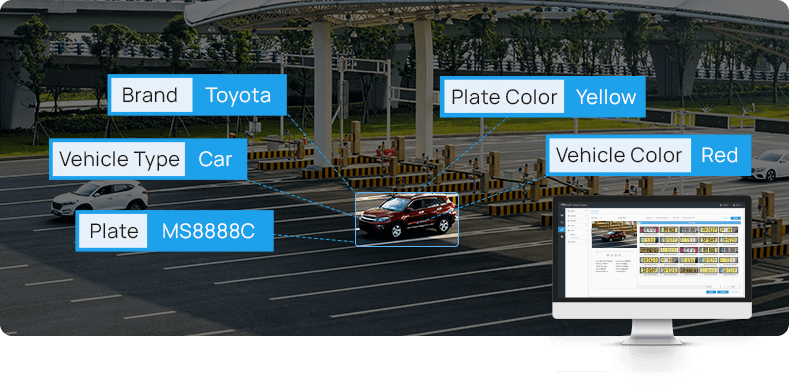

LPR Smart Search

With Milesight LPR Smart Search, relevant videos can be found quickly by searching for only a portion of the target suspect vehicle's features, such as vehicle type & color, plate color, plate number, speed, direction and etc., ensuring efficient event investigations and intelligent road traffic monitoring. In addition, it supports manual export and automatic export for easy management by security operators.

LPR Smart Search

Plate Data Management

Milesight offers a number of options to ensure the powerful plate data management and flexible deployment of Milesight ANPR systems. Milesight Milesight Entrance & Exit AI LPR Camera features on-edge plate management for black/white lists realizing the fast implementation for barrier control. It also works well with Milesight own back-ends including Milesight NVR, CMS and Milesight VMS Enterprise to form fully closed-loop traffic solutions. Besides, it offers various CGI/APIs and supports interfaces and protocols like TCP, HTTP, etc., which makes it easy to integrate openly with all data being pushed to third-party VMS or platforms.

Plate Data Management

Leading-edge H.265+ Compression

H.265+

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition, LPR, LPR Camera

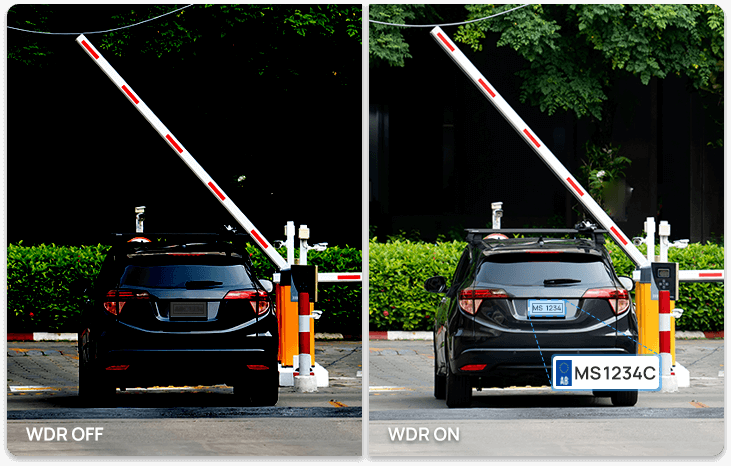

140dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 140dB.

Super WDR

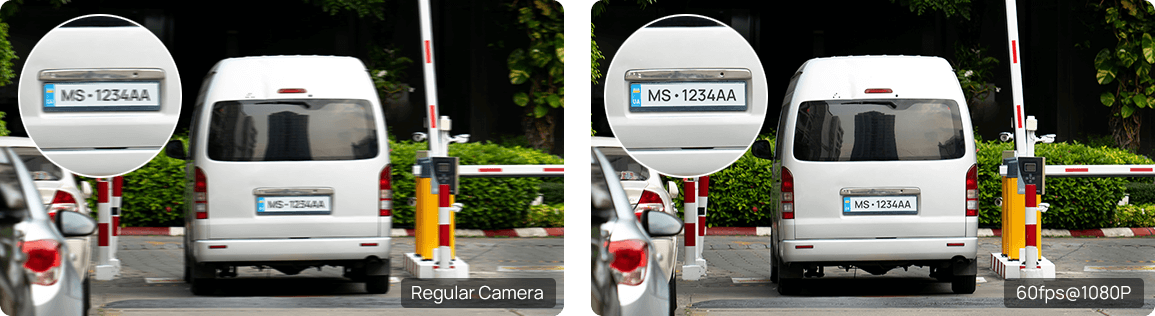

60fps

With the industry leading frame rate reaching 60fps, the Entrance & Exit AI LPR Bullet Camera can easily catch images with no latency despite of the high-speed movement.

high frame rate

Advanced Motorized Lens

With flexible motorized lens (2.7~13.5mm), the camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.

Advanced Motorized Lens

IP67 & IK10

Sharply contrasting to the mini size, the Entrance & Exit AI LPR Bullet Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

IP67, IK10, Entrance & Exit AI LPR Bullet Camera

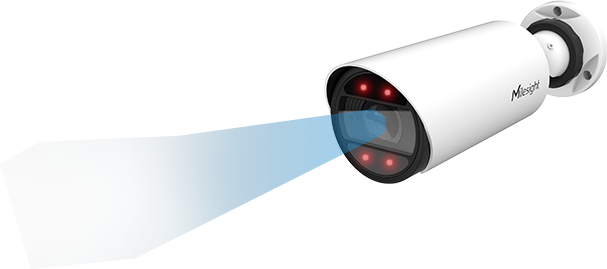

Smart IR II Technology

To maximize the IR performance, the Entrance & Exit AI LPR Bullet Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of two High Beams and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

IR of Entrance & Exit AI LPR Bullet Camera

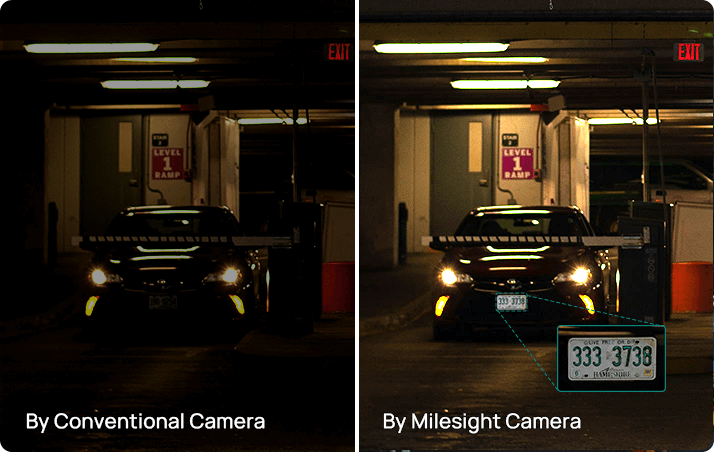

0.005Lux Ultra Low-light

The Entrance & Exit AI LPR Bullet Camera is able to deliver high detailed color images even in the low light environments reaching 0.005Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

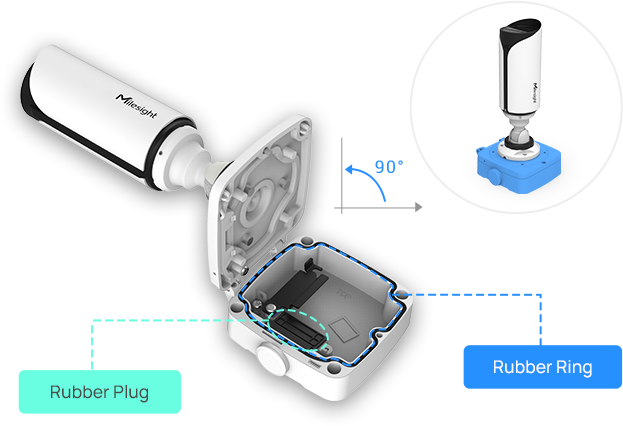

Integrated Junction Box (Optional)

The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

3-Axis Design& Entrance & Exit AI LPR Bullet Camera

SIP/VoIP Support

Milesight Entrance & Exit AI LPR Bullet Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP,Entrance & Exit AI LPR Bullet Camera
  • MS-C2964-RFLPE
  • MS-C2964-RFLPC
CameraNameEntrance & Exit AI LPR Bullet Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.005Lux@F1.4
B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
LensLensMotorized 2.7~13.5mm@F1.4
Field of ViewH111°~H34°/D130°~D39°/V60°~V19°
MountΦ14
Focus ControlAuto/Manual
Entrance & Exit ManagementMax. Vehicle Speed200km/h
Recognition Accuracy>98%
CoverageSupport simultaneous detection of 4 regions
Country/Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 25m during the day; Up to 20m during the night with illumination
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection
Smart Traffic FunctionEvidence Camera Linkage
White/Black ListUp to 1000 records inside the camera
LPR Smart SearchSupport
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1 (Multi-interface Version)
Alarm I/O1/1 (Multi-interface Version)
VideoMax. Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
SystemSystem CompatibilityAPI, HTTP, TCP, ONVIF Profile G & Q & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼95%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption6W MAX, 10W MAX(With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
CameraNameEntrance & Exit AI LPR Bullet Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR140dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
S/N>55dB
LensLensMotorized 2.7~13.5mm@F1.4
Field of ViewH111°~H34°/D130°~D39°/V60°~V19°
MountΦ14
Focus ControlAuto/Manual
Entrance & Exit ManagementMax. Vehicle Speed200km/h
Recognition Accuracy>98%
CoverageSupport simultaneous detection of 4 regions
Country Region SupportedMore than 80 countries and regions
Illumination DistanceUp to 20m
Attributes IdentificationPlate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture
Smart Traffic FunctionEvidence Camera Linkage
White/Black ListUp to 1000 records inside the camera
LPR Smart SearchSupport
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1(Multi-interface Version)
Alarm I/O1/1(Multi-interface Version)
VideoMax. Image Resolution1920x1080
Primary Stream60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576)
50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy MaskingUp to 28 areas(24 mask areas and 4 mosaic areas)
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
SystemSystem CompatibilityAPI, HTTP, TCP, ONVIF Profile G & Q & S & T
StorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE(802.3af)/DC 12V±10%
Power Consumption7W MAX, 9W MAX(With IR on)
HousingUp to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight825g
DimensionsΦ76mmX239.5mm
Warranty3/5 Years
  • * Naming Convention
  • R - High Frame Rate (60fps)
  • F - Motorized Vari-focal Lens
  • P - PoE Supported
  • C/E - AI Series
  • L - LPR Supported
