NDAA AI 23X/30X Speed Dome Network Camera

360° Coverage Secures Here and There

2MP · AI · 23X/30X Optical Zoom · 120dB Super WDR · 0.002Lux Starlight · Smart IR II Technology · IP66 · IK10 Optional · 3D Positioning · Smart PTZ Motion Detection · 90fps · PoE

NDAA AI PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Built-in Microphone Starlight Super WDR

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

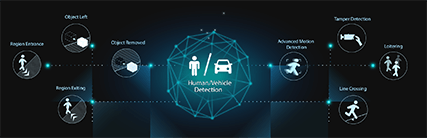

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

AI VCA

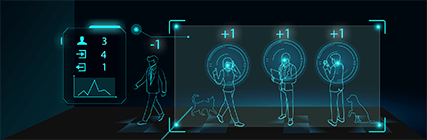

People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

AI people counting

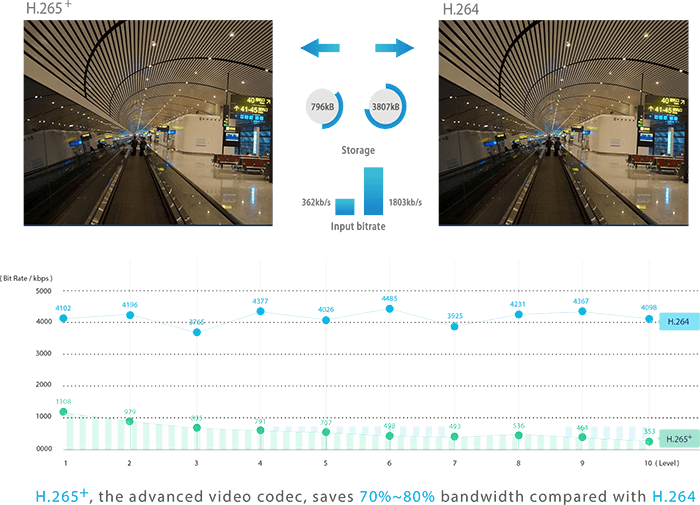

Leading-edge H.265+ Compression

H.265+

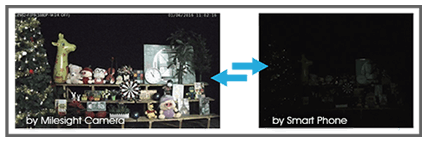

0.002Lux Ultra Low-light

The Milesight NDAA AI Speed Dome Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

low-light performance

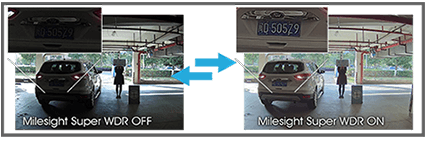

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

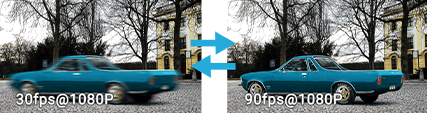

90fps

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

WDR

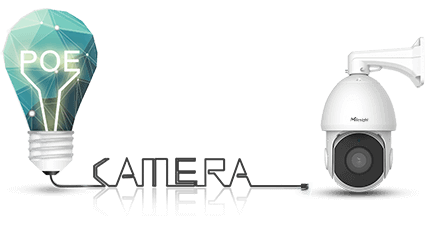

PoE for Easy Installation

The NDAA AI Speed Dome Network Camera complies with PoE standard IEEE 802.3at, which will provide power to the camera while streaming video/audio/data over one single cable. It simplifies installation, greatly eliminates the need for time-consuming process and expertise and achieves a virtually hassle-free installation process.

NDAA PoE PTZ dome

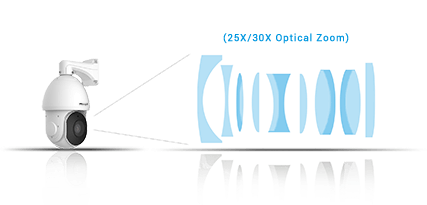

23X/30X Optical Zoom

Milesight NDAA AI Speed Dome Network Camera is designed to extend user’s reach to the max with the fast 5~117mm @F1.5~F3.5/ 4.7~141mm @F1.5~F4.0 lens. The 23X/30X optical zoom allows the user to zoom up to distant subjects while still maintaining the clarity, delivering high quality video over the entire zoom range.

ndaa ai speed dome lens

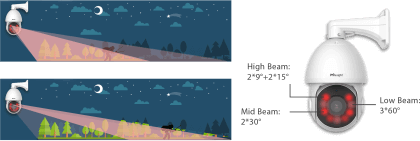

Smart IR II Technology

The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 200m. Four LEDs work as High Beam, two LEDs work as Mid Beam, while the other three as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam, Mid Beam and High Beam’s brightness can be adjusted manually or automatically on the basis of the zoom ratio.

Smart IR II, ndaa Speed Dome

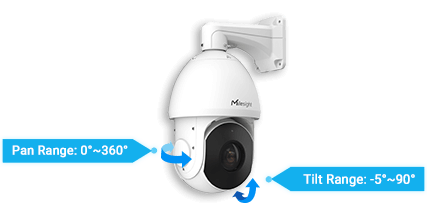

360° Endless Pan, -5° ~ 90° Auto-flip Tilt

With a sophisticated pan/tilt mechanism, Milesight NDAA AI Speed Dome Network Camera provides fast, precise movement with endless 360° pan and 95° tilt. The user can easily control the lens position via mouse to monitor area of interest and set up to 300 preset positions for patrolling. There are up to 8 patrol routes and maximum 4 patterns of the manual operation paths (for Pan, Tilt, Zoom and Focus) which can be set as required. Moreover, the user is able to schedule specific PTZ tasks by date and time.

ndaa ai speed dome

Smart PTZ Motion Detection

The Smart PTZ Motion Detection function enables the user to monitor specified area clearly in a timely manner. When there is motion detected in a target area, Milesight NDAA AI Speed Dome Network Camera will pan and tilt to the position of motion detected area automatically. Then zoom in to provide clear image for a duration of time. If the duration expires, the camera will resume its previous monitoring position and zoom level.

Smart PTZ Motion Detection

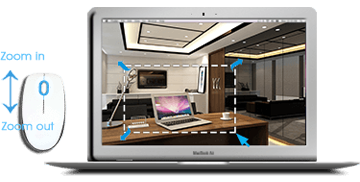

3D Positioning

Milesight NDAA AI Speed Dome Network Camera can be easily controlled via the use of a mouse which is truly user-friendly. Left click on any position of interest in the video image, and the position will right become the center of the current monitoring area. Use the left button of a mouse to drag a rectangle area, then the area will become the central area of monitoring with automatic zoom in or zoom out action. Rolling the mouse wheel up and down, the video image will be zoomed in and zoomed out immediately.

3D Positioning

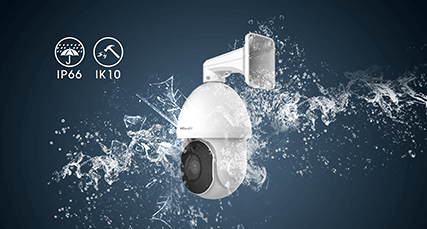

IP66 & IK10 (Optional for IK10)

The weather-proof and vandal-proof capacity are the solid foundation to guarantee the stable and reliable operation of the network camera. Applied in NDAA AI Speed Dome Network Camera, the IP66-rated weather proofing and IK10-rated vandal proofing, which are the leading level of the industry, well protect the cameras against adverse impact to ensure the performance.

IP66 IK10

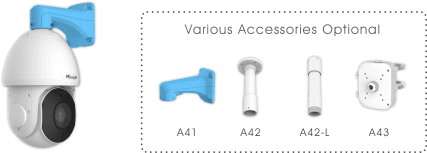

Exquisite Design

Adopting the completely new design, NDAA AI Speed Dome Network Camera is born for its originality and elegance. The optimized structure is super chic and simple with the hiding of IR LEDs. And at the same time, whether wall mount or pendant mount, there are different accessories optional for the hassle-free installation.

Exquisite Design
  • MS-C2941-X23TPA
  • MS-C2941-X30TPA
Camera Name 2MP NDAA AI 23X Speed Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Digital Zoom 16X
Lens Focal Length 5∼117mm, 23X Optical Zoom
Zoom Speed Approx 6s(Wide-Tele)
Field of View H60°∼H3°/D69°∼D4°/V35°∼V2°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 100/1500mm (Wide/Tele)
Aperture F1.5∼F3.5
Iris Control Auto
PTZ Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°∼400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼320°/s, Tilt Preset Speed: 320°/s
Proportional Zoom Support
Preset Quantity 300
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Auto Tracking Support
Power Off Memory Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Irradiation Distance Up to 200m
Irradiation Angle Auto/Manual
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 4/2
RS485 Support
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Condition Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power Supply PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption 12W MAX/ 24W MAX(With IR on)
Weather Proof/Housing Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)
Heater Support
Surge Protection 6KV
Dimensions/Weight Φ205mmX308mm/4Kg
Warranty 2 Years/3 Years(Optional)
Camera Name 2MP NDAA AI 30X Speed Dome Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Digital Zoom 16X
Lens Focal Length 4.7∼141mm, 30X Optical Zoom
Zoom Speed Approx 6s(Wide-Tele)
Field of View H62°∼H3°/D70°∼D3°/V37°∼V1°
Focus Control Auto/Semi-Auto/Manual
Minimum Working Distance 100/1500mm (Wide/Tele)
Aperture F1.5∼F4.0
Iris Control Auto
PTZ Pan Range/Pan Speed 360° endless/ Pan Manual Speed: 0.1°∼400°/s, Pan Preset Speed: 400°/s
Tilt Range/Tilt Speed -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼320°/s, Tilt Preset Speed: 320°/s
Proportional Zoom Support
Preset Quantity 300
Patrol 8 Patrols, up to 48 presets each patrol
Pattern 4 Patterns
Power Off Memory Support
Other Function Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IR Irradiation Distance Up to 200m
Irradiation Angle Auto/Manual
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 4/2
RS485 Support
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Intelligent Analytics Video Analysis Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting&Report Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Condition Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing)
Power Supply PoE(802.3at)/ AC 24V/3A ±10%
Power Consumption 12W MAX/ 24W MAX(With IR on)
Weather Proof/Housing Up to IP66-rated for Weather-resistant Performance / Vandal-proof IK10-rated Metal Housing(Optional)
Heater Support
Surge Protection 6KV
Dimensions/Weight Φ205mmX308mm/4Kg
Warranty 2 Years/3 Years(Optional)
  • * Naming Convention
  • T - High Frame Rate (90fps)
  • P - PoE Supported
  • A - AI Series
