NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.
Full-color Image Performance
Combined with Built-in warm illuminator, which could deliver colorful and high resolution images in the dark or at night for the majority of monitoring scenarios, like outdoor area, parking lot, retails and so on.

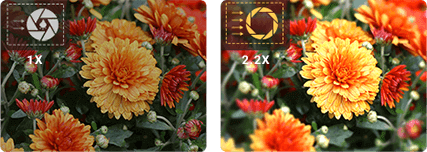

F1.0 Super Aperture
Milesight NDAA AI Color+ Network Camera is equipped with super large apertures (up to F1.0) that allow 2.2 times more light to pass through than normal cameras, as the larger aperture could let more light passes through to the sensor, which tremendously improving image exposure. In low-light scenarios, it works to guarantee full-time and excellent image performance.
NormalF1.0 Super Aperture

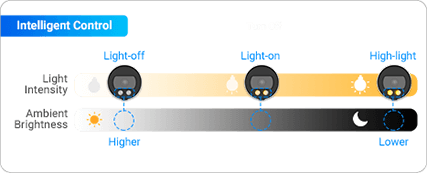

Flexible and Automatic Illuminator On/Off Control
Milesight NDAA AI Color+ Network Camera is equipped with intelligent illuminator with Max. 30m illumination distance, which could not only turn on and off the warm light, but also change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.
(Max. 30m illuminator distance)

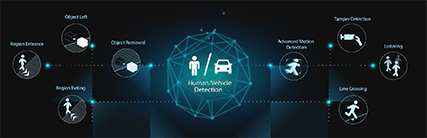

AI Video Analytics
Milesight NDAA AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

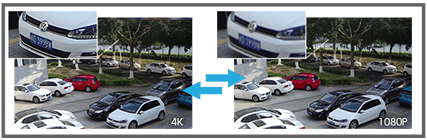

4K Video Viewing Experience
Milesight NDAA AI Color+ Vandal-proof Mini Bullet Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD), providing users with ultra-high-definition video viewing experience.

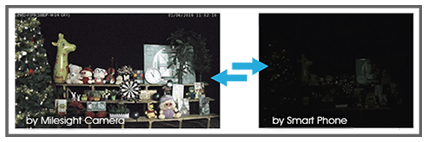

0.001Lux Ultra Low-light
The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color). And also, if the illuminator is turned on, it could deliver the full-color image even in a 0Lux environment.

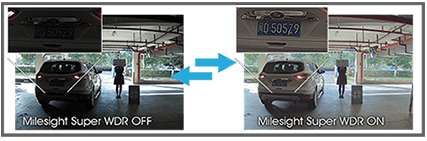

120dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

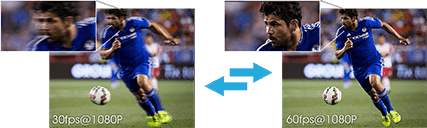

60fps High Frame Rate
Milesight NDAA AI Color+ Vandal-proof Mini Bullet Network Camera offers high frame rate including 2MP@30fps, 2MP@60fps, 5MP@30fps and 4K@30fps, which enables the camera to easily catch images with no latency despite the high-speed movement.
Leading-edge H.265+ Compression
IP67 & IK10
Supporting IP67-rated weather proofing and IK10-rated vandal proof which are the leading level of the industry, the NDAA AI Color+ Vandal-proof Mini Bullet Network Camera is well protected against adverse impacts to ensure the performance.

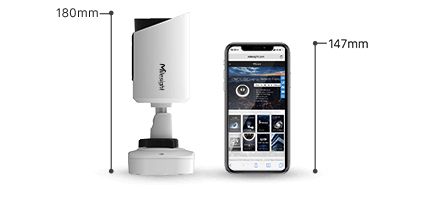

Inimitable Mini Bullet
Sticking to the original design language, the NDAA AI Color+ Vandal-proof Mini Bullet Network Camera is redesigned while maintain Milesight style. The weight and size are greatly reduced from 765g to 450g and from 76mm x 208mm to 64mm x 160mm respectively, which makes the camera a truly MINI bullet with no compromise on the functionality.
Unique Structure Design
User friendly design of SD card slot and reset button offers maximum enjoyment of usability and extensibility. At the rear, it is a 3-axis adjustable bracket, which perfectly meets tidy and flexible installation needs.

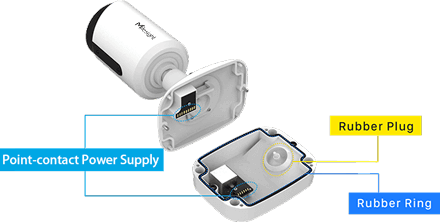

Integrated Junction Box (Optional)
The well-designed Integrated Junction Box ensures efficient and simple installation. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.
- MS-C2964-(R)UPD
- MS-C5364-UPD
- MS-C8164-UPD
| Camera | Name | 2MP AI Color+ Vandal-proof Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.001Lux@F1.0 | |
| WDR | 120dB Super WDR | |
| Lens | 2.8mm/4mm@F1.0 | |
| Field of View | H111°/D128°/V61°(2.8mm) H91°/D106°/V50°(4mm) | |
| Shutter Time | 1/100000s∼1s | |
| Illumination Distance | Up to 30m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080)(Optional for R Series), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080)(Optional for R Series), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af) | |
| Power Consumption | 3W MAX, 5W MAX ((With LED Light on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Weight | 610g(Junction Box Version) / 450g(Cable Out Version) | |
| Dimensions | 97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version) | |
| Warranty | 3/5 Years |
| Camera | Name | 5MP AI Color+ Vandal-proof Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux@F1.0 | |
| WDR | 120dB Super WDR | |
| Lens | 2.8mm/4mm@F1.0 | |
| Field of View | H105°/D131°/V78°(2.8mm) H86°/D108°/V63°(4mm) | |
| Shutter Time | 1/100000s∼1s | |
| Illumination Distance | Up to 30m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af) | |
| Power Consumption | 3W MAX, 5W MAX ((With LED Light on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Weight | 610g(Junction Box Version) / 450g(Cable Out Version) | |
| Dimensions | 97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version) | |
| Warranty | 3/5 Years |
| Camera | Name | 4K AI Color+ Vandal-proof Mini Bullet Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux@F1.0 | |
| WDR | 120dB Super WDR | |
| Lens | 2.8mm/4mm@F1.0 | |
| Field of View | H110°/D126°/V60°(2.8mm) H91°/D106°/V50°(4mm) | |
| Shutter Time | 1/100000s∼1s | |
| Illumination Distance | Up to 30m | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz/50Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 4 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE(802.3af) | |
| Power Consumption | 4W MAX, 6W MAX (With LED Light on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Weight | 610g(Junction Box Version) / 450g(Cable Out Version) | |
| Dimensions | 97mmX74mmX180mm(Junction Box Version) / 64mmX64mmX160mm(Cable Out Version) | |
| Warranty | 3/5 Years |
- * Naming Convention
- R - High Frame Rate (60fps)
- U - Full-color Supported
- P - PoE Supported
- D - AI Series
