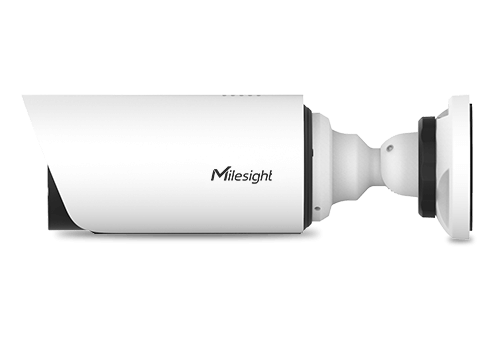

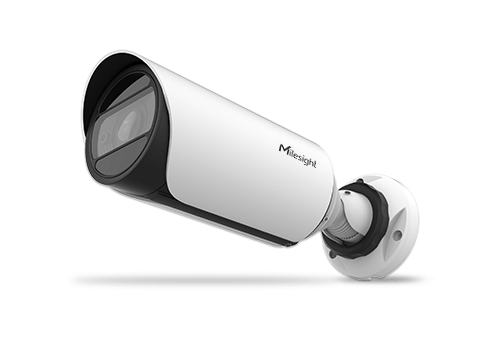

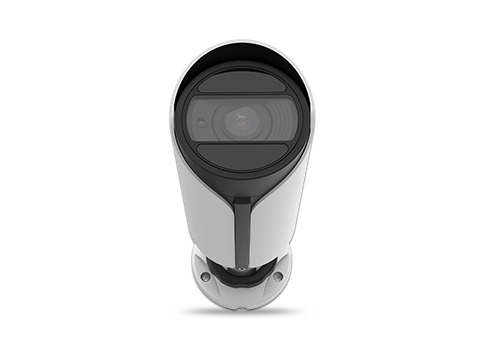

NDAA AI LPR Motorized Bullet Network Camera

Smart & Ruggedized Camera for LPR Solution

2MP · AI · 0.002Lux Ultra Low-light · 120dB Super WDR · IP67 · IK10 · Smart IR II · 50m IR Distance · 90fps · PoE

NDAA AI LPR PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Vandal-
Proof
Starlight Super WDR Privacy Mask 3-Axis

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

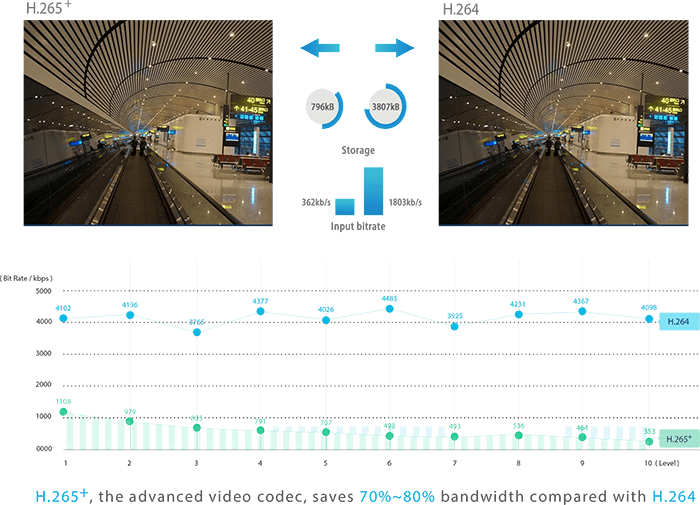

Leading-edge H.265+ Compression

H.265+

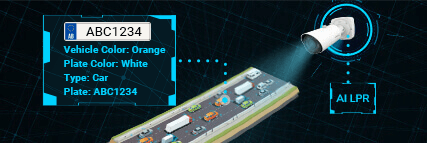

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition, LPR, ANPR, LPR IP Camera,LPR Camera

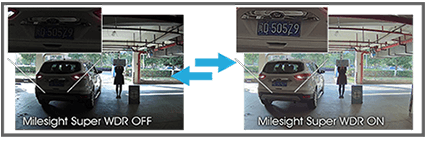

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

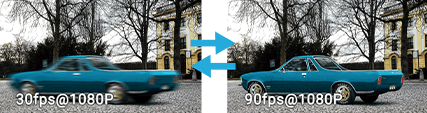

90fps

With the industry leading frame rate reaching 90fps, the NDAA AI LPR Motorized Bullet Network Camera can easily catch images with no latency despite of the high-speed movement.

90fps, 90fps ip camera

Advanced Motorized Lens

With flexible motorized lens (2.7~13.5mm), the camera is able to capture distant subjects rather than fixing on the specific scene with no flexibility. The ultra wide angle lens brings wider field of view to broaden horizons, leaving the narrow view experiences behind.

Advanced Motorized Lens

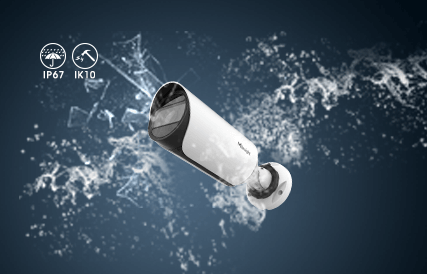

IP67 & IK10

Sharply contrasting to the mini size, the NDAA AI LPR Motorized Bullet Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

IP67, IK10, NDAA AI LPR Motorized Bullet Camera

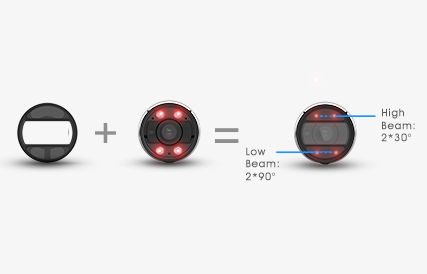

Smart IR II Technology

To maximize the IR performance, the NDAA AI LPR Motorized Bullet Network Camera innovated both in the structure and technology. The advanced Smart IR II technology guarantees superb IR performance with the combination of two High Beams and two Low Beams and adjustable illumination intensity. The infrared light transmittance is greatly increased with IR anti-reflection panel which is well designed for better IR effect.

IR of NDAA AI LPR Motorized Bullet Camera

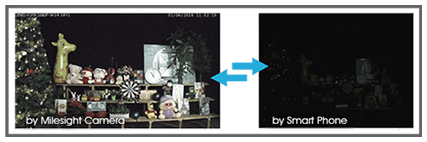

0.002Lux Ultra Low-light

The NDAA AI LPR Motorized Bullet Network Camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

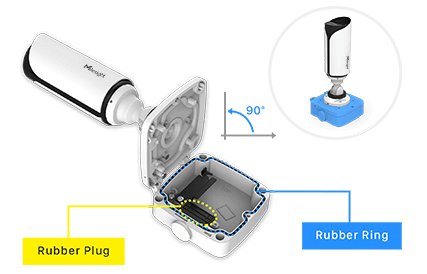

Integrated Junction Box (Optional)

The well-designed Integrated Junction Box especially the Clamshell structure, ensures efficient and simple installations. It enlarges the space to make cable connection neat and as easy as a piece of cake. With the help of the rubber plugs and rubber ring which guarantee IP67-rated weather-proof capability, the Integrated Junction Box is able to offer stable operation in any tough conditions.

3-Axis Design& IP67, NDAA AI LPR Motorized Bullet Camera

SIP/VoIP Support

Milesight NDAA AI LPR Motorized Bullet Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

Integrated Junction Box,NDAA AI LPR Motorized Bullet Camera
  • MS-C2964-TF(I)LPA
Camera Name 2MP NDAA AI LPR Motorized Bullet Network Camera
Image Sensor 1/2.8" Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
IR Distance Up to 50m
S/N >55dB
Lens Lens Motorized 2.7∼13.5mm/3.0∼10.5mm/7∼22mm @F1.4, P-Iris(Optional)
Field of View H111°∼H34°/D130°∼D39°/V60°∼V19°(2.7∼13.5mm), H100°∼H33°/D115°∼D38°/V54°∼V18°(3∼10.5mm), H42°∼H17°/D48°∼D19°/V24°∼V9°(7∼22mm)
Mount Φ14
Focus Control Auto/Manual
Iris Control(Optional for I Series) Auto/Manual
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
White/Black List Up to 1000 records inside the camera
Smart Traffic Detection License Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
Video Max. Image Resolution 1920x1080
Primary Stream 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x192, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Ethernet 1/1(Multi-interface Version)
Ethernet 1/1(Multi-interface Version)
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
Network Protocols IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, SIP Phone, HTTP Notification, etc.
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE(802.3af)/DC 12V±10%
Power Consumption 8W MAX, 10W MAX(With IR on)
Housing Up to IP67-rated for weather-resistant performance/ Vandal-proof IK10-rated metal housing
Weight 825g
Dimensions Φ76mmX239.5mm
Warranty 3/5 Years
  • * Naming Convention
  • T - High Frame Rate (90fps)
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported
  • P - PoE Supported
  • L - LPR Supported
  • A - AI Series
