NDAA AI LPR 5X/20X PTZ Bullet Plus Network Camera

Intelligent PTZ to See More for LPR Solution

2MP · AI · 5X/20X Optical Zoom · 120dB Super WDR Pro · 0.002Lux Ultra Low-light · 180m IR Distance · 90fps · IP66

NDAA AI LPR PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Proof
Starlight Super WDR Privacy Mask

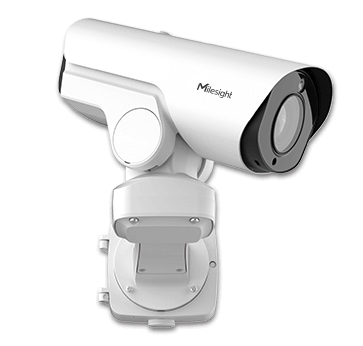

  • slide1

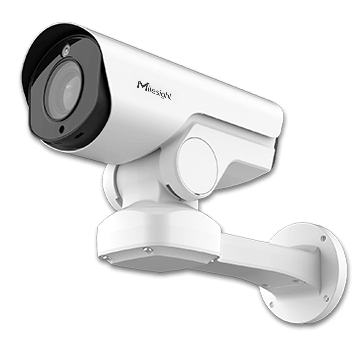

  • slide2

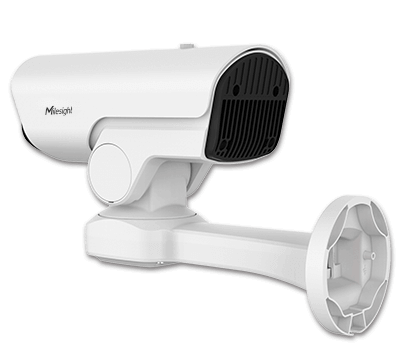

  • slide3

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

NDAA

Leading-edge H.265+ Compression

H.265+

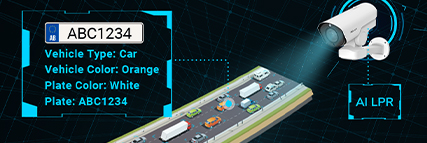

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition, LPR, ANPR, LPR IP Camera,LPR Camera

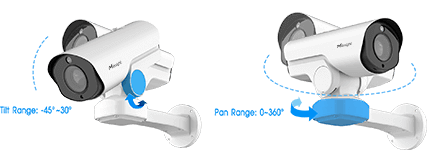

Flexible Pan, Tilt and Zoom Tasks

Milesight NDAA AI LPR PTZ Bullet Plus offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

ndaa ai lpr ptz bullet plus camera

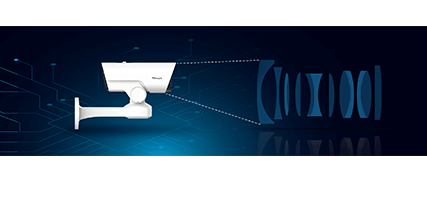

5X/20X Optical Zoom

The 5X/20X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

20X AF Lens, ndaa ai lpr ptz bullet plus camera

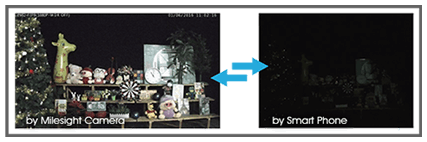

0.002Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.002Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

Ultra Low-light

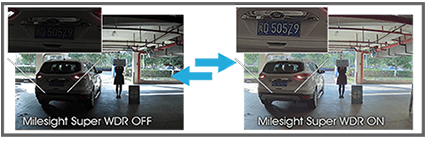

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

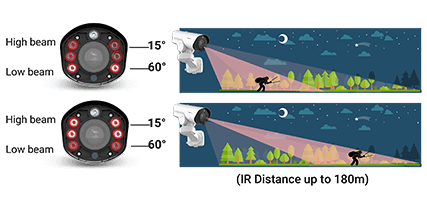

Smart IR II Technology

The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 180m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

Smart IR II, ndaa ai lpr ptz bullet plus camera

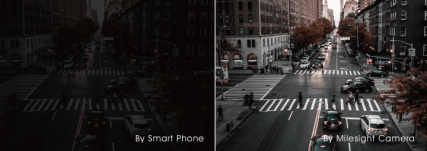

1/1.8" STARVIS Starlight Sensor

Adopting the top-notch Sony STARVIS Starlight Sensor, Milesight Network Camera improves every aspect of image quality. The high sensitive sensor allows the camera to achieve excellent video quality in 4K with better low-light sensitivity.

Starlight

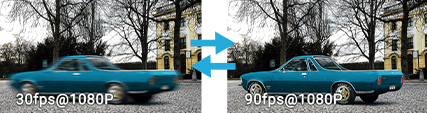

90fps

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

high frame rate

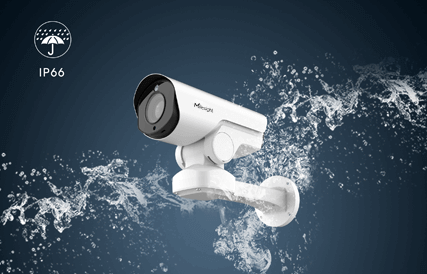

IP66

Supporting industry-leading IP66-rated weather proofing, the NDAA AI LPR PTZ Bullet Plus Network Camera is well protected against adverse impacts to ensure the performance.

IP66

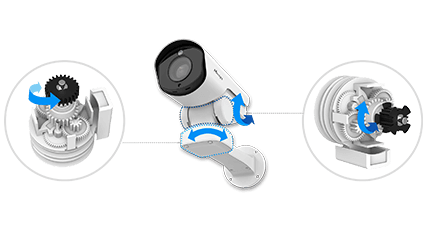

New-generation PTZ Motor

New generation motor with sophisticate planetary gear drive design is adopted to ensure a steady turn, which guarantees its robust performance, providing a reliable pan tilt operation.

New-generation PTZ Motor

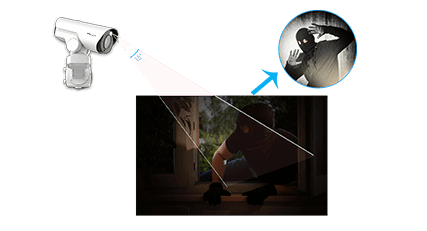

Intelligent White LED

With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

White LED, ndaa ai lpr ptz bullet plus camera

Integrated Junction Box(Optional)

Flexible installation is ensured as NDAA AI LPR PTZ Bullet Plus is equipped with integrated cable management box. The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake. The IP66-rated housing shields the sensitive electronics from dust and water, which guarantees the stable operation in any tough conditions.

Junction Box

SIP/VoIP Support

Milesight NDAA AI LPR PTZ Bullet Plus features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

NDAA PTZ bullet, SIP, VoIP
  • MS-C2867-X5TLPA
  • MS-C2867-X20TLPA
CameraName2MP AI LPR 5X PTZ Bullet Plus Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.7, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
LensFocal Length11~55mm, 5X Optical Zoom
Zoom SpeedApprox 3.5s(Wide-Tele)
Field of ViewH34°~H8°/D39°~D9°/V20°~V4°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.7∼F2.1
Iris ControlAuto
LPRMax. Vehicle Speed200km/h
Recognition Accuracy>95%
CoverageSupport simultaneous detection of 4 regions
White/Black ListUp to 1000 records inside the camera
Smart Traffic DetectionLicense Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
PTZPan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IRIrradiation DistanceUp to 180m
VideoMax. Image Resolution1920x1080
Primary Stream60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption12W MAX, 28W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
CameraName2MP NDAA AI LPR 20X PTZ Bullet Plus Network Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.001Lux @F1.2, Color: 0.002Lux @F1.7, B/W: 0Lux with IR on
WDR120dB Super WDR
Shutter Time1/100000s∼1s
Day/Night ModeDay/Night/Auto/Customize/Schedule
Digital Zoom16X
S/N>55dB
LensFocal Length6.4∼128mm, 20X Optical Zoom
Zoom SpeedApprox 5s(Wide-Tele)
Field of ViewH60°∼H3°/D67°∼D4°/V37°∼V1°
Focus ControlAuto/Semi-Auto/Manual
Minimum Working Distance1000/1500mm (Wide/Tele)
ApertureF1.7∼F2.1
Iris ControlAuto
LPRMax. Vehicle Speed200km/h
Recognition Accuracy>95%
CoverageSupport simultaneous detection of 4 regions
White/Black ListUp to 1000 records inside the camera
Smart Traffic DetectionLicense Plate Recognition, Plate Type Classification, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
PTZPan Range/Pan Speed360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
Tilt Range/Tilt Speed-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
Proportional ZoomSupport
Preset Quantity300
Patrol8 Patrols, up to 48 presets each patrol
Pattern4 Patterns
Auto TrackingSupport
Power Off MemorySupport
Other FunctionAuto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
IRIrradiation DistanceUp to 180m
VideoMax. Image Resolution1920x1080
Frame Rate60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 24 areas
ROIUp to 8 areas
Image SettingsSaturation/Brightness/Contrast/Sharpness
AudioAudio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Two-way AudioSupport
InterfaceEthernet1*RJ45 10M/100M Ethernet Port
Audio I/O1/1
Alarm I/O1/1
NetworkNetwork StorageNAS(Support NFS, SMB/CIFS), ANR
Network ProtocolsIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
SystemStorageSupport microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced FunctionBLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP SupportYes, Voice&Video-over-IP
Event TriggerBlack/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event ActionFTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System CompatibilityONVIF Profile G & Q & S & T, API
GeneralWorking Temperature-40℃∼60℃
Working Humidity0∼90%(Non-condensing)
Power SupplyPoE (802.3at) / DC 12V/3A±10%
Power Consumption12W MAX, 23W MAX(With IR on)
Weather ProofUp to IP66-rated for Weather-resistant Performance
Dimensions110mmX337mmX220mm
Weight2.9Kg
Warranty2 Years/3 Years(Optional)
  • * Naming Convention
  • T - High Frame Rate (90fps)
  • P - PoE Supported
  • L - LPR Supported
  • A - AI Series
