NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

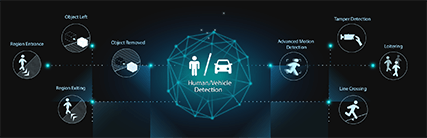

AI Video Analytics
Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

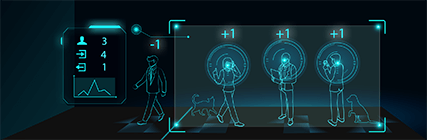

People Counting
High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

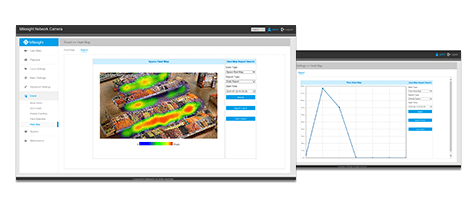

Advanced Heat Map
With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

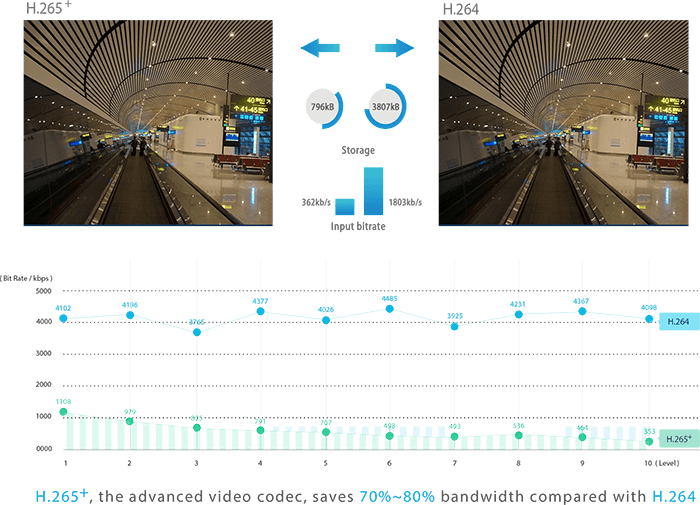

Leading-edge H.265+ Compression

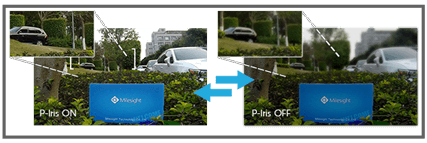

P-Iris Control
Adopting P-Iris control technology, Milesight NDAA AI Motorized Pro Bullet Plus Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

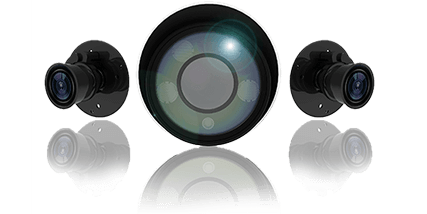

Motorized Zoom Lens
Equipped with motorized zoom & focus lens, Milesight NDAA AI Motorized Pro Bullet Plus Network Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.

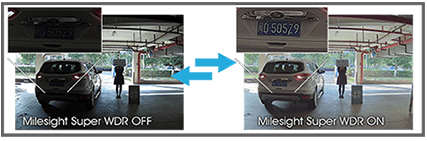

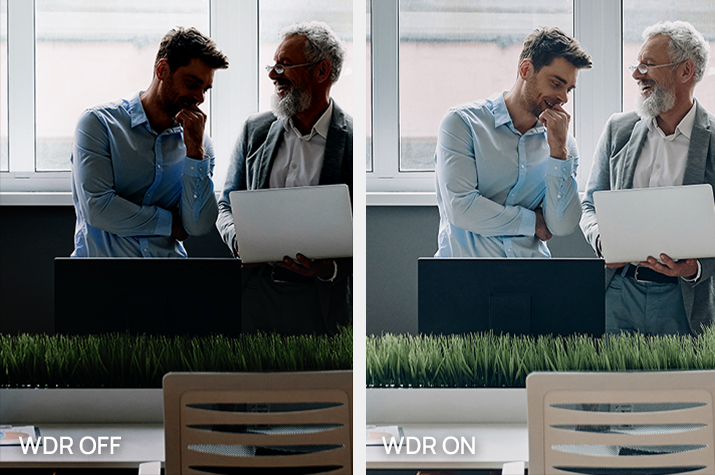

120dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.
90fps High Frame Rate
With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

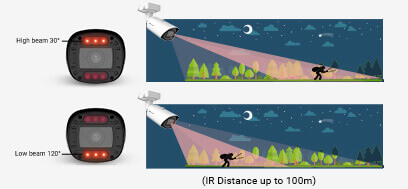

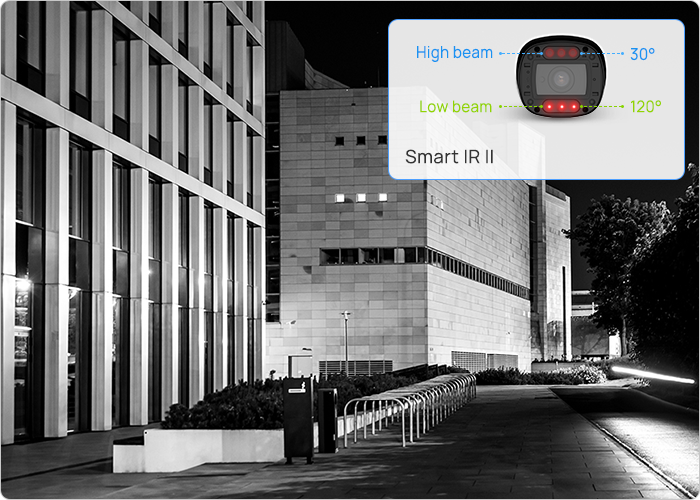

Smart IR II Technology
The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 100m. Three LEDs on the top work as High Beam, while the other three on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

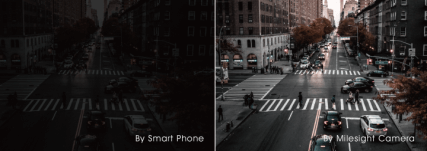

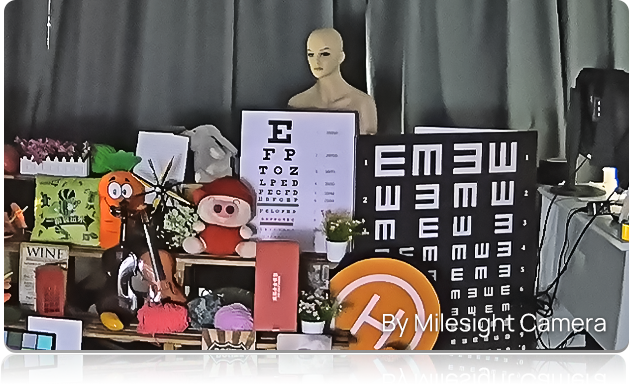

1/1.8" STARVIS Starlight Sensor
Adopting the top-notch Sony STARVIS Starlight Sensor, Milesight Network Camera improves every aspect of image quality. The high sensitive sensor allows the camera to achieve excellent video quality in 4K with better low-light sensitivity.

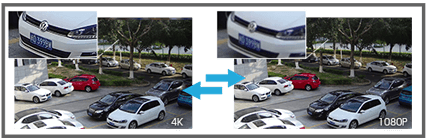

4K Video Viewing Experience
Milesight NDAA AI Motorized Pro Bullet Plus Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.

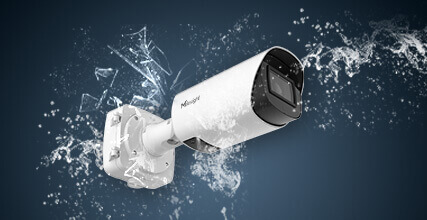

IP67 & IK10
Sharply contrasting to the mini size, the NDAA AI Motorized Pro Bullet Plus Network Camera features the industry leading IP67-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

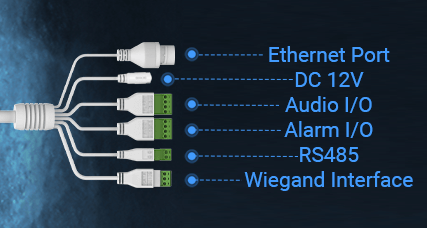

Integrated Cable Management Bracket

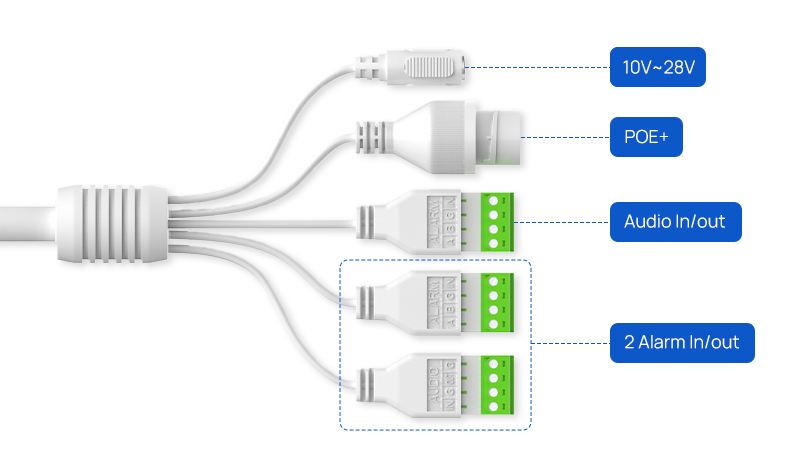

In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.

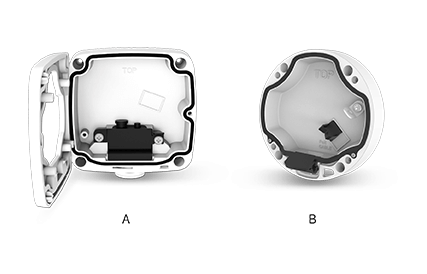

Integrated Junction Box
A: The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
B: The round design of the junction box conceals the cables inside, making it look more neat and clear.
- MS-C2866-R(T)F(I)PE
- MS-C2966-R(T)F(I)PE
- MS-C5366-F(I)PE
- MS-C8166-F(I)PE
- MS-C8266-F(I)PE
- MS-C2866-(R)TF(I)PA
- MS-C2966-R(T)F(I)PA
- MS-C5366-F(I)PA
- MS-C8166-F(I)PA
- MS-C8266-F(I)PA
| Camera | Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux@F1.4 B/W: 0Lux with IR on | |
| WDR | 140dB Super WDR | |
| Lens | Motorized 3.6~10mm@F1.4 P-Iris(Optional) | |
| Mount | Φ14 | |
| Field of View | H100°~H45°/ D116°~D51°/ V57°~V25° | |
| Shutter Time | 1/100000s~1s | |
| IR Distance | Up to 65m | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 351x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Setting | Brightness/Contrast/Saturation/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice & Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 6W MAX 8W MAX(With IR on) | |
| Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance | |
| Surge Protection | 4KV | |
| Weight | 1630g | |
| Dimensions | 301mmX108mmX126mm | |
| Warranty | 3/5 Years |
| Camera | Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux@F1.4 B/W: 0Lux with IR on | |
| WDR | 140dB Super WDR | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) | |
| Mount | Φ14 | |
| Field of View | H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm) H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm) H45°~H17°/D53°~D20° /V25°~V9° (7~22mm) | |
| Shutter Time | 1/100000s~1s | |
| IR Distance | Up to 65m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm) | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 351x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Setting | Brightness/Contrast/Saturation/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice & Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 6W MAX 8W MAX(With IR on) | |
| Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance | |
| Surge Protection | 4KV | |
| Weight | 1630g | |
| Dimensions | 301mmX108mmX126mm | |
| Warranty | 3/5 Years |
| Camera | Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.008Lux@F1.4 B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4 P-Iris(Optional) | |
| Mount | Φ14 | |
| Field of View | H113°~H33°/D138°~D42° /V83°~V25° (2.7~13.5mm) H94°~H33°/ D116°~D42° / V71°~V25°(3.0~10.5mm) H42°~H16°/D53°~D20° /V32°~V12° (7~22mm) | |
| Shutter Time | 1/100000s~1s | |
| IR Distance | Up to 65m(3.0~10.5mm/2.7~13.5mm) Up to 100m(7~22mm) | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 351x288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Setting | Brightness/Contrast/Saturation/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice & Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 6W MAX 8W MAX(With IR on) | |
| Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance | |
| Surge Protection | 4KV | |
| Weight | 1630g | |
| Dimensions | 301mmX108mmX126mm | |
| Warranty | 3/5 Years |
| Camera | Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.012Lux@F1.4 B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | Motorized 2.7~13.5mm@F1.4 P-Iris(Optional) | |
| Mount | Φ14 | |
| Field of View | H110°~H33°/D118°~D38°/V60°~V18° | |
| Shutter Time | 1/100000s~1s | |
| IR Distance | Up to 65m | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Setting | Brightness/Contrast/Saturation/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice & Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 7W MAX 9W MAX(With IR on) | |
| Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance | |
| Surge Protection | 4KV | |
| Weight | 1630g | |
| Dimensions | 301mmX108mmX126mm | |
| Warranty | 3/5 Years |

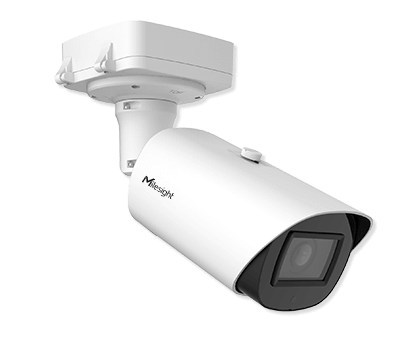

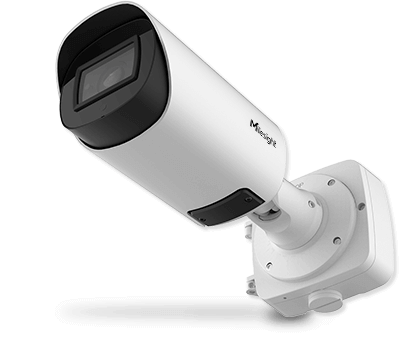

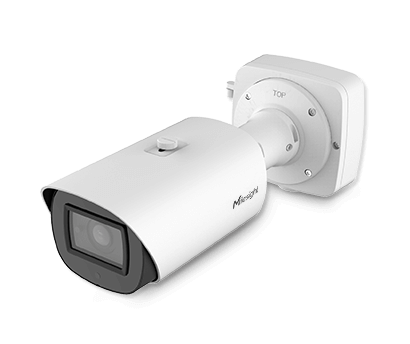

| Camera | Name | AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.009Lux@F1.4 B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Lens | Motorized 3.6~10mm@F1.4 P-Iris(Optional) | |
| Mount | Φ14 | |
| Field of View | H116°~H48°/D134°~D55°/V65°~V27° | |
| Shutter Time | 1/100000s~1s | |
| IR Distance | Up to 65m | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Video | Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Image Setting | Brightness/Contrast/Saturation/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice & Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 6W MAX 8W MAX(With IR on) | |
| Housing | Vandal-proof IK10-rated Metal Housing / Up to IP67-rated for Weather-resistant Performance | |
| Surge Protection | 4KV | |
| Weight | 1630g | |
| Dimensions | 301mmX108mmX126mm | |
| Warranty | 3/5 Years |
| Camera | Name | 2MP NDAA AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 65m | |
| S/N | >55dB | |
| Lens | Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H100°~H45°/ D116°~D51°/ V57°~V25° | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control | Auto/Manual (Optional for I Series) | |
| Video | Max. Image Resolution | 1920x1080 |
| Frame Rate | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 7W MAX, 14W MAX(With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Surge Protection | 4KV | |
| Dimensions | 301mmX108mmX126mm | |
| Weight | 1630g | |
| Warranty | 3/5 Years |
| Camera | Name | 2MP NDAA AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 65m(3.0~10.5mm/2.7~13.5mm), up to 100m(7~22mm) | |
| S/N | >55dB | |
| Lens | Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H113°~H33°/D130°~D38° /V60°~V18° (2.7~13.5mm) H104°~H34°/D120°~D39° /V57°~V19° (3.0~10.5mm) H45°~H17°/D53°~D20° /V25°~V9° (7~22mm) | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control | Auto/Manual (Optional for I Series) | |
| Video | Max. Image Resolution | 1920x1080 |
| Frame Rate | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 90fps@(704x576)(Optional for T Series), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576)(Optional for T Series), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 6.5W MAX, 13.5W MAX(With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Surge Protection | 4KV | |
| Dimensions | 301mmX108mmX126mm | |
| Weight | 1630g | |
| Warranty | 3/5 Years |
| Camera | Name | 5MP NDAA AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux @F1.2, Color: 0.008Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 65m(3.0~10.5mm/2.7~13.5mm), up to 100m(7~22mm) | |
| S/N | >55dB | |
| Lens | Lens | Motorized 2.7~13.5mm/3.0~10.5mm/7~22mm@F1.4, P-Iris(Optional) |
| Field of View | H113°~H33°/D138°~D42° /V83°~V25° (2.7~13.5mm) H94°~H33°/ D116°~D42° / V71°~V25°(3.0~10.5mm) H42°~H16°/D53°~D20° /V32°~V12° (7~22mm) | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control | Auto/Manual (Optional for I Series) | |
| Video | Max. Image Resolution | 2592x1944 |
| Frame Rate | 60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 6W MAX, 13W MAX(With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Surge Protection | 4KV | |
| Dimensions | 301mmX108mmX126mm | |
| Weight | 1630g | |
| Warranty | 3/5 Years |
| Camera | Name | 4K NDAA AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/2.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.01Lux @F1.2, Color: 0.012Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 65m | |
| S/N | >55dB | |
| Lens | Lens | Motorized 2.7~13.5mm@F1.4, P-Iris(Optional) |
| Field of View | H110°~H33°/D118°~D38°/V60°~V18° | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control | Auto/Manual (Optional for I Series) | |
| Video | Max. Image Resolution | 3840x2160 |
| Frame Rate | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 6W MAX, 13W MAX(With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Surge Protection | 4KV | |
| Dimensions | 301mmX108mmX126mm | |
| Weight | 1630g | |
| Warranty | 3/5 Years |
| Camera | Name | 4K NDAA AI Motorized Pro Bullet Plus Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS | |
| Min. Illumination | Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.4, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| IR Distance | Up to 65m | |
| S/N | >55dB | |
| Lens | Lens | Motorized 3.6~10mm@F1.4, P-Iris(Optional) |
| Field of View | H116°~H48°/D134°~D55°/V65°~V27° | |
| Mount | Φ14 | |
| Focus Control | Auto/Manual | |
| Iris Control | Auto/Manual (Optional for I Series) | |
| Video | Max. Image Resolution | 3840x2160 |
| Frame Rate | 60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Web Access | Support IE/Firefox/Chrome/Safari Browser | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting& Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Temperature | -40℃∼60℃ |
| Working Humidity | 0∼90%(Non-condensing) | |
| Power Supply | PoE (802.3af) / DC 12V±10% | |
| Power Consumption | 9W MAX, 16W MAX(With IR on) | |
| Weather Proof | Up to IP67-rated for weather-resistant performance | |
| Housing | Vandal-proof IK10-rated metal housing | |
| Surge Protection | 4KV | |
| Dimensions | 301mmX108mmX126mm | |
| Weight | 1630g | |
| Warranty | 3/5 Years |
- * Naming Convention
- R - High Frame Rate (60fps)
- T - High Frame Rate (90fps)
- F - Motorized Vari-focal Lens
- I - P-Iris Supported
- P - PoE Supported
- A/E - AI Series
