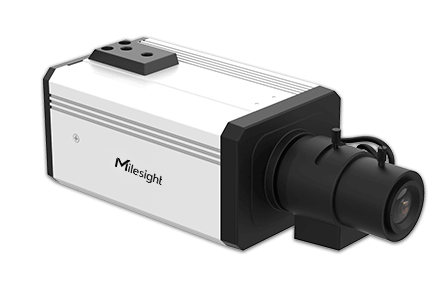

NDAA AI Pro Box Plus Network Camera

Features
Models
Download

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

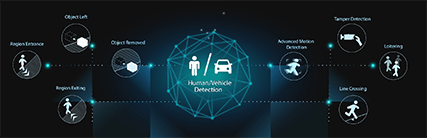

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

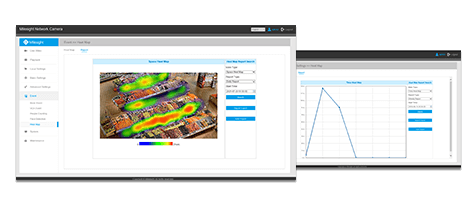

Advanced Heat Map

With scenario-adaptable and flexible configurations, Milesight Advanced Heat Map is embedded into the AI series which can analyze customers' movement to reveal insights for better business management with the intuitive and accurate statistical analysis results in time or space pattern as needed.

Leading-edge H.265⁺ Compression

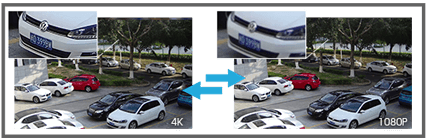

4K Video Viewing Experience

Milesight NDAA AI Pro Box Plus Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.

4K security camera, 4K ndaa ip camera, 4K ndaa cctv camera

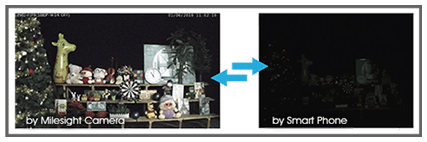

0.001Lux Ultra Low Light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0.0005Lux (B/W), and near infrared light environments without any supplementary lighting.

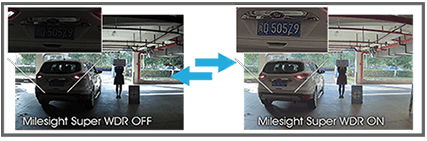

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

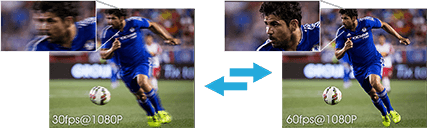

60fps

With the industry leading frame rate reaching 60fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

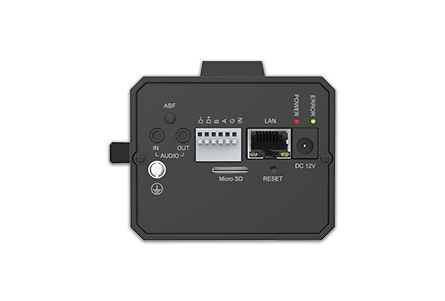

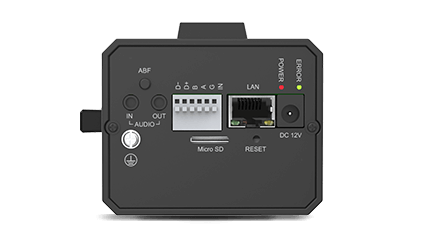

Versatile Interfaces

In the base, the NDAA AI Pro Box Plus Network Camera comes with a whole array of built-in interfaces such as PTZ control, Alarm I/O, Ethernet port, power connector, SD card slot, reset button, Audio I/O, power and error LEDs. Such complete interface design is available to meet your different kinds of video surveillance needs.

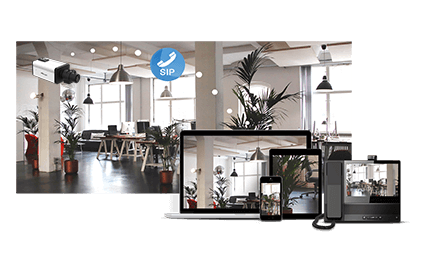

SIP/VoIP Support

Milesight NDAA AI Pro Box Plus Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

ndaa ai Pro Box Camera, Box Camera, SIP, VoIP

MS-C2852-R(E)PE
MS-C2952-R(E)PE
MS-C5352-PE
MS-C8152-PE
MS-C2852-RPA
MS-C2952-RPA
MS-C5352-PA
MS-C8152-PA
MS-C2952-PD

Camera	Name	2MP NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2" Progressive Scan CMOS
	Min. Illumination	Color: 0.001Lux @F1.2, B/W: 0.0005Lux @F1.2
	WDR	140dB Super WDR
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	1920x1080
Primary Stream		60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition		Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting& Report		Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System		Auto Back Focus	Support(Optional)
	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
	Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & M & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0~95%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		9W MAX for -PE Series 10W MAX for -EPE Series
Dimensions		130mmX75mmX66mm
Weight		427g(For ABF version)/366g(For Non-ABF version)
Warranty		3/5 Years

Camera	Name	2MP NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux@F1.2, B/W: 0.001Lux@F1.2
	WDR	140dB Super WDR
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	1920x1080
Primary Stream		60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition		Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting& Report		Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System		Auto Back Focus	Support(Optional)
	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
	Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & M & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0~95%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		9W MAX for -PE Series 10W MAX for -EPE Series
Dimensions		130mmX75mmX66mm
Weight		427g(For ABF version)/366g(For Non-ABF version)
Warranty		3/5 Years

Camera	Name	5MP NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.005Lux@F1.2, B/W: 0.002Lux@F1.2
	WDR	120dB Super WDR
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	2592x1944
Primary Stream		60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition		Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting& Report		Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System		Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
	Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & M & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0~95%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		8W MAX
Dimensions		130mmX75mmX66mm
Weight		366g
Warranty		3/5 Years

Camera	Name	4K NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2.8″ Progressive Scan CMOS
	Min. Illumination	Color: 0.01Lux@F1.2, B/W: 0.005Lux@F1.2
	WDR	120dB Super WDR
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	3840x2160
Primary Stream		60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 8 Areas (Mask Area and Mosaic Area are optional)
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
Face Detection&Face Attribute Recognition		Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically.
People Counting& Report		Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System		Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 1TB
	Advanced Function	Heat Map, BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & M & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0~95%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		8W MAX
Dimensions		130mmX75mmX66mm
Weight		366g
Warranty		3/5 Years

Camera	Name	2MP NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2" Progressive Scan CMOS
	Min. Illumination	Color: 0.001Lux @F1.2, B/W: 0.0005Lux @F1.2
	WDR	120dB Super WDR Pro
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	1920x1080
Frame Rate		60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 24 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Web Access		Support IE/Firefox/Chrome/Safari Browser
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report		Count the number of people entering or exiting, up to 4 detection areas for regional people counting
System		Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		8W MAX
Dimensions		130mmX75mmX66mm
Weight		366g
Warranty		3/5 Years

Camera	Name	2MP NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux @F1.2, B/W: 0.001Lux @F1.2
	WDR	120dB Super WDR
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	1920x1080
Frame Rate		60Hz: 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 24 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Web Access		Support IE/Firefox/Chrome/Safari Browser
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report		Count the number of people entering or exiting
System		Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		8W MAX
Dimensions		130mmX75mmX66mm
Weight		366g
Warranty		3/5 Years

Camera	Name	5MP NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.005Lux @F1.2, B/W: 0.002Lux @F1.2
	WDR	120dB Super WDR
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	2592x1944
Frame Rate		60Hz: 30fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 24 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Web Access		Support IE/Firefox/Chrome/Safari Browser
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report		Count the number of people entering or exiting
System		Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		7W MAX
Dimensions		130mmX75mmX66mm
Weight		366g
Warranty		3/5 Years

Camera	Name	4K NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.01Lux @F1.2, B/W: 0.005Lux @F1.2
	WDR	120dB Super WDR
	Mount	C/CS
	Iris	P-Iris/DC-Iris
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	3840x2160
Frame Rate		60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288, 320x240)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking		Up to 24 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Web Access		Support IE/Firefox/Chrome/Safari Browser
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/44.1/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
People Counting& Report		Count the number of people entering or exiting
System		Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		7W MAX
Dimensions		130mmX75mmX66mm
Weight		366g
Warranty		3/5 Years

Camera	Name	2MP NDAA AI Pro Box Plus Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux @F1.2, B/W: 0.001Lux @F1.2
	WDR	120dB Super WDR
	Mount	C/CS
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	S/N	>55dB
	Video	Max. Image Resolution	1920x1080
Primary Stream		60Hz: 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream		60Hz: 30fps@(704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288)
Tertiary Stream		60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 352x288) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 352x288)
Video Compression		H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
Video Bit Rate		16Kbps∼16Mbps (CBR/VBR Adjustable)
Privacy Masking		Up to 4 areas
ROI		Up to 8 areas
Image Settings		Saturation/Brightness/Contrast/Sharpness
Audio		Audio Compression	G.711/AAC/G.722/G.726
	Audio Sampling Rate	8/16/32/48KHz
	Audio Bit Rate	16~256kbps
	Two-way Audio	Support
	Interface	Ethernet	1*RJ45 10M/100M Ethernet Port
Audio I/O		1/1
Alarm I/O		1/1
Network		Network Storage	NAS(Support NFS, SMB/CIFS), ANR
	Network Protocols	IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
	Intelligent Analytics	Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
System	Intelligent Analytics	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
	Advanced Function	BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur
	SIP/VoIP Support	Yes, Voice&Video-over-IP
	Event Trigger	Motion Detection, Network Disconnection, Audio Alarm, External Input, etc.
	Event Action	FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc.
	System Compatibility	ONVIF Profile G & Q & S & T, API
	General	Working Temperature	-40℃∼60℃
Working Humidity		0∼90%(Non-condensing)
Power Supply		PoE(802.3af)/DC 12V±10%
Power Consumption		3W MAX
Dimensions		130mmX75mmX66mm
Weight		366g
Warranty		3/5 Years

* Naming Convention
R - High Frame Rate (60fps)
P - PoE Supported
A/D/E - AI Series

Milesight Development Platform

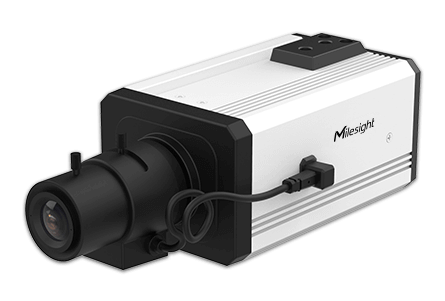

NDAA AI Pro Box Plus Network Camera

Smart & Ultra Low-light Performance in the Dark

NDAA Compliant

AI Video Analytics

People Counting

Advanced Heat Map

Leading-edge H.265⁺ Compression

4K Video Viewing Experience

0.001Lux Ultra Low Light

120dB Super WDR

60fps

Versatile Interfaces

SIP/VoIP Support

Milesight Development Platform

NDAA AI Pro Box Plus Network Camera

Smart & Ultra Low-light Performance in the Dark

NDAA Compliant

AI Video Analytics

People Counting

Advanced Heat Map

Leading-edge H.265+ Compression

4K Video Viewing Experience

0.001Lux Ultra Low Light

120dB Super WDR

60fps

Versatile Interfaces

SIP/VoIP Support

Leading-edge H.265⁺ Compression
