NDAA AI 5X/20X/23X PTZ Bullet Plus Network Camera

Features
Models
Download

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

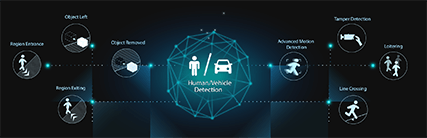

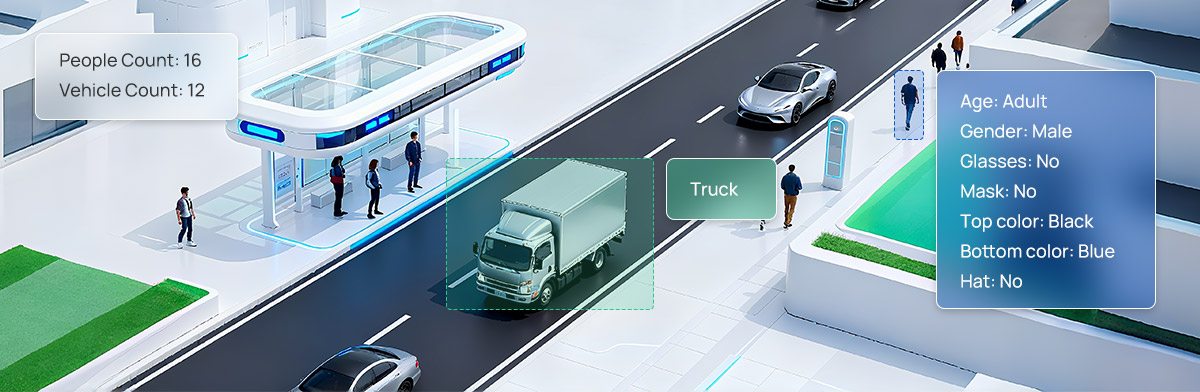

AI Video Analytics

Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

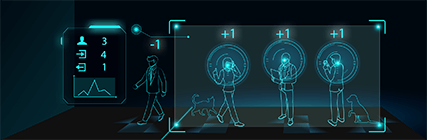

People Counting

High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

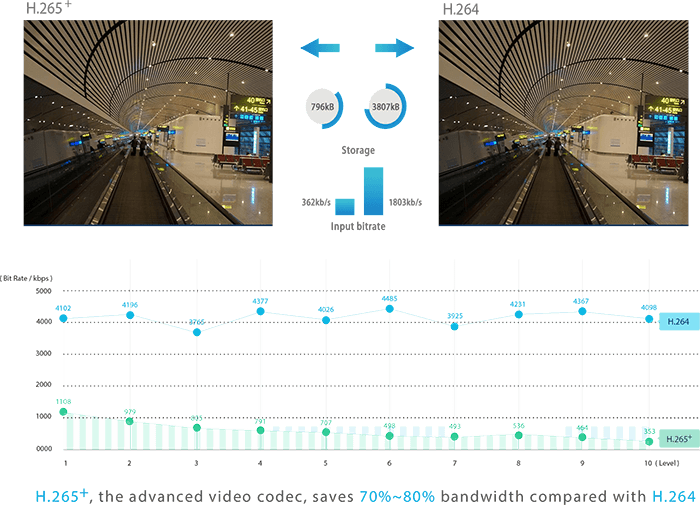

Leading-edge H.265⁺ Compression

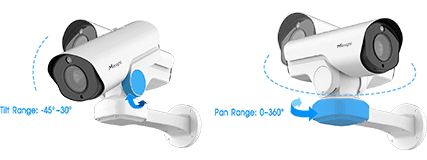

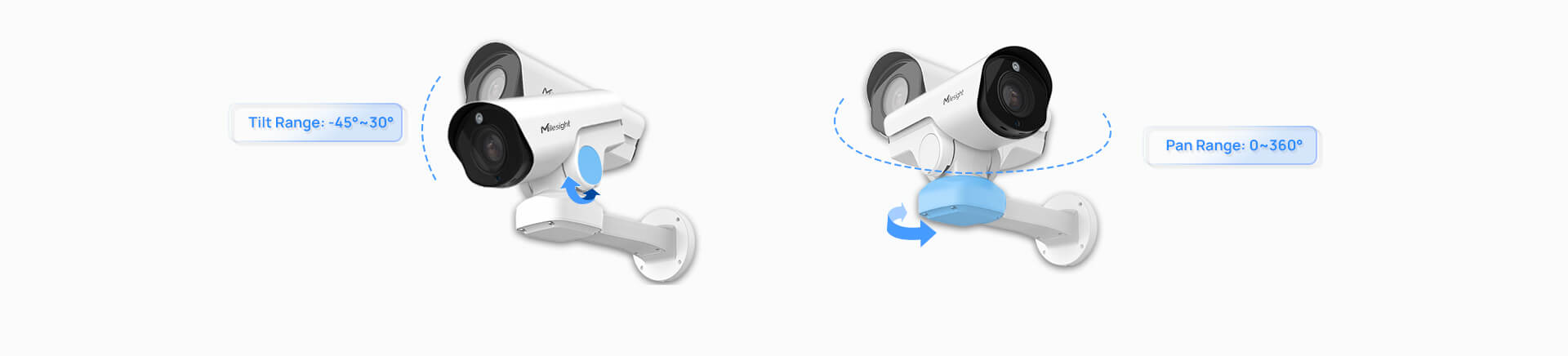

Flexible Pan, Tilt and Zoom Tasks

Milesight NDAA AI PTZ Bullet Plus offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.

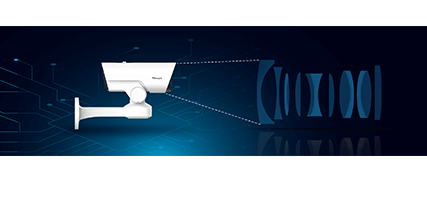

5X/20X/23X Optical Zoom

The 5X/20X/23X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

5X/20X/23X AF Lens, ndaa ai ptz bullet plus camera

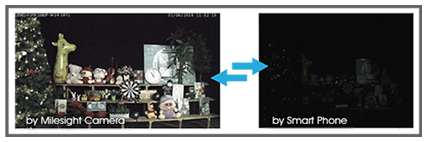

0.001Lux Ultra Low-light

The starlight camera is able to deliver high detailed color images even in the low light environments reaching 0.001Lux (Color) or 0Lux (B/W), and near infrared light environments without any supplementary lighting.

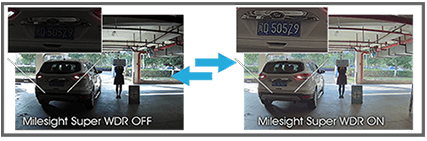

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

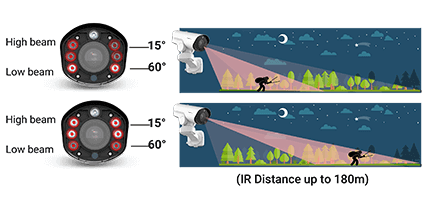

Smart IR II Technology

The IR LEDs technology has been upgraded to provide videos with a viewing range of up to 180m. Two LEDs on the top work as High Beam, while the other two on the bottom as Low Beam for better image clarity and quality regardless of the object distance. Also, the Low Beam and High Beam's brightness can be adjusted manually or automatically on the basis of the zoom ratio.

Smart IR II, ndaa ai ptz bullet plus camera

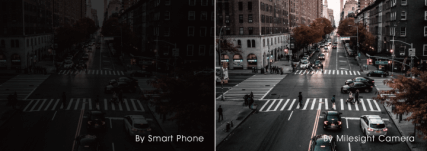

1/1.8" STARVIS Starlight Sensor

Adopting the top-notch Sony STARVIS Starlight Sensor, Milesight Network Camera improves every aspect of image quality. The high sensitive sensor allows the camera to achieve excellent video quality in 4K with better low-light sensitivity.

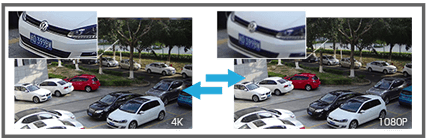

4K Video Viewing Experience

Milesight NDAA AI PTZ Bullet Plus Network Camera delivers up to 4K resolution (3840*2160, effectively four times that of Full HD) at 30 frames per second (fps), providing users with ultra-high-definition video viewing experience.

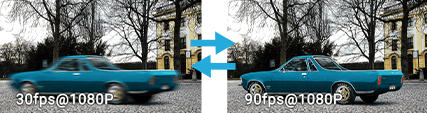

90fps

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

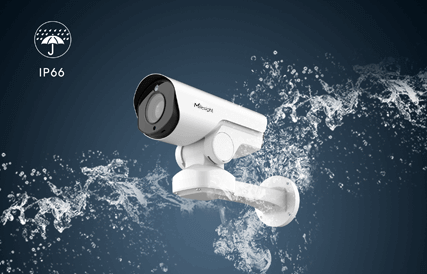

IP66

Supporting industry-leading IP66-rated weather proofing, the NDAA AI PTZ Bullet Plus Network Camera is well protected against adverse impacts to ensure the performance.

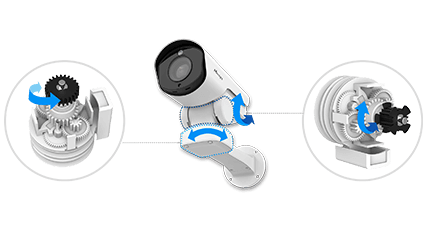

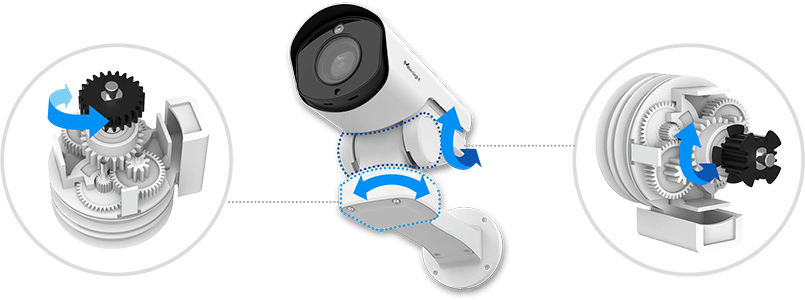

New-generation PTZ Motor

New generation motor with sophisticate planetary gear drive design is adopted to ensure a steady turn, which guarantees its robust performance, providing a reliable pan tilt operation.

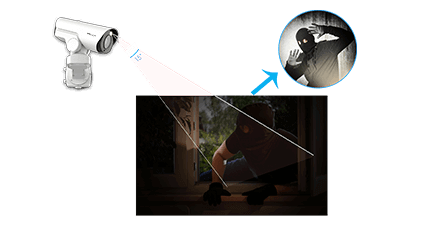

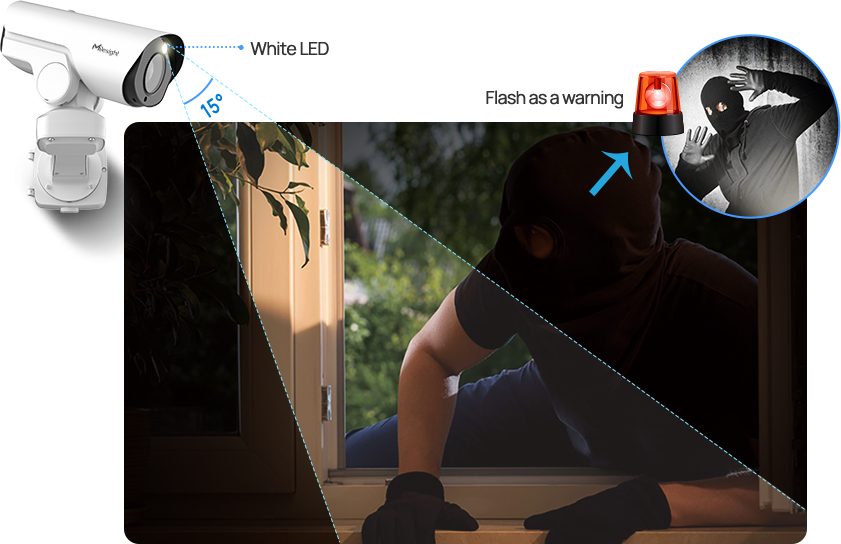

Intelligent White LED

With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.

White LED, ndaa ai ptz bullet plus camera

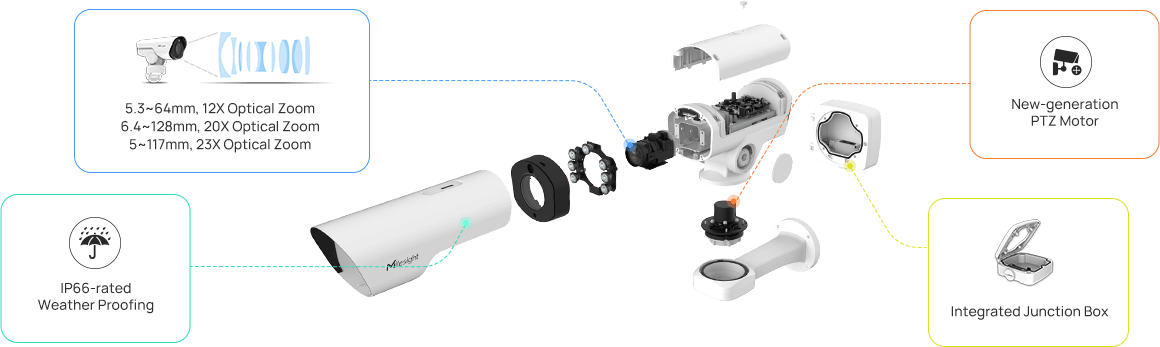

Integrated Junction Box(Optional)

Flexible installation is ensured as NDAA AI PTZ Bullet Plus is equipped with integrated cable management box. The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake. The IP66-rated housing shields the sensitive electronics from dust and water, which guarantees the stable operation in any tough conditions.

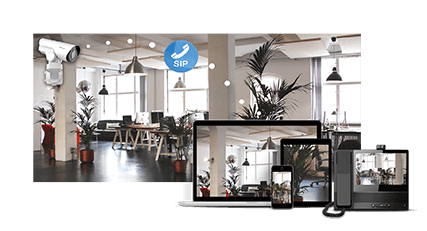

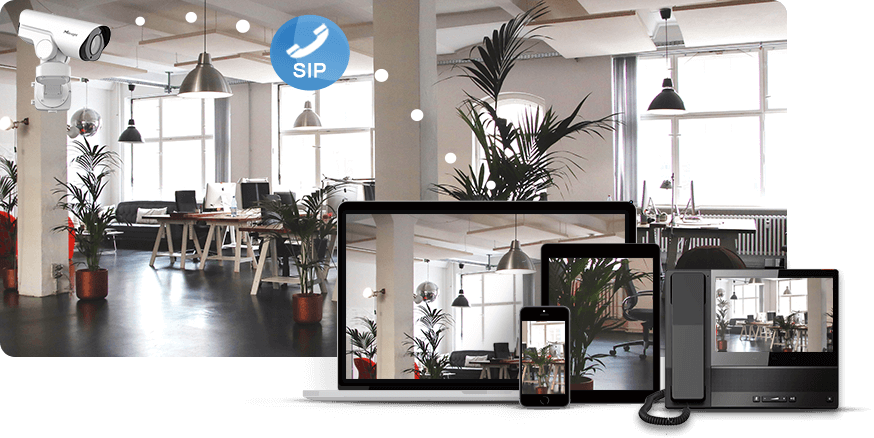

SIP/VoIP Support

Milesight NDAA AI PTZ Bullet Plus features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

MS-C2867-X20TPA
MS-C2967-X23TPA
MS-C8267-X5PA
MS-C8267-X20PA

Camera	Name	2MP NDAA AI 20X PTZ Bullet Plus Network Camera
	Image Sensor	1/2" Progressive Scan CMOS
	Min. Illumination	Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	Digital Zoom	16X
	S/N	>55dB
	Lens	Focal Length	6.4∼128mm, 20X Optical Zoom
Zoom Speed		Approx 5s(Wide-Tele)
Field of View		H60°∼H3°/D67°∼D4°/V37°∼V1°
Focus Control		Auto/Semi-Auto/Manual
Minimum Working Distance		1000/2000mm (Wide/Tele)
Aperture		F1.6∼F4.0
Iris Control		Auto
PTZ		Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
	Tilt Range/Tilt Speed	-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
	Proportional Zoom	Support
	Preset Quantity	300
	Patrol	8 Patrols, up to 48 presets each patrol
	Pattern	4 Patterns
	Power Off Memory	Support

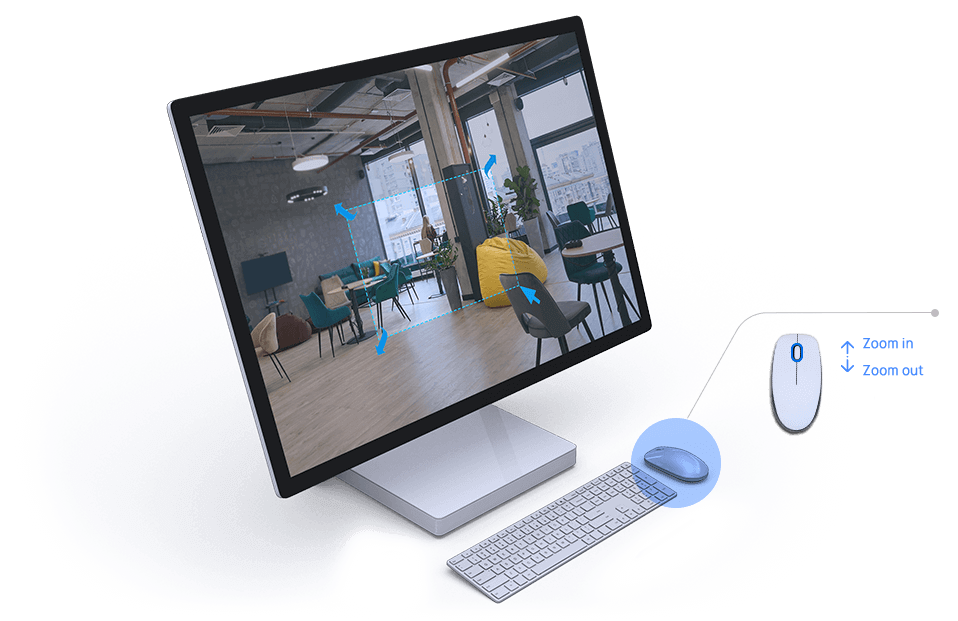

	Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
	IR	Irradiation Distance	Up to 180m
Video	IR	Max. Image Resolution	1920x1080
	Frame Rate	60Hz: 90fps@(1920x1080), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080), 50fps@(1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 90fps@(704x576), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240)
	Tertiary Stream	60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)

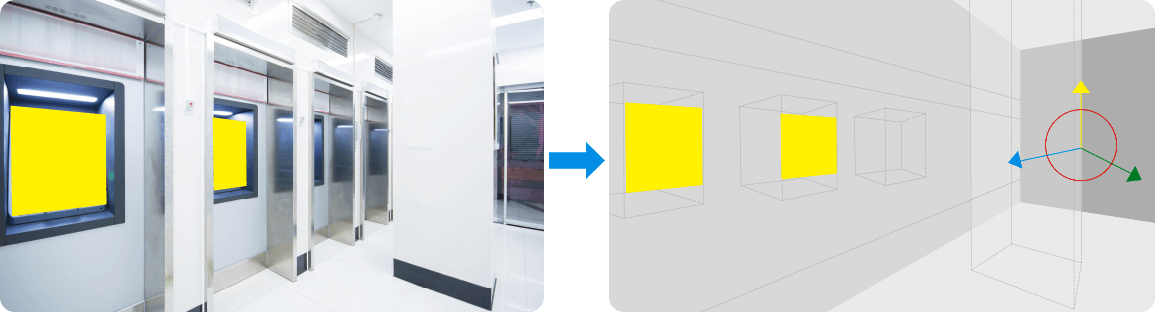

	Privacy Masking	Up to 24 areas
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Web Access	Support IE/Firefox/Chrome/Safari Browser
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio I/O	1/1
	Alarm I/O	1/1
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting&Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/3A±10%
	Power Consumption	12W MAX, 23W MAX(With IR on)
	Weather Proof	Up to IP66-rated for Weather-resistant Performance
	Dimensions	110mmX337mmX220mm
	Weight	2.9Kg
	Warranty	2 Years/3 Years(Optional)

Camera	Name	2MP NDAA AI 23X PTZ Bullet Plus Network Camera
	Image Sensor	1/2.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	Digital Zoom	16X
	S/N	>55dB
	Lens	Focal Length	5∼117mm, 23X Optical Zoom
Zoom Speed		Approx 6s(Wide-Tele)
Field of View		H60°∼H3°/D69°∼D4°/V35°∼V2°
Focus Control		Auto/Semi-Auto/Manual
Minimum Working Distance		1000/1500mm (Wide/Tele)
Aperture		F1.5∼F3.5
Iris Control		Auto
PTZ		Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
	Tilt Range/Tilt Speed	-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
	Proportional Zoom	Support
	Preset Quantity	300
	Patrol	8 Patrols, up to 48 presets each patrol
	Pattern	4 Patterns
	Power Off Memory	Support
	Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
	IR	Irradiation Distance	Up to 180m
Video	IR	Max. Image Resolution	1920x1080
	Frame Rate	60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
	Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
	Privacy Masking	Up to 24 areas
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Web Access	Support IE/Firefox/Chrome/Safari Browser
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio I/O	1/1
	Alarm I/O	1/1
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/3A±10%
	Power Consumption	12W MAX, 23W MAX(With IR on)
	Weather Proof	Up to IP66-rated for Weather-resistant Performance
	Dimensions	110mmX337mmX220mm
	Weight	2.9Kg
	Warranty	2 Years/3 Years(Optional)

Camera	Name	4K NDAA AI 5X PTZ Bullet Plus Network Camera
	Image Sensor	1/1.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.7, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	Digital Zoom	16X
	S/N	>55dB
	Lens	Focal Length	11∼55mm, 5X Optical Zoom
Zoom Speed		Approx 3.5s(Wide-Tele)
Field of View		H36°∼H8°/D41°∼D9°/V21°∼V5°
Focus Control		Auto/Semi-Auto/Manual
Minimum Working Distance		1000/1500mm (Wide/Tele)
Aperture		F1.7∼F2.1
Iris Control		Auto
PTZ		Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
	Tilt Range/Tilt Speed	-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
	Proportional Zoom	Support
	Preset Quantity	300
	Patrol	8 Patrols, up to 48 presets each patrol
	Pattern	4 Patterns
	Power Off Memory	Support
	Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
	IR	Irradiation Distance	Up to 180m
Video	IR	Max. Image Resolution	3840x2160
	Frame Rate	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
	Tertiary Stream	60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
	Privacy Masking	Up to 24 areas
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Web Access	Support IE/Firefox/Chrome/Safari Browser
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio I/O	1/1
	Alarm I/O	1/1
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/3A±10%
	Power Consumption	13W MAX, 24W MAX(With IR on)
	Weather Proof	Up to IP66-rated for Weather-resistant Performance
	Dimensions	110mmX337mmX220mm
	Weight	2.9Kg
	Warranty	2 Years/3 Years(Optional)

Camera	Name	4K NDAA AI 20X PTZ Bullet Plus Network Camera
	Image Sensor	1/1.8" Progressive Scan CMOS
	Min. Illumination	Color: 0.006Lux @F1.2, Color: 0.009Lux @F1.6, B/W: 0Lux with IR on
	WDR	120dB Super WDR
	Shutter Time	1/100000s∼1s
	Day/Night Mode	Day/Night/Auto/Customize/Schedule
	Digital Zoom	16X
	S/N	>55dB
	Lens	Focal Length	6.4∼128mm, 20X Optical Zoom
Zoom Speed		Approx 5s(Wide-Tele)
Field of View		H60°∼H3°/D67°∼D4°/V37°∼V1°
Focus Control		Auto/Semi-Auto/Manual
Minimum Working Distance		1000/2000mm (Wide/Tele)
Aperture		F1.6∼F4.0
Iris Control		Auto
PTZ		Pan Range/Pan Speed	360° endless/ Pan Manual Speed: 0.1°∼60°/s, Pan Preset Speed: 60°/s
	Tilt Range/Tilt Speed	-45°∼30°/ Tilt Manual Speed: 0.1°∼30°/s, Tilt Preset Speed: 30°/s
	Proportional Zoom	Support
	Preset Quantity	300
	Patrol	8 Patrols, up to 48 presets each patrol
	Pattern	4 Patterns
	Power Off Memory	Support
	Other Function	Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position
	IR	Irradiation Distance	Up to 180m
Video	IR	Max. Image Resolution	3840x2160
	Frame Rate	60Hz: 30fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720, 704x576)
	Secondary Stream	60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
	Tertiary Stream	60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
	Video Compression	H.265⁺/H.265(HEVC)/H.264⁺/H.264/MJPEG
	Video Bit Rate	16Kbps∼16Mbps (CBR/VBR Adjustable)
	Privacy Masking	Up to 24 areas
	ROI	Up to 8 areas
	Image Settings	Saturation/Brightness/Contrast/Sharpness
	Web Access	Support IE/Firefox/Chrome/Safari Browser
	Audio	Audio Compression	G.711/AAC/G.722/G.726
Audio Sampling Rate		8/16/32/44.1/48KHz
Audio Bit Rate		16~256kbps
Two-way Audio		Support
Interface		Ethernet	1*RJ45 10M/100M Ethernet Port
	Audio I/O	1/1
	Alarm I/O	1/1
	Network	Network Storage	NAS(Support NFS, SMB/CIFS), ANR
Network Protocols		IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL
Intelligent Analytics		Video Analysis	Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed
	People Counting& Report	Count the number of people entering or exiting, up to 4 detection areas for regional people counting
	System	Storage	Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function		BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support		Yes, Voice&Video-over-IP
Event Trigger		Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action		FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc.
System Compatibility		ONVIF Profile G & Q & S & T, API
General		Working Temperature	-40℃∼60℃
	Working Humidity	0∼90%(Non-condensing)
	Power Supply	PoE (802.3at) / DC 12V/3A±10%
	Power Consumption	13W MAX, 24W MAX(With IR on)
	Weather Proof	Up to IP66-rated for Weather-resistant Performance
	Dimensions	110mmX337mmX220mm
	Weight	2.9Kg
	Warranty	2 Years/3 Years(Optional)

* Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported(Opitonal)
P - PoE Supported
A - AI Series

Milesight Development Platform

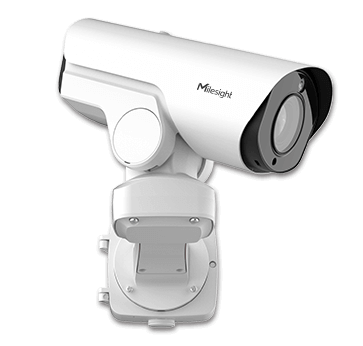

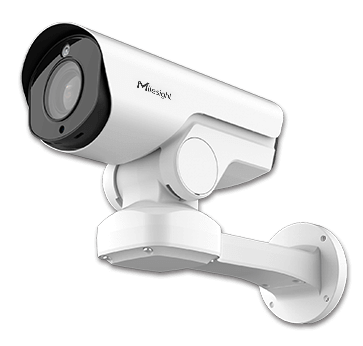

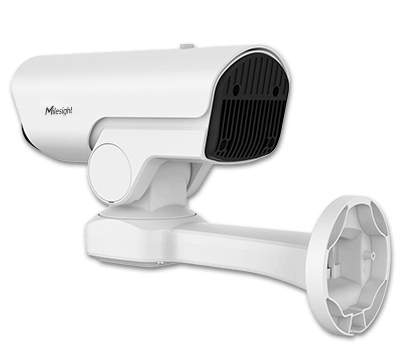

NDAA AI 5X/20X/23X PTZ Bullet Plus Network Camera

Intelligent PTZ to Move Your World

NDAA Compliant

AI Video Analytics

People Counting

Leading-edge H.265⁺ Compression

Flexible Pan, Tilt and Zoom Tasks

5X/20X/23X Optical Zoom

0.001Lux Ultra Low-light

120dB Super WDR

Smart IR II Technology

1/1.8" STARVIS Starlight Sensor

4K Video Viewing Experience

90fps

IP66

New-generation PTZ Motor

Intelligent White LED

Integrated Junction Box(Optional)

SIP/VoIP Support

Milesight Development Platform

NDAA AI 5X/20X/23X PTZ Bullet Plus Network Camera

Intelligent PTZ to Move Your World

NDAA Compliant

AI Video Analytics

People Counting

Leading-edge H.265+ Compression

Flexible Pan, Tilt and Zoom Tasks

5X/20X/23X Optical Zoom

0.001Lux Ultra Low-light

120dB Super WDR

Smart IR II Technology

1/1.8" STARVIS Starlight Sensor

4K Video Viewing Experience

90fps

IP66

New-generation PTZ Motor

Intelligent White LED

Integrated Junction Box(Optional)

SIP/VoIP Support

Leading-edge H.265⁺ Compression
