NDAA Compliant
This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

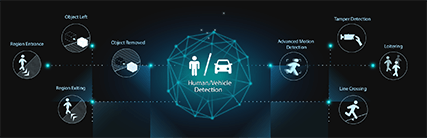

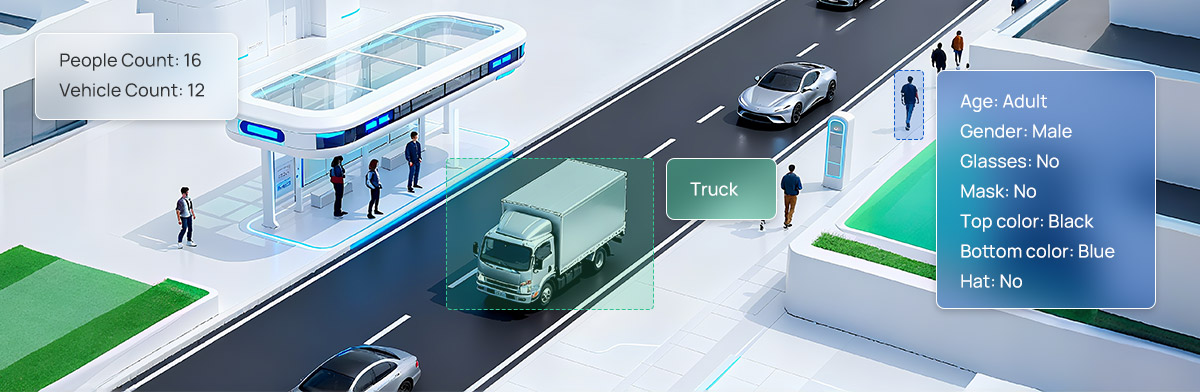

AI Video Analytics
Milesight AI Camera Series can intelligently filter objects to focus on human and vehicle detection in multiple events such as Region Entrance, Region Exiting, Loitering, Advanced Motion Detection, etc.

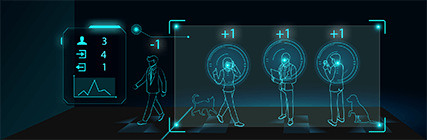

People Counting
High accuracy and real-time people counting based on AI algorithm, with statistic reports for further analysis, helps to make fast decisions on security management and increase the operational efficiency of the business.

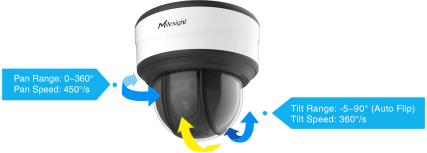

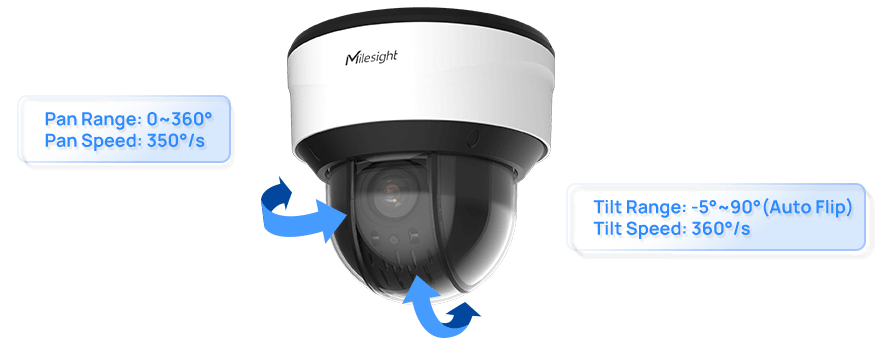

Advanced PTZ Functionality
Reaching 360° endless pan, -5°~90° Auto-flip tilt and 12X/20X/23X optical zoom which are the core functionality of the PTZ dome camera, the NDAA AI PTZ Dome Network Camera is able to move for omnidirectional and long range monitoring. To get timely and efficient performance, the camera owns the unparalleled pan and tilt speed and 3D Positioning. It can fast focus and catch without even blinks of an eye.

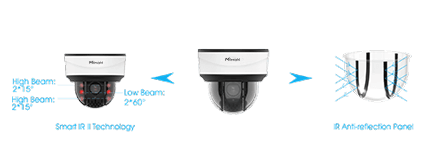

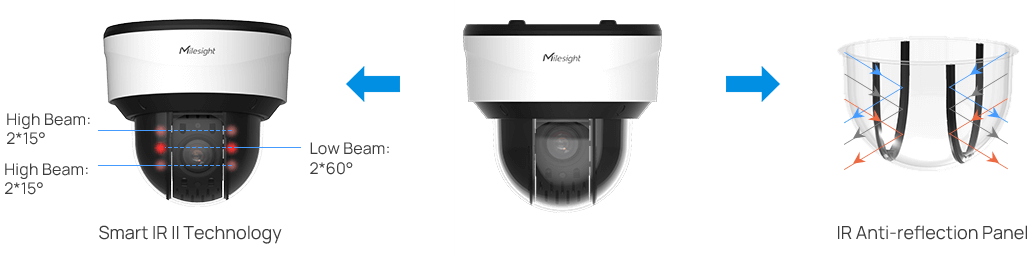

Revolutionary IR Design
Pioneered by Milesight and first applied in the NDAA AI PTZ Dome Network Camera, the IR Anti-reflection Design adopts elaborate panels to completely remove the worries of the IR reflection, which guarantees the camera to offer best IR feature. And the supreme Smart IR II technology with combination of high & low beams will release its second-to-none IR performance.

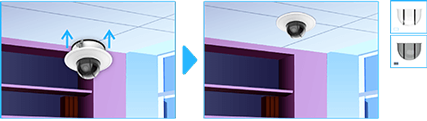

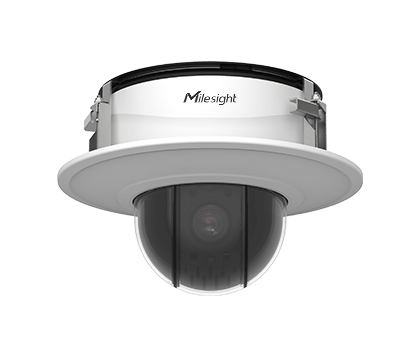

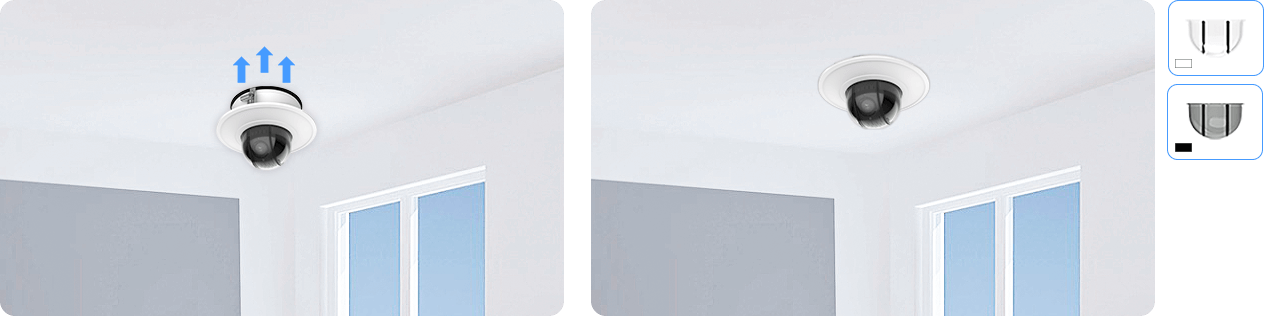

Discreet Installation
With recessed installation and smoked dome cover available, the NDAA AI PTZ Dome Network Camera can skillfully blends in with the environment and easily hide the direction for not letting people see where the camera is pointed, bringing discreet monitoring performance.

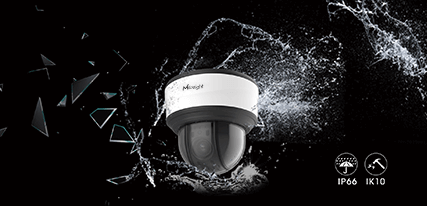

IP66 & IK10
The NDAA AI PTZ Dome Network Camera features the industry leading IP66-rated weather proofing and IK10-rated vandal proofing, which allow to protect the camera against adverse impacts to ensure the robust performance.

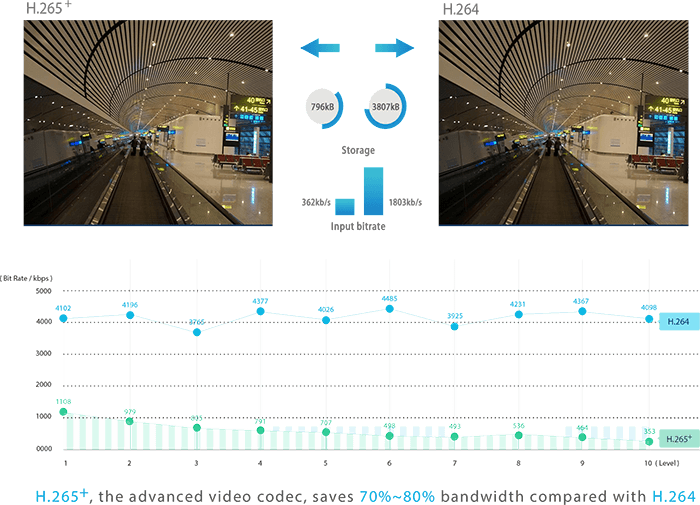

Leading-edge H.265+ Compression

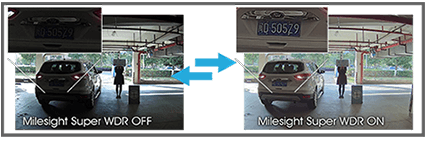

120dB Super WDR
Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

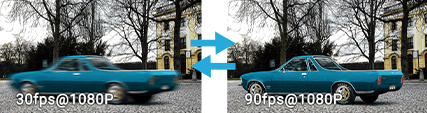

90fps
With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

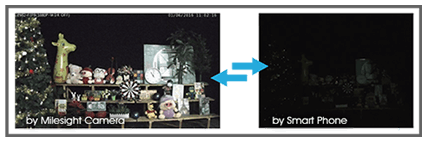

0.001Lux Ultra Low-light
With 0.001Lux ultra low light visibility which is the industry-leading level for especially fast moving dome camera, the NDAA AI PTZ Dome Network Camera is able to deliver high detailed color images even in low light environments reaching 0.001Lux of color mode or 0Lux of B/W mode, and near infrared light environments without any supplementary lighting.

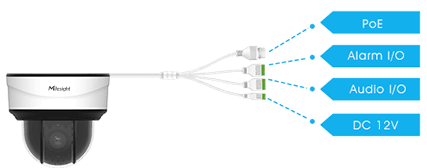

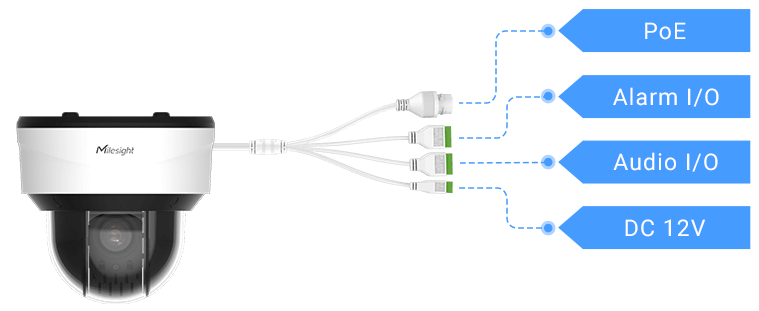

Versatile Interfaces
In the base, the NDAA AI PTZ Dome Network Camera comes with a whole array of interfaces such as Alarm I/O, Audio I/O, DC 12V and PoE port. Such complete interface design is available to meet your different kinds of video surveillance needs.

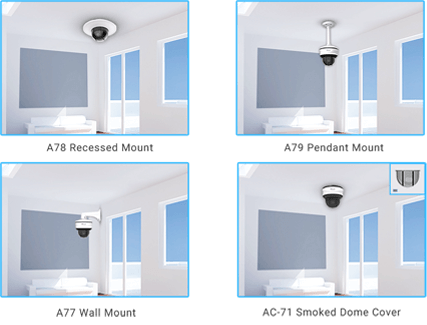

Various Accessories
The NDAA AI PTZ Dome Network Camera is a functional model which can be applied in various scenarios. It can be flexibly installed in different way for specific needs. To best guarantee its installation and use experience, four efficient accessories are available to bring supreme performance.
- MS-C2971-X12R(T)PE
- MS-C2871-X20TPE
- MS-C5371-X12PE
- MS-C2971-X23R(T)PE
- MS-C2971-X12TPA
- MS-C2871-X20TPA
- MS-C2971-X23TPA
| Camera | Name | 2MP 12X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | 140dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Digital Zoom | 16X | |
| Lens | Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) | |
| Field of View | H61°∼H5°/D69°∼D5°/V36°∼V2° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) | |
| Aperture | F1.6∼F2.8 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Auto Tracking | Support | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% | |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Surge Protection | 4KV | |
| Dimensions | Φ183mmX174.8mm | |
| Weight | 2Kg | |
| Warranty | 2 Years/3 Years(Optional) |
| Camera | Name | 2MP 20X AI PTZ Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | 140dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Digital Zoom | 16X | |
| Lens | Focal Length | 6.4∼128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) | |
| Field of View | H60°∼H3°/D67°∼D4°/V37°∼V1° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 100/2000mm (Wide/Tele) | |
| Aperture | F1.6∼F4.0 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Auto Tracking | Support | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series) ,50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% | |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Surge Protection | 4KV | |
| Dimensions | Φ183mmX174.8mm | |
| Weight | 2Kg | |
| Warranty | 2 Years/3 Years(Optional) |
| Camera | Name | 5MP 12X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.008Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Digital Zoom | 16X | |
| Lens | Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) | |
| Field of View | H57°∼H4°/D69°∼D5°/V44°∼V1° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 100/1500mm (Wide/Tele) | |
| Aperture | F1.6∼F2.8 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Auto Tracking | Support | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual | |
| Video | Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% | |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Surge Protection | 4KV | |
| Dimensions | Φ183mmX174.8mm | |
| Weight | 2Kg | |
| Warranty | 2 Years/3 Years(Optional) |
| Camera | Name | 2MP 23X AI PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.005Lux @F1.5, B/W: 0Lux with IR on | |
| WDR | 140dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Digital Zoom | 16X | |
| Lens | Focal Length | 5∼117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) | |
| Field of View | H60°∼H3°/D69°∼D4°/V35°∼V2° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 100/1500mm (Wide/Tele) | |
| Aperture | F1.5∼F3.5 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip); Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Auto Tracking | Support | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) | |
| ROI | Up to 8 areas | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. | |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, Defog, AWB, EIS, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & M & S & T, API | |
| General | Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼95%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% | |
| Power Consumption | 12W MAX/ 20W MAX (With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Surge Protection | 4KV | |
| Dimensions | Φ183mmX174.8mm | |
| Weight | 2Kg | |
| Warranty | 2 Years/3 Years(Optional) |
| Camera | Name | 2MP NDAA AI 12X PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Digital Zoom | 16X | |

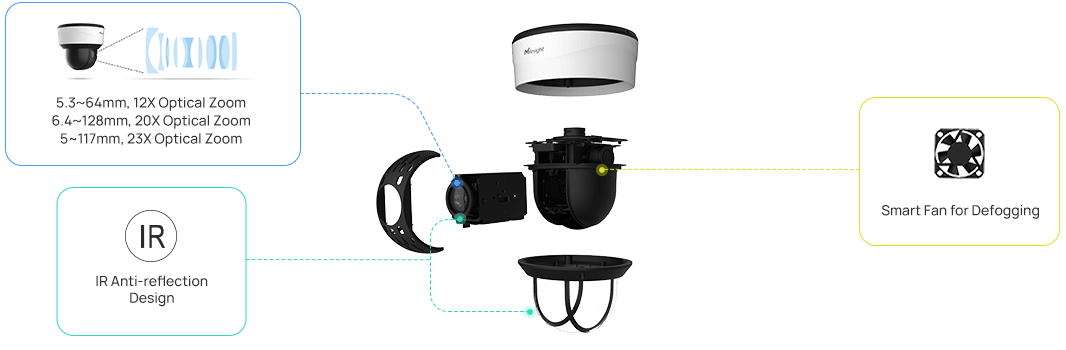

| Lens | Focal Length | 5.3∼64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) | |
| Field of View | H61°∼H5°/D69°∼D5°/V36°∼V2° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) | |
| Aperture | F1.6∼F2.8 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% | |
| Power Consumption | 12W MAX/ 20W MAX(With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Surge Protection | 4KV | |
| Dimensions | Φ183mmX174.8mm | |
| Weight | 2Kg | |
| Warranty | 2 Years/3 Years(Optional) |
| Camera | Name | 2MP NDAA AI 20X PTZ Dome Network Camera |
| Image Sensor | 1/2" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.001Lux @F1.2, Color: 0.002Lux @F1.6, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Digital Zoom | 16X | |
| Lens | Focal Length | 6.4∼128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) | |
| Field of View | H60°∼H3°/D67°∼D4°/V37°∼V1° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 100/2000mm (Wide/Tele) | |
| Aperture | F1.6∼F4.0 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080), 60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080), 50fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz: 90fps@(704x576), 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 90fps@(704x576), 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) | |
| Tertiary Stream | 60Hz: 30fps@( 1280x720, 704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@( 1280x720, 704x576, 640x480, 640x360, 351c288, 320x240) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% | |
| Power Consumption | 12W MAX/ 20W MAX(With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Surge Protection | 4KV | |
| Dimensions | Φ183mmX174.8mm | |
| Weight | 2Kg | |
| Warranty | 2 Years/3 Years(Optional) |
| Camera | Name | 2MP NDAA AI 23X PTZ Dome Network Camera |
| Image Sensor | 1/2.8" Progressive Scan CMOS | |
| Min. Illumination | Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.5, B/W: 0Lux with IR on | |
| WDR | 120dB Super WDR | |
| Shutter Time | 1/100000s∼1s | |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule | |
| S/N | >55dB | |
| Digital Zoom | 16X | |
| Lens | Focal Length | 5∼117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) | |
| Field of View | H60°∼H3°/D69°∼D4°/V35°∼V2° | |
| Focus Control | Auto/Semi-Auto/Manual | |
| Minimum Working Distance | 100/1500mm (Wide/Tele) | |
| Aperture | F1.5∼F3.5 | |
| Iris Control | Auto | |
| PTZ | Pan Range/Pan Speed | 360° endless/ Pan Manual Speed: 0.1°∼450°/s, Pan Preset Speed: 450°/s |
| Tilt Range/Tilt Speed | -5°∼90°(Auto Flip)/ Tilt Manual Speed: 0.1°∼360°/s, Tilt Preset Speed: 360°/s | |
| Proportional Zoom | Support | |
| Preset Quantity | 300 | |
| Patrol | 8 Patrols, up to 48 presets each patrol | |
| Pattern | 4 Patterns | |
| Power Off Memory | Support | |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position | |
| IR | Irradiation Distance | Up to 160m |
| Irradiation Angle | Auto/Manual | |
| Video | Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576) | |
| Secondary Stream | 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180) | |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180) | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG | |
| Video Bit Rate | 16Kbps∼16Mbps (CBR/VBR Adjustable) | |
| Privacy Masking | Up to 24 areas | |
| ROI | Up to 8 areas | |
| Image Settings | Saturation/Brightness/Contrast/Sharpness | |
| Interface | Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 | |
| Alarm I/O | 1/1 | |
| Network | Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, UPnP, Bonjour, SIP, SNMP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL | |
| Audio | Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz | |
| Audio Bit Rate | 16~256kbps | |
| Two-way Audio | Support | |
| Intelligent Analytics | Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Object Left, Object Removed |
| People Counting&Report | Count the number of people entering or exiting, up to 4 detection areas for regional people counting | |
| System | Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 256G |
| Advanced Function | BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark | |
| SIP/VoIP Support | Yes, Voice&Video-over-IP | |
| Event Trigger | Motion Detection, Network Disconnection, External Input, Audio Alarm, etc. | |
| Event Action | FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, PTZ Motion, HTTP Notification, etc. | |
| System Compatibility | ONVIF Profile G & Q & S & T, API | |
| General | Working Condition | Temperature: -40℃∼60℃ / Humidity: 0∼90%(Non-condensing) |
| Power Supply | PoE(802.3at)/ DC 12V/3A ±10% | |
| Power Consumption | 12W MAX/ 20W MAX(With IR on) | |
| Weather Proof | Up to IP66-rated for Weather-resistant Performance | |
| Housing | Vandal-proof IK10-rated Metal Housing | |
| Surge Protection | 4KV | |
| Dimensions | Φ183mmX174.8mm | |
| Weight | 2Kg | |
| Warranty | 2 Years/3 Years(Optional) |
- * Naming Convention
- R - High Frame Rate (60fps)
- T - High Frame Rate (90fps)
- P - PoE Supported
- A/E - AI Series
