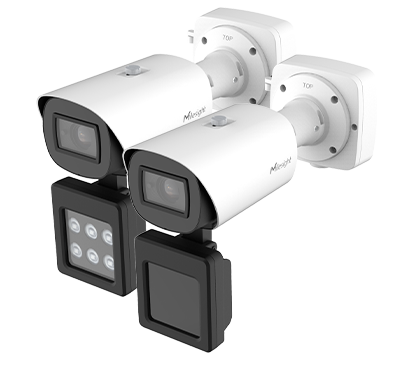

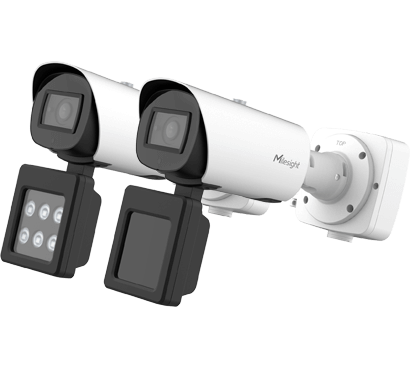

NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera

Comprehensive AI Functions for LPR Solution

2MP · AI · LPR · Supplement Light · Wiegand Interface · 120dB Super WDR · 0.005Lux Ultra Low-light · IP67 · Smart IR II · Illumination Distance Up to 20m · PoE

NDAA AI LPR Supplement Light PoE H265+ ONVIF G&Q&S&T SD Card Smart IR II Weather-
Starlight Super WDR Privacy Mask 3-Axis

NDAA Compliant

This model is compliant with the NDAA (National Defense Authorization Act). It does not use or deploy critical components including SoCs produced by NDAA banned component vendors, which is recommended for enterprises and critical applications where compliance is essential.

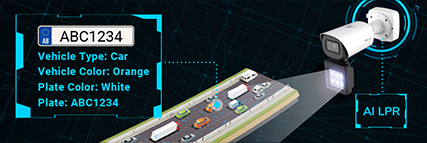

AI-powered LPR Algorithm

Based on AI algorithm, the LPR function provides value-added data via a pre-trained deep learning model and continuously training to algorithms automatically, which can not only recognize vehicle plates in real time with high accuracy, but also identify more vehicle features, like vehicle type, color, etc., generating powerful security and traffic insights.

smart License Plate Recognition, LPR, ANPR, LPR IP Camera,LPR Camera

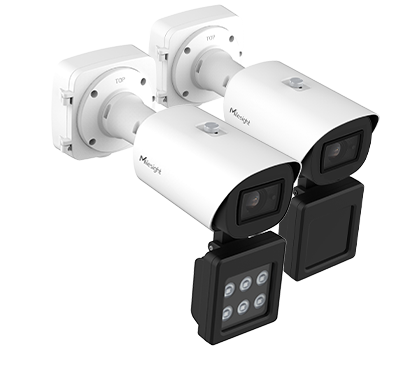

Integrated Supplement Light

Integrated with supplement light of IR LED Light or White LED Light with Max. 20m illumination distance, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera could not only turn on and off the supplement light, but also change the luminance of the supplement lighting automatically, achieving a flexible way for the monitoring control.

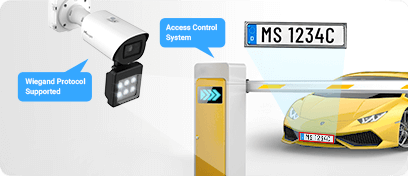

Flexible Compatibility

To maximize the usability and compatibility, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera also supports Wiegand Protocol, which allows the easy open integration with third-party VMS or platforms, realizing solutions such as traffic management, toll collection, and access control.

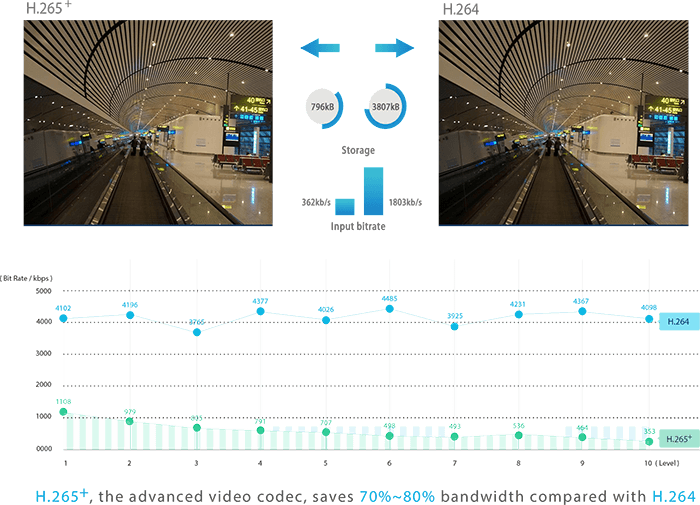

Leading-edge H.265+ Compression

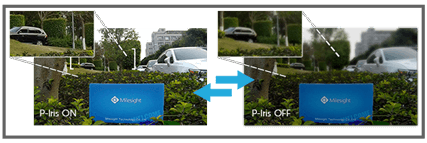

P-Iris Control

Adopting P-Iris control technology, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Network Camera is able to optimize the iris opening under all lighting conditions, offering images with better contrast, clarity, resolution and depth of field.

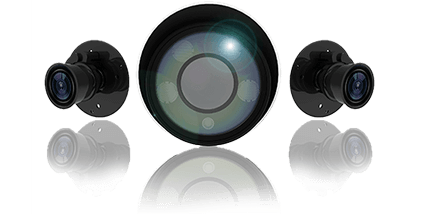

Motorized Zoom Lens

Equipped with motorized zoom & focus lens, Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera allows remote control of focal length, iris and focus through the use of a lens controller, which is perfect for long distance surveillance in areas such as parking lots, highways and ports.

Motorized Zoom Lens

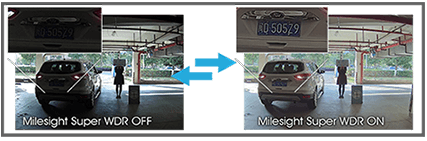

120dB Super WDR

Milesight's sensor-based WDR technology allows the camera to record greater scene details with true color reproduction even under the extreme back light and high contrast conditions. The ratio that the brightest light signal values divided by the darkest light signal values is up to 120dB.

Super WDR

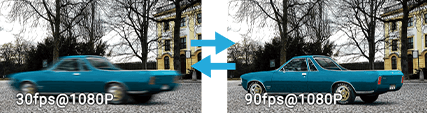

90fps High Frame Rate

With the industry leading frame rate reaching 90fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

AI high frame rate

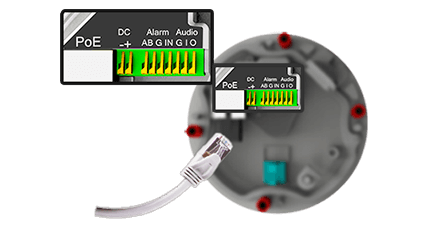

Integrated Cable Management Bracket

In the base, there are power interface, PoE port and other interfaces. Thanks to integrated cable management, it takes no effort in installation.


SIP/VoIP Support

Milesight NDAA Supplement Light AI LPR Motorized Pro Bullet Plus Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.

SIP camrea
  • MS-C2966-TF(I)LWPA
Camera Name 2MP Supplement Light AI LPR Motorized Pro Bullet Plus Network Camera
Image Sensor 1/2.8″ Progressive Scan CMOS
Min. Illumination Color: 0.002Lux @F1.2, Color: 0.005Lux @F1.4, B/W: 0Lux with IR on
WDR 120dB Super WDR
Shutter Time 1/100000s∼1s
Day/Night Mode Day/Night/Auto/Customize/Schedule
S/N >55dB
Lens Lens Motorized 2.7~13.5mm@F1.4, P-Iris(Optional)
Field of View H113°~H33°/D130°~D38°/V60°~V18°
Mount Φ14
Focus Control Auto/Manual
Iris Control Auto/Manual (Optional for I Series)
LPR Max. Vehicle Speed 200km/h
Recognition Accuracy >95%
Coverage Support simultaneous detection of 4 regions
Smart Traffic Detection License Plate Recognition, Plate Color Recognition, Vehicle Type Classification, Vehicle Color Recognition
Illuminator Supplement Light IR LED Light or White LED Light
Light Bead 9 (For IR LED Light)/6 (For White LED Light)
Illumination Distance Up to 20m
Light Control Auto/Always On/Off/Customize
Video Max. Image Resolution 1920x1080
Frame Rate 60Hz/50Hz: 90fps@(1920x1080, 1280x960, 1280x720, 704x576)
Secondary Stream 60Hz/50Hz: 90fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x180)
Tertiary Stream 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240, 320x180)
Video Compression H.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate 16Kbps∼16Mbps (CBR/VBR adjustable)
Privacy Masking Up to 24 areas
ROI Up to 8 areas
Image Settings Saturation/Brightness/Contrast/Sharpness
Web Access Support IE/Firefox/Chrome/Safari Browser
Audio Audio Compression G.711/AAC/G.722/G.726
Audio Sampling Rate 8/16/32/44.1/48KHz
Audio Bit Rate 16~256kbps
Two-way Audio Support
Interface Ethernet 1*RJ45 10M/100M Ethernet Port
Audio I/O 1/1
Alarm I/O 1/1
Wiegand Support
Network Network Storage NAS(Support NFS, SMB/CIFS), ANR
System Storage Support microSD/SDHC/SDXC Card Local Storage, up to 256G
Advanced Function BLC, HLC, 2D DNR, 3D DNR, AWB, IP Address Filtering, AGC, Anti-flicker, Corridor Mode, Deblur, Watermark
SIP/VoIP Support Yes, Voice&Video-over-IP
Event Trigger Black/White List, Motion Detection, Network Disconnection, External Input, Audio Alarm, etc.
Event Action FTP Upload, SMTP Upload, SD Card Record, External Output, SIP Phone, HTTP Notification, etc
System Compatibility ONVIF Profile G & Q & S & T, API
General Working Temperature -40℃∼60℃
Working Humidity 0∼90%(Non-condensing)
Power Supply PoE (802.3at) / DC 12V±10%
Power Consumption 5W MAX, 25W MAX (For IR LED Light), 25W MAX (For White LED Light)
Weather Proof Up to IP67-rated for weather-resistant performance
Housing Vandal-proof IK10-rated Metal Housing (Without Supplement Light)
Dimensions 320mmX134mmX126mm, 320mmX134mmX231mm (With Supplement Light)
Weight 1630g, 2075g (With Supplement Light)
Warranty 3/5 Years
  • * Naming Convention
  • T - High Frame Rate (90fps)
  • F - Motorized Vari-focal Lens
  • I - P-Iris Supported
  • P - PoE Supported
  • L - LPR Supported
  • W - Supplement Light Supported
  • A - AI Series
