AI Motorized Pro Bullet
Network Camera
Intelligent and Endurable for the Most Severe Conditions
Go Beyond Security with Pro Cameras
AI Motorized Pro Bullet
- AI Empowered VCA
- 70m IR Distance
- 140dB Super WDR & 0.0008Lux Low-light
- 60fps High Frame Rate
- PTFE Membrane
- Audio I/O, Alarm I/O, PoE & DC 10V~28V
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Milesight CCTV
- Pro Series
- Motorized Pro Bullet Camera

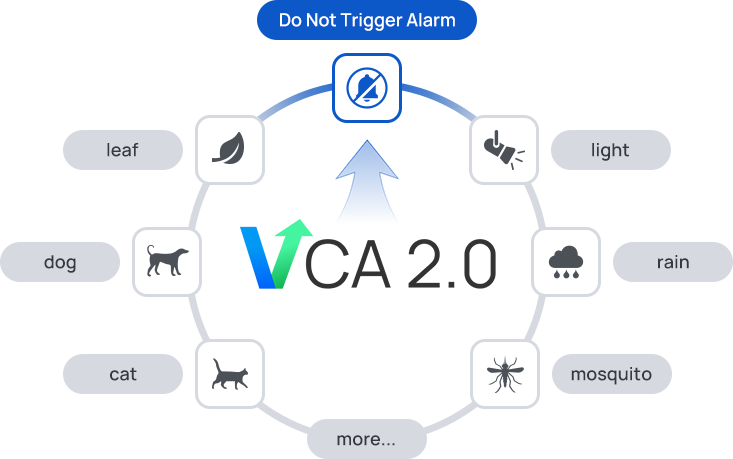

VCA 2.0: Precision That Redefines Security
VCA 2.0 is Milesight's upgraded video content analysis algorithm, purpose-built for essential security tasks. From intrusion to line crossing, it delivers precise, real-time detection — even in low light, rain, or fog — with dramatically reduced false alarms.
Key Highlights:
![icon]( "icon")
8 built-in AI VCA features for instant threat detection.
![icon]( "icon")
Accurate recognition of small and multiple targets.
![icon]( "icon")
Up to 80m AI Detection Distance (Motorized Lens).
![icon]( "icon")
Ultra-low false alarm rate
MSense Technology: Transforming Video into Actionable Intelligence
Powered by advanced AI, MSense takes surveillance far beyond recording. It analyzes live video streams in real time, converting them into rich, structured metadata to unlock deeper insights for industry-specific needs.
Key Highlights:
![icon]( "icon")
A wide range of advanced, self-developed AI algorithms.
![icon]( "icon")
Purpose-built for diverse vertical applications.
![icon]( "icon")
Delivers actionable insights based on behaviors, counts, and attributes.
![icon]( "icon")
Generates metadata to support smart search, reporting, and alert linkage.

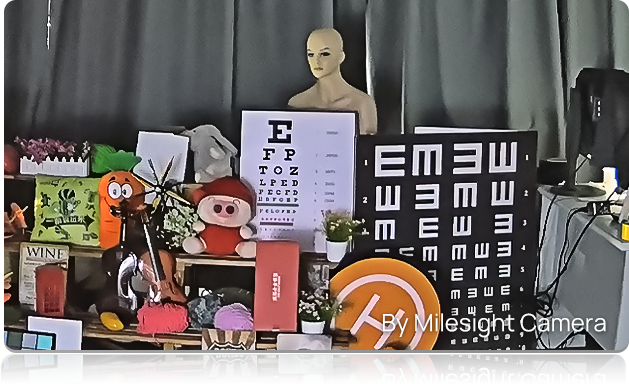

Superior Night Vision, See Clearly in the Dark
Engineered for exceptional low-light performance, this feature combines a 1/1.8” large sensor with a Day-Night Co-focus Lens to capture sharp, detailed images around the clock. The upcoming AI ISP technology will further optimize image quality, delivering true-to-life colors and enhanced clarity even in the darkest environments.
AI ISP
Day-Night Co-focus Lens
1/1.8” Sensor
P-Iris Control
Advanced P-Iris control technology with Milesight AI Motorized Pro Bullet Network Camera is able to automatically and precisely response to all lighting conditions, offering optimal image quality with good depth of filed.

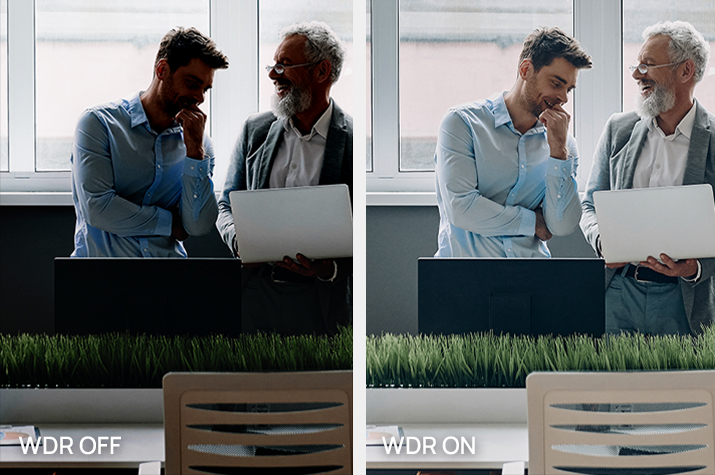

140dB Super WDR
Record greater scene details with true color reproduction even under the extreme back light and high contrast conditions.

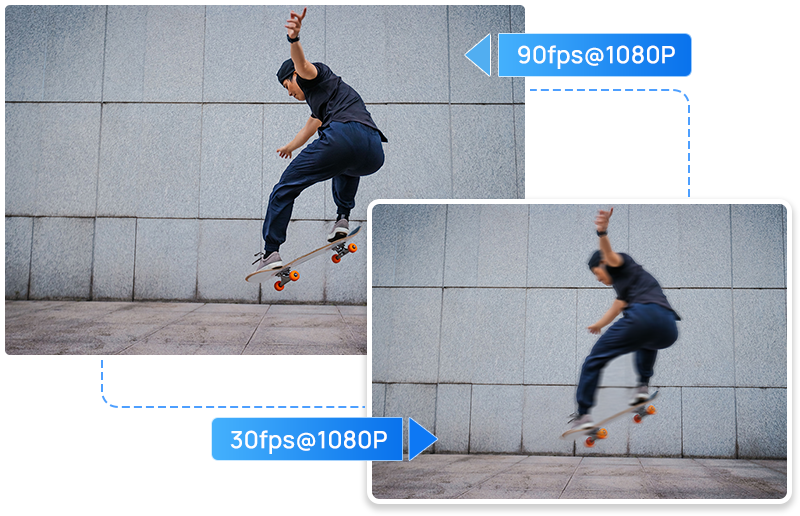

60fps High Frame Rate
With the industry leading frame rate reaching 60fps, Milesight Network Camera can easily catch images with no latency despite of the high-speed movement.

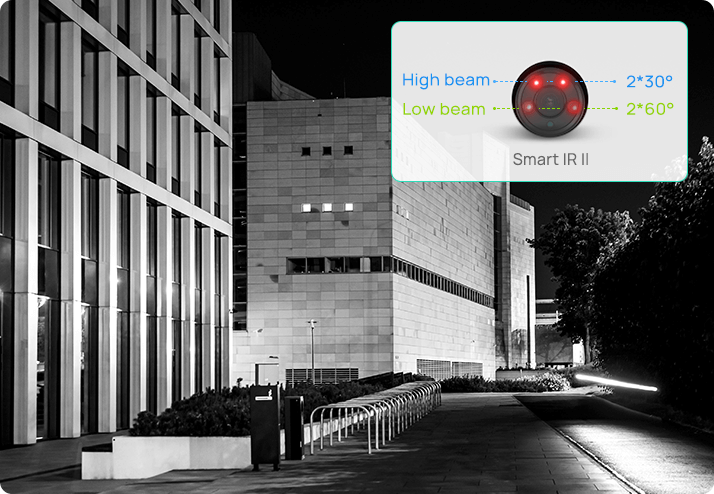

Smart IR II Technology
The upgraded IR LEDs technology offers videos with a viewing range of up to 70m, ensuring quality image clarity regardless of object distance. The brightness of both beams can be adjusted manually or automatically based on the zoom ratio.
4K Video Viewing
Experience
Delivering 4K resolution (3840*2160, effectively four times that of Full HD) is able to provide users with ultra-high-definition video viewing experience.
IP67 Weather-proof Housing
Equipped with industry-leading IP67-rated weather-proofing, the camera is well protected against adverse impacts to ensure stable operation in all weather conditions.

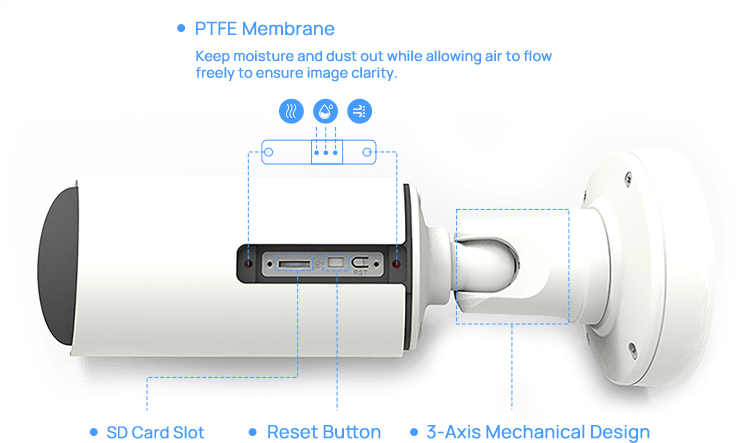

Unique Design with PTFE
Membrane
The AI Motorized Pro Bullet Network Camera uses a PTFE membrane for ventilation, keeping out dust and moisture while allowing air to flow freely to maintaining image clarity by preventing lens fogging and condensation. It features a user-friendly design with an SD card slot, reset button, and a rear 3-Axis adjustable bracket for flexible installation.

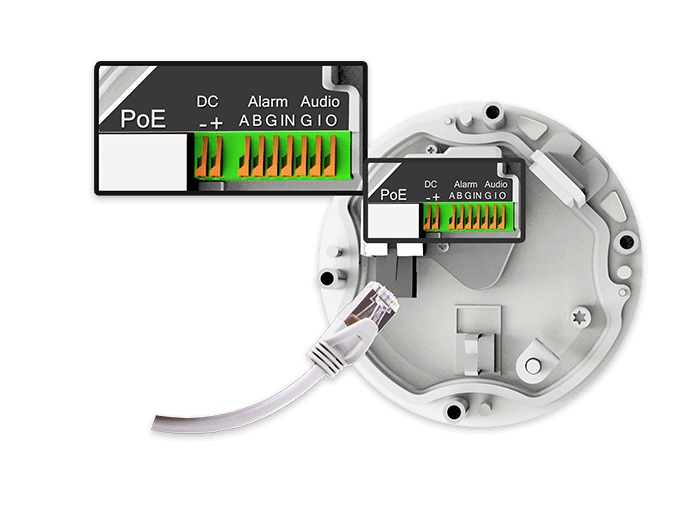

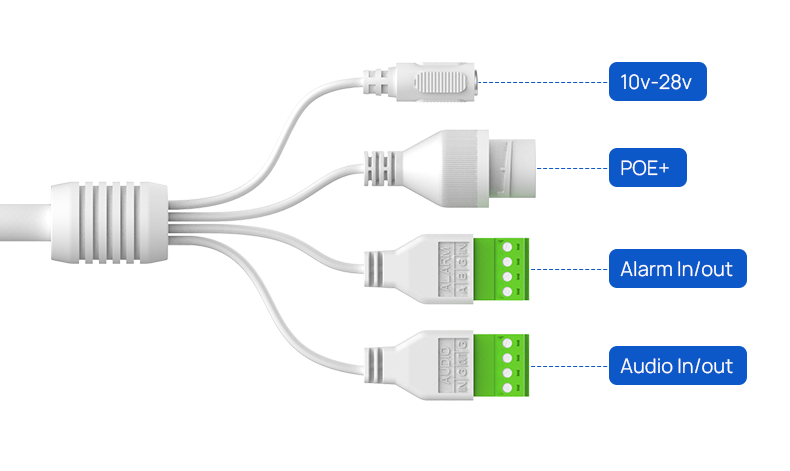

Versatile Interfaces for
Seamless Integration
The multi-interface cable is available with rich interfaces including PoE port, DC, Alarm I/O and Audio I/O to offer more choices for easy cable management and various needs.

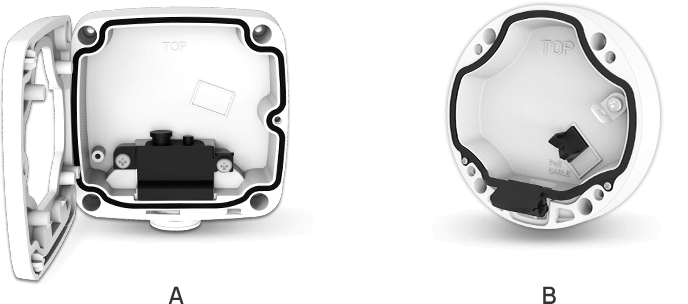

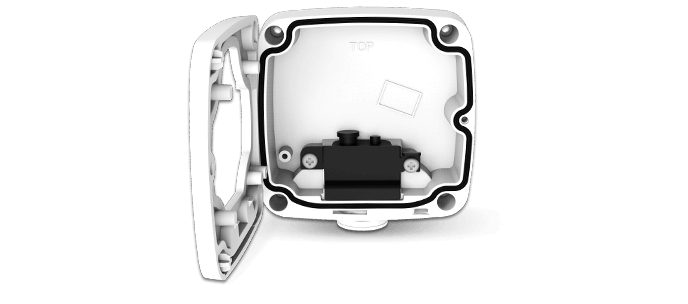

Integrated Junction Box
The creative clamshell design minimizes the installation troubles and enlarges the space to make cable connection a piece of cake.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Specifications
PG1
PE
2MP
- MS-C2962-RFPG1
- MS-C2962-RFIPG1
4MP
- MS-C4462-RFIPG1
5MP
- MS-C5362-RFPG1
- MS-C5362-RFIPG1
8MP
- MS-C8162-RFPG1
- MS-C8162-RFIPG1
- MS-C8262-RFIPG1
6MP
- MS-C6762-F(I)PE
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.003Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 47~152m O: 18.5~59.8 R: 9.3~29.9m I: 4.7~14.9m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 60m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.4 |
| Field of View | H103.4° ~ H31.1° / D121.2° ~ D35.9° / V55.5° ~ V17.4° |
| Close Focus Distance | W: 1m, T: 1m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.4 |
| Iris Type | Fixed |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 40X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 3W (DC), 3.9W (PoE) 24 Hour Average: 4.5W (DC), 5.6W (PoE) Max.: 6.8W (DC), 8.4W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Name | 6MP AI Motorized Pro Bullet Network Camera |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 78.5~219m O: 31~86m R: 15.5~43m l: 8~21.5m |
| IR Distance | Up to 60m |
| S/N | >55dB |
| Lens | |
| Lens | Motorized 2.7-13.5mm@F1.6 P-Iris(Optional) |
| Field of View | H112°~H38°/D129°-D44°/V61°~V22° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Iris Control(Optional for I Series) | Auto/Manual |
| Video | |
| Max. Image Resolution | 3200x1800 |
| Primary Stream | 60Hz: 30fps@(3200x1800, 2560x1440, 1920x1080, 1280x720) 50Hz: 25fps@(3200x1800, 2560x1440, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(1280x720, 640x480, 640x360) 50Hz:25fps@(1280x720, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps(1280x720, 640x480, 640x360) 50Hz: 25fps(1280x720, 640x480, 640x360) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Settings | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS),ANR |
| Network Protocols | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, VPN, Bonjour, SIP, LLDP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95%(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 12V±10% |
| Power Consumption | Min.: 3.1W (DC 12V), 4W(PoE) Max.: 7.8W (DC 12V), 9.6W(PoE) |
| Weight | Approx. 1080g |
| Dimensions | 134mmX126mmX285mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 47.8~134m O: 18.8~52.8 R: 9.5~26.4m I: 4.7~13.2m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 65m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.2 |
| Field of View | H112.7° ~ H37.2° / D133.5° ~ D42.8° / V58.5° ~ V20.8° |
| Close Focus Distance | W: 1m, T: 1m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto / Manual |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 40X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 3W (DC), 3.9W (PoE) 24 Hour Average: 4.5W (DC), 5.6W (PoE) Max.: 7.8W (DC), 9.6W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.001Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 69.3m ~ 149m O: 27.3m ~ 58.7m R: 13.6m ~ 29.3m I: 6.9m ~ 14.7m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 70m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Field of View | H111.6° ~ H47.5° / D129.4° ~ D54.5°/V58.8°~V26.7° |
| Close Focus Distance | W: 1m, T: 1.5m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto / Manual |
| Video | |
| Max. Image Resolution | 2688 x 1520 |
| Primary Stream | 60Hz: 60fps@(2688×1520, 2304×1296, 1920×1080, 1280×720) 50Hz: 50fps@(2688×1520, 2304×1296, 1920×1080, 1280×720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 32X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 3.2W (DC), 4.2W (PoE) 24 Hour Average: 4.7W (DC), 5.9W (PoE) Max.: 7.6W (DC), 9.2W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.006Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 84.6m ~ 273m O: 33.9m ~ 108m R: 16.6m ~ 53.8m I: 8.4m~26.9m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 60m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.4 |
| Field of View | H93.8° ~ 32.1° / D121.5° ~ 44.7° / V68.2°~22.2° |
| Close Focus Distance | W:0.5m, T:1m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.4 |
| Iris Type | Fixed |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 60fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536,1600x1200,1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(2048x1536, 1600x1200, 1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 40X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 3.2W (DC), 4.2W (PoE) 24 Hour Average: 4.7W (DC), 5.9W (PoE) Max.: 7.8W (DC), 9.4W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.004Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 86.1m ~ 242m O: 33.9m ~ 95.1m R: 16.9m ~ 47.5m I: 8.5m~23.8m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 60m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.2 |
| Field of View | H93.7° ~ 32.9° / D121.1° ~ 40.7° / V68.2°~24.7° |
| Close Focus Distance | W:1m, T:1m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto / Manual |
| Video | |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 60fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536,1600x1200,1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(2048x1536, 1600x1200, 1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 40X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 3.2W (DC), 4.2W (PoE) 24 Hour Average: 4.7W (DC), 5.9W (PoE) Max.: 7.8W (DC), 9.4W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.4, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 95.7m ~ 268m O: 37.6m ~ 106m R: 18.8m ~ 52.8m l: 9.5m ~ 26.4m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 60m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.4 |
| Field of View | H100.2° ~ H30.7° / D117.1° ~ D35.5° / V53.2° ~ V17.1° |
| Close Focus Distance | W: 1m, T: 1m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ14 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.4 |
| Iris Type | Fixed |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 40X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 4.2W (DC), 5.2W (PoE) 24 Hour Average: 5.7W (DC), 7W (PoE) Max.: 7.5W (DC), 9.2W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.006Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 93.9m ~ 304m O: 37m ~ 120m R: 18.5m ~ 59.8m l: 9.3m ~ 29.9m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 60m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.7mm~13.5mm@F1.2 |
| Field of View | H100.2° ~ H27° / D117.9° ~ D31.1° / V51.9° ~ V15.1° |
| Close Focus Distance | W: 1m, T: 1m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto / Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 40X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 4.2W (DC), 5.2W (PoE) 24 Hour Average: 5.7W (DC), 7W (PoE) Max.: 8W (DC), 9.6W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
| Camera | |
|---|---|
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.0008Lux@F1.2, B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day / Night / Auto / Customize / Schedule |
| DORI Distance | D: 98.5m ~ 212m O: 38.8m ~ 83.4m R: 19.4m ~ 41.7m I: 9.7m ~ 20.8m |
| S/N | >55dB |
| Illuminator | |
| Illuminator Number | 4 |
| IR Wave Length | 850nm |
| Illumination Distance | Up to 70m |
| Illuminator On/Off Control | Auto / Manual |
| Lens | |
| Lens | Motorized 2.8mm~12mm@F1.2 |
| Field of View | H105.3° ~ H46.8° / D122.6° ~ D53.9°/V55.6° ~ V26.2° |
| Close Focus Distance | W: 1m, T: 1.5m |
| Camera Angle Adjustment | Pan: 0° ~ 360°, Tilt: 0° ~ 90°, Rotation: 0° ~ 360° |
| Mount | Φ17 |
| Focus Control | Auto/Manual |
| Aperture | Max.F1.2 |
| Iris Type | P-Iris |
| Iris Control | Auto / Manual |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 60fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) 50Hz: 50fps@(3840x2160, 3072x2048, 2592x1944, 2592x1520, 2048x1536, 1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360) |
| Quaternary Stream | 60Hz: 10fps@(1280x720), 30fps@(704x576, 640x480, 640x360) 50Hz: 10fps@(1280x720), 25fps@(704x576, 640x480, 640x360) |
| Video Compression | H.265+/H.265 (HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps ~ 16Mbps (CBR/VBR Adjustable) |
| Image | |
| AI ISP | Support |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 Areas |
| Image Setting | Brightness / Contrast / Saturation / Sharpness |
| Image Rotation | Off, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90° |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, LDC, DIS |
| Hybrid Zoom | Up to 32X |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, LLDP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 |
| Alarm I/O | 1/1 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots. The attributes include Age, Gender, Glasses, Mask and Cap. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle. Support regional people counting for up to 4 detection areas. |
| Heat Map | The built-in statistical behavior analysis enables you to identify the busiest areas within the environment |
| Hard Hat Detection | Detect whether individuals are wearing safety hats. Trigger an alarm when a person is identified without a hard hat. |
| Privacy Protection | Automatically detect faces or human bodies in the video stream and overlay mosaic effects. Supported on Primary Stream/Secondary Stream, Compatible with H.265/H.264 formats. |
| Fall Detection | Detect a person's fall and trigger an alarm to alert others for timely assistance. |
| Violence Detection | Identify violent behavior and trigger an alarm to alert others to intervene or prevent the action. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, One API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~95% RH(Non-condensing) |
| Power Supply | PoE (802.3af) / DC 10V~DC 28V |
| Power Consumption | Min.: 4W (DC), 5W (PoE) 24 Hour Average: 5.5W (DC), 6.7W (PoE) Max.: 9.1W (DC), 10.8W (PoE) |
| Surge Protection | 4KV |
| Net Weight | Approx. 1.3kg |
| Gross Weight | Approx. 2.1kg |
| Dimensions | 134mm X 126mm X 294mm |
| Warranty | 3 Years / 5 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP67 |
*The tested results may vary due to environmental conditions and device differences.
Naming Convention
R - High Frame Rate (60fps)
T - High Frame Rate (90/100fps)
F - Motorized Vari-focal Lens
I - P-Iris Supported
P - PoE Supported
A/C/E - AI Series
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*138.5*47mm
- Installation Environment: For strapping cameras on poles between φ67–127 mm (2.6–5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 180*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
