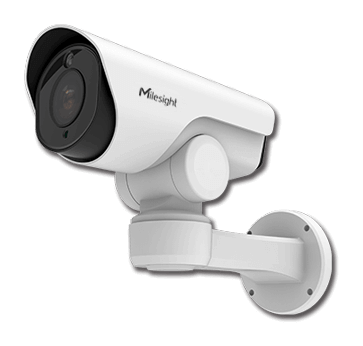

AI 12X/20X/23X PTZ Bullet
Plus Camera
Intelligent PTZ to Move Your World
PTZ Cameras to Expand Your Vision and Control
AI 12X/20X/23X PTZ Bullet
- AI Deep Learning
- Flexible Pan, Tilt and Zoom Tasks
- PTZ Auto Tracking
- 12X/20X/23X Optical Zoom
- 1/1.8" STARVIS Sensor
- 4K Viewing Experience

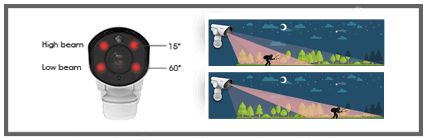

- Smart IR II with 180m IR Distance
- 90fps High Frame Rate
- FEATURES
- MODELS
- ACCESSORIES
- DOWNLOAD
- Milesight CCTV
- PTZ Series
- AI 12X/20X/23X PTZ Bullet Plus Camera
VCA 2.0: Precision That
Redefines Security
Designed with security at its core, Milesight camera features VCA 2.0 technology, powered by the enhanced chip. VCA 2.0 significantly reduces false alarms rate, ensuring reliable, precise detection while minimizing disturbances and potential losses.

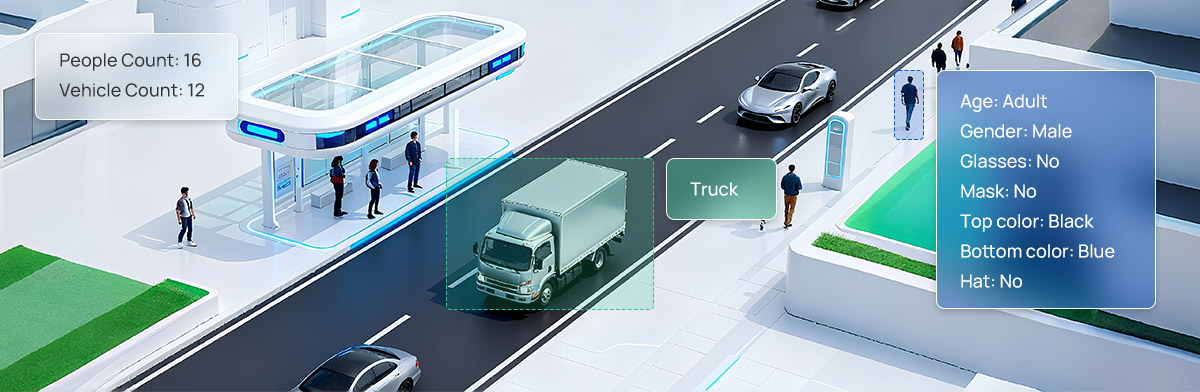

Discover Milesight AI Analytics TechnologyGenerate Metadata with MSense Technology
Edge AI counts people/vehicles and detects face attributes (age, gender, glasses, mask, cap), clothing colors (top/bottom), and vehicle
types. All events and metadata stream to your backend, delivering insights that optimize operations and security management.

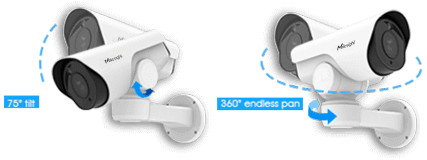

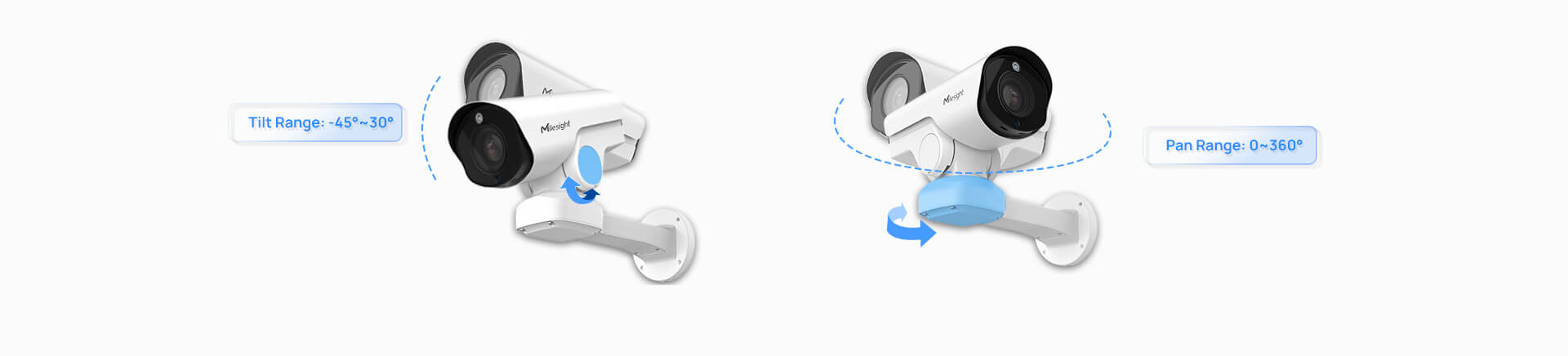

Flexible Pan, Tilt and Zoom Tasks
Milesight PTZ Camera offers the ability to fast and precisely rotate on a 360° pan and 75° tilt to survey a wide range of territory. The user can easily set up to 300 preset positions and up to 8 patrol routes and maximum 4 patterns of the manual operation paths. Moreover, the user is able to schedule specific PTZ tasks by date and time.
12X/20X/23X Optical Zoom
The 12X/20X/23X Optical Zoom can zoom up to distant objects while still maintaining the clarity, delivering high quality video over the entire zoom image.

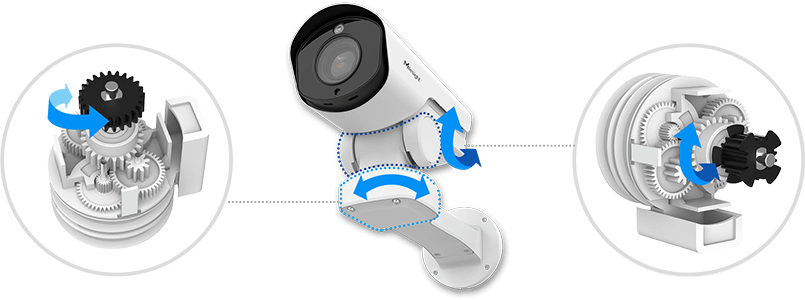

New-generation PTZ Motor
New generation motor with sophisticate planetary gear drive design is adopted to ensure a steady turn, which guarantees its robust performance, providing a reliable pan & tilt operation.

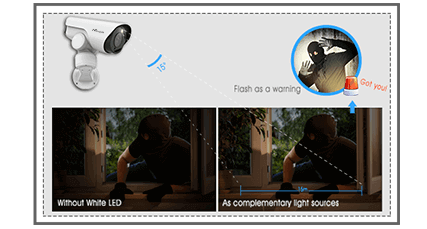

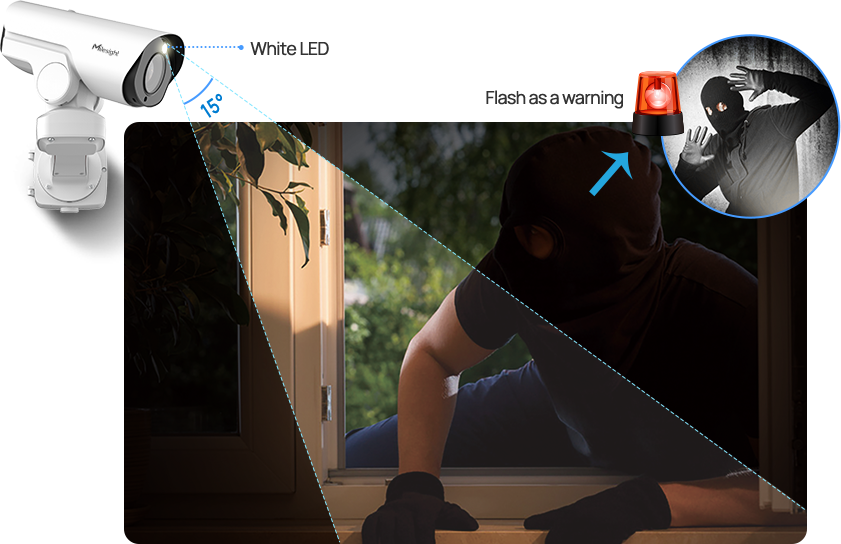

Intelligent White LED
With the 15° viewing angle, the White LED can be turned on as a supplementary light source and warning signal at night. Its brightness can be adjusted on the basis of the zoom level to satisfy the actual project requirement.
PTZ Auto Tracking
Creating a 3D model within the monitoring range, Milesight PTZ cameras mark and track the object after target detection and selection to ensure that the object maintains a fixed proportion for superb tracking views by automatically controlling the direction and zoom-level.

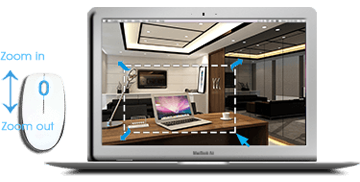

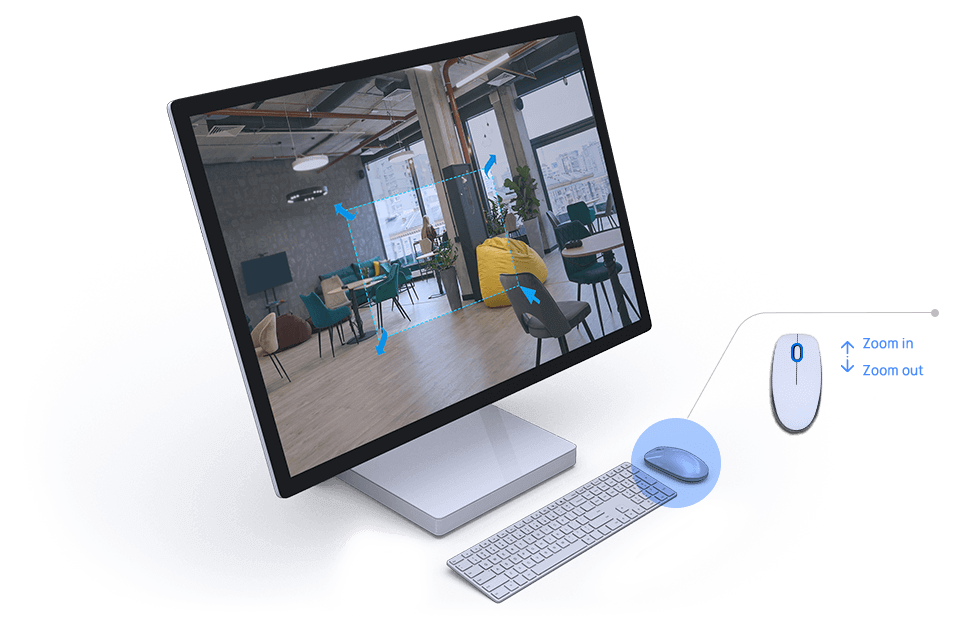

3D Positioning
With a comprehensive operating system, Milesight PTZ cameras can be easily controlled. To monitor the region of interest for more details, operators can adjust the angle of cameras' view and zoom ratio by just using a mouse.

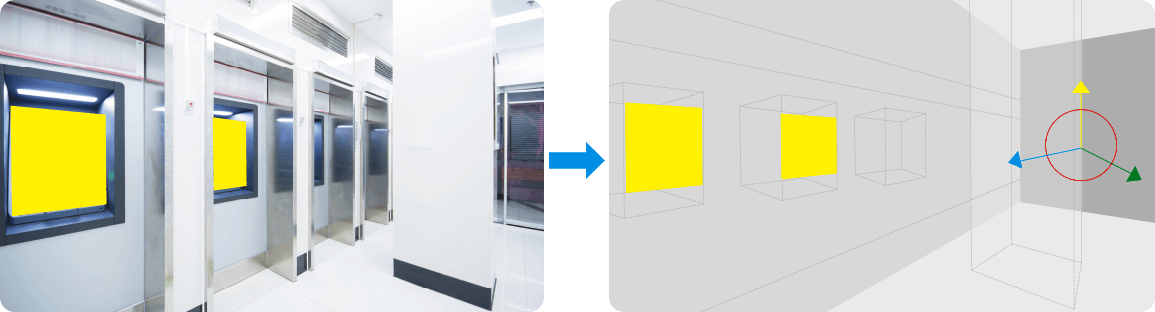

PTZ Privacy Mask
Adopting anonymization and limitation functionality for further privacy protection, Milesight supports 3D Privacy Mask in all Al PTZ cameras with their coordinate system, which keeps the specified area masked from monitoring through manual operations no matter how cameras pan/tilt/zoom.

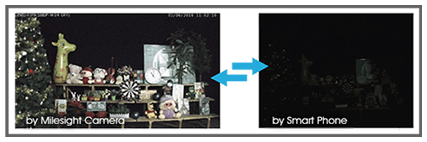

Superior Image Quality
With advanced image processing algorithms and advanced image sensor, it achieves excellent image performance, even in challenging lighting conditions. Its 0.002Lux Ultra Low-light, 4K Viewing Experience, and 90fps High Frame Rate features make it well-suited for various special circumstances.

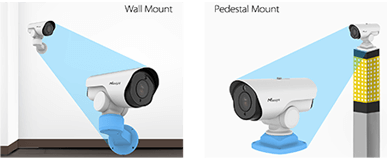

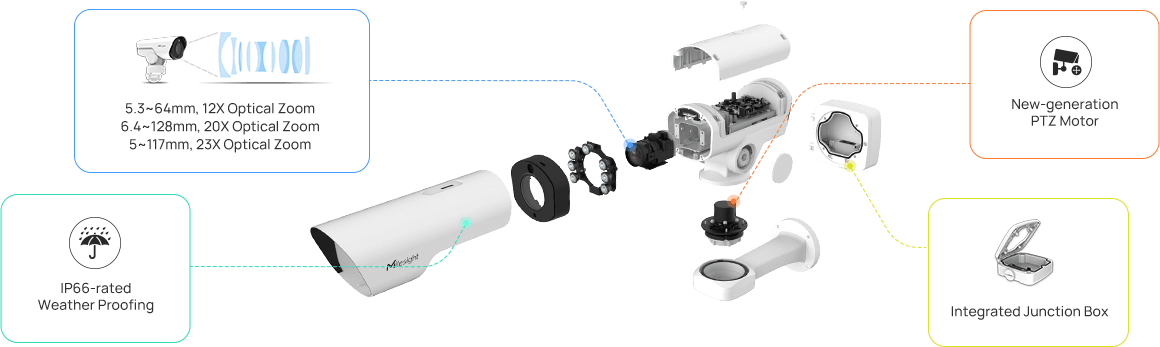

Easy Deployment and Compact Structure
To meet different needs of customers, AI 12X/20X/23X PTZ Bullet Plus Camera provides a wide selection of auto-focus lenses. Furthermore, the new generation PTZ motor & IP66-rated weather proofing ensure its rugged performance, and the integrated junction box makes it easy to install, even in complex environments.
SIP/VoIP Support
Milesight Network Camera features industry leading SIP/VoIP function and video streaming for mobile phones and video phones.
Related Products
Specifications
- MS-C2967-X12R(T)PE
- MS-C2967-X23R(T)PE
- MS-C2967-X16RPG1
- MS-C2967-X25RPG1
- MS-C4467-X20RPE
- MS-C5367-X12PE
- MS-C5367-X23PE
- MS-C5367-X16RPG1
- MS-C5367-X25RPG1
- MS-C8267-X20PE
| Camera | |
|---|---|
| Model | MS-C2967-X12R(T)PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.6 B/W: 0Lux with IR on |

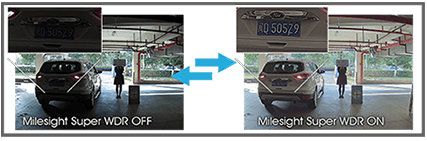

| WDR | 140dB Super WDR (Super WDR Pro is Optional for T Series) |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 82.5~996m O: 32.5~392m R: 16~196m l: 8~98m |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°~H4.8°/D69°~D5.7°/V36°~V2.8° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection,External Input , External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, Watermark |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | Min.: 10.8W (DC 12V), 12.7W(PoE) Max.: 21.4W (DC 12V), 25.3W(PoE) |
| Weight | Approx. 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C2967-X23R(T)PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.005Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 140dB Super WDR (Super WDR Pro is optional for T Series) |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 85.5~1710m O: 34~673m R: 17~337m l: 8.5~168m |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H60°~H2.8°/D69°~D3.2°/V35°~V1.5° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 |
| Primary Stream | 60Hz: 90fps@(1920x1080)(Optional for T Series),60fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 90fps@(1920x1080)(Optional for T Series),50fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 50fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection & Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection,External Input , External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | Min.: 10.5W (DC 12V), 12.7W(PoE) Max.: 20.4W (DC 12V), 21.7W(PoE) |
| Weight | Approx. 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C4467-X20RPE |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.002Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 120~2110m O: 47~831m R: 23.5~415m l: 12~208m |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3.4°/D67°~D3.9°/V37°~V1.9° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Max. Image Resolution | 2688x1520 |
| Primary Stream | 60Hz: 60fps@(2688x1520,2304x1296, 1920x1080, 1280x720) 50Hz: 50fps@(2688x1520, 2304x1296, 1920x1080, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1280x720, 704x576, 640x480, 640x360, 320x240), 60Hz: 15fps@(1920x1080) 50Hz: 25fps@(1280x720, 704x576, 640x480, 640x360, 320x240), 50Hz: 15fps@(1920x1080) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | Min.: 11.5W (DC 12V), 13.8W(PoE) Max.: 22W (DC 12V), 24W(PoE) |
| Weight | Approx. 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C5367-X12PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 110~1330m O: 43~522m R: 21.5~261m l: 11~131m |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5.3~64mm, 12X Optical Zoom |
| Zoom Speed | Approx 4s (Wide-Tele) |
| Field of View | H61°~H4.8°/D69°~D5.7°/V36°~V2.8° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.6~F2.8 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944), 30fps@(2048x1536), 30fps@(1920x1080, 1280x960, 1280x720, 704x576) 50Hz: 25fps@(2592x1944), 25fps@(2048x1536), 25fps@(1920x1080, 1280x960, 1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Input , External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record , SMTP Upload Record , SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | Min.: 10.8W (DC 12V), 14W(PoE) Max.: 20W (DC 12V), 21.7W(PoE) |
| Weight | Approx. 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C5367-X23PE |
| Image Sensor | 1/2.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.5 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 114~2280m O: 45~898m R: 22.5~449m l: 11~224m |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 5~117mm, 23X Optical Zoom |
| Zoom Speed | Approx 6s (Wide-Tele) |
| Field of View | H55°~H2.8°/D68°~D3.2°/V42°~V1.5° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/1500mm (Wide/Tele) |
| Aperture | F1.5~F3.5 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Max. Image Resolution | 2592x1944 |
| Primary Stream | 60Hz: 30fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 60fps@(1920x1080, 1280x960, 1280x720) 50Hz: 25fps@(2592x1944, 2592x1520), 45fps@(2048x1536), 50fps@(1920x1080, 1280x960, 1280x720) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240, 320x192, 320x180) |
| Tertiary Stream | 60Hz: 30fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(2048x1536, 1920x1080, 1600x1200, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots;The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |
| Basic Event | Motion Detection, Tamper Detection, External Input , External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record , SMTP Upload Record , SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | Min.: 11.2W (DC 12V), 13.3W(PoE) Max.: 19.7W (DC 12V), 25W(PoE) |
| Weight | Approx. 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C8267-X20PE |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.6 B/W: 0Lux with IR on |
| WDR | 120dB Super WDR |
| Shutter Time | 1/100000s~1s |
| DORI Distance | D: 152~2670m O: 59.5~1050m R: 30~526m l: 15~263m |
| IR Distance | Up to 180m |
| Digital Zoom | 16X |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| S/N | >55dB |
| Lens | |
| Focal Length | 6.4~128mm, 20X Optical Zoom |
| Zoom Speed | Approx 5s (Wide-Tele) |
| Field of View | H60°~H3.7°/D67°~D4.2°/V37°~V2.1° |
| Focus Control | Auto/Semi-Auto/Manual |
| Minimum Working Distance | 1000/2000mm (Wide/Tele) |
| Aperture | F1.6~F4.0 |
| Iris Control | Auto |
| PTZ | |
| Pan Range/Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range/Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Proportional Zoom | Support |
| Preset Quantity | 300 |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Auto Tracking | Support |
| Power Off Memory | Support |
| Other Function | Auto Scan, Auto Home, Preset Freezing, 3D Positioning, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 3840x2160 |
| Primary Stream | 60Hz: 30fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) 50Hz: 25fps@(3840x2160,3072x2048, 2592x1944,2592x1520, 2048x1536,1920x1080, 1280x960,1280x720, 704x576) |
| Secondary Stream | 60Hz: 30fps@(704x576, 640x480, 640x360, 352x288, 320x240) 50Hz: 25fps@(704x576, 640x480, 640x360, 352x288, 320x240) |
| Tertiary Stream | 60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) 50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360, 320x240) |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264/MJPEG |
| Video Bit Rate | 16Kbps~16Mbps(CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Brightness/Contrast/Saturation/Sharpness |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, Defog, AWB, Deblur, Anti-flicker, Corridor Mode |
| Interface | |
| Ethernet | 1*RJ45 10M/100M Ethernet Port |
| Audio I/O | 1/1 (Standard) |
| Alarm I/O | 1/1 (Standard) |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL, TLS 1.2 |
| Audio | |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Audio Sampling Rate | 8/16/32/44.1/48KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Simultaneously detect up to 50 targets and capture humans and vehicles in real time. Recognize attributes including Upper and Lower Clothing Color, Hat, and Vehicle Types (Bicycle, Car, Motorcycle, Bus, Truck, E-scooter). |
| Face Detection&Face Attribute Recognition | Detect and capture faces, get real-time snapshots; The attributes include Age, Gender, Glasses, Mask and Cap; Support Faces Privacy Mode, the detected faces in the face detection area will be mosaic automatically. |
| Object Counting & Report | Count the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas |
| Event | |

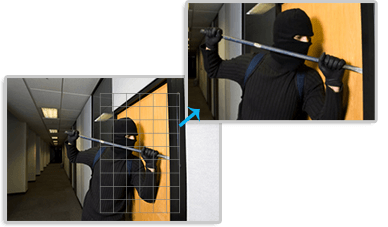

| Basic Event | Motion Detection, Tamper Detection, External Input, External Output, Audio Alarm, etc. |
| Exception | Network Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card |
| Event Action | FTP Upload Record, SMTP Upload Record, SD Card Record, Snapshot, External Output, Play Audio, SIP Phone, White LED, PTZ Motion, HTTP Notification, etc. |
| System | |
| Watermark | Support |
| Storage | Support microSD/SDHC/SDXC Card Local Storage, up to 1TB |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, API |
| General | |
| Working Temperature | -40℃~60℃ |
| Working Humidity | 0~90%(Non-condensing) |
| Power Supply | PoE (802.3at) / DC 12V/3A±10% |
| Power Consumption | Min.: 12.5W (DC 12V), 15W(PoE) Max.: 21W (DC 12V), 25W(PoE) |
| Weight | Approx. 2.9Kg |
| Dimensions | 110mmX337mmX220mm |
| Warranty | 2 Years / 3 Years (Optional) |
| Certifications | |
| EMC | CE-EMC (EN 55032, EN 55035), FCC (PART 15B) |
| Safety | CE-LVD (EN IEC 62368-1) |
| Environment | CE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU) |
| Protection | IP66 |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C2967-X16RPG1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.009Lux@F1.7, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D:79.97m-1130.63m; O:31.99m-452.25m; R:15.99m-226.13m; I:8m-113.06m |
| S/N | >55dB |
| Lens | |
| Lens | 5~80mm, 16X Optical Zoom |
| Zoom Speed | Approx 5s(Wide-Tele by Manual) |
| Field of View | D61.2°~D4.9°/H54.4°~H4.4°/V31.8°~V2.5° |
| Optical Zoom | 16X |
| Digital Zoom | 8X |
| Minimum Working Distance | 150/1500mm (Wide/Tele) |
| Focus Control | Auto/Semi-Auto/Manual |
| Aperture | F1.7 ~ F2.8 |
| Iris Type | Auto/Manual |
| Illuminator | |
| IR Distance | Up to 180 m |
| IR Wave Length | 850nm |
| PTZ | |
| Pan Range / Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range / Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Preset Quantity | 300 |
| Preset Freezing | Support |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| PTZ Status Display | Support |
| Scheduled Task | Auto Scan,Preset,Patrol,Pattern,Self Check,Tilt Scan,Panorama Scan |
| PT Auto-Correction | Supports gyroscope detection and self-calibration based on schedules and Patrol times. |
| Other Function | 3D Positioning, Auto Tracking, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 (16:9) |
| Primary Stream | 60Hz: 60fps@(1920 x 1080, 1280 x 720) 50Hz: 50fps@(1920 x 1080, 1280 x 720) |
| Secondary Stream | 60Hz: 60fps@(704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 240) 50Hz: 50fps@(704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 240) |
| Tertiary Stream | 60Hz: 30fps@(1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 320 x 240) 50Hz: 25fps@(1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 320 x 240) |
| Quaternary Stream | 60Hz: 30fps@(1920 x 1080, 704 x 576, 640 x 480, 640 x 360) 50Hz: 25fps@(1920 x 1080, 704 x 576, 640 x 480, 640 x 360) |
| Video Compression | Main stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Sub-stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Third stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Quaternary Stream: H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Saturation/Brightness/Contrast/Sharpness |
| Defog | Digital defog |
| Image Stabilization | EIS (enhanced by gyroscope to improve performance) |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Regional Exposure | Support |
| Regional Focus | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP,SRTP,RTSP, RTSPS,RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Interface | |
| Ethernet | 1 RJ45 10M/100M Ethernet Port |
| Alarm I/O | 2 inputs, 2 outputs |
| Audio I/O | 1 input, 1 output |
| RS485 | 1 RS485, Half duplex, Protocols: Pelco-P, Pelco-D, MS-Solar Power(proprietary), OSDP, NMEA - 0183 |
| Audio | |
| Audio Compression | G.711-ULaw/G.711-ALaw/AAC LC/G.722/G.726 |
| Audio Sampling Rate | G.711-ULaw/G.711-ALaw/AAC LC : 8/16/32/44.1/48KHz G.722: 16KHz / G.726: 8KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 3.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Supports simultaneous detection of up to 50 targets; real-time capture of humans and vehicles. Recognizes attributes: upper/lower clothing color, hat, vehicle type (bicycle, car, motorcycle, bus, truck, e-scooter). |
| Face Detection&Face Attribute Recognition | Supports real-time face detection and snapshot. Recognizes face attributes: age, gender, glasses, mask, cap. |
| Object Counting & Report | Supports line crossing counting for humans and vehicles; regional people counting for up to 4 areas. |
| PPE Detection | Supports detection of safety hat and reflective vest usage; alarm is triggered for non-compliance. |
| Privacy Protection | Supports automatic mosaic overlay for faces and human bodies. Supported on main/sub stream; compatible with H.265/H.264. |
| Fall Detection | Supports detection of human falls; alarm trigger. |
| Violence Detection | Supports detection of violent behavior; alarm trigger. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, Snapshot, SMTP Upload Record, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| On-board Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| Reset Button | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, Milesight API |
| Power Meter | Supports display of real-time, average, max power, and supply type. Supports power usage reports (30-min, 1h, 1d, 1 week, monthly). |
| Battery System | Battery status display and alarm (requires Milesight Solar Power System) |
| Location | Support configuration of camera orientation and GPS location information. |
| General | |
| Working Temperature | -30°C to 70°C (-22°F to 158°F) |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE(802.3at) Class4 DC12V±15% |
| Power Consumption | 24 Hour Average: 12.19W (DC), 14.2W (PoE+) Min.: 8.15W (DC), 9.8W (PoE+) Max.: 17.54W (DC), 21W (PoE+) |

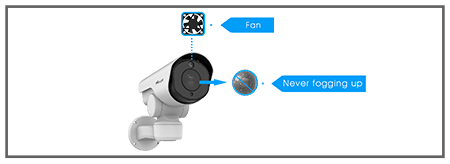

| Heating | Built-in heating glass for effective defog; Max. 1.6W (DC), 2.1W (PoE+) |
| Weight | Wall Mount Version: Net Weight: 2.90kg (6.39 lb) Gross Weight: 3.65kg (8.05 lb) Pedestal Mount Version: Net Weight: 2.80kg (6.17 lb) Gross Weight: 3.55kg (7.83 lb) |
| Dimensions | Wall Mount Version: 110mmX337mmX220mm Pedestal Mount Version: 248.8mm×125mm×202.3mm |
| Warranty | 2 Years/3 Years(Optional) |
| Certifications | |
| EMC | CE-EMC(EN IEC 61000-3-2:2019+A2:2024,EN 61000-3-3:2013+A2:2021+AC:2022-01,EN 55032:2015+A1:2020,EN 55035:2017+A11:2020) FCC 47 CFR Part 15 Subpart B |
| Safety | CE-LVD (EN IEC 62368-1:2024 + A11:2024) |
| Environment | CE RoHS: Directive 2011/65/EU amended by (EU) 2015/863 |
| Protection | IP66 (IEC 60529:2019) |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C2967-X25RPG1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.007Lux@F1.5, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D:68.94m-1613.21m; O:27.58m-645.29m; R:13.79m-322.64m; I:6.89m-161.32m |
| S/N | >55dB |
| Lens | |
| Lens | 4.8~120mm, 25X Optical Zoom |
| Zoom Speed | Approx 4.8s(Wide-Tele by Manual) |
| Field of View | D65.8°~D4.3°/H59.5°~3.8°/V33.8°~V1.6° |
| Optical Zoom | 25X |
| Digital Zoom | 8X |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Focus Control | Auto/Semi-Auto/Manual |
| Aperture | F1.5 ~ F3.5 |
| Iris Type | Auto/Manual |
| Illuminator | |
| IR Distance | Up to 180 m |
| IR Wave Length | 850nm |
| PTZ | |
| Pan Range / Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range / Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Preset Quantity | 300 |
| Preset Freezing | Support |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| PTZ Status Display | Support |
| Scheduled Task | Auto Scan,Preset,Patrol,Pattern,Self Check,Tilt Scan,Panorama Scan |
| PT Auto-Correction | Supports gyroscope detection and self-calibration based on schedules and Patrol times. |
| Other Function | 3D Positioning, Auto Tracking, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 1920x1080 (16:9) |
| Primary Stream | 60Hz: 60fps@(1920 x 1080, 1280 x 720) 50Hz: 50fps@(1920 x 1080, 1280 x 720) |
| Secondary Stream | 60Hz: 60fps@(704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 240) 50Hz: 50fps@(704 x 576, 640 x 480, 640 x 360, 352 x 288, 320 x 240) |
| Tertiary Stream | 60Hz: 30fps@(1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 320 x 240) 50Hz: 25fps@(1920 x 1080, 1280 x 720, 704 x 576, 640 x 480, 320 x 240) |
| Quaternary Stream | 60Hz: 30fps@(1920 x 1080, 704 x 576, 640 x 480, 640 x 360) 50Hz: 25fps@(1920 x 1080, 704 x 576, 640 x 480, 640 x 360) |
| Video Compression | Main stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Sub-stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Third stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Quaternary Stream: H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Saturation/Brightness/Contrast/Sharpness |
| Defog | Digital defog |
| Image Stabilization | EIS (enhanced by gyroscope to improve performance) |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Regional Exposure | Support |
| Regional Focus | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP,SRTP,RTSP, RTSPS,RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Interface | |
| Ethernet | 1 RJ45 10M/100M Ethernet Port |
| Alarm I/O | 2 inputs, 2 outputs |
| Audio I/O | 1 input, 1 output |
| RS485 | 1 RS485, Half duplex, Protocols: Pelco-P, Pelco-D, MS-Solar Power(proprietary), OSDP, NMEA - 0183 |
| Audio | |
| Audio Compression | G.711-ULaw/G.711-ALaw/AAC LC/G.722/G.726 |
| Audio Sampling Rate | G.711-ULaw/G.711-ALaw/AAC LC : 8/16/32/44.1/48KHz G.722: 16KHz / G.726: 8KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 3.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Supports simultaneous detection of up to 50 targets; real-time capture of humans and vehicles. Recognizes attributes: upper/lower clothing color, hat, vehicle type (bicycle, car, motorcycle, bus, truck, e-scooter). |
| Face Detection&Face Attribute Recognition | Supports real-time face detection and snapshot. Recognizes face attributes: age, gender, glasses, mask, cap. |
| Object Counting & Report | Supports line crossing counting for humans and vehicles; regional people counting for up to 4 areas. |
| PPE Detection | Supports detection of safety hat and reflective vest usage; alarm is triggered for non-compliance. |
| Privacy Protection | Supports automatic mosaic overlay for faces and human bodies. Supported on main/sub stream; compatible with H.265/H.264. |
| Fall Detection | Supports detection of human falls; alarm trigger. |
| Violence Detection | Supports detection of violent behavior; alarm trigger. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, Snapshot, SMTP Upload Record, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| On-board Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| Reset Button | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, Milesight API |
| Power Meter | Supports display of real-time, average, max power, and supply type. Supports power usage reports (30-min, 1h, 1d, 1 week, monthly). |
| Battery System | Battery status display and alarm (requires Milesight Solar Power System) |
| Location | Support configuration of camera orientation and GPS location information. |
| General | |
| Working Temperature | -30°C to 70°C (-22°F to 158°F) |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE(802.3at) Class4 DC12V±15% |
| Power Consumption | 24 Hour Average: 12.19W (DC), 14.2W (PoE+) Min.: 8.15W (DC), 9.8W (PoE+) Max.: 17.54W (DC), 21W (PoE+) |
| Heating | Built-in heating glass for effective defog; Max. 1.6W (DC), 2.1W (PoE+) |
| Weight | Wall Mount Version: Net Weight: 2.90kg (6.39 lb) Gross Weight: 3.65kg (8.05 lb) Pedestal Mount Version: Net Weight: 2.80kg (6.17 lb) Gross Weight: 3.55kg (7.83 lb) |
| Dimensions | Wall Mount Version: 110mmX337mmX220mm Pedestal Mount Version: 248.8mm×125mm×202.3mm |
| Warranty | 2 Years/3 Years(Optional) |
| Certifications | |
| EMC | CE-EMC(EN IEC 61000-3-2:2019+A2:2024,EN 61000-3-3:2013+A2:2021+AC:2022-01,EN 55032:2015+A1:2020,EN 55035:2017+A11:2020) FCC 47 CFR Part 15 Subpart B |
| Safety | CE-LVD (EN IEC 62368-1:2024 + A11:2024) |
| Environment | CE RoHS: Directive 2011/65/EU amended by (EU) 2015/863 |
| Protection | IP66 (IEC 60529:2019) |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C5367-X16RPG1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.01Lux@F1.7, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D:107.96m-1526.35m; O:43.18m-610.54m; R:21.59m-305.27m; I:10.8m-152.63m |
| S/N | >55dB |
| Lens | |
| Lens | 5~80mm, 16X Optical Zoom |
| Zoom Speed | Approx 5s(Wide-Tele by Manual) |
| Field of View | D61.5°~D5.0°/H51.5°~H4.1°/V39.2°~V3.0° |
| Optical Zoom | 16X |
| Digital Zoom | 8X |
| Minimum Working Distance | 150/1500mm (Wide/Tele) |
| Focus Control | Auto/Semi-Auto/Manual |
| Aperture | F1.7 ~ F2.8 |
| Iris Type | Auto/Manual |
| Illuminator | |
| IR Distance | Up to 180 m |
| IR Wave Length | 850nm |
| PTZ | |
| Pan Range / Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range / Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Preset Quantity | 300 |
| Preset Freezing | Support |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| PTZ Status Display | Support |
| Scheduled Task | Auto Scan,Preset,Patrol,Pattern,Self Check,Tilt Scan,Panorama Scan |
| PT Auto-Correction | Supports gyroscope detection and self-calibration based on schedules and Patrol times. |
| Other Function | 3D Positioning, Auto Tracking, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 2592x1944(4:3) |
| Primary Stream | 60Hz: 60fps@(2592×1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720) 50Hz: 50fps@(2592×1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720) |
| Video | Primary Stream |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(2048×1536, 1920×1080, 1600×1200, 1280×720, 704×576, 640×480, 640×360) 50Hz: 25fps@(2048×1536, 1920×1080, 1600×1200, 1280×720, 704×576, 640×480, 640×360) |
| Quaternary Stream | 60Hz: 30fps@(1280×720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1280×720, 704x576, 640x480, 640x360) |
| Video Compression | Main stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Sub-stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Third stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Quaternary Stream: H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Saturation/Brightness/Contrast/Sharpness |
| Defog | Digital defog |
| Image Stabilization | EIS (enhanced by gyroscope to improve performance) |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Regional Exposure | Support |
| Regional Focus | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP,SRTP,RTSP, RTSPS,RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Interface | |
| Ethernet | 1 RJ45 10M/100M Ethernet Port |
| Alarm I/O | 2 inputs, 2 outputs |
| Audio I/O | 1 input, 1 output |
| RS485 | 1 RS485, Half duplex, Protocols: Pelco-P, Pelco-D, MS-Solar Power(proprietary), OSDP, NMEA - 0183 |
| Audio | |
| Audio Compression | G.711-ULaw/G.711-ALaw/AAC LC/G.722/G.726 |
| Audio Sampling Rate | G.711-ULaw/G.711-ALaw/AAC LC : 8/16/32/44.1/48KHz G.722: 16KHz / G.726: 8KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 3.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Supports simultaneous detection of up to 50 targets; real-time capture of humans and vehicles. Recognizes attributes: upper/lower clothing color, hat, vehicle type (bicycle, car, motorcycle, bus, truck, e-scooter). |
| Face Detection&Face Attribute Recognition | Supports real-time face detection and snapshot. Recognizes face attributes: age, gender, glasses, mask, cap. |
| Object Counting & Report | Supports line crossing counting for humans and vehicles; regional people counting for up to 4 areas. |
| PPE Detection | Supports detection of safety hat and reflective vest usage; alarm is triggered for non-compliance. |
| Privacy Protection | Supports automatic mosaic overlay for faces and human bodies. Supported on main/sub stream; compatible with H.265/H.264. |
| Fall Detection | Supports detection of human falls; alarm trigger. |
| Violence Detection | Supports detection of violent behavior; alarm trigger. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, Snapshot, SMTP Upload Record, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| On-board Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| Reset Button | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, Milesight API |
| Power Meter | Supports display of real-time, average, max power, and supply type. Supports power usage reports (30-min, 1h, 1d, 1 week, monthly). |
| Battery System | Battery status display and alarm (requires Milesight Solar Power System) |
| Location | Support configuration of camera orientation and GPS location information. |
| General | |
| Working Temperature | -30°C to 70°C (-22°F to 158°F) |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE(802.3at) Class4 DC12V±15% |
| Power Consumption | 24 Hour Average: 11.1W (DC), 12.75W (PoE+) Min.: 8.4W (DC), 10W (PoE+) Max.: 16.84W (DC), 20.3W (PoE+) |
| Heating | Built-in heating glass for effective defog; Max. 1.6W (DC), 2.1W (PoE+) |
| Weight | Wall Mount Version: Net Weight: 2.90kg (6.39 lb) Gross Weight: 3.65kg (8.05 lb) Pedestal Mount Version: Net Weight: 2.80kg (6.17 lb) Gross Weight: 3.55kg (7.83 lb) |
| Dimensions | Wall Mount Version: 110mmX337mmX220mm Pedestal Mount Version: 248.8mm×125mm×202.3mm |
| Warranty | 2 Years/3 Years(Optional) |
| Certifications | |
| EMC | CE-EMC(EN IEC 61000-3-2:2019+A2:2024,EN 61000-3-3:2013+A2:2021+AC:2022-01,EN 55032:2015+A1:2020,EN 55035:2017+A11:2020) FCC 47 CFR Part 15 Subpart B |
| Safety | CE-LVD (EN IEC 62368-1:2024 + A11:2024) |
| Environment | CE RoHS: Directive 2011/65/EU amended by (EU) 2015/863 |
| Protection | IP66 (IEC 60529:2019) |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
| Camera | |
|---|---|
| Model | MS-C5367-X25RPG1 |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Min. Illumination | Color: 0.008Lux@F1.5, B/W: 0Lux with IR on |
| WDR | 140dB Super WDR |
| Shutter Time | 1/100000s~1s |
| Day/Night Mode | Day/Night/Auto/Customize/Schedule |
| DORI Distance | D: 93.07m-2177.84m; O:37.23m-871.14m; R:18.61m -435.57m; I:9.31m-217.78m |
| S/N | >55dB |
| Lens | |
| Lens | 4.8~120mm, 25X Optical Zoom |
| Zoom Speed | Approx 4.8s(Wide-Tele by Manual) |
| Field of View | D68.2°~D3.2°/H54.2°~H3.4°/V41.4°~V2.5° |
| Optical Zoom | 25X |
| Digital Zoom | 8X |
| Minimum Working Distance | 100/1500mm (Wide/Tele) |
| Focus Control | Auto/Semi-Auto/Manual |
| Aperture | F1.5 ~ F3.5 |
| Iris Type | Auto/Manual |
| Illuminator | |
| IR Distance | Up to 180 m |
| IR Wave Length | 850nm |
| PTZ | |
| Pan Range / Pan Speed | 360°endless / Pan Manual Speed: 0.1°~50°/s, Pan Preset Speed: 50°/s |
| Tilt Range / Tilt Speed | -45°~30° / Tilt Manual Speed: 0.1°~30°/s, Tilt Preset Speed: 30°/s |
| Preset Quantity | 300 |
| Preset Freezing | Support |
| Patrol | 8 Patrols, up to 48 presets each patrol |
| Pattern | 4 Patterns |
| Power Off Memory | Support |
| PTZ Status Display | Support |
| Scheduled Task | Auto Scan,Preset,Patrol,Pattern,Self Check,Tilt Scan,Panorama Scan |
| PT Auto-Correction | Supports gyroscope detection and self-calibration based on schedules and Patrol times. |
| Other Function | 3D Positioning, Auto Tracking, PTZ Limits, Initial Position |
| Video | |
| Max. Image Resolution | 2592x1944(4:3) |
| Primary Stream | 60Hz: 60fps@(2592×1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720) 50Hz: 50fps@(2592×1944, 2592×1520, 2048×1536, 1920×1080, 1280×960, 1280×720) |
| Secondary Stream | 60Hz: 60fps@(704x576, 640x480, 640x360) 50Hz: 50fps@(704x576, 640x480, 640x360) |
| Tertiary Stream | 60Hz: 30fps@(2048×1536, 1920×1080, 1600×1200, 1280×720, 704×576, 640×480, 640×360) 50Hz: 25fps@(2048×1536, 1920×1080, 1600×1200, 1280×720, 704×576, 640×480, 640×360) |
| Quaternary Stream | 60Hz: 30fps@(1280×720, 704x576, 640x480, 640x360) 50Hz: 25fps@(1280×720, 704x576, 640x480, 640x360) |
| Video Compression | Main stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Sub-stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Third stream: H.265+/H.265(HEVC)/H.264+/H.264/MJPEG Quaternary Stream: H.265+/H.265(HEVC)/H.264+/H.264 |
| Video Bit Rate | 16Kbps~16Mbps (CBR/VBR Adjustable) |
| Image | |
| Privacy Masking | Up to 8 Areas (Mask Area and Mosaic Area are optional) |
| ROI | Up to 8 areas |
| Image Setting | Saturation/Brightness/Contrast/Sharpness |
| Defog | Digital defog |
| Image Stabilization | EIS (enhanced by gyroscope to improve performance) |
| Image Enhancement | BLC, HLC, 2D DNR, 3D DNR, AGC, AWB, Deblur, Anti-flicker, Corridor Mode, LDC |
| Regional Exposure | Support |
| Regional Focus | Support |
| Network | |
| Network Storage | NAS(Support NFS, SMB/CIFS), ANR |
| Protocol | IPv4/IPv6, ARP, TCP, UDP, RTCP, RTP,SRTP,RTSP, RTSPS,RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, VPN, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2 |
| Interface | |
| Ethernet | 1 RJ45 10M/100M Ethernet Port |
| Alarm I/O | 2 inputs, 2 outputs |
| Audio I/O | 1 input, 1 output |
| RS485 | 1 RS485, Half duplex, Protocols: Pelco-P, Pelco-D, MS-Solar Power(proprietary), OSDP, NMEA - 0183 |
| Audio | |
| Audio Compression | G.711-ULaw/G.711-ALaw/AAC LC/G.722/G.726 |
| Audio Sampling Rate | G.711-ULaw/G.711-ALaw/AAC LC : 8/16/32/44.1/48KHz G.722: 16KHz / G.726: 8KHz |
| Audio Bit Rate | 16~256kbps |
| Intelligent Analytics | |
| Video Analysis | VCA 3.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed |
| Attribute Extraction | Supports simultaneous detection of up to 50 targets; real-time capture of humans and vehicles. Recognizes attributes: upper/lower clothing color, hat, vehicle type (bicycle, car, motorcycle, bus, truck, e-scooter). |
| Face Detection&Face Attribute Recognition | Supports real-time face detection and snapshot. Recognizes face attributes: age, gender, glasses, mask, cap. |
| Object Counting & Report | Supports line crossing counting for humans and vehicles; regional people counting for up to 4 areas. |
| PPE Detection | Supports detection of safety hat and reflective vest usage; alarm is triggered for non-compliance. |
| Privacy Protection | Supports automatic mosaic overlay for faces and human bodies. Supported on main/sub stream; compatible with H.265/H.264. |
| Fall Detection | Supports detection of human falls; alarm trigger. |
| Violence Detection | Supports detection of violent behavior; alarm trigger. |
| Event | |
| One-Click Disarm | Support |
| Basic Event | Motion Detection, Tamper Detection, Audio Alarm, External Input, External Output etc. |
| Exception | Network Disconnection, IP Address Conflict, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc. |
| Event Action | FTP Upload Record, Snapshot, SMTP Upload Record, SD Card Record, External Output, Play Audio, SIP Phone, HTTP Notification, etc. |
| System | |
| On-board Storage | Support Micro SD/SDHC/SDXC Card Local Storage, up to 1TB |
| Reset Button | Support |
| Watermark | Support |
| SIP/VoIP Support | Yes, Voice & Video-over-IP |
| System Compatibility | ONVIF Profile G & M & S & T, Milesight API |
| Power Meter | Supports display of real-time, average, max power, and supply type. Supports power usage reports (30-min, 1h, 1d, 1 week, monthly). |
| Battery System | Battery status display and alarm (requires Milesight Solar Power System) |
| Location | Support configuration of camera orientation and GPS location information. |
| General | |
| Working Temperature | -30°C to 70°C (-22°F to 158°F) |
| Working Humidity | 0~95% RH (Non-condensing) |
| Power Supply | PoE(802.3at) Class4 DC12V±15% |
| Power Consumption | 24 Hour Average: 12.49W (DC), 14.5W (PoE+) Min.: 8.65W (DC), 10.1W (PoE+) Max.: 17.56W (DC), 20.9W (PoE+) |
| Heating | Built-in heating glass for effective defog; Max. 1.6W (DC), 2.1W (PoE+) |
| Weight | Wall Mount Version: Net Weight: 2.90kg (6.39 lb) Gross Weight: 3.65kg (8.05 lb) Pedestal Mount Version: Net Weight: 2.80kg (6.17 lb) Gross Weight: 3.55kg (7.83 lb) |
| Dimensions | Wall Mount Version: 110mmX337mmX220mm Pedestal Mount Version: 248.8mm×125mm×202.3mm |
| Warranty | 2 Years/3 Years(Optional) |
| Certifications | |
| EMC | CE-EMC(EN IEC 61000-3-2:2019+A2:2024,EN 61000-3-3:2013+A2:2021+AC:2022-01,EN 55032:2015+A1:2020,EN 55035:2017+A11:2020) FCC 47 CFR Part 15 Subpart B |
| Safety | CE-LVD (EN IEC 62368-1:2024 + A11:2024) |
| Environment | CE RoHS: Directive 2011/65/EU amended by (EU) 2015/863 |
| Protection | IP66 (IEC 60529:2019) |
X - Magnification of the Lens
e.g.: 36X AF Lens
R - High Frame Rate (60fps)
P - PoE Supported
G - AI Platform
GX - Platform Upgrade
e.g.: G1 represents the first generation
A02 V2 Pole Mount
- Weight: 1kg
- Dimension: 180*138.5*47mm
- Installation Environment: For strapping cameras on poles between φ67–127 mm (2.6–5 inches) in diameter
A03 External Corner Bracket
- Weight: 900g
- Dimension: 180*152.5*76mm
- Installation Environment: For mounting cameras on an external corner
A62 Junction Box
- Weight: 510g
- Dimension: 134*126*40mm
- Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering
Technical Documents
Firmware
Technical Documents
- Milesight-AI-PTZ-Bullet-Plus-Network-Camera-NDAA-MS-C2967-X16RPG1-Datasheet-en
- Milesight-AI-PTZ-Bullet-Plus-Network-Camera-NDAA-MS-C2967-X25RPG1-Datasheet-en
- Milesight-AI-PTZ-Bullet-Plus-Network-Camera-NDAA-MS-C5367-X16RPG1-Datasheet-en
- Milesight-AI-PTZ-Bullet-Plus-Network-Camera-NDAA-MS-C5367-X25RPG1-Datasheet-en
- Milesight-PTZ-Series-Network-Camera-MS-CXXXX-PG1-User-Manual-en
- Milesight-AI-PTZ-Bullet-Plus-Network-Camera-Quick-Start-Guide-en
- Milesight-AI-PTZ-Bullet-Plus-Network-Camera-NDAA-MS-CXX67-PE-Datasheet-en
- Milesight-PTZ-Series-Network-Camera-MS-CXXXX-PE-User-Manual-en
- Milesight Technology Moment_Smart IR II Technology
- Milesight Technology Moment_White LED
- Milesight Technology Moment_Junction Box
Firmware
Applicable Model: MS-Cxxxx-xxE
Version: 61.8.0.5-r6
