Milesight Al TrueColor Dome
Network Camera

See in TrueColor, Stay On-Guard.

camera front small
camera front2 small
camera front3 small
  • 4/5/8MP
  • AI ISP & F1.0 Aperture & 1/1.8”Sensor
  • Smart Hybrid Light
  • Blue & Red Flashing Lights
  • VCA 2.0 & Object Counting & Face Capture & Heat Map
  • Digital Image Stabilization (DIS)
  • One Screwdriver Design
  • IP67 & IK10
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

Introducing Milesight
Q Series Camera

The Milesight Q Series Camera combines compact design with advanced features like TrueColor, On-Guard, VCA 2.0, and MSense. Offering exceptional performance in low-light conditions, it's the perfect choice for reliable, everyday security.

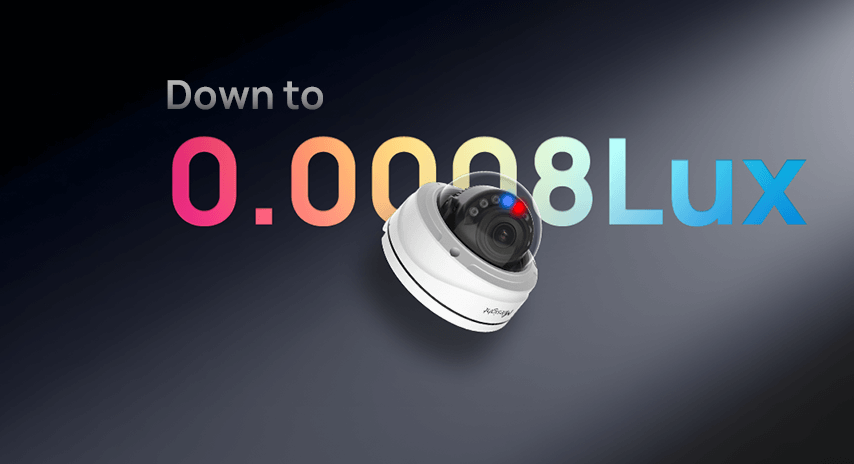

low light

Featuring a 1/1.8” Sensor and F1.0 Ultra-Large Aperture, Milesight TrueColor captures full-color images in complete dark, event without any supplement lights.

hybrid light

Adaptive illumination that balances visibility and minimal light disturbance.

ai isp

Self-developed technology intelligently reduces noise and refines details.

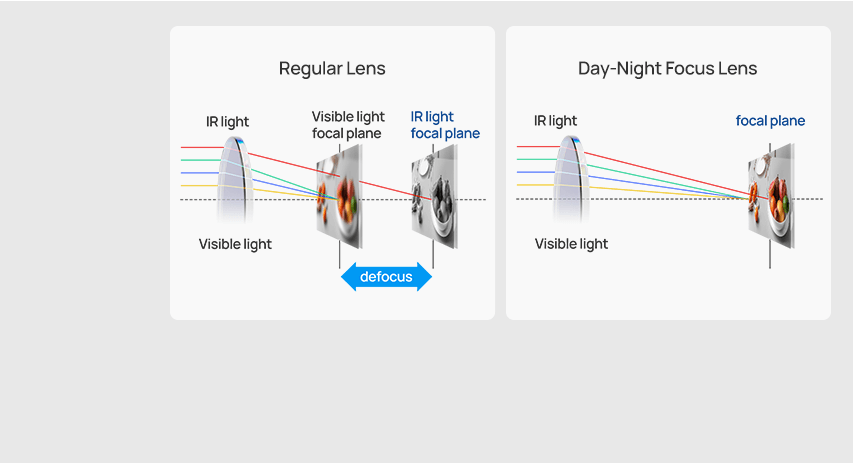

co focus lens

Equipped with Day-Night Focus Lens to ensure both IR and visible light, which have different wavelengths, are aligned on the same plane, guaranteeing sharp and clear imaging, even at night.

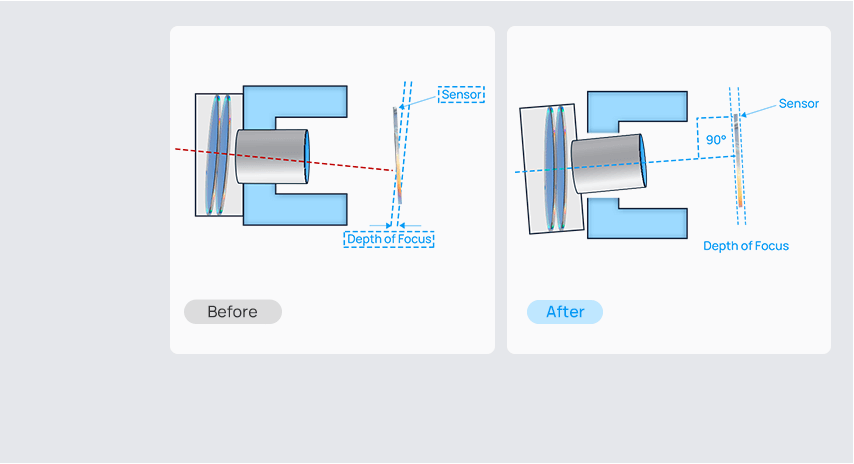

aa process

0.1 Micro-level lens alignment ensures precision alignment for lens and sensor.

Milesight TrueColor Technology: True Full-Color, As the Name Says

Milesight TrueColor Technology goes beyond Color+ to deliver true full-color imaging anytime

Hardware Enhancement
Smart Hybrid Light
AI ISP
Super Focus Lens in Day & Night
Industry-leading Precision AA Process

Intelligent Lighting for Real-Time Response

Milesight's Smart Hybrid Light offers adaptive lighting that adjusts from IR to full-color images based on your security needs. Seamlessly integrated with AI, it not only enhances visibility but also works with the camera's built-in red & blue lights to warn intruders.

IR Mode Activated

Infrared lights turn on in a quiet environment, delivering clear images for round-the-clock monitoring.

Event Detected – Switch to Full-Color

Camera automatically switches full-color lighting upon detecting an event, revealing more details with vivid clarity.

Active Deterrence Triggered

Built-in strobe lights activate instantly to warn the intruder.

*Red & blue lights support default-off.

Return to IR Mode

Once the event has passed, the system switches back to IR mode, ensuring efficient and non-intrusive surveillance.

VCA 2.0: Precision That Redefines Security

Designed with security at its core, the Milesight Q Series Camera features VCA 2.0 technology, powered by the enhanced chip. With an AI recognition range of up to 75 meters and an accuracy rate of over 99%, VCA 2.0 significantly reduces false alarms, ensuring reliable, precise detection while minimizing disturbances and potential losses.

Unlock Deeper Insights with MSense Technology

The Milesight Q Series Camera uses MSense technology for advanced object counting, including People Counting, Vehicle Counting and Heat Map. It also features Face Capture, allowing it to capture the image of face and send to the backend platform for smart search and investigation. These features provide valuable insights to optimize operations and improve security management.

nx

Purpose-built for What Matters Most

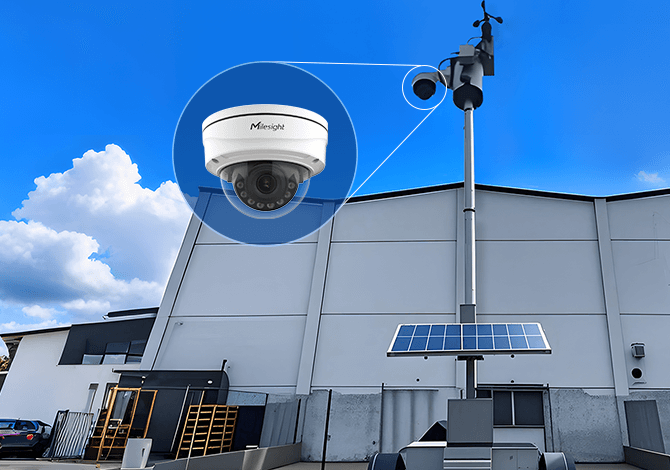

Trailers & Temporary Deployments

Provides stable, full-color surveillance on the move — with flashing alarm lights.
Rugged and road-tested over 1000+ KM, built to perform with DIS, IP67 & IK10 protection.

Perimeter Protection for Communities

Actively detects potential threats, such as fence climbing, and triggers immediate warnings with flashing lights, preventing incidents before they occur. Powered by VCA 2.0 and TrueColor imaging for accurate, full-color security 24/7.

Retail Security & Insights

Milesight Q Series Camera helps retailers safeguard assets after hours, detecting unauthorized access to prevent losses. It also offers smart shelf insights, helping optimize product placement through traffic heat map for improved sales strategies.

trailer
community
retail
package

Eco-Friendly Packaging for a Sustainable Future

Milesight demonstrates its commitment to sustainability by using eco‑friendly materials in the packaging of the Q Series Camera. By safeguarding security, we also contribute to protecting the planet, supporting a greener, more sustainable future.

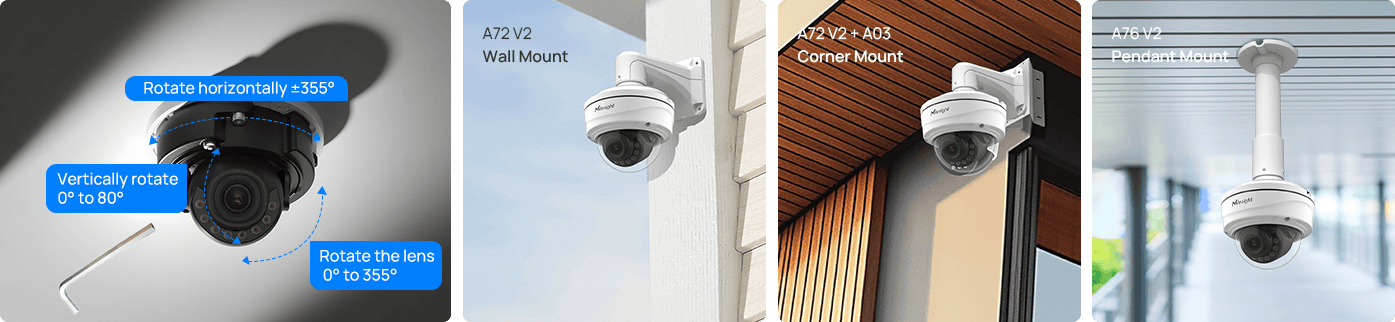

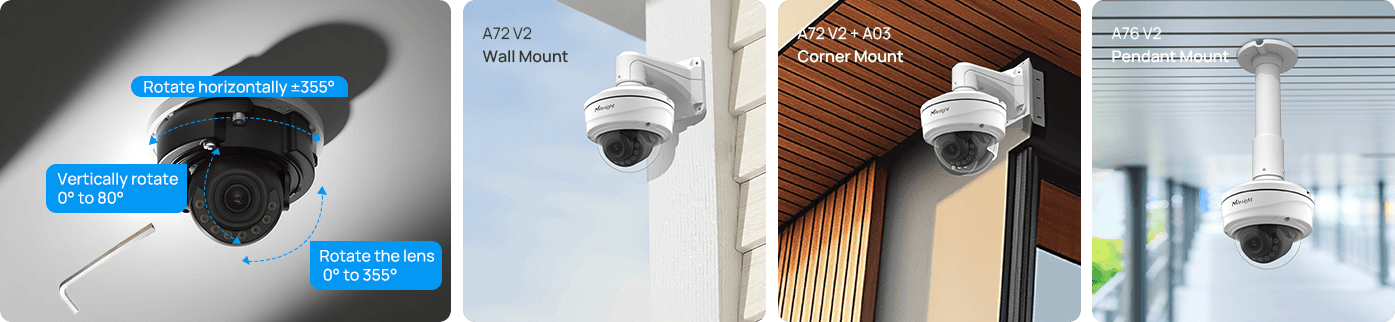

Easy Installation with Just One Screwdriver

Milesight Q Series Camera is designed for hassle-free installation, with uniform screws that require only a single screwdriver. To accommodate a variety of environments, we offer a range of mounting options, including wall, corner, and pendant mounts, ensuring flexibility and ease of setup for any scenario.

install

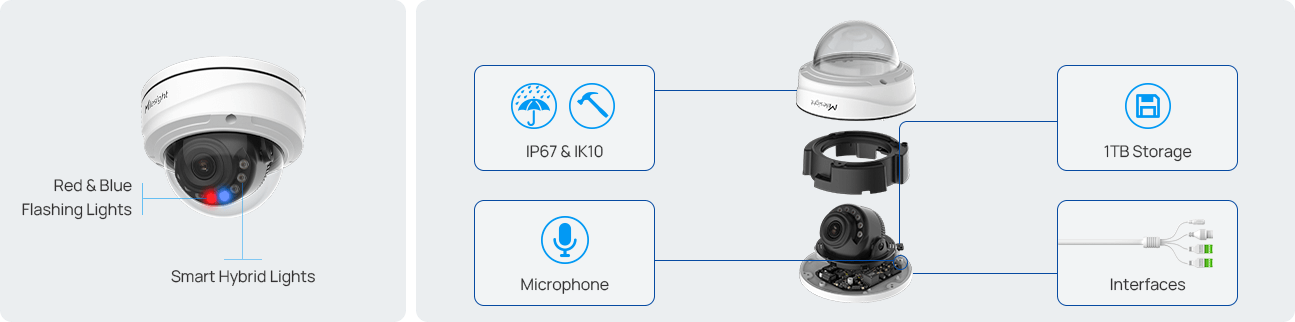

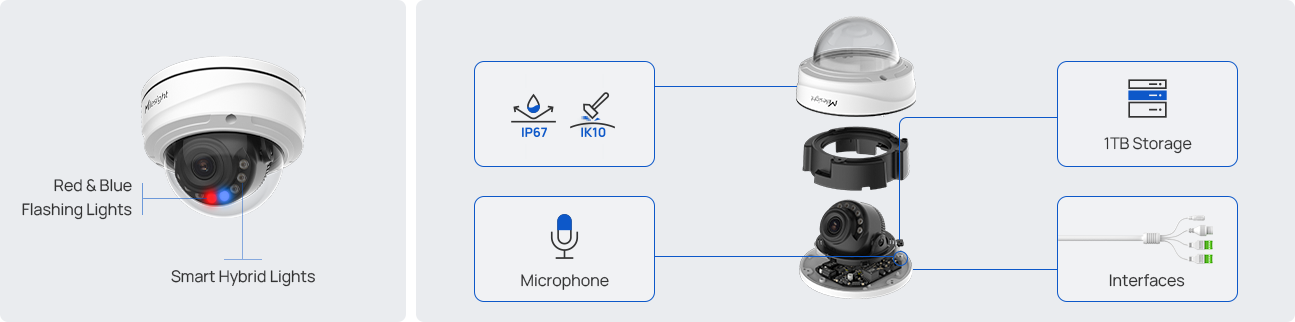

Compact Yet Robust Design

The Milesight Q Series Camera combines a compact design with robust functionality, featuring built-in microphone, multi-interface support, and up to 1TB SD card storage. With IP67 and IK10 industrial-grade protection, it's built to withstand even the toughest environments.

structure

Milesight Device Portal: Simple Device Management Starts Here

The Milesight Device Portal is a remote management platform designed for operation & maintenance teams. It allows bulk device management, status monitoring, and pre-configuration with RPS. Once powered on and connected to the network, devices automatically retrieve pre-configured files, simplifying setup and improving efficiency.

Easy & Seamless
Back-end Solution

Milesight Q Series Camera offers seamless compatibility with Milesight Software. It takes a step further with deep compatibility for Network Optix and Axxonsoft via Milesight One API/ plugin, while Onvif guarantees broad compatibility with any third-party VMS, giving you the freedom to choose the perfect solution.

Related Products

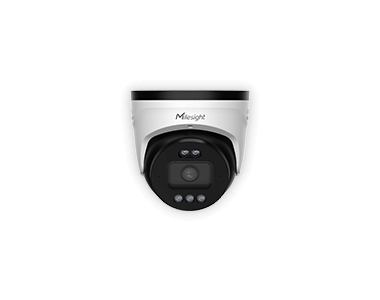

ai truecolor turret

Milesight Al TrueColor Turret
Network Camera

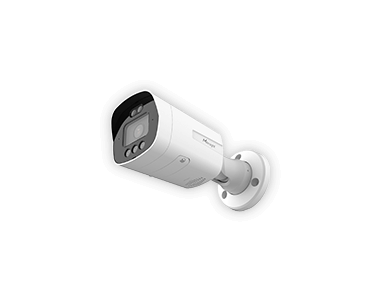

ai truecolor bullet

Milesight Al TrueColor Bullet
Network Camera

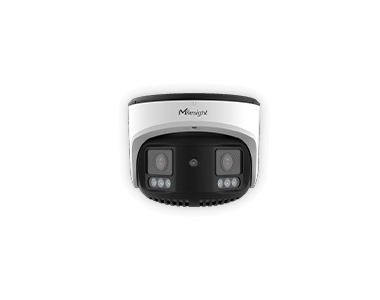

ai truecolor dual sensor panoramic

Milesight AI TrueColor
Dual-sensor 180° Panoramic
Network Camera

Specifications

Camera
ModelMS-CQ4472-HPG1
Image Sensor1/1.8″ Progressive Scan CMOS
Min. Illumination0.0008 Lux@F1.0 (Color, 30IRE)
0 lux (Illuminator on)
WDR120dB Super WDR
Shutter Time1/100000s ~ 1s
Day/Night ModeDay / Night / Auto / Customize / Schedule
DORI Distance2.8mm: D: 44m O: 17m R: 8.5m I: 4m
4mm: D: 62.5m O: 24.5m R: 12m I: 6m
S/N>56dB
Illuminator
Illuminator Type6 x Smart Hybrid Lights (Mixed IR and White Warm Lights)
IR Wave Length850nm
Illumination DistanceUp to 40m (IR Light), Up to 30m (White Warm Light)
Illuminator On/Off ControlAuto, Manual
Smart Hybrid LightsSupport
Red and Blue Flashing Lights1 x Red Light and 1 x Blue Light
Lens
Lens2.8mm, 4mm
ApertureF1.0
Field of View2.8mm: H:112° V:61.5° D:137°
4mm: H:93° V:49.5° D:111.5°
Camera Angle AdjustmentPan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355°
Close Focus Distance2.8mm: 2m 4mm:3m
MountM16
Video
Max. Image Resolution2688x1520
Primary Stream60Hz: 30fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
50Hz: 25fps@(2688×1520, 2304×1296, 1920×1080, 1280×720)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360)
50Hz: 25fps@(704x576, 640x480, 640x360)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
AI ISPSupport
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
Image SettingBrightness / Contrast / Saturation / Sharpness
Image EnhancementBLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc.
Image RotationOff, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Audio
Built-in MicrophoneYes, Single Microphone
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Interface
Alarm I/O1/1
Audio I/O1/1
Power SupplyPoE (802.3af) / DC 12V±25%
Network
Ethernet1 x RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP,
SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Intelligent Analytics
Video AnalysisVCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat MapThe built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Face CaptureCapture faces, get real-time snapshots and integrate with third-party systems for advanced analysis
Event
One-Click DisarmSupport
Basic EventMotion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
ExceptionNetwork Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event ActionFTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc.
System
WatermarkSupport
StorageSupport Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP SupportYes, Voice & Video-over-IP
System CompatibilityONVIF Profile G&M&S&T, One API
General
Working Temperature-40℃ ~ 60℃
Working Humidity0~95% RH (Non-condensing)
Surge Protection4KV
Power ConsumptionMin.: 4W (DC 12V), 5W (PoE)
Max.: 8W (DC 12V), 9.5W (PoE)
Casing MaterialMetal
Net WeightApprox. 1.0kg
Gross WeightApprox. 1.3kg
DimensionsΦ143mm X 108.4mm
Warranty3 Years / 5 Years (Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
ProtectionIP67, IK10

* Naming Convention
MS-C - Milesight Camera
Q - Q Series
H - Support Smart Hybrid Lights
Y - Support Speaker & Dual Mic
P - PoE Supported
GX- Platform Upgrade e.g.:G1 represents the first generation

Camera
ModelMS-CQ5472-HPG1
Image Sensor1/2.65” Progressive Scan CMOS
Min. Illumination0.003 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)
WDR120dB Super WDR
Shutter Time1/100000s ~ 1s
Day/Night ModeDay / Night / Auto / Customize / Schedule
DORI Distance2.8mm: D: 68.5m O: 27m R: 13.5m I: 6.5m
4mm: D: 86m O: 34m R: 17m I: 8.5m
S/N>56dB
Illuminator
Illuminator Type6 x Smart Hybrid Lights (Mixed IR and White Warm Lights)
IR Wave Length850nm
Illumination DistanceUp to 40m (IR Light), Up to 30m (White Warm Light)
Illuminator On/Off ControlAuto, Manual
Smart Hybrid LightsSupport
Red and Blue Flashing Lights1 x Red Light and 1 x Blue Light
Lens
Lens2.8mm, 4mm
ApertureF1.0
Field of View2.8mm: H:111° V:58.5° D:136°
4mm: H:92° V:50° D:108.5°
Camera Angle AdjustmentPan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355°
Close Focus Distance2.8mm: 1m 4mm:1.5m
MountM12
Video
Max. Image Resolution2960x1664
Primary Stream60Hz: 30fps@(2960x1664, 2688x1520, 1920x1080, 1280x720)
50Hz: 25fps@(2960x1664, 2688x1520, 1920x1080, 1280x720)
Secondary Stream60Hz: 30fps@(704x576, 640x480, 640x360)
50Hz: 25fps@(704x576, 640x480, 640x360)
Tertiary Stream60Hz: 30fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
50Hz: 25fps@(1920x1080, 1280x720, 704x576, 640x480, 640x360)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
Image SettingBrightness / Contrast / Saturation / Sharpness
Image EnhancementBLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc.
Image RotationOff, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Audio
Built-in MicrophoneYes, Single Microphone
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Network
Ethernet1 x RJ45 10M/100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Intelligent Analytics
Video AnalysisVCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat MapThe built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Face CaptureCapture faces, get real-time snapshots and integrate with third-party systems for advanced analysis
Event
One-Click DisarmSupport
Basic EventMotion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
ExceptionNetwork Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card,etc.
Event ActionFTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc.
System
WatermarkSupport
StorageSupport Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP SupportYes, Voice & Video-over-IP
System CompatibilityONVIF Profile G&M&S&T, One API
General
Power SupplyPoE (802.3af) / DC 12V±25%
Working Temperature-40℃ ~ 60℃
Working Humidity0~95% RH (Non-condensing)
Surge Protection4KV
Power ConsumptionMin.: 3W (DC 12V), 4W (PoE)
Max.: 7W (DC 12V), 8W (PoE)
Casing MaterialMetal
Net WeightApprox. 1.0kg
Gross WeightApprox. 1.3kg
DimensionsΦ143mm X 108.4mm
Warranty3 Years / 5 Years (Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
ProtectionIP67, IK10

* Naming Convention
MS-C - Milesight Camera
Q - Q Series
H - Support Smart Hybrid Lights
Y - Support Speaker & Dual Mic
P - PoE Supported
GX- Platform Upgrade e.g.:G1 represents the first generation

Camera
ModelMS-CQ8172-HPG1
Image Sensor1/2.7” Progressive Scan CMOS
Min. Illumination0.004 lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)
WDR120dB Super WDR
Shutter Time1/100000s ~ 1s
Day/Night ModeDay / Night / Auto / Customize / Schedule
DORI Distance2.8mm: D: 89.5m O: 35m R: 17.5m I: 8.5m
4mm: D: 112m O: 44m R: 22m I: 11m
S/N>56dB
Illuminator
Illuminator Type6 x Smart Hybrid Lights (Mixed IR and White Warm Lights)
IR Wave Length850nm
Illumination DistanceUp to 40m (IR Light), Up to 30m (White Warm Light)
Illuminator On/Off ControlAuto, Manual
Smart Hybrid LightsSupport
Red and Blue Flashing Lights1 x Red Light and 1 x Blue Light
Lens
Lens2.8mm, 4mm
ApertureF1.0
Field of View2.8mm: H:111° V:58.5° D:136°
4mm:H:92° V:50° D:108.5°
Close Focus Distance2.8mm: 1m 4mm:1.5m
Camera Angle AdjustmentPan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355°
MountM12
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
Secondary Stream60Hz: 30fps@ (704x576, 640x480, 640x360)
50Hz: 25fps@ (704x576, 640x480, 640x360)
Tertiary Stream60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness / Contrast / Saturation / Sharpness
Image EnhancementBLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc.
Image RotationOff, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Audio
Built-in MicrophoneYes, Single Microphone
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Network
Ethernet1 x RJ45 10M /100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Intelligent Analytics
Video AnalysisVCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat MapThe built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Face CaptureCapture faces, get real-time snapshots and integrate with third-party systems for advanced analysis
Event
One-Click DisarmSupport
Basic EventMotion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
ExceptionNetwork Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event ActionFTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc.
System
WatermarkSupport
StorageSupport Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP SupportYes, Voice & Video-over-IP
System CompatibilityONVIF Profile G&M&S&T, One API
General
Working Temperature-40℃ ~ 60℃
Power SupplyPoE (802.3af) / DC 12V±25%
Working Humidity0~95% RH (Non-condensing)
Surge Protection4KV
Power ConsumptionMin.: 3.5W (DC 12V), 4.5W (PoE)
Max.: 7W (DC 12V), 8.5W (PoE)
Casing MaterialMetal
Net WeightApprox. 1.0kg
Gross WeightApprox. 1.3kg
DimensionsΦ143mm X 108.4mm
Warranty3 Years / 5 Years (Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
ProtectionIP67, IK10

* Naming Convention
MS-C - Milesight Camera
Q - Q Series
H - Support Smart Hybrid Lights
Y - Support Speaker & Dual Mic
P - PoE Supported
GX- Platform Upgrade e.g.:G1 represents the first generation

Camera
ModelMS-CQ8272-HPG1
Image Sensor1/1.8” Progressive Scan CMOS
Min. Illumination0.0008 Lux@F1.0 (Color, 30 IRE)
0 lux (Illuminator on)
WDR120dB Super WDR
Shutter Time1/100000s ~ 1s
Day/Night ModeDay / Night / Auto / Customize / Schedule
DORI Distance2.8mm: D: 91.5m O: 36m R: 18 m I: 9m
4mm: D: 111m O: 43.5m R: 22 m I: 11m
S/N>56dB
Illuminator
Illuminator Type6 x Smart Hybrid Lights (Mixed IR and White Warm Lights)
IR Wave Length850nm
Illumination DistanceUp to 40m (IR Light), Up to 30m (White Warm Light)
Illuminator On/Off ControlAuto, Manual
Smart Hybrid LightsSupport
Red and Blue Flashing Lights1 x Red Light and 1 x Blue Light
Lens
Lens2.8mm, 4mm
ApertureF1.0
Field of View2.8mm: H:112° V:61.5° D:137°
4mm: H:93° V:49.5° D:111.5°
Close Focus Distance2.8mm: 2m 4mm:3m
Camera Angle AdjustmentPan: 0° ~ 355°, Tilt: 0° ~ 80°, Rotation: 0° ~ 355°
MountM16
Video
Max. Image Resolution3840x2160
Primary Stream60Hz: 30fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
50Hz: 25fps@ (3840x2160, 3200x1800, 2688x1520, 1920x1080, 1280x720)
Secondary Stream60Hz: 30fps@ (704x576, 640x480, 640x360)
50Hz: 25fps@ (704x576, 640x480, 640x360)
Tertiary Stream60Hz: 30fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
50Hz: 25fps@ (1920x1080, 1280x720, 704x576, 640x480, 640x360)
Video CompressionH.265+/H.265(HEVC)/H.264+/H.264/MJPEG
Video Bit Rate16Kbps~16Mbps (CBR/VBR Adjustable)
AI ISPSupport
Privacy MaskingUp to 8 Areas (Mask Area and Mosaic Area are optional)
ROIUp to 8 areas
Image SettingBrightness / Contrast / Saturation / Sharpness
Image EnhancementBLC, HLC, 2D DNR, 3D DNR, AWB, Defog, AGC, LDC, Anti-flicker, Deblur, etc.
Image RotationOff, Rotating 180°, Flip Horizontal, Flip Vertical, Clockwise 90°, Anticlockwise 90°
Audio
Built-in MicrophoneYes, Single Microphone
Audio CompressionG.711/AAC/G.722/G.726
Audio Sampling Rate8/16/32/44.1/48KHz
Audio Bit Rate16~256kbps
Interface
Alarm I/O1/1
Audio I/O1/1
Power SupplyPoE (802.3af) / DC 12V±25%
Network
Ethernet1 x RJ45 10M /100M Ethernet Port
Network StorageNAS(Support NFS, SMB/CIFS), ANR
ProtocolIPv4/IPv6, ARP, TCP, UDP, RTCP, RTP, RTSP, RTMP, HTTP, HTTPS, DNS, DDNS, DHCP, FTP, NTP, SMTP, SNMP, UPnP, Bonjour, LLDP, SIP, PPPoE, VLAN, 802.1x, QoS, IGMP, ICMP, SSL,TLS 1.2
Intelligent Analytics
Video AnalysisVCA 2.0: Intrusion Detection, Region Entrance, Region Exiting, Advanced Motion Detection, Line Crossing, Loitering, Object Left, Object Removed
Object Counting & ReportCount the number of objects crossing the line, optionally human and vehicle, Support regional people counting for up to 4 detection areas
Heat MapThe built-in statistical behavior analysis enables you to identify the busiest areas within the environment
Face CaptureCapture faces, get real-time snapshots and integrate with third-party systems for advanced analysis
Event
One-Click DisarmSupport
Basic EventMotion Detection, Tamper Detection, Audio Alarm, External Input, External Output, etc.
ExceptionNetwork Disconnection, IP Address Filtering, Record Failed, SD Card Full, SD Card Uninitialized, SD Card Error, No SD Card, etc.
Event ActionFTP Upload, SMTP Upload, Snapshot, Record, External Output, Play Audio, Alarm to SIP Phone, HTTP Notification, Warning Light, etc.
System
WatermarkSupport
StorageSupport Micro SD/SDHC/SDXC Card Local Storage, up to 1TB
SIP/VoIP SupportYes, Voice & Video-over-IP
System CompatibilityONVIF Profile G&M&S&T, One API
General
Working Temperature-40℃ ~ 60℃
Working Humidity0~95% RH (Non-condensing)
Surge Protection4KV
Power ConsumptionMin.: 3.5W (DC 12V), 5W (PoE)
Max.: 8W (DC 12V), 9.6W (PoE)
Casing MaterialMetal
Net WeightApprox. 1.0kg
Gross WeightApprox. 1.3kg
DimensionsΦ143mm X 108.4mm
Warranty3 Years / 5 Years (Optional)
Certifications
EMCCE-EMC (EN 55032, EN 55035, EN61000), FCC (PART 15B)
SafetyCE-LVD (EN IEC 62368-1)
EnvironmentCE-ROHS (Directive (EU) 2015/863 amending 2011/65/EU)
ProtectionIP67, IK10

* Naming Convention
MS-C - Milesight Camera
Q - Q Series
H - Support Smart Hybrid Lights
Y - Support Speaker & Dual Mic
P - PoE Supported
GX- Platform Upgrade e.g.:G1 represents the first generation

A02 V2 Pole Mount

  • Weight: 1kg
  • Dimension: 180*138.5*47mm
  • Installation Environment: For strapping cameras on poles between 102-127mm(4.1-5 inches) in diameter

A03 External Corner Bracket

  • Weight: 900g
  • Dimension: 180*152.5*76mm
  • Installation Environment: For mounting cameras on an external corner

A42-L Extension Lever

  • Weight: 330g
  • Dimension: Φ 47.5*255mm
  • Installation Environment: Used as extensions for pendant mount

A72 V2 Wall Mount

  • Weight: 575g
  • Dimension: 242*145*133mm
  • Installation Environment: For wall or parapet installations

AC-72 Smoked Dome Cover

  • Weight: 39g
  • Dimension: Φ100*56mm
  • Installation Environment: For concealing where a camera is pointed

A75 Junction Box

  • Weight: 200g
  • Dimension: 145*167*33.5mm
  • Installation Environment: For the containing of electrical connections which need to be concealed from sight and deter tampering

A76 V2 Pendant Mount

  • Weight: 620g
  • Dimension: Φ 145*L (L is default as 290mm, also can be extended with A42-L)
  • Installation Environment: Used to install cameras on a ceiling or horizontal structure

A78 Recessed Mount

  • Weight: 715g
  • Dimension: Φ256*94mm
  • Installation Environment: For in-ceiling installations

Documents

*Your Email

*Country

*Your Phone

*Company

*Your Website

*Business Type

*What Product are You Interested in?

*Message

*Verification Code

Verify Code

If you are interested in Milesight, please leave us a message.

Verify Code

Contact Us

Contact Us

Verify Code

Contact Us to Get More Information
