Milesight All-in-one
VMS Appliance

Independent and Scalable for Ultimate Growth

  • 36-CH Model
  • Pre-loaded with Milesight VMS Server & Client
  • Central Management for Single Site & Multiple Sites
  • High Scalability
  • AI & IoT Capabilities
  • Ready-to-go Design for Easy Installation
  • N+M Failover
  • FEATURES
  • MODELS
  • DOWNLOAD

What is All-in-one VMS Appliance?

VMS Server & Client Inside

Milesight All-in-one VMS Appliance provides a systematic and professional solution with video input, storage, decoding and device management functions, which is pre-loaded with latest Windows-based Milesight VMS Enterprise system and 36 licenses to deliver a ready-to-deploy solution.

36 Channels Video
Input & Decoding

Up to 36-CH HD live view could be shown with powerful decoding capabilities, enabling cost-effective and comprehensive one-stop video management.

Future Scalable for Any
Project Size

Extensive Storage

Up to 72TB local storage is supported, also the expandable storage capacity is ready for future storage needs.

Device Compatibility

It is fully compatible with Milesight network cameras, IoT sensors and 3rd party network cameras, meeting different project needs.

Enriched Capabilities

For increased usability, the VMS-based system supports a number of cutting-edge features, including AI analytics, E-map, video wall, and others.

High Flexibility for Various Needs

Milesight All-in-one VMS Appliance can be used standalone for projects starting from small installations with the flexibility to grow.
Moreover, it could serve as a local server from multiple units that can be connected freely on a single system.

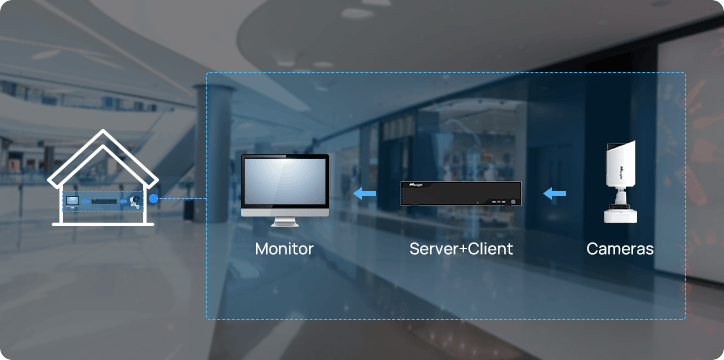

Standalone Project

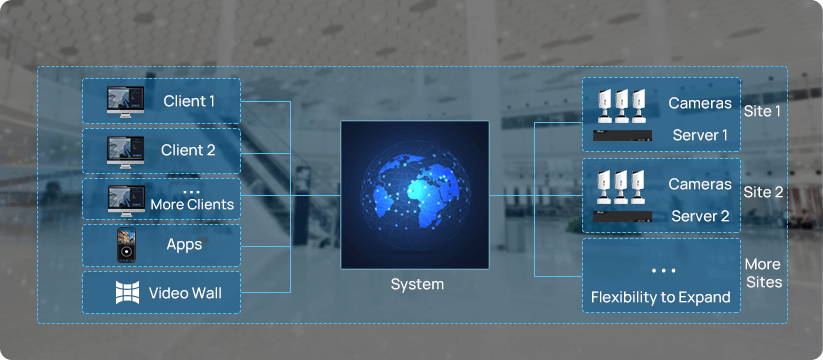

Distribution Project

Adaptive Streams

The client adapts itself and switches between primary and secondary streams depending on its decoding performance, including memory, CPU and GPU usage, ensuring fluent live streaming.

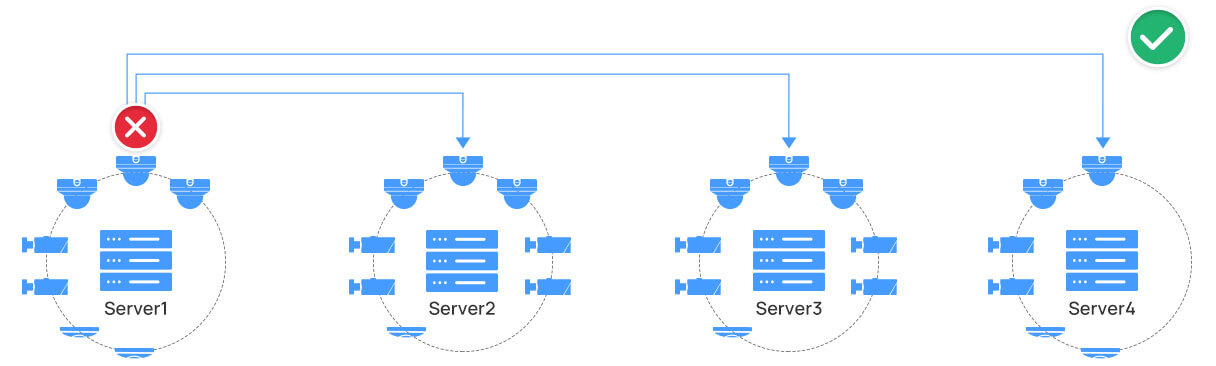

N+M Failover

In case of a server failure, other servers with N+M Failover function will take over the cameras and ensure continuous recording and boost risk resistance. Moreover, licenses can be shared within the system in case of a failed server, providing extra assurance and guarantee of successful failover.

Smart Investigations

Operators are often overloaded with the massive video and data, and the smart forensic evidence ensures that the operator is always on the right track when searching for the corresponding clips, greatly facilitating investigations and speeding up case resolution.

Smart Video
Synopsis

Event & Alarm
Center

Smart Search

Evidence
Lock & Bookmark

Auto Startup

High security with default auto-startup protection provides an added level of safety and data protection, ensuring that all the appliances could startup automatically after the event of a sudden power outage, providing a peace-of-mind and more user-friendly security solution.

Service Guarantee

Milesight VMS Appliance comes with a 3-year warranty to guarantee after-sales service, and in-time technical support service to maximize experience of the product.

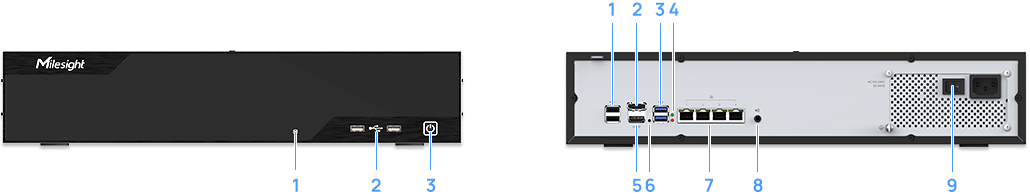

Versatile Interfaces

A whole array of ports provides all necessary features of effective surveillance.

  • 1. HDD Indicator
  • 2. USB 2.0
  • 3. Power Button & Running Light
  • 1. USB 2.0
  • 2. DP Port
  • 3. USB 3.0
  • 4. Power LED
  • 5. HDMI Port
  • 6. CLRCMOS Button
  • 7. LAN
  • 8. Audio
  • 9. Power

Specifications

Devices
Included Camera Access License36
Recording
Recording Schedule36
Decoding
Video FormatMJPEG, H.264,H.265
Decoding ResolutionUp to 12 MP
Decoding CapabilityH.264: 1920*1080 @400 fps
H.265: 1920*1080 @200 fps
Event & Alarm
Event and Alarm Rules1000
Users & Roles
Concurrent Accesses via Clients, App Clients300
Users1000
Roles100
Local Viewing
Local ViewingSupported
System
Main Processor2.0 GHz Intel Celeron Series
Memory2*4GB DDR
Network Interface4*2.5 GbE RJ-45 ports
Operating SystemMicrosoft Windows 10 IoT Enterprise 64bit
GPU OptionsIntegrated GPU
Auto Power OnSupport
Auxiliary Interface
HDD Drives (Video Data)6*SATA (3.5" or 2.5")
SSD Drive (Operating System)2*M.2SSD(1*256 GB Pre-installed)
RAM2*SO-DIMM DDR4 2666 Slot (2*4GB Pre-installed)
Support Up to 16GB
Support Dual-Channel Mode
CapacityUp to 12TB capacity for each disk
Recording Storage CapacityUp to 72TB raw
LAN4*2.5Gbps LA
PCI-E1*PCI-E4 slot
Display1*HDMI Port
1*DP Port
Maximum resolution of 4K 120Hz
Support independent and synchronous display
Internal I/O1*Power Connector(ATX_PWR 24pin)
1*Power Connector(CPU_PWR 4pin)
1*CPU Fan
1*COM Connector (9pin)
1*Front Panel Connector
Audio1* HD Audio Connector
USB InterfaceFront panel: 2*USB 2.0
Rear panel: 2*USB 2.0, 2*USB 3.0
Power SupplyAC 100-240V, 50-60Hz
Consumption≤30W(without HDD)
Working Temperature0°C to 35°C (32°F to 95°F)
Working Humidity10% to 90% RH (no freezing and no condensation)
