Milesight Enables Intelligent
PTZ Bay Monitoring with
Zatpark Integration

UK uk

Milesight Partner

Total Car Parks Ltd

Milesight Technology Partner

Zatpark, Go2SIM

Location

UK

Industry Segment

Parking

  • Overview
  • Challenge
  • Solution
  • Results
  • Related Products

Overview

To support efficient parking enforcement and bay occupancy management for a hotel surface car park near a seaside location, Milesight partnered with Total Car Parks Ltd and technology partners Zatpark and Go2SIM to deploy an intelligent bay monitoring solution powered by Milesight AI Road Traffic PTZ Bullet Plus Cameras. The solution enabled automated PTZ patrol monitoring, clear timed snapshots, and seamless HTTP Post integration with the Zatpark platform for parking duration calculation and enforcement management across five different car parks.

overview

Challenges

PTZ cameras needed to patrol multiple parking bays continuously while maintaining accurate
preset positions over long operating periods.

Preset locations gradually shifted after 24–48 hours of continuous patrol
operation, affecting monitoring accuracy.

The solution required reliable timing snapshots at
each preset position for bay occupancy verification.

Captured vehicle data needed to be transmitted
seamlessly to the Zatpark platform for parking duration
analysis and enforcement processing.

The solution needed to support standard bay
monitoring and double red line violation monitoring
within the same deployment.

Solution

Intelligent PTZ Bay Monitoring with Automated Patrols

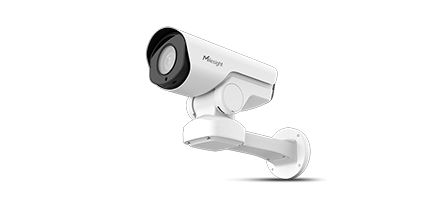

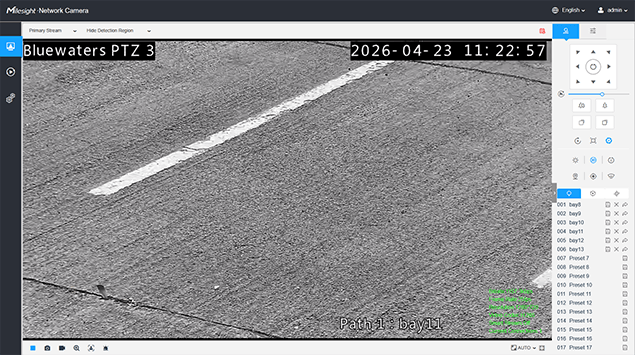

Milesight deployed AI Road Traffic PTZ Bullet Plus Cameras across five car parks to perform automated patrol‑based bay monitoring. The PTZ cameras continuously moved between predefined preset positions, with each preset corresponding to a specific parking bay or monitoring zone. At every preset location, the cameras captured timed snapshots for occupancy verification and vehicle identification.

Seamless Integration with logo zatpark Parking Enforcement Platform

  • A key advantage of the deployment was the strong compatibility between Milesight cameras and the Zatpark platform, one of Milesight's important technology partners in smart parking enforcement solutions.
  • The cameras transmitted captured snapshots directly to Zatpark through HTTP Post integration. By combining bay identification, timestamps, and Milesight snapshots, Zatpark was able to automatically calculate vehicle parking duration, determine overstays, and support enforcement workflows such as penalty issuance. This seamless interoperability enabled an efficient and highly automated parking management process.
solution 1
solution 2

Multi-Scenario Monitoring Across Different Car Parks

The deployment included multiple monitoring scenarios:

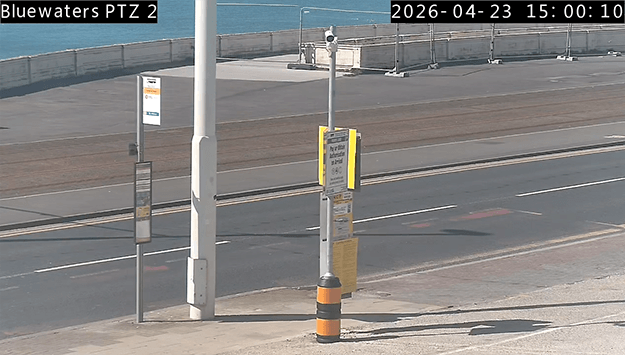

  • Two PTZ cameras were installed in one car park to monitor vehicles stopping on double red line roads using Milesight's loitering detection function.
  • One additional camera monitored loading bay parking activity in the same site.
  • Seven more cameras were deployed across four additional car parks for dedicated bay monitoring applications.

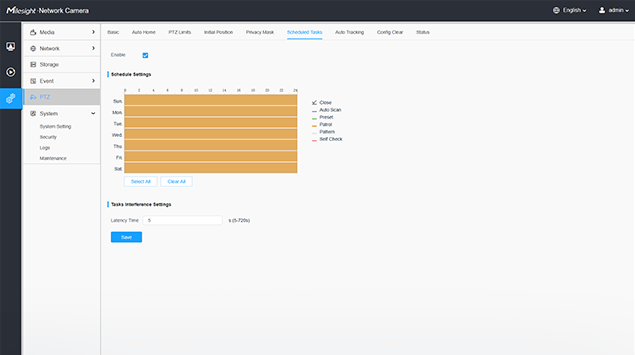

Schedule Task Optimization to Maintain PTZ Preset Accuracy

  • During operation at the Bluewaters AG Hotel car park, one PTZ camera experienced preset position drift after extended patrol periods. To mitigate this issue, Milesight engineers utilized the Schedule Task function to trigger a one-minute Auto Scan every day at midnight before resuming normal patrol operation.
  • This approach was intended to help stabilize PTZ preset positioning during long-term patrol operations. The daily Auto Scan helped maintain accurate preset positioning over extended operation periods, ensuring reliable long-term patrol stability without requiring Auto Reboot or Auto Home functions.
solution 3

Results

By leveraging Milesight AI Road Traffic PTZ Bullet Plus Cameras together with Zatpark, the project successfully achieved stable and automated bay monitoring
across multiple parking sites. The optimized Schedule Task configuration helped reduce the occurrence of preset drift during extended patrol operation, although
further optimization is still under investigation. The seamless integration between Milesight cameras and Zatpark enabled efficient parking duration management,
overstay detection, and enforcement processing, significantly improving operational efficiency for parking management teams.
