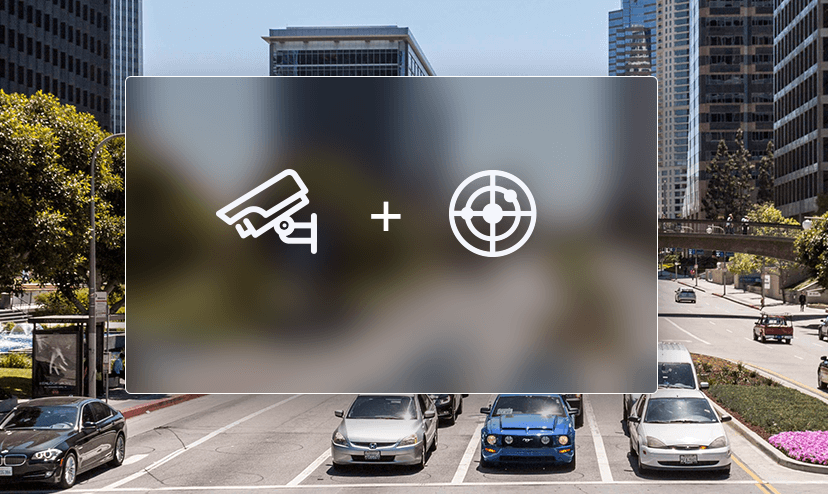

What is Radar-Video Fusion
and Why Does It Matter?
Radar-Video Fusion combines millimeter-wave radar with advanced video surveillance, uniting the strengths of both to deliver accurate, intelligent detection in all weather and lighting conditions.
While traditional cameras struggle with fog, rain, glare, or darkness, radar operates reliably regardless of visibility. It captures motion data such as position, speed, and direction, while cameras provide high-resolution visuals and object classification.
By fusing both, the system achieves:
- Higher detection accuracy
- Lower false alarm rates
- Long-range vehicle tracking and trajectory recording
- Greater reliability in complex environments
Camera
Radar Module
Why Choose Milesight ?
Milesight RadarV integrates millimeter-wave radar using advanced FMCW (Frequency-Modulated Continuous Wave) technology, which accurately measures the distance and speed of moving objects by analyzing the signal differences between transmitted and received waves.
Paired with Milesight's state-of-the-art AI LPR camera, the system offers ultra-clear imaging, multi-functional detection capabilities, and exceptional durability. With high compatibility and intelligent analytics, Milesight RadarV ensures superior performance in demanding traffic and security applications.
Cutting-edge Radar Performance
Radar-Video Fusion + ANPR
Up to 320km/h
Speed Detection
2~3 Lanes Coverage
(Recognition ≥95% individually)
Up to 32 Tracking
Target
Ultra-clear Imaging

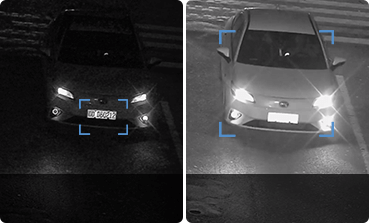

- Frame Parity Flashing
- Global Shutter
- 740nm/850nm Wavelength
Even Frame
(short exposure)
Odd Frame
(long exposure)

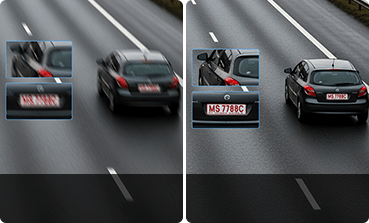

Rolling Shutter
Global Shutter

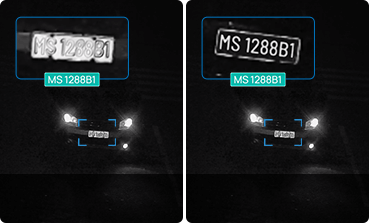

850nm IR Wavelength
740nm IR Wavelength

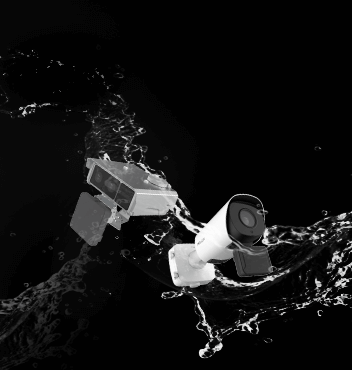

Exceptional Durability
- IP67-rated for Weather-resistant Performance
Multi-functional Detection
- Speed Monitoring &
Overspeed Detection - No-plate Vehicle Detection
- Reverse Driving Detection
Open Compatibility
- CGI/API Interfaces
- TCP/HTTP/MQTT Protocols
- Milesight Ecosystem:
- Milesight One API
- Milesight Plugin
- ONVIF G/M/S/T
Radar-Video Fusion + ANPR:
A Powerful Duo for Smarter Traffic Enforcement
Milesight RadarV integrates cutting-edge Radar-Video Fusion technology with advanced ANPR technology to deliver an intelligent, efficient solution for modern traffic management. This unified approach enables a closed-loop process of detection - recognition - analysis - enforcement.

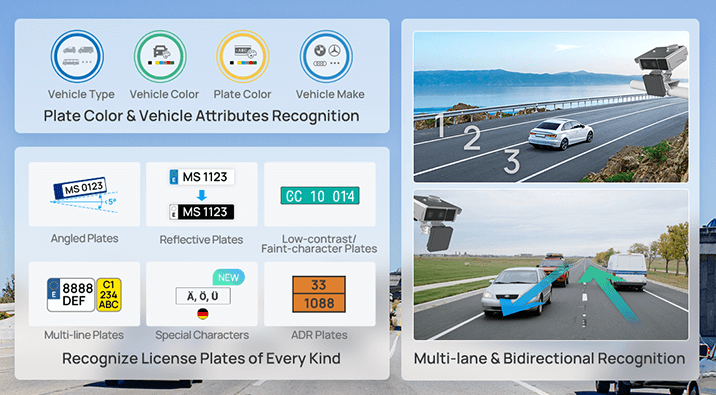

Milesight's Next-Level AI ANPR Technology
≥99% Capture
Rate
≥98% ANPR
Accuracy
50+ Countries
Supported
0.1 Second
Recognition Time
Radar-Video Fusion + ANPR
By integrating millimeter-wave radar, Milesight's ANPR system extends beyond visual sensing to unlock new levels of intelligence and efficiency:
- Radar-guided triggering
- Improved recognition in complex environments
- Enhanced behavioral analysis
- Precise target filtering
- Real-time data upload and alarm integration
RadarV Camera: Highly Open Compatibility for
Flexible System Integration

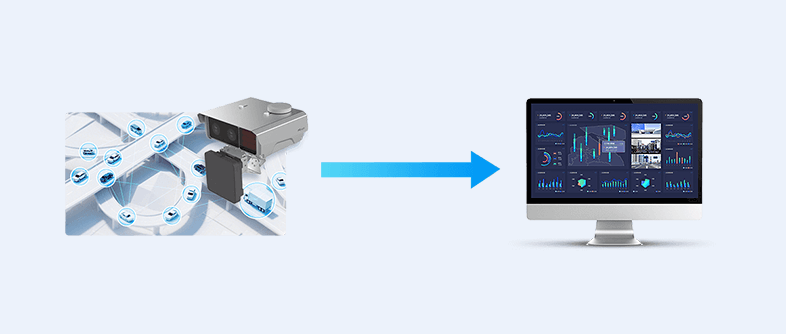

Milesight's RadarV Camera not only excels in sensing and recognition performance, but is also designed with practical integration needs in mind. With rich interface protocols and flexible output methods, it can be seamlessly connected to a wide range of third-party platforms.

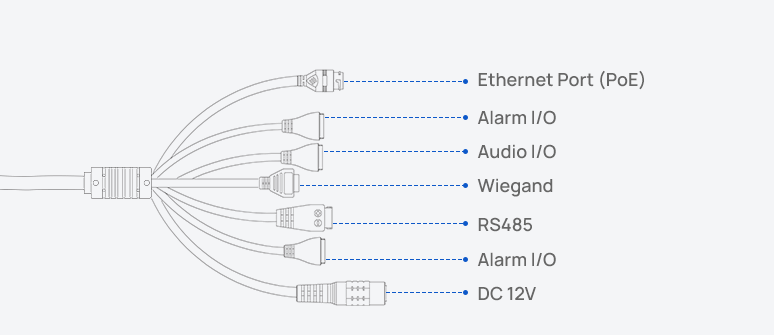

Hardware Interfaces
Software Interfaces and Protocols

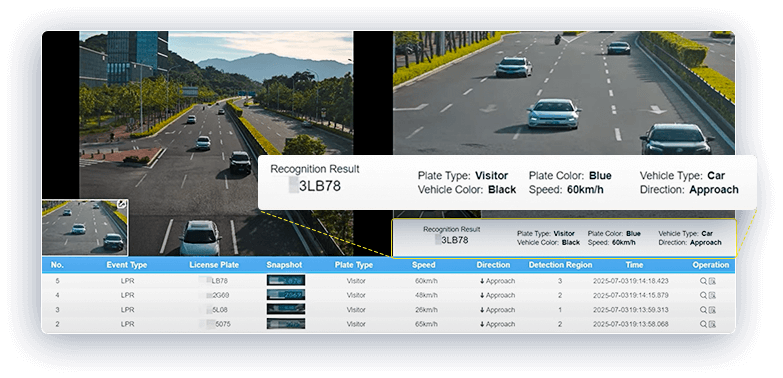

Captured & Analyzed Traffic Data
CGI/APIs
TCP/HTTP/MQTT
Third-party Management Platform
Milesight RadarV Camera
- Speed Detection
- Plate&Vehicle Attributes
Metadata Generated - Plate&Vehicle Captured
- Real-time Traffic Event Analysis
- Alarm Triggered
Milesight Ecosystem
- Advanced Traffic Event Configuration
- Real-time Alert
- Event Recording Storage
- Smart Search
- System Linkage
in Versatile Applications
Milesight RadarV technology is designed to adapt to a wide range of traffic scenarios. From urban roads with mixed traffic flow, to highways where vehicles travel at high speeds, from busy intersections prone to accidents, to challenging rural roads with limited visibility - our advanced radar-video fusion technology ensures accurate speed detection and reliable performance in every environment.
Urban Roads
Highways
Intersections
Rural Roads
Choose Your Top-Tier Camera
| Single Sensor | Dual Sensor | |
|---|---|---|
 RadarV Speed Monitoring Camera |  RadarV Speed Enforcement Camera | |
| ANPR & Speed Detection | Up to 160km/h | Up to 320km/h |
| Capture Rate | Up to 99% | |
| ANPR Accuracy | Up to 98% | |
| ANPR Distance | Up to 50m | |
| Attributes Identification | Plate Color, Vehicle Type, Vehicle Color, Vehicle Brand, No-plate Vehicle Capture, Vehicle Direction Detection, Speed Detection | |
| Radar Frequncy | 60GHz | 24GHz |
| Resolution | Up to 4K | 2*5MP |
| Lens | 8~32mm, 4X Optical Zoom Motorized 2.8~12mm@F1.2 | 15-50mm, Motorized zoom and focus |
| Illumination Distance | Up to 60m | Up to 60m |
| Global Shutter | No | Yes |
| Max. FPS | 60fps | 30fps |
