Ambience Monitoring Sensor
Indoor Air Quality (IAQ) Monitoring
AM103
AM103L
Ensuring Health of Occupants Everywhere
AM103/AM103L is a compact IAQ sensor for detecting CO2 concentration, humidity and temperature accurately and economically.
- Detect CO2, Humidity and Temperature
- Traffic Light Status Indicator
- Hibernation Mode for Low Power Consumption
- Wireless Installation with Anti-Theft Protection
- Support Data Storage and Retransmission
- 2.13 -Inch E-Ink Screen (AM103)
- Vivid Emoticon Indication (AM103)
- Battery Life up to 3 Years (AM103) / 4 Years (AM103L)
- FEATURES
- MODELS
- DOWNLOAD
- Home
- IoT LoRaWAN® Series
- AM103/AM103L
Milesight 47,000 LoRaWAN® IAQ Sensors in Canadian Schools
With province-wide LoRaWAN® IAQ solution deployment, students and staff in Quebec's public schools are now in a healthier learning environment with more helpful insights. Check how Milesight has made it happen!
Learn MoreEasy and Comfy
Seeing CO2 Directly
Monitor and display real-time data on what matters in your indoor air quality.

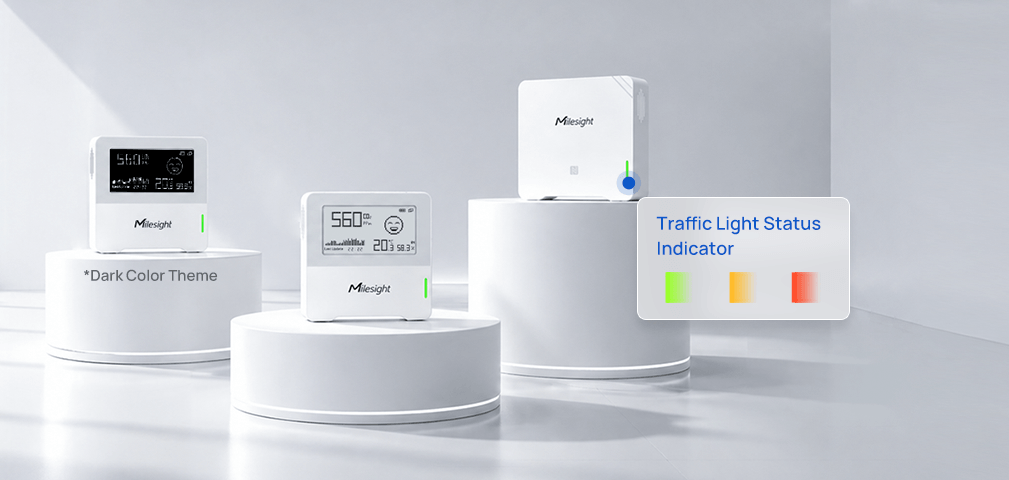

- Traffic Light Status Indicator
- Emoticon Indication
* Think about opening windows or consider ventilation.
* Excellent air quality.
* Open windows or turn on ventilation immediately.
Clearer View of CO2 Concentration and Temperature
In the upgraded display mode of the AM103, the values of CO2 concentration and temperature are bolded in a larger space.
3 Sensors in 1
Built-in high accuracy sensors to track the invisible elements of the air to ensure comfort at every moment.
Humidity
Higher relative humidity indicates higher level of moisture in the air which lead to cold, flu symptoms, and risk for toxic mold.
CO2
In the upgraded display mode of the AM103, the values of CO2 concentration and temperature are bolded in a larger space.
Temperature
Cold temperatures can suppress the immune system and aid the spread of viruses.

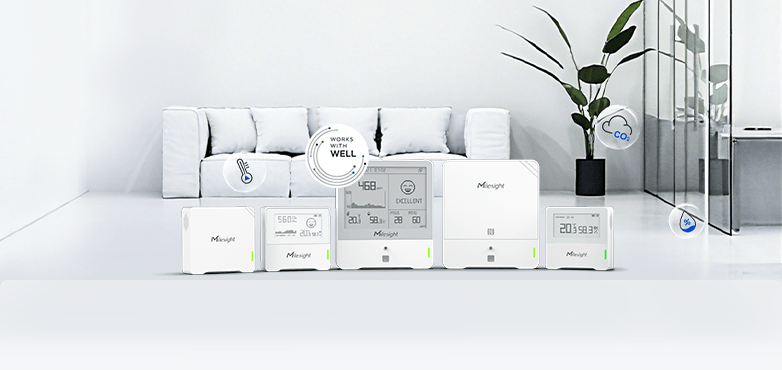

Indoor Air Monitoring (IAQ) Solution
At Milesight, we help you and your people to live in a safer and healthier facilities.
Towards that end, real-time data about air quality is essential. And that starts with
our one-stop solution for indoor air quality (IAQ)

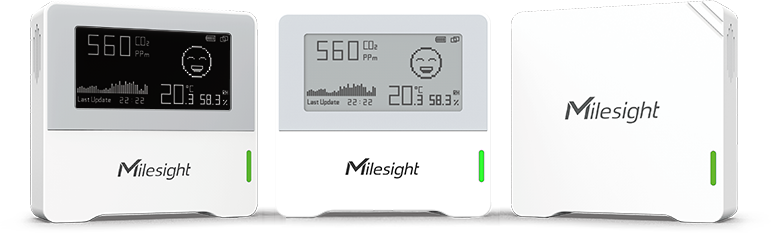

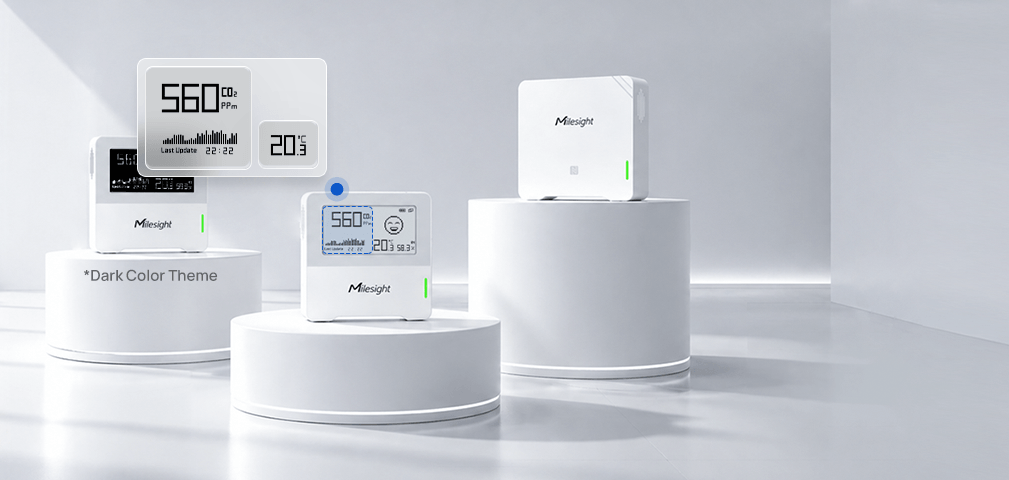

Compact Design that Fits Your Need
- Light/Dark Color Theme
- With E-Ink Screen
AM103
AM103L
- Without E-Ink Screen
- Longer Battery Life
*When AM103 detects the temperature beyond the range from 0°C to 40°C, the screen will turn off automatically.

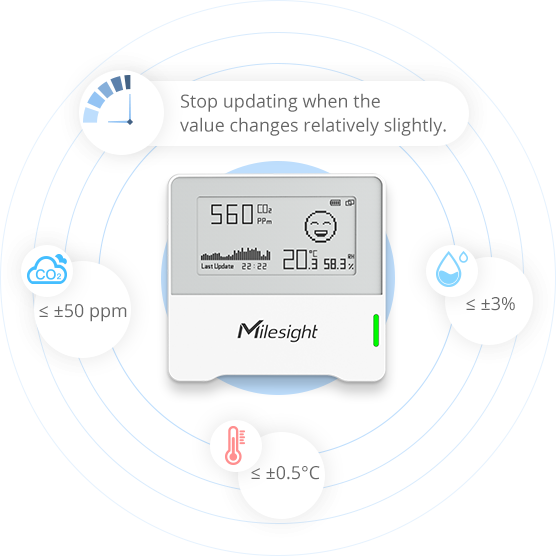

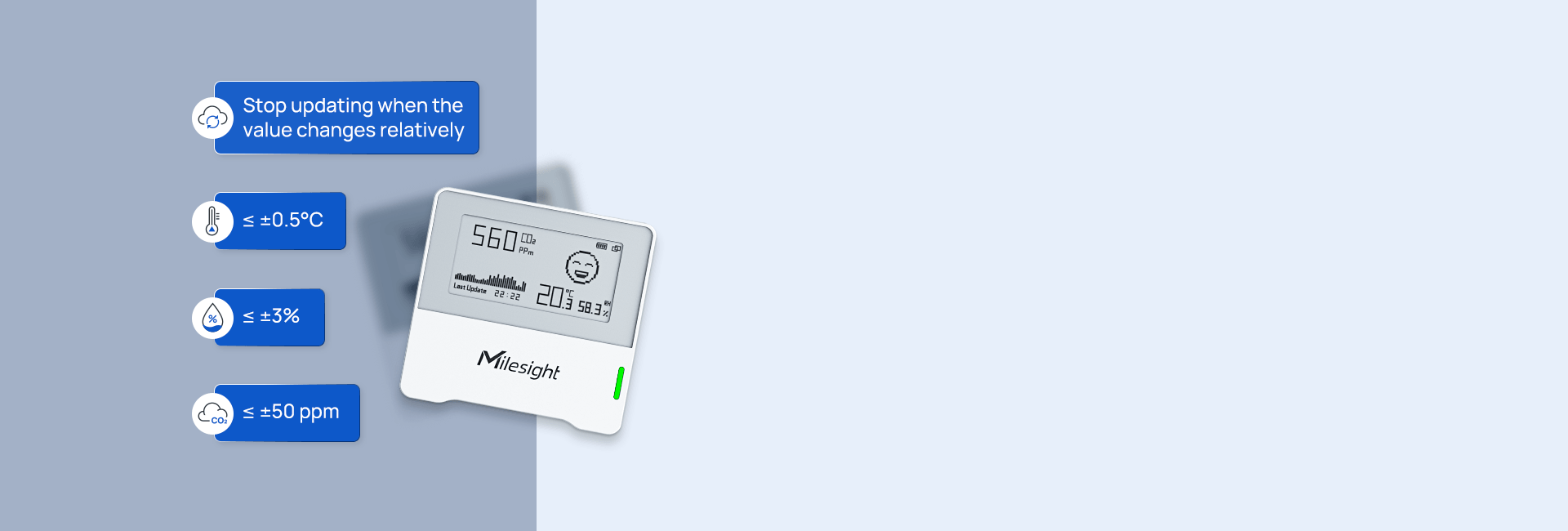

Smart Screen Mode for Energy-Saving Operations
When the current collected value is close to the last value*, the screen will stop updating to save power.
* When the reading is within a certain range (temp. ≤ ±0.5°C and hum. ≤ ±3% and CO2 ≤ ±50 ppm).
** When Screen Smart Mode is enabled, the minimum refresh interval is customizable from 2 to 1080 minutes to refresh the screen.

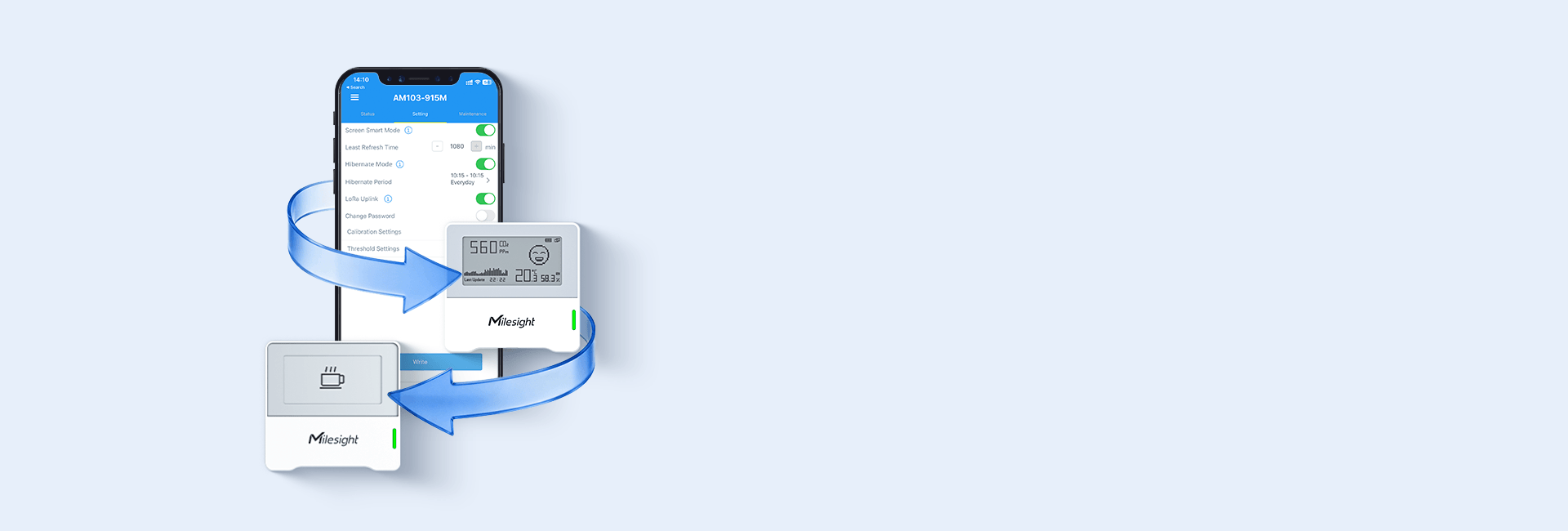

Hibernation Mode for Ultra-Low Power Consumption
- Use hibernation when you know you will not be using the IAQ sensor for an extended period of time to save more power.
- Hibernation uses less power than smart screen mode because data collection will automatically turn off.
*Customers can turn on the LoRa uplink with hibernation mode enabled, in which case the screen will still keep displaying hibernation mode, but only to save screen power consumption.

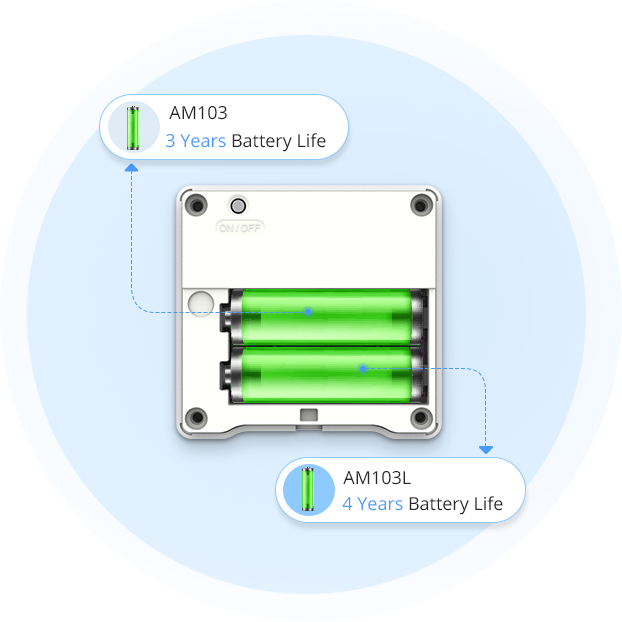

Multi-Year Battery Operation
Built-in 2 × 2700 mAh ER14505 Li-SOCL2 replaceable
batteries ensure more than 3 years' service life.
Energy Efficiency Solution
Everything from the way we operate to what we consume is moving toward more energy-efficient ways. Check how Milesight sensing products can help you.
LoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and 15 km in rural areas
- High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching On/Off & Configuring the Devices Wirelessly
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Installation in Better Ways
Wall Mounting
Fixed by 3M Tape
Specifications
- AM103/AM103L
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137dBm @300bps |
| Mode | OTAA/ABP Class A |
| Sensors | |
| Temperature | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | -20°C - 60°C |
| Accuracy | Typ. ±0.3°C (-20°C ~ 0°C), ± 0.2°C (0°C ~ 60°C) |
| Resolution | 0.1°C |
| Humidity | |
| Operating Principle | Digital CMOSens® technology (MEMS) |
| Range | 0% - 100% RH |
| Accuracy | Typ. ± 2% RH (25°C) |
| Resolution | 0.5% RH |
| Carbon Dioxide (CO2) | |
| Sensor Type | Nondispersive Infrared (NDIR) |
| Range | 400 to 5000 ppm |
| Accuracy | ± (30 ppm + 3 % of reading) (0°C to +50°C) |
| Resolution | 1 ppm |
| Others | |
| Display | AM103: 2.13-inch Black & White E-Ink Screen AM103L: Not Support |
| Button | 1 × Power/Reset Button |
| LED | 1 × Traffic Light Status Indicator |
| Software | |
| Power On/Off | Mobile App via NFC or Power Button |
| Configuration | Mobile App via NFC, Downlink |
| Advanced Features | Calibration, Threshold Alarm, Data Storage (640 entries), Data Retrievability, Data Retransmission, Screen Hibernate Mode, Smart Screen Mode |
| Physical Characteristics | |
| Power Supply | 2 × 2700 mAh ER14505 Li-SOCl2 Replaceable Batteries |
| Battery Life* | AM103: |
| (10 min interval, 25°C) | Around 4.5 Years (SF7, EU868 & US915) Around 3 Years (SF10, EU868) Around 2.3 Years (SF10, US915) AM103L: Around 5 Years (SF7, EU868 & US915) Around 3.3 Years (SF10, EU868) Around 2.5 Years (SF10, US915) |
| Operating Temperature | -20°C to +60°C (E-Ink Screen: 0°C - 40°C) |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP30 |
| Housing&Color | PC + ABS, White |
| Weight | 182.5g (Batteries included) |
| Dimension | 68 × 65 × 20.5 mm (2.68 × 2.56 × 0.81 in) |
| Installation | Wall Mounting via 3M Tape or Screws |
| Approvals | |
| Regulatory | CE, FCC, ISED |
| Environmental | RoHS |
* Tested under laboratory conditions and for guideline purposes only.
