CTH01
Smart Power Monitor Hub

CTH01 is a 12-channel LoRaWAN® power monitoring hub purpose-built for multi-circuit current monitoring, featuring non-invasive voltage measurement and industrial-grade analytics, helping commercial and industrial facilities cut costs and optimize efficiency.

Get in Touch
  • FEATURES
  • MODELS
  • ACCESSORIES
  • DOWNLOAD

12-Circuit Insights. Single Hub.
Minimal Footprint

CTH01 redefines sub-metering efficiency by monitoring up to 4 three-phase or 12 single-phase circuits simultaneously. This 12-in-1 design drastically reduces hardware investment, simplifies network infrastructure, and fits perfectly into space-constrained electrical cabinets.

Deploy Without Limits: Magnetic, Universal, Pro-Grade

Zero-Downtime Non-Invasive Deployment

Versatile Compatibility from 100A to 4,000A

Professional Analytics with 8kHz Sampling

Beyond standard terminal connections, CTH01 also supports non-invasive magnetic voltage measurement — snap probes onto breaker screws instantly, no terminal wiring or wire stripping required. For current measurement, split-core transformers clamp around conductors without cutting cables or interrupting power. Deploy faster and more securely at scale.

Magnetic

Probes for Voltage Sensing

0 Tools

Required for Main Connections

0 Downtime

No Cuts, No Interruptions

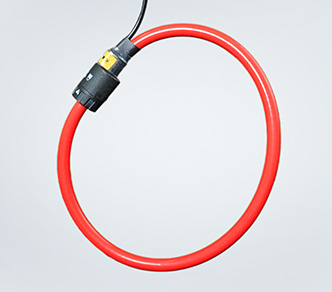

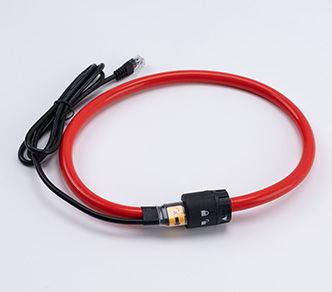

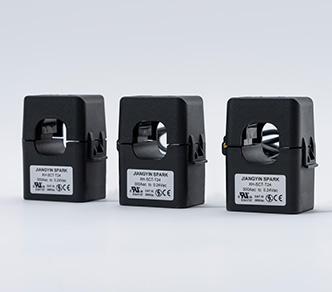

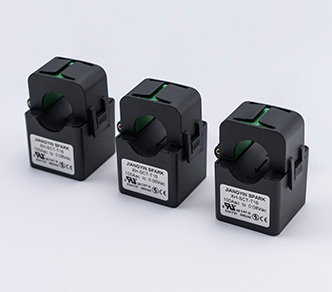

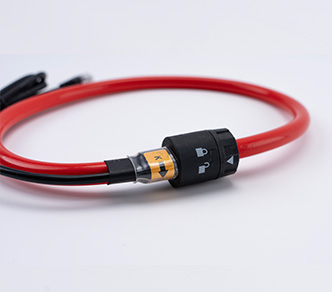

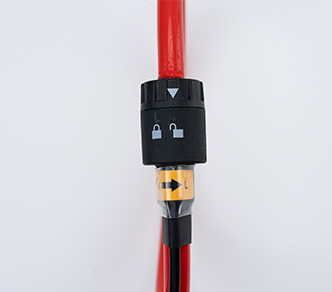

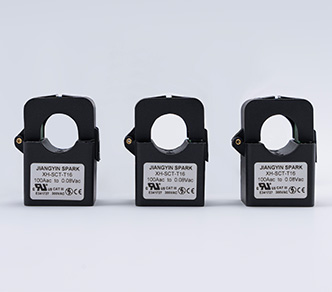

One host integrates split-core current transformers and Rogowski coils in a single compact unit. Mix different current ranges across channels without matching specifications or buying specialized hardware. Future-proof your deployment with true plug-and-play flexibility.

100–4,000A

Wide Current Range Support

Hybrid

CT & Rogowski in One Hub

RJ11

Plug-and-Play Portability

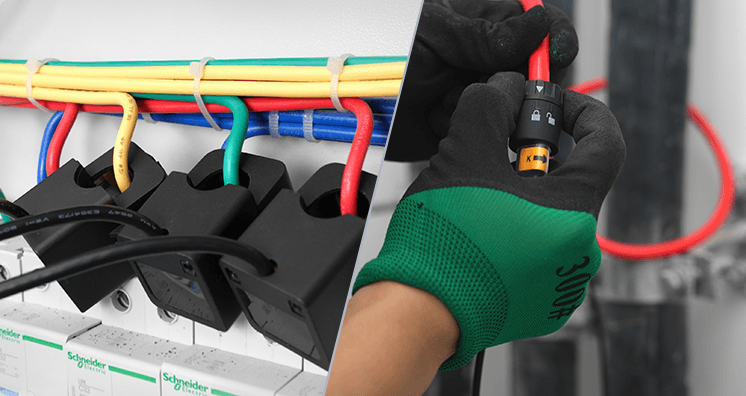

cth01 current versatile compatibility

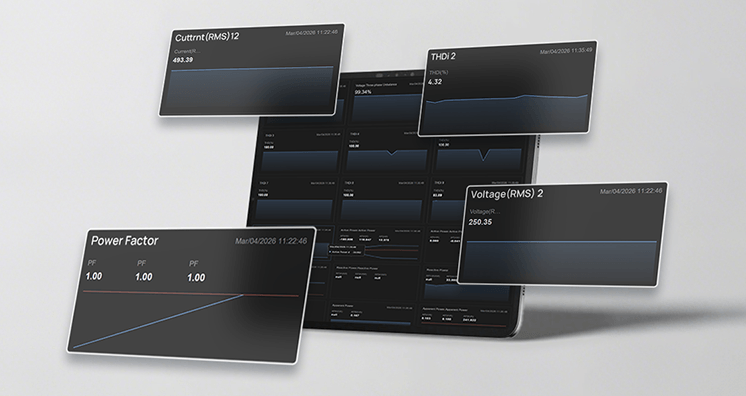

Go beyond basic energy tracking. CTH01 transforms raw consumption data into predictive intelligence, capturing harmonic distortion, voltage unbalance, and power factor anomalies in real time. Detect grid health issues before they damage equipment and turn your electrical infrastructure into a self-diagnosing system.

8 kHz

High-Speed Sampling Frequency

Class 1

IEC 62053-21 Accuracy

THD / PF

Comprehensive Grid Diagnostics

cth01 professional energy analytics

Effortless Management: Remote, Tool-Free, Error-Proof

RJ11 Plug-and-Play

Push-click connectors install in seconds. No screwdriver, no wiring errors.

Bluetooth Wireless Configuration

Complete setup via Toolbox App from a safe distance. No panel access needed.

Remote Direction Calibration

Fix CT polarity errors in software. Eliminate costly revisits and rewiring.

LED Status Indicator

Real-time status and alarm alerts at a glance. Instant visual feedback.

Deliver Value Across Industries: Commercial, Industrial, Institutional

cth01 application scenarios 1 2
cth01 application scenarios 1 1

Identify waste to slash utility bills. Large facilities often suffer from invisible energy leaks. CTH01 provides granular 12-channel visibility to uncover "dark" energy waste and idle-time consumption. This enables management to implement data-driven actions that optimize energy efficiency and achieve measurable cost savings.

Energy Monitoring and Saving

cth01 application scenarios 2 2
cth01 application scenarios 2 1

Transparent internal accounting for managed spaces. Property managers in offices, retail chains, and co-working spaces need transparent data for internal cost allocation. CTH01 utilizes real voltage monitoring to eliminate data gaps caused by grid fluctuations, replacing bulky traditional meters with a single, high-precision hub.

Commercial Cost Allocation

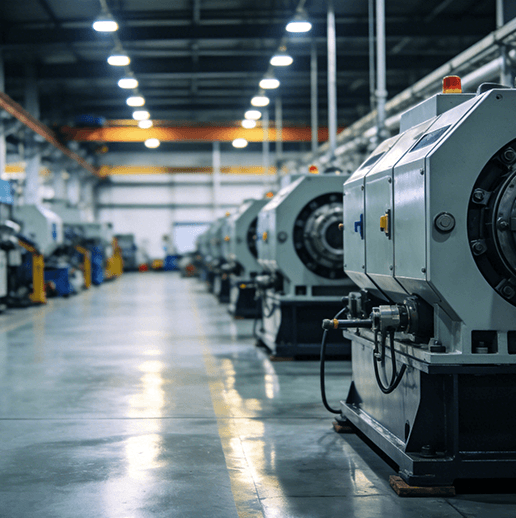

cth01 application scenarios 3 2
cth01 application scenarios 3 1

Harmonic distortion and voltage unbalance are early warnings of equipment stress. CTH01 captures these signatures at 8kHz before bearings fail and lines stop. Predictive, not reactive.

Industrial Predictive Maintenance

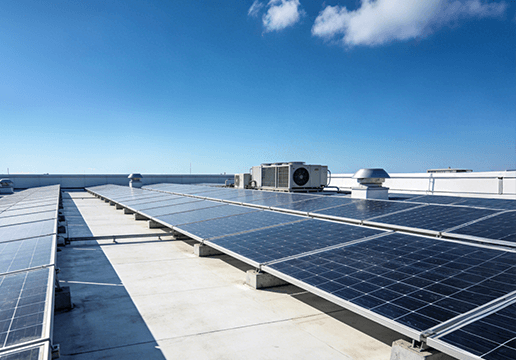

cth01 application scenarios 4 2
cth01 application scenarios 4 1

Buildings with rooftop solar face dynamic energy balancing. CTH01 tracks imported and exported power separately, managing the interplay between solar generation, battery storage, and grid consumption. Maximize self-consumption and track feed-in tariffs with precision.

Solar & Energy Management

Milesight Development Platform

Provides enterprise-grade IoT device management and deployment,
enabling efficient large-scale IoT implementations.

Plug-and-play device setup for internet-enabled devices
Bulk device configuration
Over-the-air updates
Remote access and device sharing
Open API and Webhooks for external integrations and data exchange

Connected Precision, Maintenance-Free Efficiency

Expand your energy visibility from the main distribution board to every individual branch. While CTH01 provides high-density hub-level monitoring, Milesight's CT Series offers unparalleled flexibility for distributed loads. Together, they create a unified LoRaWAN® ecosystem, delivering granular consumption data with non-invasive, maintenance-free operation across your entire facility.

cth01 related products ct10x 1 cth01 related products ct10x 2

CT10x

Smart Current Transformer

CT10x

Smart Current Transformer

  • Self-Powered Operation
  • Superior Accuracy with Up to 3.3kHz Frequency
  • Real-time Accumulated Ampere Hour Calculation
  • Non-invasive Installation
cth01 related products ct3xx 1 cth01 related products ct3xx 2

CT3xx

Smart Current Transformer

CT3xx

Smart Current Transformer

  • Innovative One-to-Three Design
  • Self-Powered Operation
  • Superior Accuracy with Up to 3.3kHz Frequency
  • Non-invasive Installation

Specifications

Electrical Measurement
Detection ParameterRMS Voltage and Current
Power Factor
Active, Reactive, Apparent Power
Active (Imported or Exported), Reactive (Imported or Exported), Apparent Energy
Voltage Three-Phase Unbalance
Voltage Total Harmonic Distortion (THDv)
Current Total Harmonic Distortion (THDi)
Sampling Frequency6 - 8 kHz
Working Frequency50 - 60 Hz
AccuracyActive Energy: ±1% (according to IEC 62053-21)
Reactive Energy: ±2% (according to IEC 62053-23)
Temperature
Sensor TypeExternal NTC Sensor
Measuring range-20°C ~ 100°C
Measuring accuracy±1 %
Voltage Interface
Circuit Configuration• Three-phase: phases L1 to L3 with or without Neutral
• Single-phase: phases L with Neutral
• Mixed Three-phase and Single-phase
Measuring Range100 - 500V AC
Measuring accuracy±1 %
Maximum Voltage (N-L)290 Vrms
Maximum Voltage (L-L)500 Vrms
Wire ConnectionAWG 26 - 12
Current Interface
Range100 - 4000A
Interface TypeRJ11
Port12 × Current Channels
Wireless Transmission
ProtocolLoRaWAN®
Antenna Connector1 × 50 Ω SMB - Female External Connector
FrequencyCN470/IN865/RU864/EU868/US915/AU915/KR920/AS923-1&2&3&4
Tx Power16 dBm (868 MHz)/20 dBm (915 MHz)/19 dBm (470 MHz)
Sensitivity-137dBm
ModeOTAA/ABP Class C
Others
LED Indicator1 × Status/Alarm Indicator
Button1 × Reset Button
USB1 × USB Type-C for Cable Temperature Sensor Connection
Software
ConfigurationMobile App via Bluetooth
Advanced FeatureData Storage (20, 000 entries, 2,000 alarms), Data Analysis (12 months of energy statistics), Threshold Alarm, Out-of-Range alarm, Power Failure Alarm
Physical Characteristics
Power Supply12 V DC (±10 %)
Insulation Voltage4kVac(r.m.s)(1mA/1min)
Intrinsic ConsumptionMax. 5.8W
Pollution Degree2
Overvoltage CategoryⅢ
Maximum Altitude2000 m
Operating Temperature-20°C~70°C (-4°F~158°F)
Relative Humidity≤ 95% (Non-condensing)
Ingress ProtectionIP30
Housing&ColorABS+PC (UL94 V0), Starlight Grey
Dimensions49.3 × 98 × 90 mm (1.94 × 3.86 × 3.54 in)
Weight163g
InstallationDIN 35 Rail Mounting, Magnetic Mounting (Optional)
Approvals
RegulatoryETL Listed (UL/CSA 61010-1, UL/CSA 61010-2-030),
CE (RED&LVD), FCC, SRRC
EnvironmentalRoHS

MN1605 Magnetic Nut

Customizable

  • Size:16(D) * 15(H)mm
  • Applicable Products:TS301/TS302/TS201/TS201-TH/TS602/CTH01

    LoRaWAN® Magnetic Antenna

    Optional

    • Frequency Range:470 MHz
    • Gain:2 dBi
    • Connector Type:SMA-J
    • Height:185.35 mm
    • Color:Black
    • Cable Length:1.5m
    • Applicable Products:CT101/CT103/CT105/CT303/CT305/CT310/CTH01

      LoRaWAN® Magnetic Antenna

      Optional

      • Frequency Range:860-930 MHz
      • Gain:≤1dBi
      • Connector Type:SMA-J
      • Height:111 mm
      • Color:Black
      • Cable Length:1.5m
      • Applicable Products:CT101/CT103/CT105/CT303/CT305/CT310/CTH01

        NS102585-105-11 USB-C Negative Temperature Coefficient Sensor

        Optional

        • Maximum Temperature Range:105℃
        • Resistance (25°C):10kΩ ± 1%
        • B-Constant (25/85°C):2585K ± 1%
        • Cable Length:1m
        • Applicable Products:WT102/CT101/CT103/CT105/CT303/CT305/CT310/CTH01

          Documents

          CTH01 Datasheet CTH01 User Guide Payload Decoder
