ToF Laser Distance Sensor
Highly Specialized, Reliable and Durable
Highly Specialized, Reliable and Durable
EM400-TLD is a highly specialized product among the EM400 Series, which is designed for small & mini trash bins, boasts a range of powerful features, including the ability to detect overflowing garbage, the status of the garbage bin lid, and trash combustion. With pre-set modes that save users from configuration, EM400-TLD is the ideal solution for smart waste management, providing a long-lasting performance that customers can rely on. Additionally, its availability in both LoRaWAN and NB-loT versions allows for a varietv of application scenarios.Explore Distance/Level Sensors
Flexible and Broad Applications
EM400-TLD employs time-of-flight (ToF) to detect and measure the distance to objects, ensuring almost no blind spots and a stable performance. Leveraging ToF technology, EM400-TLD can effectively monitor the fill level of small & mini trash bin with high accuracy and alert users to empty trash in time.

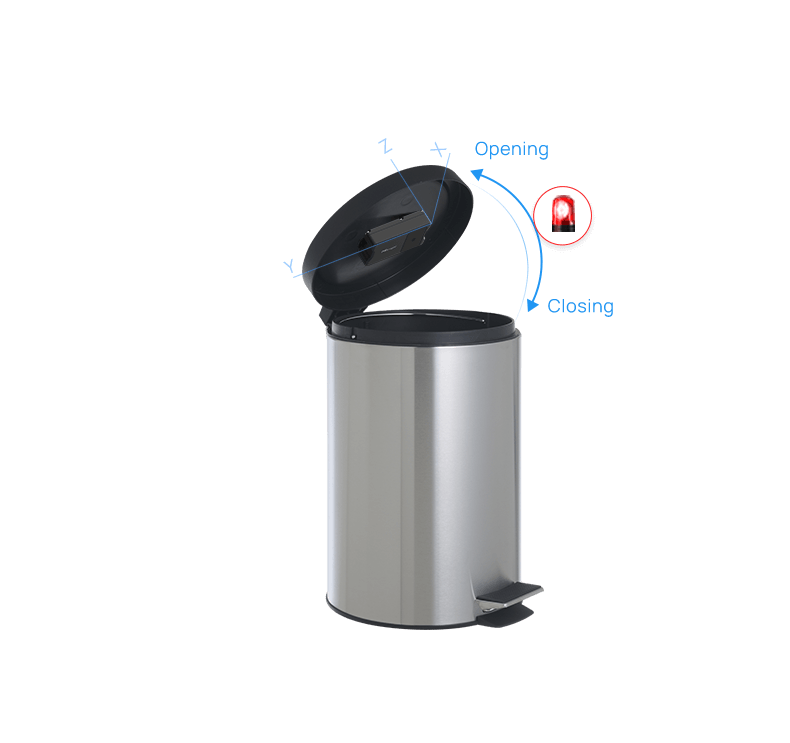

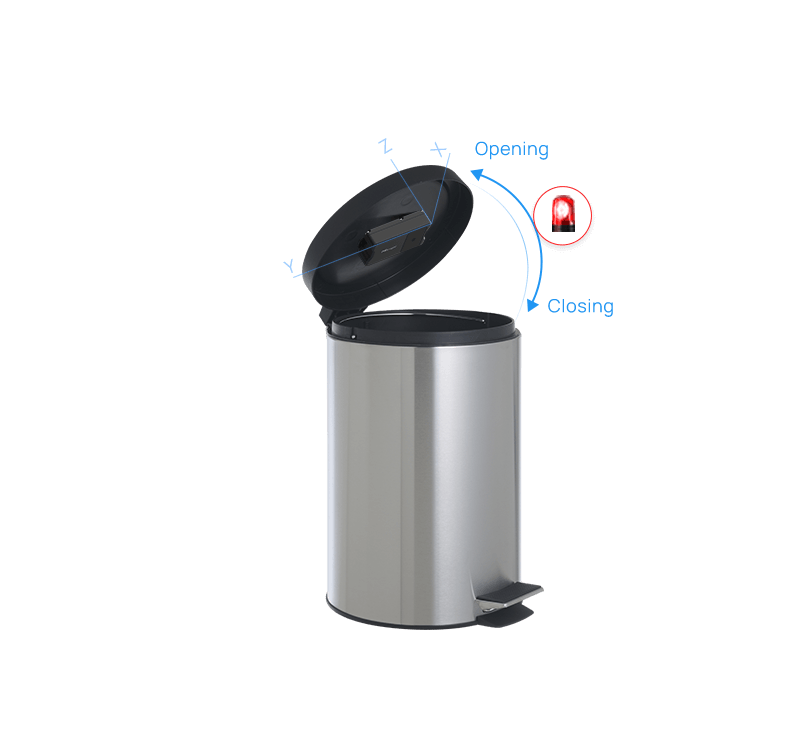

The EM400-TLD is equipped with a built-in 3-axis accelerometer to detect the device position, which can be used to monitor the opening and closing of the trash bin lid.

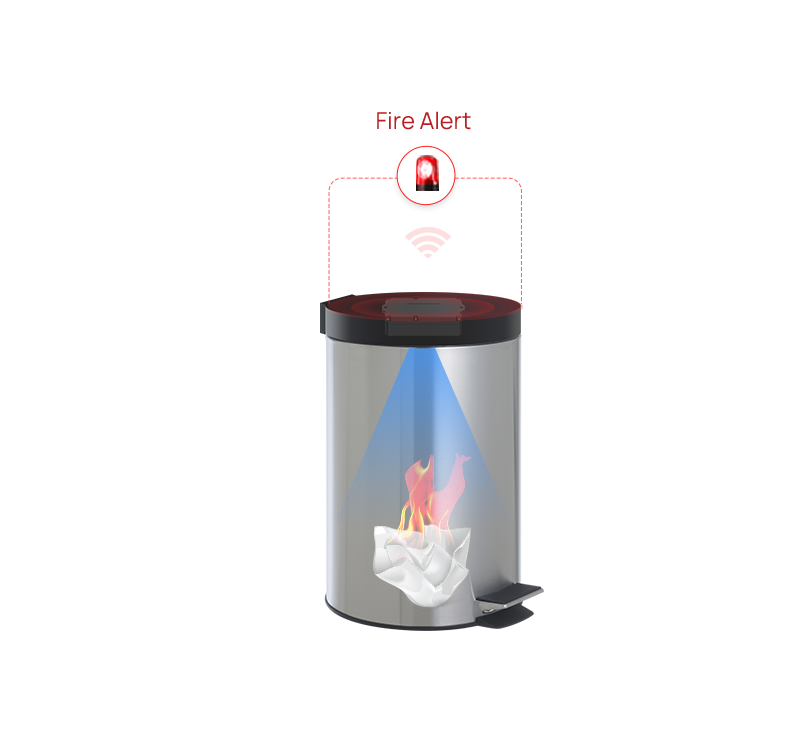

With built-in NTC thermistor, EM400-TLD can monitor the temperature inside the garbage bin and send alert in time if combustion occurs.

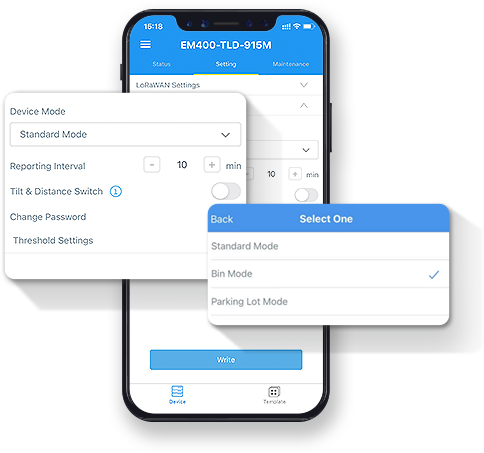

EM400-TLD comes equipped with two pre-set modes, namely the Standard mode and Bin mode, each designed to cater to the common requirements of distance measurement and waste bin monitoring applications. These modes are configured with different data collection and report intervals to ensure optimal performance. With these ready-to-use modes available, users can integrate EM400-TLD into monitoring solutions quickly.

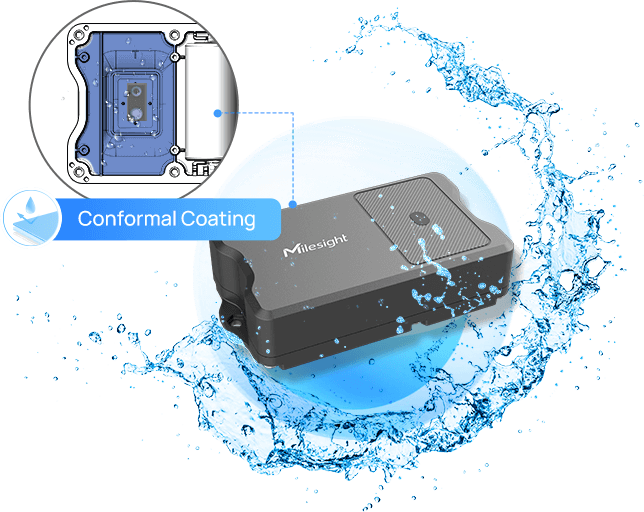

IP67 rated enclosure ensures EM400-TLD is protected against dust, water, and other environmental hazards, enabling it to withstand harsh environment. EM400-TLD also features a conformal coating on its PCBA, which provides an extra layer of protection against moisture, dust, and other contaminants that can damage electronic components. These two features extend the lifespan of the EM400-TLD and ensure that it continues to function reliably in harsh conditions.
EM400-TLD is equipped with high-capacity and easily-replaceable batteries. This facilitates the installation and maintenance process and reduces wiring costs. The conditions of battery life are specified below:
Standard mode: Over 10 years (10-min interval, 25°C)
Bin mode: Over 10 years (20-min interval, 25°C)
TCP/UDP—10 years, MQTT/AWS—5 years (4 times report per day, each report includes 12 packages with 30-min collection interval, 25°C)
Switching On/Off & Configuring the Devices Wirelessly
Enable NFC and run ToolBox,
then attach your phone to the device
Verify the password
and start configuring
|Tx Power||16 dBm (868 MHz)/20 dBm (915MHz)/19 dBm (470MHz)|
|Mode||OTAA/ABP Class A|
|NB-IoT/Cat M Version|
|Cellular Band||Cat M1: B1/B2/B3/B4/B5/B8/B12/B13/B18/B19/B20/B25/B26/B27/B28/B66/B85|
|SIM Slot||1 (Micro SIM-3FF)|
|Application Mode||TCP/UDP/MQTT/AWS/Milesight IoT Cloud1|
|Detection Range||2 ~ 350 cm|
|Detection Accuracy||±2 cm|
|Detection Resolution||1 mm|
|Range||-40 ~ 125°C|
|GNSS Positioning (NB-IoT/Cat M Version Only)|
|Power On & Off||NFC, Power Button (Internal)|
|Configuration||Mobile App (via NFC)|
|Power Supply||2 x 9000 mAh ER26500 Li-SOCL2 Batteries|
|Battery Life2||LoRaWAN® Version:|
Standard mode: Around 10 years (10 min interval, 25°C)
Bin mode: Around 10 years (20 min interval, 25°C)
TCP/UDP—Around 10 Years, MQTT/AWS—Around 5 Years
(4 Times Report per Day, per Report Includes 12 Packages with 30-min Collection Interval, 25°C)3
|Operating Temperature||- 30°C ~ 70°C|
|Relative Humidity||≤95% (non-condensing)|
|Dimension||118 × 65 × 30 mm|
|Material & Color||ABS + PC (Flame Retardant), Black gray|
|Installation||On the Flat Surfaces with Screws|
1 Milesight IoT Cloud mode is under development.
2 Tested under laboratory conditions and for guideline purposes only.
3 PSM is required for SIM card and will be impacted by cellular base station signals.
