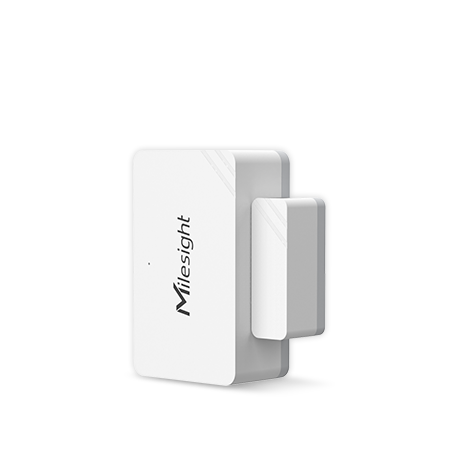

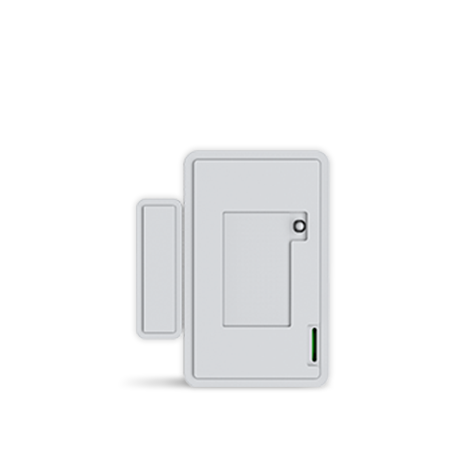

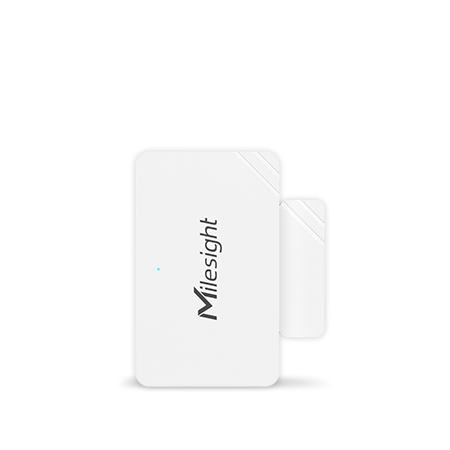

Magnetic Contact Switch
Safeguard Your Space with Ease
CoWork Series
WS301
- Safeguard Against Unexpected Entry
- Wire-Free and Effortless Installation
- Long-Lasting Battery Life of 4-7 Years
- Simplified NFC-Based Configuration
- FEATURES
- MODELS
- DOWNLOAD
- Home
- IoT LoRaWAN® Series
- WS301
Trusted Sentinel for Every Door and Window
WS301 offers dependable security monitoring for doors and windows by detecting opening and closing events, effectively alerting against intrusion or unauthorized entry.

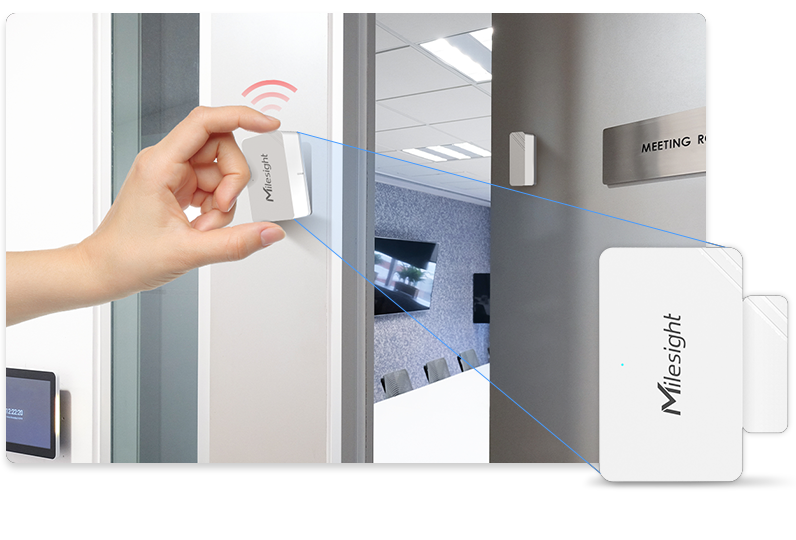

Uncompromising Security
with Tamper Detection
With its advanced tamper detection functionality, the WS301 promptly alerts administrators to any attempts to dismount the device, ensuring enhanced security.
Stay Powered Up for Longer
WS301 offers over 4 years of service life without the need for battery replacement.
Maximize Convenience with Minimal Size
WS301 is a compact and versatile device that can be effortlessly installed on a wide range of doors and windows, providing unparalleled convenience.
Smart Restroom Solution
To make it right and easy, Milesight Smart Restroom Solution provides IoT insights into the status of cleanliness and hygiene.
Get More DetailsLoRaWAN® Based
- Penetrating Signals: data transmission range up to 2 km in urban areas and
15 km in rural areas - High Compatibility: compliant with standard LoRaWAN® gateways and network servers
Milesight D2D Communication
Milesight D2D (Device to Device) communication protocol featuring LoRa® enables communication among different Milesight LoRaWAN® node devices without a LoRaWAN® gateway.
Lower Latency
Secure
Transmission
Reduce
Investment Cost
Controller
Milesight D2D
Agent

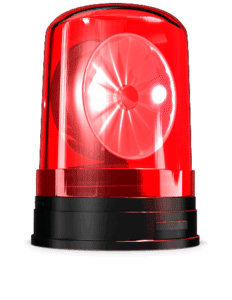

Alarm Bulb
Cloud Data Management
Milesight IoT Cloud
- Data Visualization Dashboard:
All figures in a glance - Automatic Triggers:
Interactive collaboration with Milesight IoT sensors
to realize scene-based automation - Regular Reports & Real-Time Alerts:
Data-based insights - Android & iOS App:
Manage devices at your fingertips
NFC Configuration
Switching On/Off & Configuring the Devices Wirelessly
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring
Installation
Double-Sided Tape Mounting

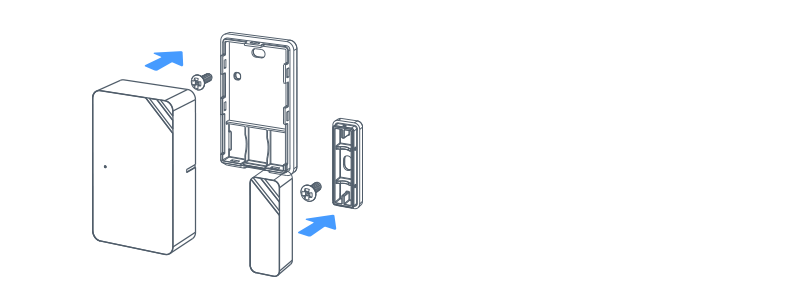

Screw Mounting

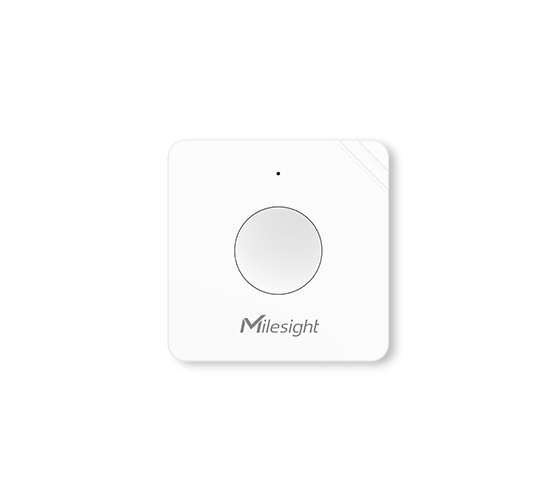

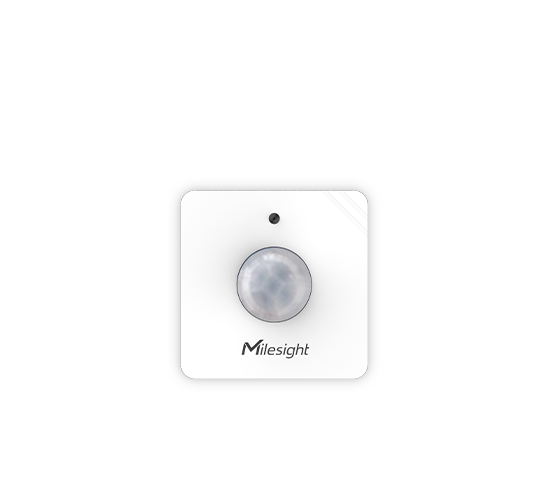

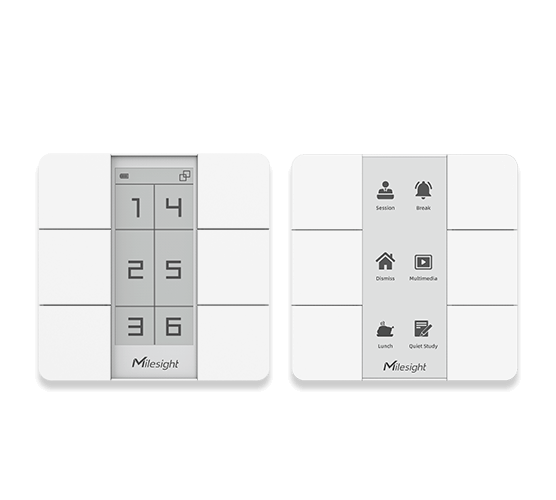

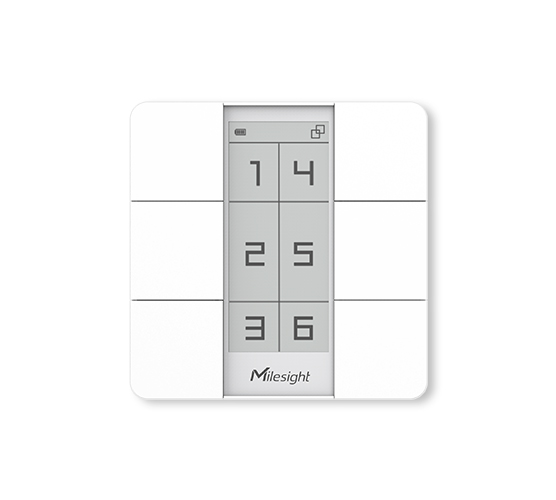

Related Products
Specifications
- WS301
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN® , Milesight D2D |
| Antenna | Internal Antenna |
| Frequency | CN470/IN865/RU864/EU868/US915/AU915/KR920/AS923 |
| Tx Power | 16 dBm (868 MHz)/22 dBm (915 MHz)/19 dBm (470 MHz) |
| Sensitivity | -137 dBm @300bps |
| Mode | OTAA/ABP Class A |
| Measurement | |
| Detection Distance | 10-15 mm |
| Others | |
| Button | 1 × Reset Button (Internal), 1 × Tampering Button |
| LED Indicator | 1 × Status/Alarm Indicator |
| Software | |
| Configuration | NFC Configuration via Mobile App |
| Advanced Feature | Milesight D2D Controller, Tamper Alarm, Open/Close Status Alarm |
| Physical Characteristics | |
| Power Supply | 1 × 1200 mAh ER14250 Li-SOCl2 Battery |
| Battery Life* (1080 min interval + 30 triggers per day, 25°C) | Around 6.8 Years (SF7, EU868) Around 4.2 Years (SF10, EU868) Around 6.8 Years (SF7, US915) Around 3.5 Years (SF10, US915) |
| Operating Temperature | -20°C to +60°C |
| Relative Humidity | ≤90% (non-condensing) |
| Ingress Protection | IP20 |
| Color | White |
| Weight | Sensor: 27.9g (Battery Included) Magnet: 4.1g |
| Dimension | Sensor: 50.5 × 31 × 18.5 mm (1.99 × 1.22 × 0.73 in) Magnet: 30 × 13.5 × 10 mm (1.18 × 0.53 × 0.39 in) |
| Installation | On the flat surfaces with screws or 3M tapes |
| Approvals | |
| Regulatory | CE, FCC, Telec, LoRaWAN® Certified, ISED |
| Environmental | RoHS |
* Tested under laboratory conditions and for guideline purposes only.
