Smart Thermostat
Energy-Efficient Thermostat for A Greener & Comfort Future
WT201
- Seamlessly Matching HVAC System
- LoRaWAN® Wireless Deployment
- Strong Compatible Connectivity (BACnet and More)
- 4 Customizable Temperature Control and 3 Fan Modes
- Proactive Temperature Management
- 64 Independent Local Scheduling
- Unique Milesight D2D & Multicast
- Easy Configuration via NFC
- FEATURES
- MODELS
- DOWNLOAD
Seamlessly HVAC Systems Matching
With multiple wiring terminals available, the Smart Thermostat can support up to 4 stages of heating, 2 stages of cooling, and an emergency heating option. It is meticulously engineered to seamlessly integrate with a wide variety of HVAC systems, such as heat pumps, PTAC units, air conditioner, boilers, and furnaces.
Energy Efficient Facility Management

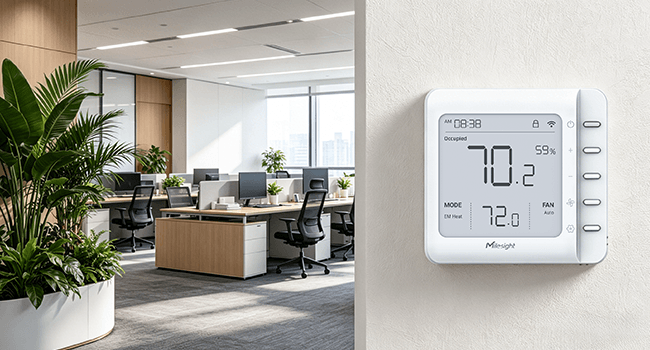

- Temperature Control Mode
- Fan Mode
- Local Scheduling
- Temperature Alert
- Hotel System Compatibility
- Freeze Protection
LoRaWAN® Wireless Deployment
Compared to commonly used wireless technologies like Wi-Fi, Bluetooth, or Zigbee, the LoRaWAN® based Wireless thermostat offers a compelling performance for HVAC control. It excels in terms of long-range coverage, stable connections, low power consumption, and robust security, making it the preferred choice for critical and flexible applications in large-scale deployments.
Strong Connectivity
By incorporating LoRaWAN® gateways and harnessing the power of Milesight IoT Cloud and third party platforms using various communication protocols that encompasses MQTT(s), HTTP, and BACnet, the Smart Thermostat brings advanced performance to energy-efficient HVAC management, remote control, and data-driven management optimizations.
Reliable Data Management
Strong Store Capacity
Maximum 1000 records can be stored in the thermostat and cannot be manually deleted, further securing the traceability of the reported information and integrated management.
Reliable Data Retransmission
With support for data retransmission, the device guarantees that the server gets all the data even if the network is down occasionally.
Unique Control Performance

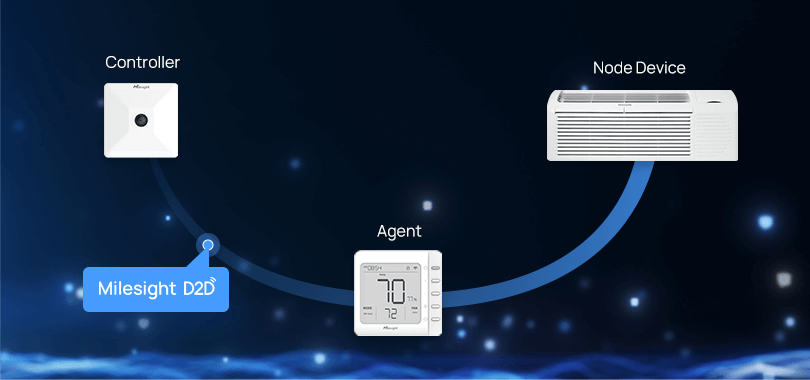

Milesight D2D
The exclusive Milesight LoRa®-based protocol enables easy communication between the smart thermostat and other Milesight LoRaWAN® devices without a gateway within a second. Additionally, the thermostat incorporates intelligent occupancy sensing capabilities to establish fast linkages and efficiently control the HVAC system.

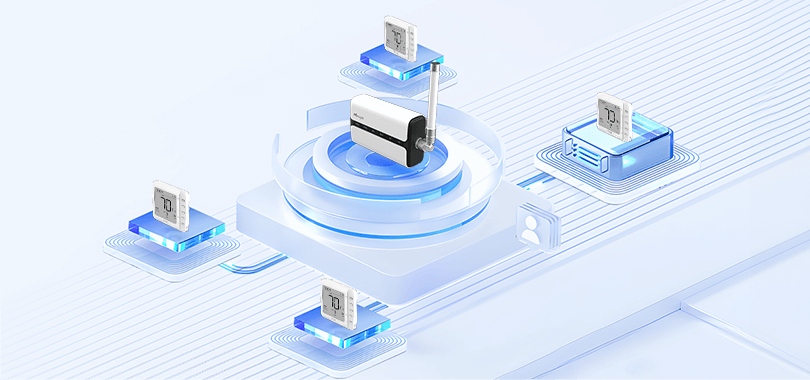

Powerful Multicast
The multicast feature empowers thermostat to support the grouping of up to 4 devices, allowing users to control them collectively. Activating or deactivating corresponding devices in bulk has never been easier.
User-Friendly Structure Design
Typical Application
The cutting-edge thermostat is designed to cater to a wide range of applications to address diverse needs, being the perfect choice when there is any need for a wireless house thermostat, hotel thermostat, commercial thermostat, hospital thermostat, or building thermostat.
House
Hotel
Shopping Center
Hospital
Building
Easy Configuration
Switching on/off and configuring the device via NFC technology from a mobile phone or PC
1st Step
Install the
Milesight ToolBox
2nd Step
Enable NFC and run ToolBox,
then attach your phone to the device
3rd Step
Verify the password
and start configuring

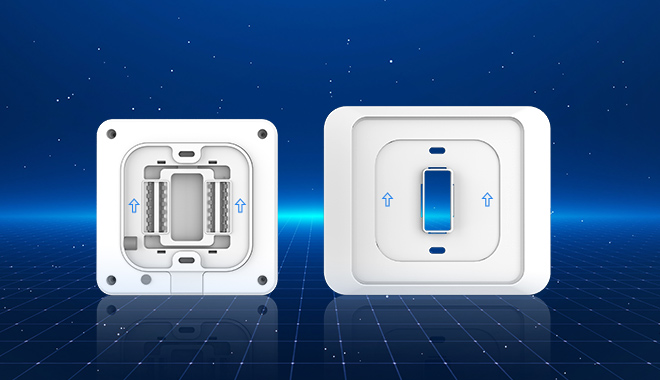

Installation Guide
Wall Mounting
Specifications
- WT201
| Wireless Transmission | |
|---|---|
| Technology | LoRaWAN®, Milesight D2D |
| Frequency | US915/AU915/KR920/AS923-1&2&3&4 |
| Tx Power | 22 dBm (915 MHz) |
| Sensitivity | -137dBm |
| Mode | OTAA/ABP Class C |
| Thermostat Feature | |
| Compatibility | Work with most 24VAC HVAC system, including Furnaces and Air Conditioners (2H/2C), Heat Pumps (4H/2C + 1 stage AUX Heat), Boilers, and PTAC |
| Temperature Control Mode Options | Heat, EM (Emergency) Heat, Cool, Auto |
| Fan Mode Options | Auto, On, Circulate |
| Digital Input | 1 × Digital Input for 100-250 VAC keycard switch |
| Advanced Feature | Local Control Schedule, Threshold Alarm, ,Freeze Protection, Child Lock, Multicast, Milesight D2D Controller, Milesight D2D Agent, Data Storage, Data Retransmission |
| Temperature Sensor | |
| Sensor Type | NTC |
| Range | -4°F to 140°F (-20°C to 60°C) |
| Accuracy | ± 0.9°F (32°F ~ 104°F)/± 0.5°C (0°C ~ 40°C) |
| Report Resolution | 0.1 °F (0.1°C) |
| Display & Configuration | |

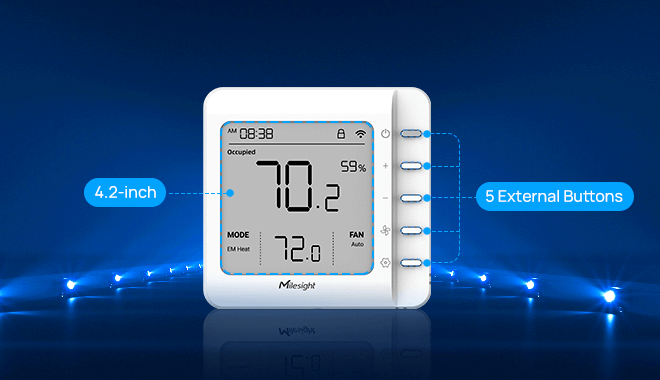

| Display | 4.2-inch LCD Segment Code Screen with White Backlight |
| External Buttons | 5 Buttons for System On/Off, Temperature Up/Down, Temperature Control Mode Switch, Fan Mode Switch and Reset |
| Configuration | NFC or Type-C USB |
| Physical Characteristics | |
| Power Supply | 20 to 30 VAC, 24VAC Nominal |
| Operating Temperature | -4°F to 140°F (-20°C to 60°C) |
| Relative Humidity | 0% to 95% (non-condensing) |
| Ingress Protection | IP30 |
| Material & Color | PC + ABS (V0 Retardant), White |
| Weight | 172 g |
| Dimension | 113 × 110 × 21 mm ( 4.45 × 4.33 × 0.83 in) |
| Installation | Wall Screws Mounting |
