4K H.265 Mini NVR Series

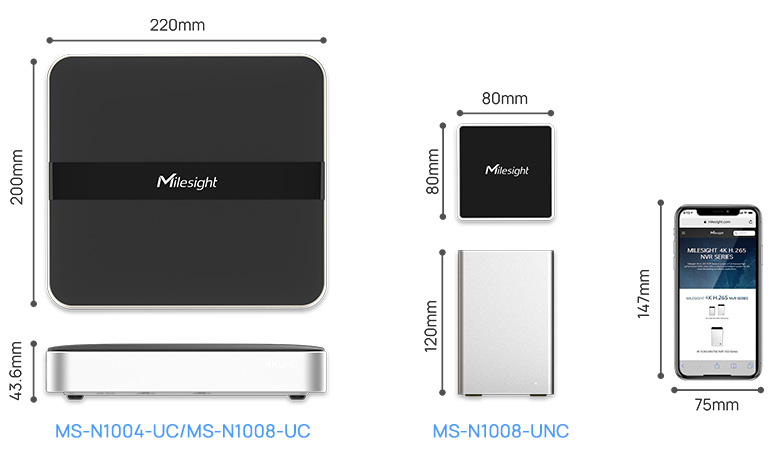

9 Channels With Ultra-mini Size

10TB Storage · 4K Ultra HD · Dual Stream · HDMI · ONVIF · Ultra-mini Size · Fisheye Mode Compatibility

Mini NVR
Mini NVR
Mini NVR
Mini NVR
FEATURES MODELS DOWNLOAD
  • Input

    Network Video Input

    Bandwidth Requirement

    9-CH

    90Mbps (Incoming)

    90Mbps (Outgoing)

    Output

    HDMI Output

    Dual Stream

    Recording Resolution

    Synchronous Playback

    1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    Support

    8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF

    2*(30fps@8MP), 2*(30fps@6MP), 3*(20fps@5MP), 4*(20fps@4MP), 5*(30fps@3MP), 8*(30fps@1080P), 9*(30fps@720P)

    Format

    Video Compression

    Audio Format

    H.265+/H.265(HEVC)/H.264+/H.264

    G.711/AAC

    Storage

    SATA

    Capacity

    2*SATA HDD (2.5”)

    Up to 2TB capacity for each HDD

    Record

    Synchronous Recording

    Recording Type

    Snapshot

    Playback

    Backup

    9*5MP

    Manual Recording, Timing Recording, Motion Detection Recording

    Manual Snapshot

    Video Playback, Image Playback

    Video Backup, Image Backup

    Network

    Network Protocols

    IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface

    USB Interface

    1*RJ45 100M/1000M

    2*USB 2.0

    General

    Compatibility

    Power Supply

    Consumption

    Working Conditions

    Dimensions

    Weight

    Warranty

    ONVIF

    DC 12V 1.5A

    ≤6W(Without HDD)

    Temperature: -10℃∼+55℃ Humidity: 10%∼90%

    80mm(W)X80mm(D)X120mm(H)

    0.85Kg

    3/5 Years

  • Input

    Network Video Input

    Bandwidth Requirement

    9-CH

    90Mbps (Incoming)

    90Mbps (Outgoing)

    Output

    HDMI Output

    Dual Stream

    Recording Resolution

    Synchronous Playback

    1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output)

    Support

    8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF

    2*(30fps@8MP), 2*(30fps@6MP), 3*(20fps@5MP), 4*(20fps@4MP), 5*(30fps@3MP), 8*(30fps@1080P), 9*(30fps@720P)

    Format

    Video Compression

    Audio Format

    H.265+/H.265(HEVC)/H.264+/H.264

    G.711/AAC

    Storage

    SATA

    Capacity

    1*SATA HDD (3.5”)

    Up to 10TB capacity for each HDD

    Record

    Synchronous Recording

    Recording Type

    Snapshot

    Playback

    Backup

    9*5MP

    Manual Recording, Timing Recording, Motion Detection Recording

    Manual Snapshot

    Video Playback, Image Playback

    Video Backup, Image Backup

    Network

    Network Protocols

    IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS

    Interface

    Network Interface

    USB Interface

    1*RJ45 100M/1000M

    2*USB 2.0

    General

    Compatibility

    Power Supply

    Consumption

    Working Conditions

    Dimensions

    Weight

    Warranty

    ONVIF

    DC 12V 2A

    ≤5W(Without HDD)

    Temperature: -10℃∼+55℃ Humidity: 10%∼90%

    115mm(W)X115mm(D)X180mm(H)

    1.1Kg

    3/5 Years

  • * Naming Convention

      U - 4K

      T/H - H.265 Compression
