4K H.265 Pro NVR 5000 Series
8/16-CH NVR with 4K UHD Performance
Stunning Reliability, Perfect for Your Project
- 8/16-CH Network Video lnput
- AI VCA Management
- 4K Decoding Capabilities
- 2*10TB Storage & NAS
- ANPR Management
- POS Integration
- ANR
- Versatile Interfaces
- FEATURES
- MODELS
- DOWNLOAD
- Home
- Network Video Recorder
- Pro NVR 5000 Series
AI VCA Management
Defined as the central management site to manage intelligent VCA, People Counting, it supports alarm and statistic to deliver prompt insight, helping improve video surveillance efficiency.
Enterprise ANPR Management
Seamlessly integrated with ANPR camera, the NVR manages massive traffic data and excels in diverse traffic management scenarios. It serves as a centralized site, providing real-time license plate previews, intelligent analysis, and comprehensive settings for enhanced functionality and control.
POS Integration
The combination of retail transaction data with surveillance videos makes it easy to check goods settlement, miscalculation and missing calculation, which is helpful to boost customer service and in-store competitive advantage.
Dual Stream Recording
Supporting Primary Stream and Secondary Stream recording simultaneously, Dual Stream Recording makes it possible for you to freely choose the desired streaming based on the bandwidth available.
UHD Video Display
Equipped with solid 4K decoding and display capabilities, Milesight 4K H.265 Pro NVR 5000 Series can synchronously decode up to 3-CH 4K UHD and 12-CH 1080P with the finest details to guarantee real-time video monitoring.
HTML5 H.265 Streaming
The preview of the multi-channel videos via all major browsers without downloading extra plug-in is realized when Video Codec is set to H.265, making it easy for users to access the NVRs.
Flexible Storage Options
Flexible storage options including HDD and NAS offer you unparalleled versatility to address the needs for versatile storage and meet the diverse storage needs of projects of any scale.
ANR
ANR can store video data on the camera storage card when network between IPC and NVR is disconnected and retransfer the recorded video to NVR after network recovers.
Easy-to-use Design
Featuring a range of functions including Easy Playback, Easy Backup, File Management and Easy Configuration, Milesight's NVR is made to lower the learning costs no matter for a newcomer or trained expert.

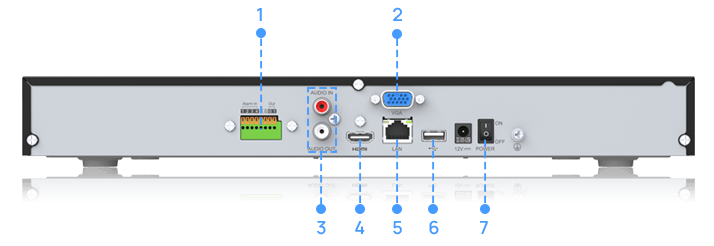

Versatile Interfaces
Milesight 4K H.265 Pro NVR 5000 Series comes with a whole array of ports such as an HDMI port, a VGA port, Alarm I/O, Audio I/O and a LAN port, etc. The full set of interfaces provides all necessary features for effective surveillance.
- 1. Alarm I/O
- 2. VGA
- 3. Audio I/O
- 4. HDMI
- 5. Ethernet Port
- 6. USB
- 7. Power
Specifications
Non-NDAA
- MS-N5008-UC
NDAA
- MS-N5008-E
- MS-N5016-E
- MS-N5016-NE
| Input | |
|---|---|
| Network Video Input | 8-CH |
| Bandwidth Requirement | 80Mbps (Incoming)80Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 1*(30fps@6MP), 1*(30fps@5MP), 2*(30fps @4MP), 2*(30fps @3MP), 4*(30fps@1080P), 8*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 50Hz∼60Hz |
| Consumption | ≤3W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 1.9Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 8-CH |
| Bandwidth Requirement | 80Mbps (Incoming)50Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP), 4*(30fps @3MP), 6*(30fps @1080P), 8*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Compression | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | N/A |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 50Hz∼60Hz |
| Consumption | ≤3W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 1.9Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 16-CH |
| Bandwidth Requirement | 80Mbps (Incoming)50Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. (HDMI supports Audio Output) |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz. |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 1*(30fps @8MP), 2*(30fps @6MP), 2*(30fps @5MP), 3*(30fps @4MP), 4*(30fps @3MP), 6*(30fps @1080P), 12*(30fps @720P) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 50Hz∼60Hz |
| Consumption | ≤4W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 1.9Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
| Input | |
|---|---|
| Network Video Input | 16-CH |
| Bandwidth Requirement | 160Mbps (Incoming), 160Mbps (Outgoing) |
| Output | |
| HDMI Output | 1-CH, Resolution: 3840x2160/30Hz, 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI Supports Audio Output |
| VGA Output | 1-CH, Resolution: 1920x1080/60Hz, 1920x1080/50Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz |
| Dual Stream | Support |
| Recording Resolution | 8MP/6MP/5MP/4MP/3MP/1080P/ UXGA/720P/D1/VGA/CIF/QCIF |
| Synchronous Playback | 3*(30fps @8MP), 4*(30fps @6MP),4*(30fps @5MP), 5*(30fps @4MP),8*(30fps @3MP), 12*(30fps @1080P),16*(30fps @720P),16*(30fps @D1) |
| Format | |
| Video Compression | H.265+/H.265(HEVC)/H.264+/H.264 |
| Audio Format | G.711/AAC/G.722/G.726 |
| Sample Rate | 8KHz/16KHz |
| Storage | |
| SATA | 2*SATA HDD (3.5”) |
| Capacity | Up to 10TB capacity for each HDD |
| Record | |
| Recording Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Snapshot Type | Continuous, Event (Motion Detection, Alarm, VCA, Smart Analysis) |
| Playback Type | General Playback, Event Playback, Tag Playback, Split Playback, Picture Playback |
| Backup | Video backup, Image Backup |
| Network | |
| Network Protocols | IPv4/IPv6, TCP, UDP, RTP, RTSP, RTCP, HTTP, HTTPS, DNS, DDNS, DHCP, NTP, SNTP, SMTP, SNMP, UPnP, NFS |
| Interface | |
| Network Interface | 1*RJ45 10/100/1000Mbps |
| USB Interface | 2*USB 2.0 |
| Audio Input/Output | 1*RCA/1*RCA |
| Alarm Input/Output | 4-CH/1-CH |
| General | |
| Compatibility | ONVIF, API |
| Advanced Function | ANR |
| ANPR | Support |
| Video Analysis | Region Entrance, Region Exiting, Advanced Motion Detection, Tamper Detection, Line Crossing, Loitering, Human Detection, People Counting |
| Keyboard Control | Milesight Keyboard(MS-K01) |
| Power Supply | DC 12V 50Hz∼60Hz |
| Consumption | ≤4W(Without HDD) |
| Working Conditions | Temperature: -10℃∼+55℃ / Humidity: 10%∼90% |
| Dimensions | 380mm(W)X317.6mm(D)X51.8mm(H), Rack Mountable Chassis(1.0U Standard) |
| Weight | 1.9Kg |
| Warranty | 3/5 Years |
* Naming Convention
U - 4K
H/G - H.265 Compression
